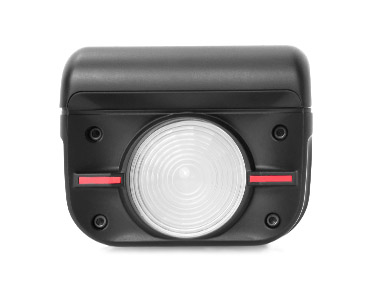

AL250

DiCon Lghting DenseMatrixLED

The AL250, Fiilex's first aerial lighting solution, redefines lighting control by mounting to any drone with a minimum payload capacity of at least 0.6lbs (270g). The intensity of this compact fixture matches a 200-watt tungsten bulb while drawing only 30 watts of power making it one of our most efficient fixtures yet. The AL250 features special fresnel optics designed to leverage Fiilex's Dense Matrix technology. These optics focus the flicker-free beam, more than doubling its center lux. The unit is powered by a rechargeable lithium-ion battery which attaches directly to its housing, allowing the light to operate independently for a duration of 25 minutes. Expand your lighting capabilities in exciting new ways with the Fiilex AL250.

Separator

FEATURES

  • Attaches to Drone via GoPro Mount
  • 200W Tungsten Equivalent Output - 30W Power Draw
  • Integrated Fresnel Optics
  • Power for 25 Minutes with Removable /
    Rechargeable Lithium-ion Battery
Separator

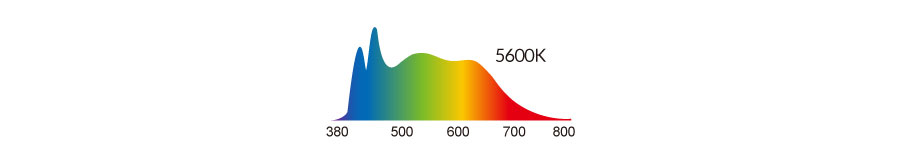

SPECTRAL DATA

CRI*
Measurement
R1R2R3 R4R5R6R7R8R9
5600K989998969796979585
CRI
Measurement
R10R11 R12R13R14R15 CRI**
Ra
CRI**
Extended
TLCI
Results
5600K949589979996979598

*Values in this table are typical.
**CRI Ra is the averaged result of R1 to R8, CRI Extended is the averaged value of R1 to R15.

Separator

SPECIFICATIONS

Size3.7" x 3" x 2" (L x W x H)
Weight (Include Yoke)0.6 lbs / 270 g
LEDDense Matrix LED
Thermal DesignFanless Cooling System
Beam Angle38°
CCT5600K
CRI≥93
Power Consumption30W
Input Voltage5V DC, 2A
Charger100 - 240V AC, 50-60Hz (In) / 5V DC, 2A (Out)
BatteryLi-ion Rechargeable Battery / 7.2V 2600mAh
Temperature Range32-104ºF / 0-40º C (Overheating Protection)
Mount StyleGoPro Mount

Separator

SHOWCASE

AL250 Overview

This video outlines the AL250's features, applications, and accessories. [02:10]Play

Lux Noctis

Using a Fiilex AL250 in tandem with the 3DR Solo drone and Phase One XF camera system, Reuben Wu has developed a method for selectively "painting" nocturnal landscapes with light via multiple exposures. [02:02]Play

NIGHT THIEF

Fiilex Presents "Night Thief" a short film produced for CES 2016. Shot entirely with Fiilex LED Lights. [02:02]Play

Behind-The-Scenes: Night Thief

[02:18]Play

Separator

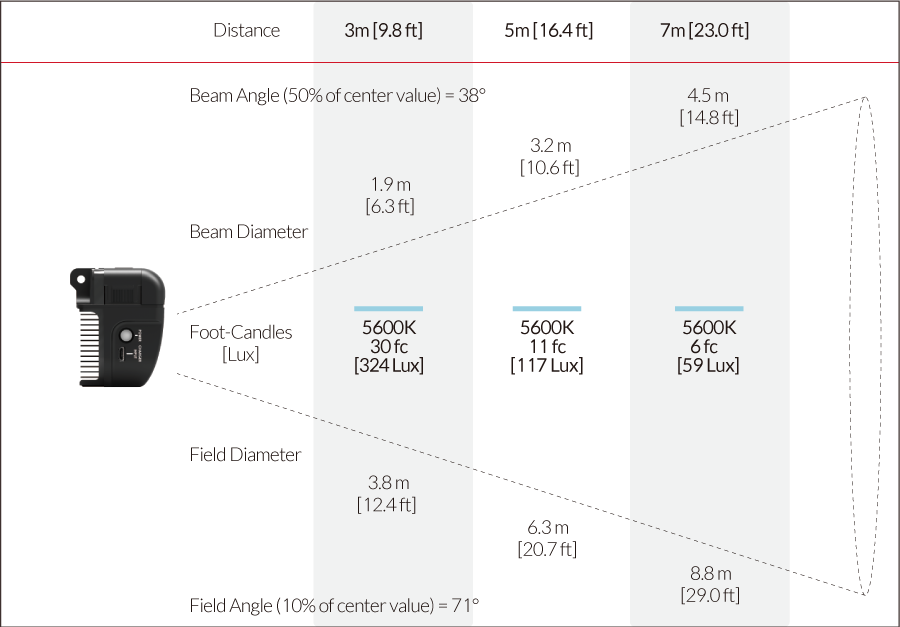

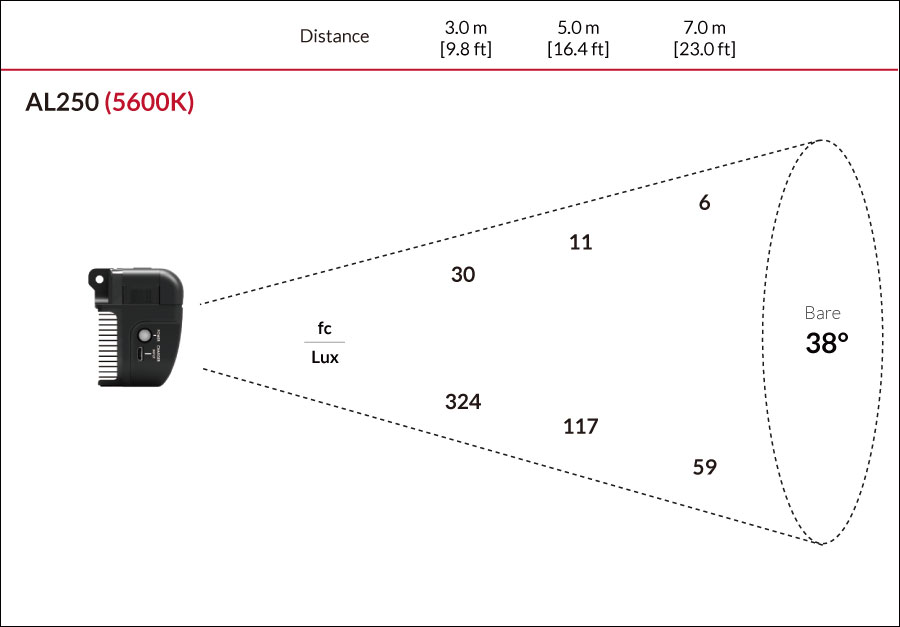

PHOTOMETRIC DATA

Fiilex AL250 Photometric figure

Separator

Items Included

(1) AL250

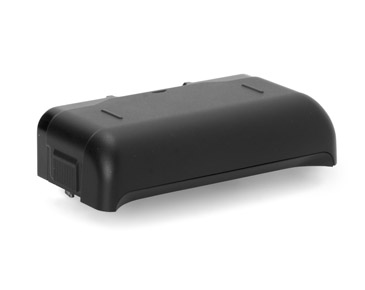

(1) Li-ion Battery

(1) Charger

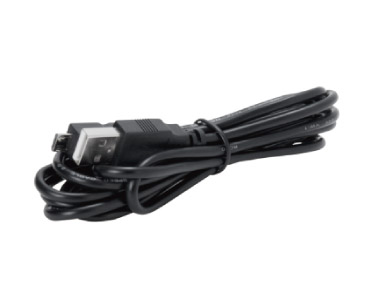

(1) USB Cable (Charger)

Separator

Compatible Accessories

Fiilex LED Accessory - AL250 Battery

AL250 Battery


Fiilex LED Accessory - AL250 Adhesive Mount

Adhesive Mount


Fiilex LED Accessory - AL250 Mount Plate Type I

Mount Plate Type I
