C360/C365 (P/N: FLXC360 & FLXC365)

C360 & C365

Compact LED Studio Light

  • Overview
  • Specifications & Downloads
  • Video & Gallery
  • Photometric & Spectral Data
  • Kits & Accessories

The C360 is the first Fiilex product designed specifically for use with standard pipe-clamps, making it perfect for small-to-medium studios that require a versatile, broadcast-quality lighting solution. Its design also includes an integrated power supply, greatly simplifying overhead cable management.

The C360s are compatible with a wide range of light-modifying accessories. Smaller magnetic attachments include diffusers, fresnels, honeycombs, and gel holders. The safety-minded design of the C-series includes integrated lockdown screws for available accessories.

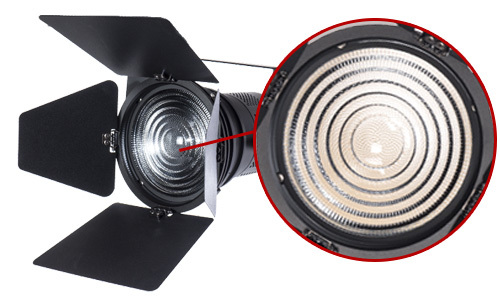

The C365 model features the 5" Zoom Fresnel, a powerful attachment that narrows the light's output, increasing intensity by 800% at full focus.

Each fixture is also RJ45 DMX512 compatible, allowing users to operate them remotely via the Fiilex DMX Controller or any standard DMX board.

In addition to being extremely low-profile, these 85W lights boast many of the same advanced control features of the Fiilex second generation P-Series, including wide-gamut color tuning, full dimming, and hue adjustment. At every setting these lights maintain excellent CRI (97 Typical).

FEATURES

  • DMX controllable (3-channels: intensity, CCT, hue)
  • Dims to 0% without flicker or color shift
  • 2800 - 6500K continuous CCT tuning
  • ±0.25 green adjustment
  • High CRI at every color temperature
  • 300W tungsten output, 85W power draw
  • Designed for use with standard pipe-clamps
  • Less than 12" of clearance required
  • Lightweight (less than 4.5lbs with AC power cable)
  • Integrated power supply
  • Compatible with light modifiers

Separator

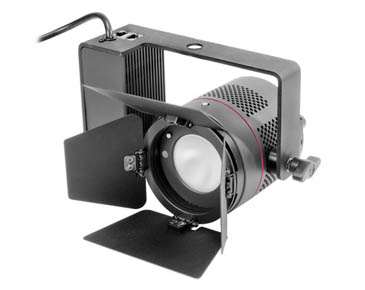

C360

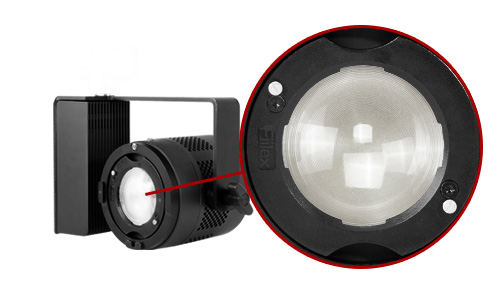

2" Fresnel Accessory Attachment

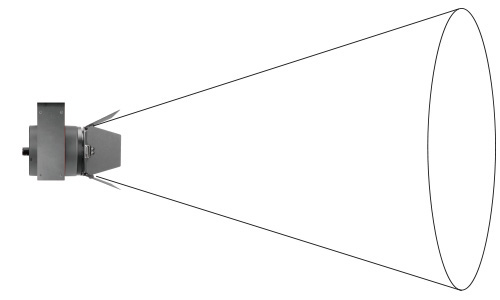

65° Native Beam Angle

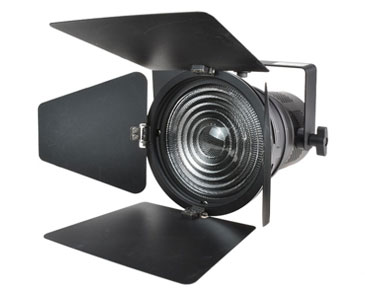

C365

5" Zoom Fresnel Lens

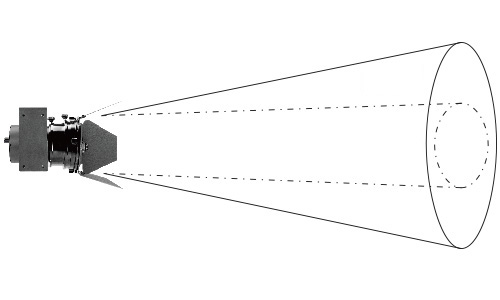

12° - 31° Beam Angle
Separator

ITEMS INCLUDED

(1) C360 Studio Light

or

(1) C365 Studio Light

SPECIFICATIONS

CCT Range2800 - 6500K Continuous Tuning
CRI 97 Typical.
Hue Control±0.25 Green
Dimming100% - 0% Flicker Free
Light EngineDense Matrix LED
Power Draw85W Max (300W Tungsten Equivalent)
AC Input120V AC, 60Hz
DMX Control3-CH (Intensity, CCT, Hue) via RJ45 Ports
Display TypeOLED
C-Clamp Diameter0.5" / 12.7mm
AC Cable LengthUS: 10ft / 3m, International: 4.5ft / 1.4m
Thermal DesignAdvanced Vapor Cooling System (Fan Cooled)
Acoustic Noise22.7dB (Professional Recording Studio Level)
Operating Temperature 32-104ºF / 0-40º C

  C360 C365
Fresnel Size N/A 5"
Beam Angle 65° (33° With 2" Fresnel) 12° - 31°
Weight 3.31lbs / 1.5kg (With AC Cable) 4.41lbs / 2.0kg (With AC Cable)
Size L 5.6" x W 8.2" x H 4.7" L 8.4" x W 8.2" x H 7.5"

Separator

DOWNLOADS

VIDEOS

Fiilex C360 Series Overview

Learn more about the features and capabilities of the C360 series lights with this informative video. [02:51]Play

RevZilla Video Team Raises the Bar with Fiilex C360 LEDs

After years of working primarily with hot lights, the RevZilla video team is beginning to make the transition to LED with Fiilex. [05:31]Play

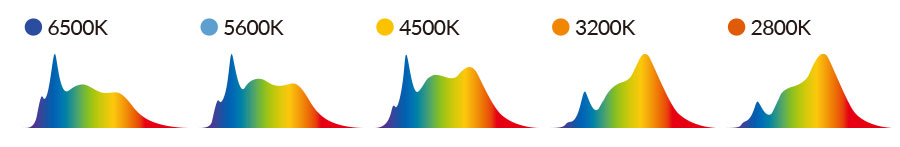

SPECTRAL DATA

Fillex C360 CIE1931 3000K 5600K
CRI
Measurement
R1R2R3 R4R5R6R7R8R9
3200K999995989898989794
5600K989998959697979689
6500K999998969798979796
CRI
Measurement
R10R11 R12R13R14R15 CRI
Ra
CRI
Extended
TLCI
Results
3200K949887999698989698
5600K959588989897979698
6500K979788989997979798
Separator

PHOTOMETRIC DATA

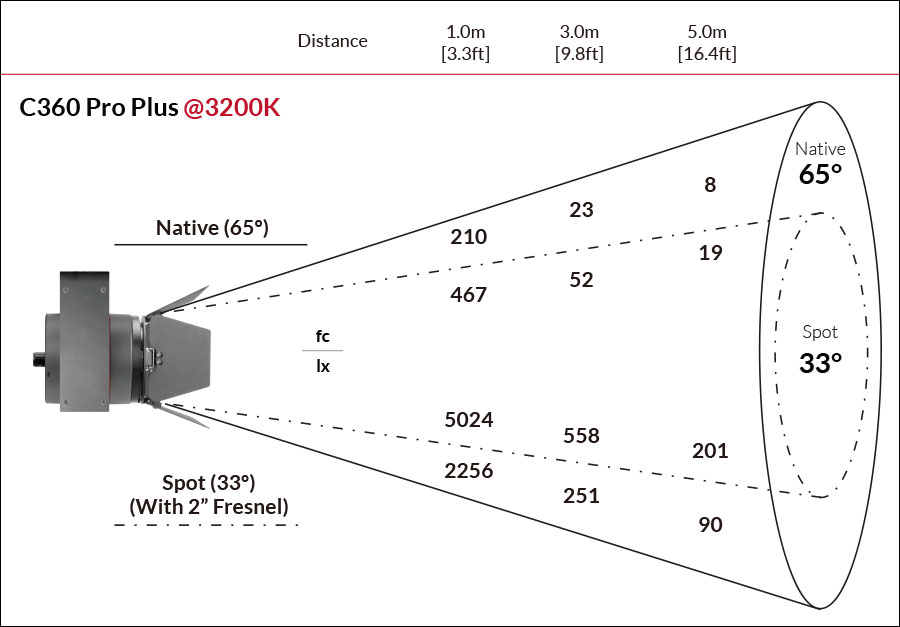

Fiilex C360 Photometric figure

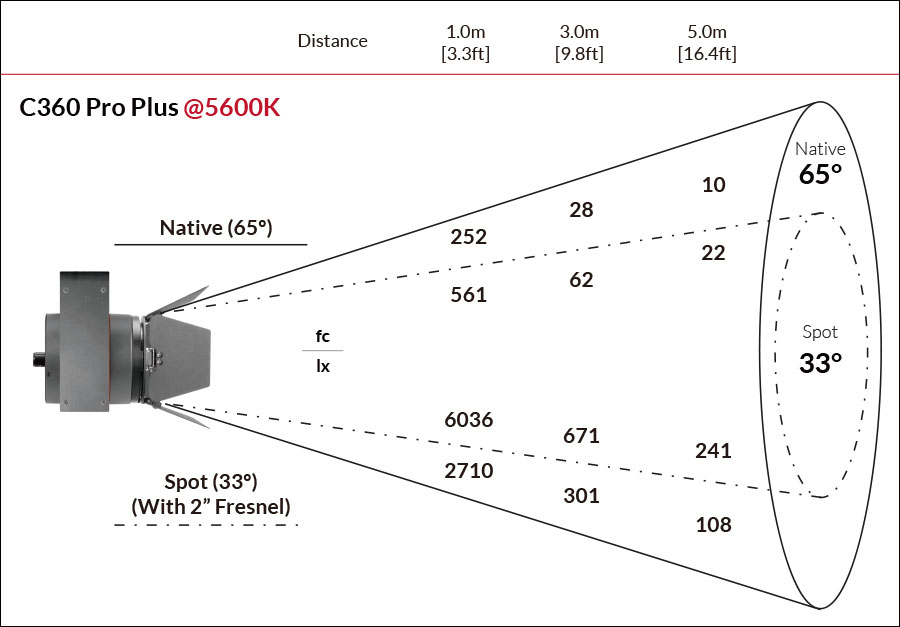

Fiilex C360 Photometric figure

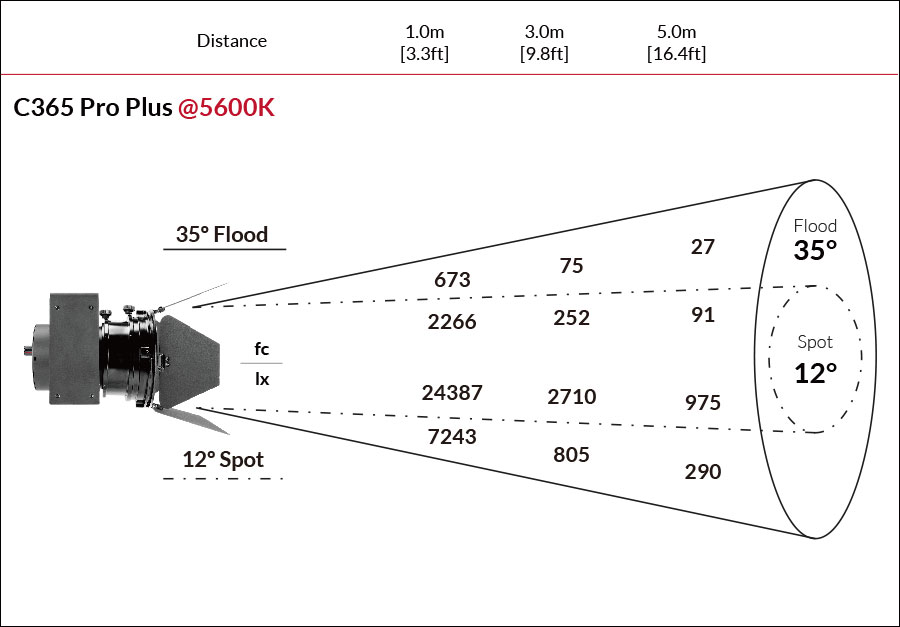

Fiilex C365 Photometric figure

Fiilex C365 Photometric figure
