MAG 4K (P/N: FLXMAG4K)

MAG 4K FIRST EDITION

Cinematic High Power LED Light

  • Overview
  • Specifications & Downloads
  • Photometric & Spectral Data
  • Kits & Accessories

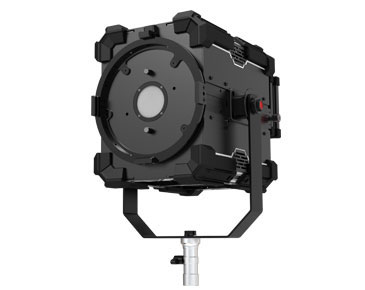

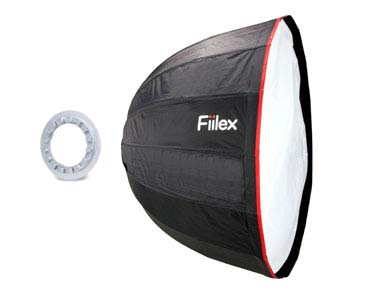

The MAG 4K First Edition is a fully-dimmable 900W LED hard light with output similar to 4000W of tungsten or 800W of HMI illumination. The MAG 4K’s adjustable CCT gives it a unique 2-in-1 appeal for a super-bright point-source LED, with no cumbersome gels or alternate fixtures required to change color temperatures on set. The MAG 4K’s beam can be shaped with various accessories, including PAR reflectors (18°, 27°, and 60°), Leko attachments and softboxes.

FEATURES

  • Functional replacement for 800W HMI
  • High CRI at any color temperature, 95 typical.
  • Dimming down to 0%
  • Tunable CCT (2800-6500K)
  • Flexible accessory attachments: PAR reflectors (18°, 27°, 60°), Source Four Leko adapter, Speed Ring, Barn Doors
Separator

ITEMS INCLUDED

MAG 4K Light Head (with Remote Controller)

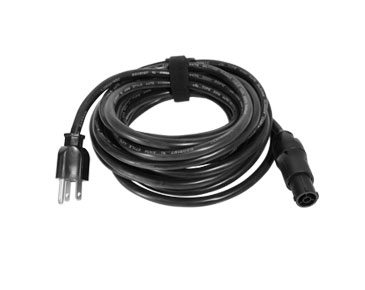

Power Cable

SPECIFICATIONS

Beam Angle100° Bare (18°, 27°, and 60° Reflectors)
CCT Range 2800-6500K Continuous Tuning
CRI 95 Typical.
Dimming100% - 0% Flicker Free
Light EngineDense Matrix LED
Power Draw900W AC Max
AC Input100 - 240V AC, 50 ~ 60Hz
DMX2-CH (Intensity, CCT) via XLR5 Ports
Weight26.5lbs / 12kg
Size (L x W x H)14.2" x 12.6"x 18"/ 361mm x 329mm x 457mm
Mount TypeBaby Stud 5/8" Female (16mm) & Junior Stud 1-1/8" Male (28mm)
Thermal DesignAdvanced Vapor Cooling System (Fan Cooled)
Operating Temperature 32-104º F / 0-40º C

Separator

DOWNLOADS

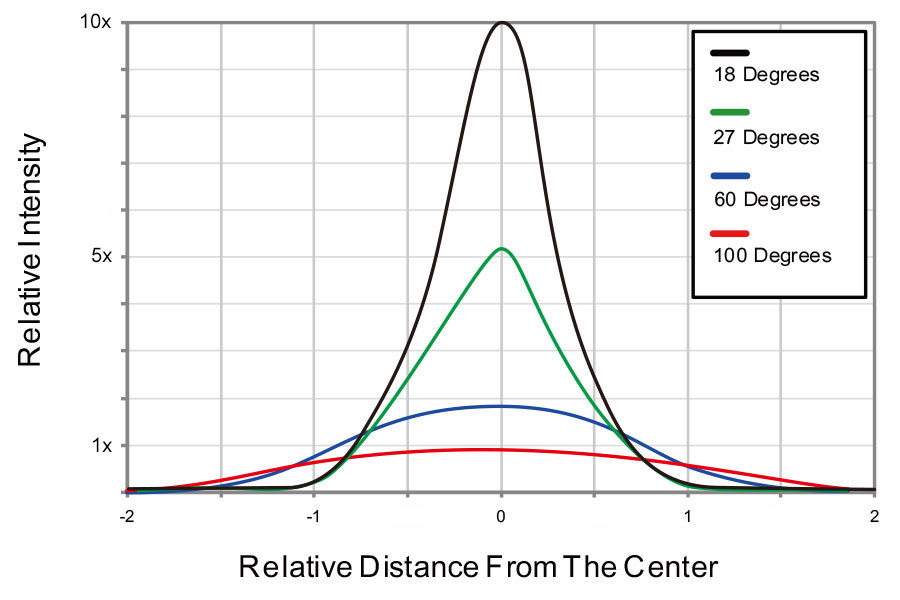

BEAM PROFILE

Fiilex MAG4K Beam Profile

Separator

PHOTOMETRIC DATA

Fiilex MAG4K Photometric figure @3200K

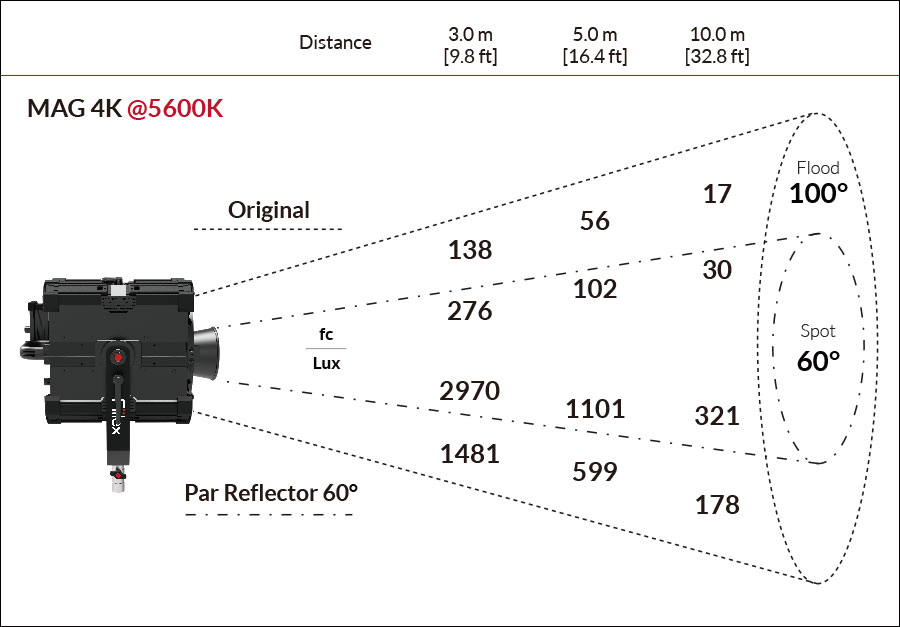

Fiilex MAG4K Photometric figure @5600K

Fiilex MAG4K Photometric figure @3200K

Fiilex MAG4K Photometric figure @5600K



SPECTRAL DATA

CRI
Measurement
R1R2R3 R4R5R6R7R8R9
3200K999892989797989894
5600K989998969798979794
CRI
Measurement
R10R11 R12R13R14R15 CRI
Ra
CRI
Extended
TLCI
Results
3200K919683999498979591
5600K969693999898989796

COMPATIBLE ACCESSORIES

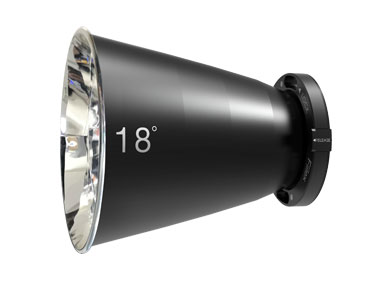

18° PAR Reflector

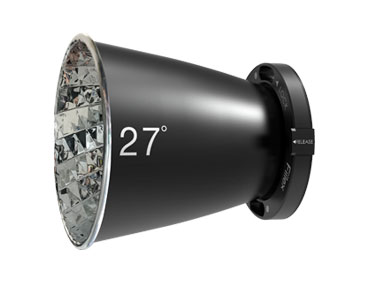

27° PAR Reflector

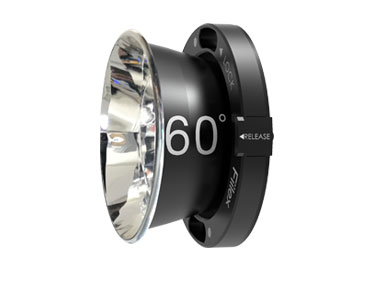

60° PAR Reflector

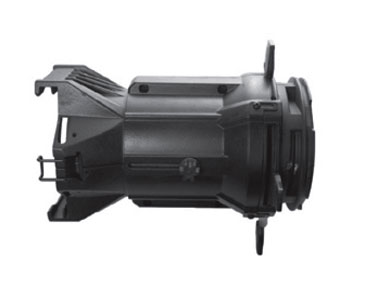

Leko Adapter
