    The Matrix fixture draws 320W of power and produces an output greater than a 1K tungsten soft light. This output is generated by the four Dense Matrix LED clusters that are set into a custom-designed reflecting chamber and enclosed by a layer of diffusion. With its four LED sources, the Matrix supports additional optics and accessories that can easily reshape the fixture’s illumination. The fixture is compatible with light banks from Chimera as well as DoP Choice when using the speed ring accessory. It can also be used as a front-focused light with the optional Quad-Fresnel, which increases beam intensity by 3x.

    The compact punch light is available in two alternative models: RGBW and Tunable White. The Matrix Tunable White includes many of the features Fiilex is known for (tunable CCT and hue, robust construction, intuitive controls, etc.) and is for users who are slightly more price sensitive or primarily concerned with producing the highest quality white light. The Matrix RGBW includes all the features of the Tunable White in addition to full 360° color control with multi-wavelength color groups that combine to produce a broad, deep range of vibrant hue.

    FEATURES

    • High CRI values at every color temperature
    • Multi-purpose with custom accessories (barndoors, quad fresnel, softboxes)
    • Precise color calibration for consistent quality
    • Dims to 0% without flicker or color shift
    • Extended features with updatable firmware
    • XLR-3 power port for easy connection to 48V batteries
    • Extremely durable with ruggedized exterior
    • Weather resistant (IP-24)
    • Lightweight (only 9.7bs)
    • Compatible with industry-standard light modifiers
    Separator
      RGBW Tunable White
    2800 - 6500K Color Temperature
    6500 - 10000K Color Temperature
    High CRI (95 Typical)
    360° Color Control
    Green/Magenta Hue
    Multi-Mode (Gel, Effects, HSI, etc.)
    Flicker Free Dimming to 0%
    Separator

    ITEMS INCLUDED

    Matrix II Light Head

    Power Adapter with Cable

    Clamp Mount

    SPECIFICATIONS

    Fresnel SizeOptional Quad Fresnel Lens (Removable)
    Beam Angle99° (31° w/ Optional Quad Fresnel Lens)
    Hue Control±0.25 Green/Magenta
    CRI 95 Typical.
    Dimming100% - 0% Flicker Free
    Light Engine(Four) Dense Matrix LED
    Power Draw320W Max
    DC Input48V DC (300W DC Max)
    AC Input100 - 240V AC, 50 ~ 60Hz
    Power PortXLR-3
    DMX PortXLR-5
    WeightFixture & Yoke: 9.7lbs / 4.4kg | Power Adapter: 5.6lbs / 2.6kg
    Size (L x W x H)6.7" x 12.2" x 16.5" / 171mm x 311mm x 418mm
    Mount TypeBaby Stud 5/8" Female (16mm) & Junior Stud 1-1/8" Male (28mm)
    Thermal DesignAdvanced Vapor Cooling System (Fan Cooled)
    Operating Temperature 32-104ºF / 0-40º C

      RGBW Tunable White
    CCT Range 2800 - 10000K Continuous Tuning 2800 - 6500K Continuous Tuning
    Colored Light 360° Color N/A
    Modes CCT, HSI, Gel, Effects, RGBW, etc. CCT

    Separator

    DOWNLOADS

    VIDEOS

    Matrix II RGBW Punch Light from Fiilex

    This product overview video demonstrates the major features of the Matrix II RGBW. [02:13]Play

    Matrix II Tunable White Quad-Source Punch Light from Fiilex

    This product overview video demonstrates the major features of the Matrix II Tunable White. [01:41]Play

    BEAM PROFILE

    Fiilex Matrix2 Beam Profile

    Fiilex Matrix2 Beam Profile

    Separator

    RGBW

    PHOTOMETRIC DATA

    Fiilex Matrix2 Photometric figure @3000K

    Fiilex Matrix2 Photometric figure @5600K



    SPECTRAL DATA

    CRI
    Measurement
    R1R2R3 R4R5R6R7R8R9
    3200K969886959896959187
    5600K989691979694979690
    CRI
    Measurement
    R10R11 R12R13R14R15 CRI
    Ra
    CRI
    Extended
    TLCI
    Results
    3200K889486989095949392
    5600K869586979497969495
    Separator

    TUNABLE WHITE

    PHOTOMETRIC DATA

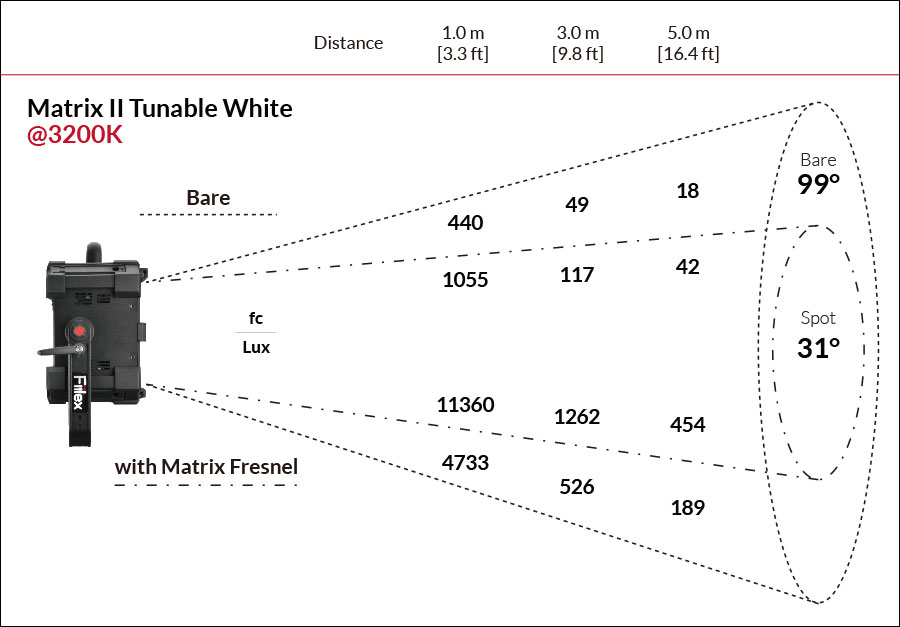

    Fiilex Matrix2 Photometric figure @3200K

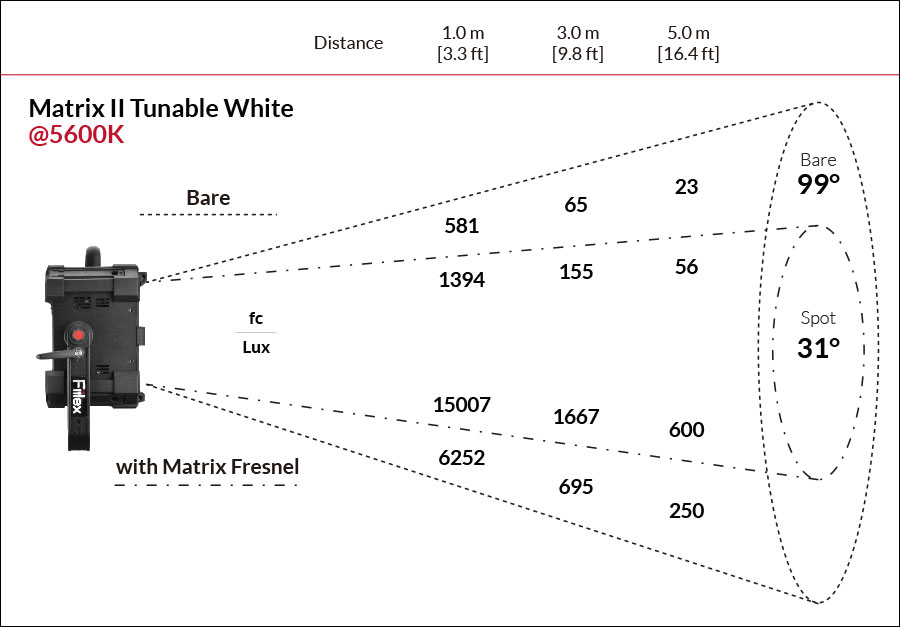

    Fiilex Matrix2 Photometric figure @5600K



    SPECTRAL DATA

    CRI
    Measurement
    R1R2R3 R4R5R6R7R8R9
    3200K999993989897989894
    5600K979998929596959486
    CRI
    Measurement
    R10R11 R12R13R14R15 CRI
    Ra
    CRI
    Extended
    TLCI
    Results
    3200K919783999598979597
    5600K949381989996969494
