The Matrix II RGBW brings full-color control to Fiilex's Matrix line of soft-source LED punch lights. The Dense Matrix LEDs in the Matrix II RGBW boast multi-wavelength color groups. Other manufacturers have single chips in their array representing a hue range. Fiilex has designed its array with multiple custom chips covering a specific hue. Each chip outputs a specific portion of the hue wavelength and when combined produces a broader and deeper range of hue than other fixtures can produce.

The Matrix II RGBW fixture draws 340W of power and produces an output greater than a 1K tungsten soft light. This output is generated by the four Dense Matrix LED clusters that are set into a custom-designed reflecting chamber and enclosed by a layer of diffusion. With its four LED sources, the Matrix supports additional optics and accessories that can easily reshape the fixture’s illumination. The fixture is compatible with light banks from Chimera as well as DoP Choice when using the speed ring accessory. It can also be used as a front-focused light with the optional Quad-Fresnel, which increases beam intensity by 3x.

The Matrix is also available in an alternate Tunable White model. The Matrix II Tunable White and the RGBW both have an improved mechanical design, smoother dimming down to 0%, magenta/green hue adjustment, and tunable CCT (2800-6500K and 2800-10000K respectively). The Matrix Tunable White fixture is for the user who is slightly more price sensitive and is primarily concerned with a fixture that produces the highest quality white light.

The housing of each Matrix II RGBW fixture is constructed of high grade aluminum along with ruggedized rubber at the impact points making them extremely hard-wearing and shock-resistant.

FEATURES

  • Full RGBW control
  • Custom multi-wavelength LED groups deliver rich, bright color
  • Smooth dimming down to 0% without flicker
  • RDM/DMX512
  • 5V/1A USB powers wireless DMX
  • IP-24 weather resistant
  • XLR power input compatible with 48V battery power
  • Unique Fresnel accessory for increased punch
  • Future-proof: ability to upgrade firmware in the field
  • Compatible with industry-standard softboxes and octabanks via speed ring accessory
  • Very lightweight (9.7 lbs) vs. comparable RGB fixtures
  • Extreme durability with high-grade aluminum housing and ruggedized exterior
  • Single light kit falls within standard airline checked bag weight limits
Separator

ITEMS INCLUDED

(1) Matrix II Light Head

(1) Power Adapter

(1) Clamp Mount

SPECIFICATIONS

Fresnel SizeOptional Quad Fresnel Lens (Removable)
Beam Angle99° (31° w/ Optional Quad Fresnel Lens)
CCT Range2800-10000K Continuous Tuning
Hue Control±0.25 Green/Magenta
CRI 95 Typical.
Dimming100% - 0%(Cut off @ 0.1%)
LED(Four) 75W DiCon Dense Matrix LED
Input Power120V-240VAC
Power Consumption340W Max AC | 300W Max DC
Power Adapter AC Input: 100-240V AC, 50~60Hz | DC Output: 48V
DC Power PortXLR-3P
DMX PortTwo XLR Ports-5P (512 Addresses)
USB 5VYes
WeightFixture: 9.7 lbs / 4.4kg (Includes Yoke)
Power Adapter: 5.7 lbs/2.6kg
SizeL 6.7 ” x W 12.2 ” x H 16.5 ”
L 171mm x W 311mm x H 418mm
Mount TypeBaby Stud 5/8" Female (16mm) and
Junior Stud 1-1/8" Male (28mm)
Thermal DesignAdvanced Vapor Cooling System (Fan Cooled)
Operating Temperature 32-104ºF / 0-40º C

Separator

DOWNLOADS

VIDEOS

Matrix II RGBW Punch Light from Fiilex

This product overview video demonstrates the major features of the Matrix II RGBW. [02:13]Play

PHOTOMETRIC DATA

Fiilex Matrix2 Photometric figure @3000K

Fiilex Matrix2 Photometric figure @5600K

Separator

BEAM PROFILE

Fiilex Matrix2 Beam Profile

Fiilex Matrix2 Beam Profile

Separator

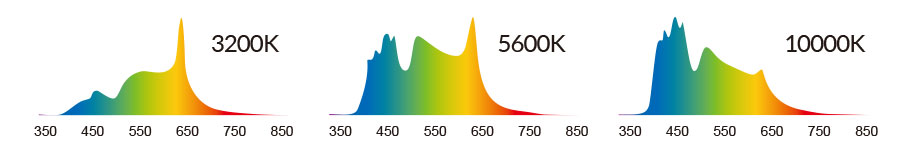

SPECTRAL DATA

CRI
Measurement
R1R2R3 R4R5R6R7R8R9
3200K969886959896959187
5600K989691979694979690
CRI
Measurement
R10R11 R12R13R14R15 CRI
Ra
CRI
Extended
TLCI
Results
3200K889486989095949392
5600K869586979497969495
