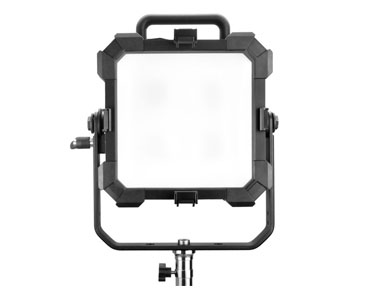

Matrix II Tunable White

Cinematic Quad-Source LED Punch Light

  • Fillex Matrix II
  • Fillex Matrix II
  • Fillex Matrix II
  • Fillex Matrix II
  • Fillex Matrix II
  • Fillex Matrix II
Fillex Matrix II
Fillex Matrix II
Fillex Matrix II
Fillex Matrix II
Fillex Matrix II
Fillex Matrix II
  • Overview
  • Specifications & Downloads
  • Photometric & Spectral Data
  • Accessories & Kits

The Matrix II Tunable White fixture draws 340W of power and produces an output greater than a 1K tungsten soft light. This output is generated by the four Dense Matrix LED clusters that are set into a custom-designed reflecting chamber and enclosed by a layer of diffusion. With its four LED sources, the Matrix II supports additional optics and accessories that can easily reshape the fixture’s illumination. The fixture is compatible with light banks from Chimera as well as DoP Choice when using the speed ring accessory. It can also be used as a front-focused light with the optional Quad-Fresnel, which increases beam intensity by 3x.

The Matrix II Tunable White also includes many of the features Fiilex is known for: tunable CCT and hue, robust construction, intuitive controls, etc. The high-grade aluminum housing and ruggedized rubber at impact points make it extremely hard-wearing and shock-resistant.

The Matrix II is also available in an RGBW model that adds full color control to the fixture.

FEATURES

  • 340W power draw
  • Quad 75W DiCon Dense Matrix LED
  • 99° wide beam, 31° with option Fresnel accesory
  • Smooth dimming down to 0% without flicker
  • Tunable color (2800-6500K, ±0.25 magenta/green)
  • Very lightweight (9.7 lbs) vs. comparable fixtures
  • Single light kit falls within standard airline checked bag weight limits
  • Compatible with industry-standard softboxes and octabanks via speed ring accessory
  • Extreme durability with high-grade aluminum housing and ruggedized exterior
  • Improvements over Matrix gen. 1:
    • - Extremely improved dimming quality at low power settings
    • - more robust yoke
    • - Support for high-end RDM/DMX512
    • - XLR power input compatible with 48V battery power
Separator

ITEMS INCLUDED

(1) Matrix II Light Head

(1) Power Adapter

(1) Clamp Mount

(1) Cord Tie

SPECIFICATIONS

Fresnel SizeOptional Quad Fresnel Leans (Removable)
Beam Angle99° (31° w/ Optional Quad Fresnel Lens)
CCT Range2800-6500K Continuous Tuning
Hue Control±0.25 Green/Magenta
CRI 96 Typical.
Dimming100% - 0%
LED(Four) 75W DiCon Dense Matrix LED
Input Power120V-240VAC
Power Consumption340W Max AC | 300W Max DC
Power Adapter AC Input: 100-240V AC, 50~60Hz | DC Output: 48V
DC Power PortXLR-3P
DMX PortTwo XLR Ports-5P (512 Addresses)
USB 5VYes
WeightFixture: 9.7 lbs / 4.4kg (Includes Yoke)
Power Adapter: 5.7 lbs/2.6kg
SizeL 6.7 ” x W 12.2 ” x H 16.5 ”
L 171mm x W 311mm x H 418mm
Mount TypeIBaby Stud 5/8" Female (16mm) and
Junior Stud 1-1/8" Male (28mm)
Thermal DesignAdvanced Vapor Cooling System (Fan Cooled)
Operating Temperature 32-104ºF / 0-40º C

Separator

DOWNLOADS

PHOTOMETRIC DATA

Fiilex Matrix2 Photometric figure @3200K

Fiilex Matrix2 Photometric figure @5600K

Separator

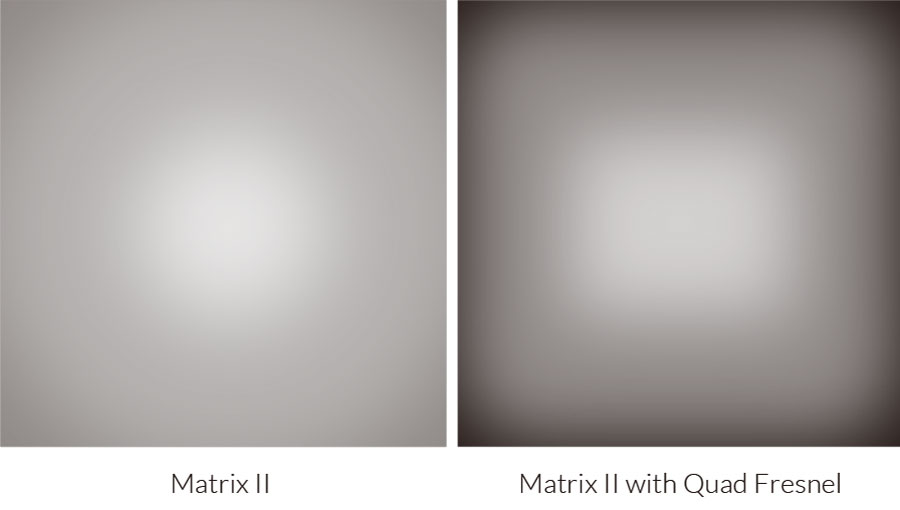

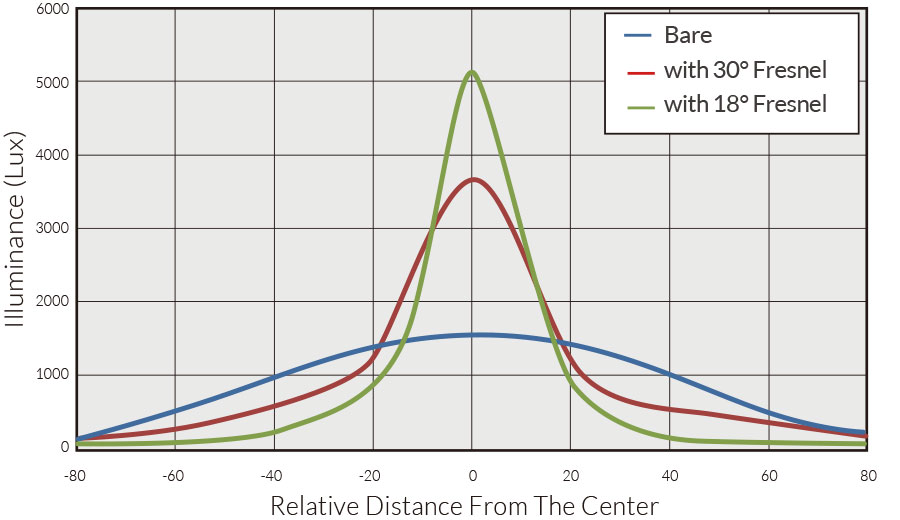

BEAM PROFILE

Fiilex Matrix2 Beam Profile

Fiilex Matrix2 Beam Profile

Separator

SPECTRAL DATA

CRI
Measurement
R1R2R3 R4R5R6R7R8R9
3200K999993989897989894
5600K979998929596959486
CRI
Measurement
R10R11 R12R13R14R15 CRI
Ra
CRI
Extended
TLCI
Results
3200K919783999598979597
5600K949381989996969494
