P360 Series

P360

Pro Plus

FLXP360PP

Pro

FLXP360P

Classic

FLXP360CL

Portable LED Light

  • Overview
  • Specifications & Downloads
  • Video & Gallery
  • Photometric & Spectral Data
  • Kits & Accessories

The P360 is the next-generation of Fiilex's flagship portable LED light. This 300W-equivalent fixture takes everything that made the original P360 great and brings it to the next level. The CCT range has been expanded (2800-6500K) and dimming now runs from 100% - 0% ficker free. In addition, with the P360's enhanced tunability options and top-tier CRI (97 Typical), matching unpredictable ambient illumination has never been easier.

For users looking to get the most out of the P360, Fiilex offers a wide array of accessories, ranging from magnetic fresnels and diffusers, to softboxes and larger fresnel attachments. With these light modifiers, the P360 can be turned into a broad fill, a powerful spot, or anything in between.

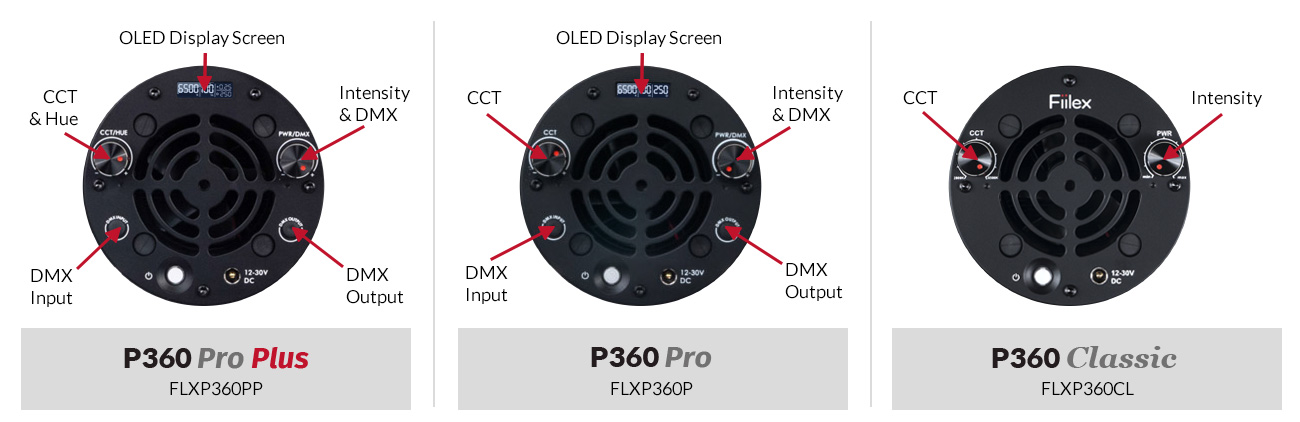

The compact light is available in three alternative models: Pro Plus, Pro, and Classic. The Classic version includes all the Fiilex trademark features listed above. The Pro model introduces a high-resolution display screen, and DMX functionality that easily integrates the portable fixture in studio settings. The P360 Pro Plus adds one more element: hue control (±0.25 green), a feature not previously available in LED lights of its size.

FEATURES

  • 2800 - 6500K continuous tuning
  • 90W power draw
  • Output greater than a 300W tungsten bulb
  • High CRI at every color temperature
  • Flicker free dimming to 0%
  • Water resistant (IP-24)
  • Weighs less than 2lbs
  • Compatible with light modifiers
  • Supports 12 - 30V battery input with D-Tap accessory
  • Available in three-point lighting kits
Separator


  Pro Plus Pro Classic
2800 - 6500K Color Temperature
Flicker Free Dimming to 0%
High CRI (97 Typical)
OLED Display Screen
DMX Compatibility
Green/Magenta Hue

Separator

ITEMS INCLUDED

(1) P360 Light Head

(1) Size II Barndoor

(1) 90W AC/DC Power Adapter

SPECIFICATIONS

Beam Angle65° (33° With 2" Fresnel, 12° With 5" Fresnel)
CCT Range2800- 6500K Continuous Tuning
CRI 97 Typical.
Dimming100% - 0% Flicker Free
Light EngineDense Matrix LED
Power Draw90W Max (300W Tungsten Equivalent)
DC Input12 - 30V DC
AC Input100 - 240V AC, 50 ~ 60Hz
Weight1.85lbs / 0.84kg
Size (L x W x H)L 4.72" x W 5.87" x H 8.11"
MountBaby Stud 5/8" Female (16mm)
IP RatingIP-24 (Dust & Water Resistant)
Thermal DesignAdvanced Vapor Cooling System (Fan Cooled)
Operating Temperature 32-104ºF / 0-40º C

  Pro Plus Pro Classic
Display Type OLED OLED N/A
Hue Control ±0.25 Green N/A N/A
DMX Control 3-CH
(Intensity, CCT, Hue)
2-CH
(Intensity, CCT)
N/A
DMX Port TRRS TRRS N/A

Separator

DOWNLOADS

P360 Classic

Data Sheet
User Manual

VIDEOS

P360 Pro Plus

The P360 Pro Plus is the next generation of Fiilex's award-winning P360 portable LED. [02:43]Play

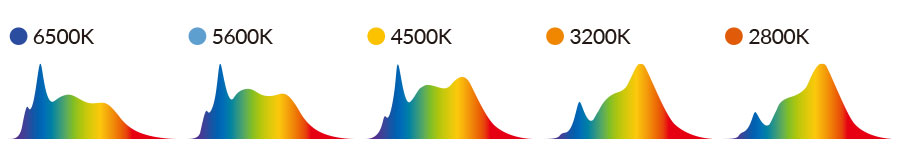

SPECTRAL DATA

CRI
Measurement
R1R2R3 R4R5R6R7R8R9
3200K989995989898989795
5600K989998969697979690
6500K989898969798979795
CRI
Measurement
R10R11 R12R13R14R15 CRI
Ra
CRI
Extended
TLCI
Results
3200K979888989697979798
5600K969689989897979698
6500K979789989997979799

*Values in this table are typical.
**CRI Ra is the averaged result of R1 to R8, CRI Extended is the averaged value of R1 to R15.

Separator

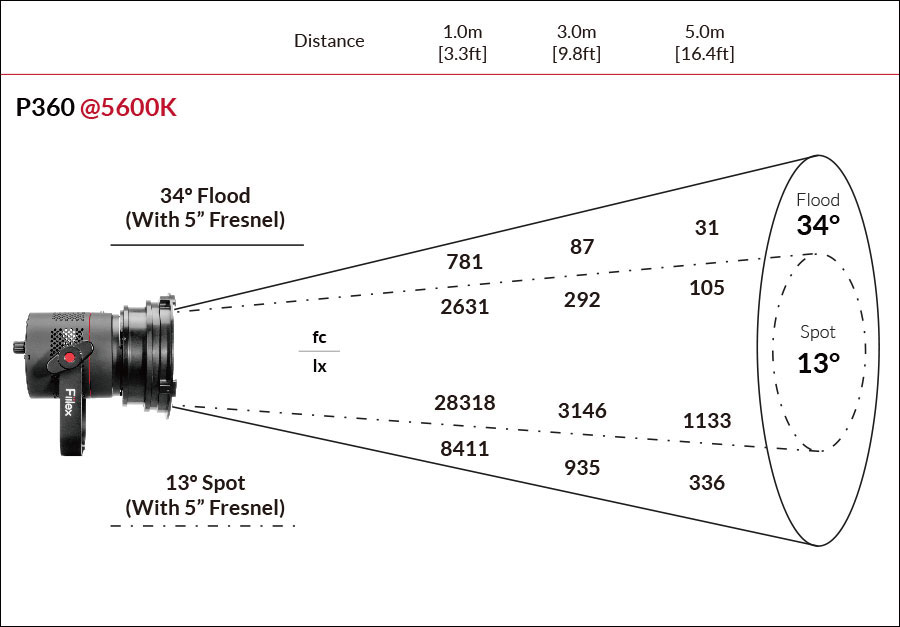

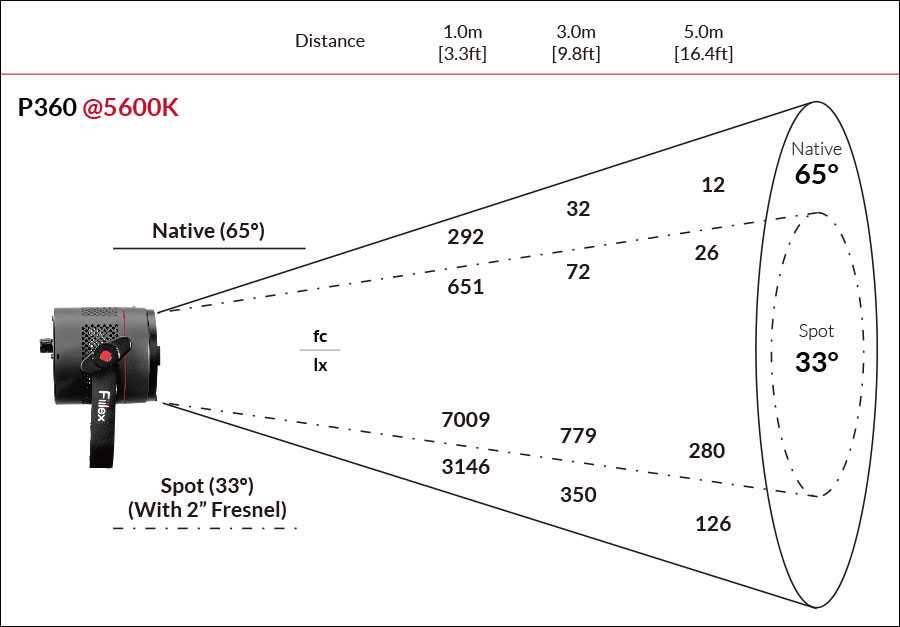

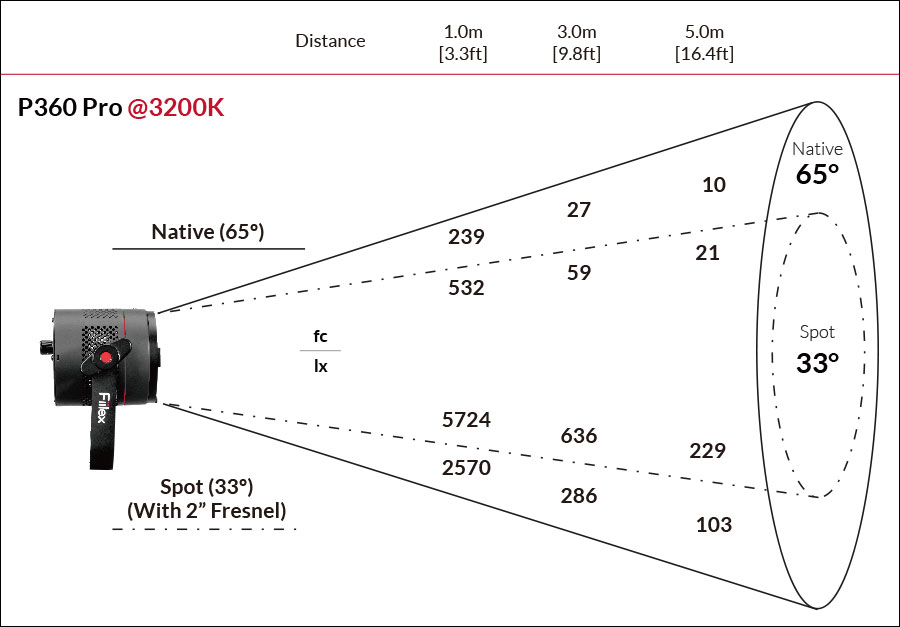

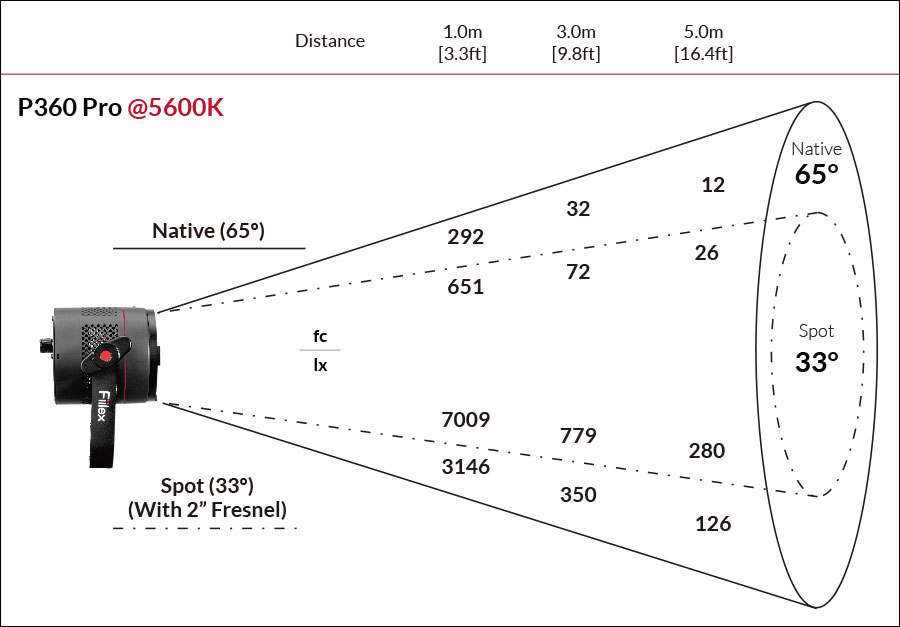

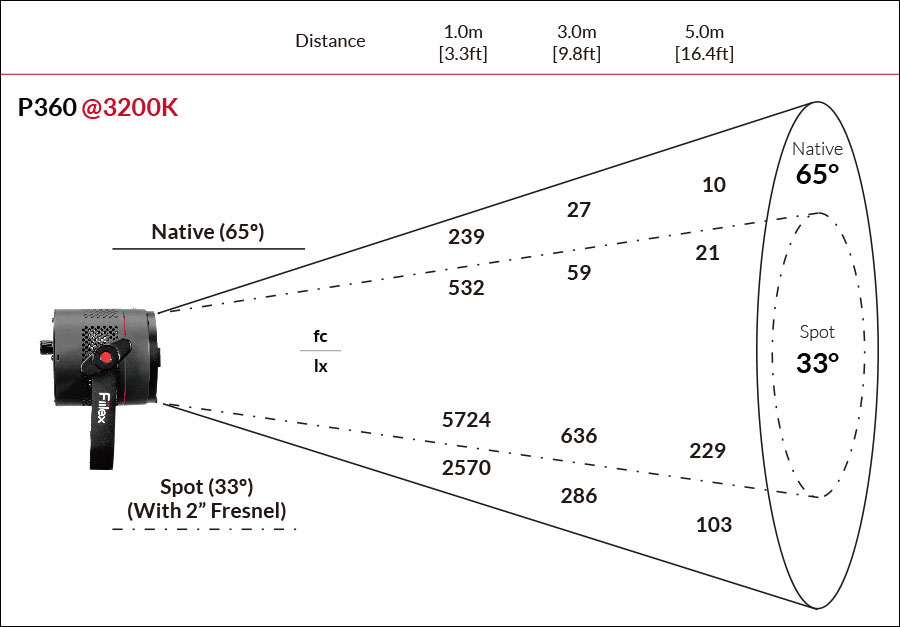

PHOTOMETRIC DATA

Fiilex P360 Pro Photometric figure

Fiilex P360 Pro Photometric figure

Fiilex P360 Pro Photometric figure

Fiilex P360 Pro Photometric figure
