Q1000 (P/N: FLXQ1G2)

Q1000 II

Cinematic LED Light

  • Overview
  • Specifications & Downloads
  • Photometric & Spectral Data
  • Kits & Accessories

One of Fiilex’s most versatile fixtures, the Q1000 II is designed for professional filmmakers who require flexibility, color accuracy, and portability. The Q1000 II pairs well with a wide variety of accessories for a broad range of effects. Intensifying the native beam by more than 3x, its customized 5" fresnel creates crisp shadows and offers a flood-focus range of 58° – 33°. For an extra punch, the PAR Reflector amplifies the Q1000 II’s intensity by 6x, delivering a flattering light that further controls the beam spread to 16°. For a softer effect, the 35” Para Softbox transforms the fixture into a large diffused source that wraps smoothly and casts a clean shadow.

Producing a powerful 320W beam of tunable light, the Q1000 II also features excellent color rendering at all color temperatures, with outstanding TLCI (98) and CRI (97) ratings. In addition, the fixture features portable power options for convenient use on-location, and shock-resistant rubber bumpers at potential impact points for durability.

FEATURES

  • 2800-6500K continuous CCT tuning
  • 1000W tungsten output (320W draw)
  • High CRI values at every color temperature
  • ±0.25 green adjustment
  • Dims to 0% without flicker or color shift
  • Precise color calibration for consistent quality
  • LCD display for monitoring settings
  • DMX controllable (3-channels: intensity, CCT, hue)
  • XLR-3 power port for easy connection to 48V batteries
  • Ruggedized frame
  • Water resistant (IP-24)
Separator

ITEMS INCLUDED

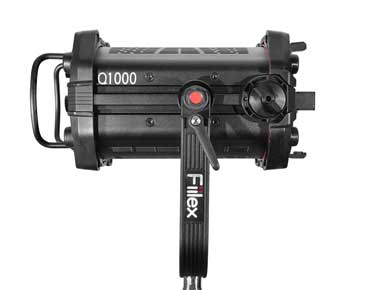

Q1000 II Light Head

Size III Barndoor

5-Inch Fresnel Lens

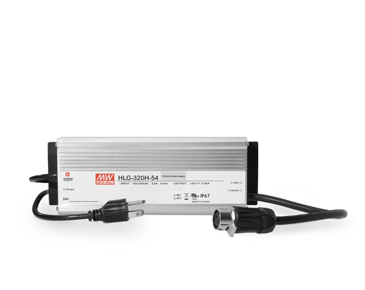

Power Adapter

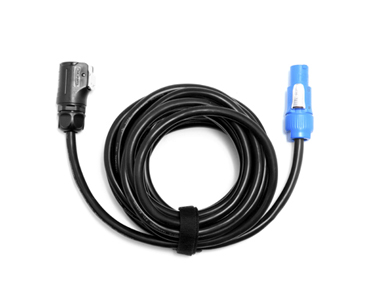

20' PowerCon Cable

Clamp Mount

Cord Tie

SPECIFICATIONS

Beam Angle63° (32°-57° With 5" Fresnel Lens)
CCT Range2800-6500K Continuous Tuning
Hue Control±0.25 Green
CRI97 Typical.
Dimming100% - 0% Flicker Free
Light EngineDense Matrix LED
Power Draw320W Max
DC Input48V DC (300W DC Max)
AC Input 100 - 240V AC, 50 ~ 60Hz
Power PortXLR-3P
DMX Control3-CH (Intensity, CCT, Hue) via 2x XLR-5P and 2x RJ45 Ports
WeightFixture: 15.2 lbs / 6.9Kg (Includes Yoke) | Power Adapter: 6.0 lbs / 2.7kg
SizeL 14.2" x W 12.3" x H 15.7" / 361mm X 312mm x 400mm
Mount TypeBaby Stud 5/8" Female (16mm) and Junior Stud 1-1/8" Male (28mm)
IP RatingIP-24 (Water-Resistant)
Thermal DesignAdvanced Vapor Cooling System (Fan Cooled)
Operating Temperature 32-104ºF / 0-40º C
Separator

DOWNLOADS

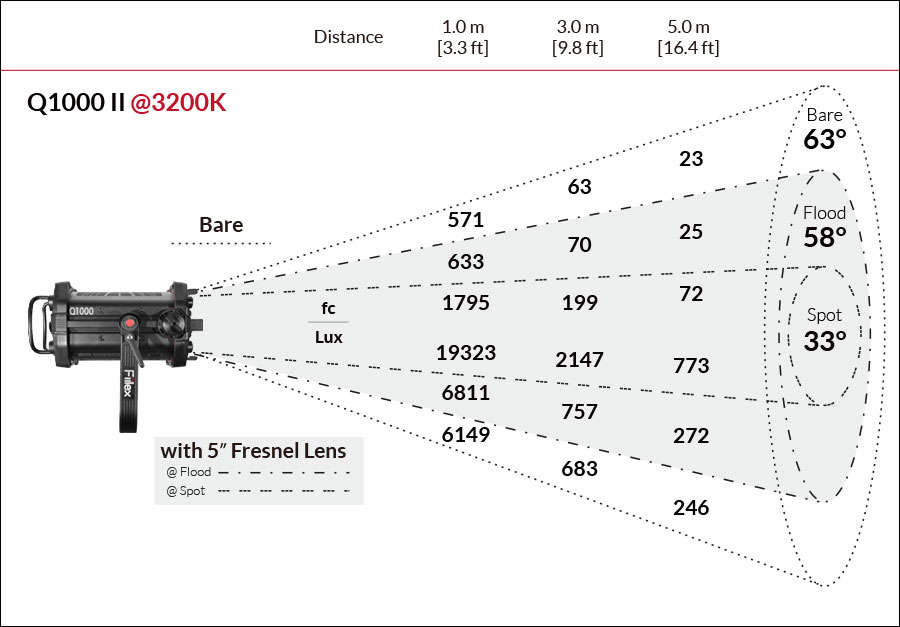

PHOTOMETRIC DATA

Fiilex Q1000 Photometric figure

Fiilex Q1000 Photometric figure

Fiilex Q1000 Photometric figure
Separator

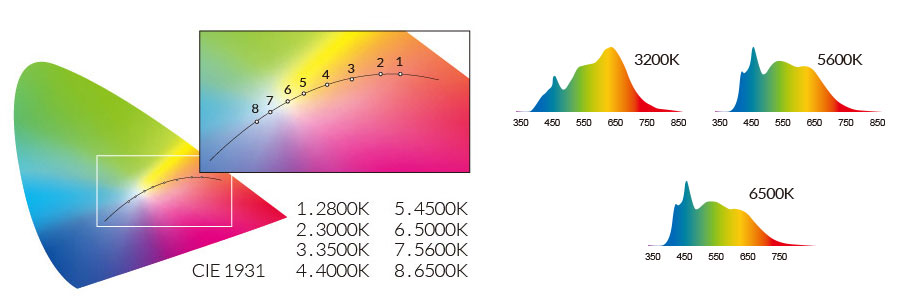

SPECTRAL DATA

Fillex Q1000 CIE1931 3000K 5600K
CRI
Measurement
R1R2R3 R4R5R6R7R8R9
3200K989994989897989796
5600K989897969796989794
6500K989898969796979795
CRI
Measurement
R10R11 R12R13R14R15 CRI
Ra
CRI
Extended
TLCI
Results
3200K959789989597979698
5600K959687999898979698
6500K969687989997979698

*Values in this table are typical.
**CRI Ra is the averaged result of R1 to R8, CRI Extended is the averaged value of R1 to R15.
