Q5 Color (P/N: FLXQ5CLR)

Q5 color

Cinematic LED Light

  • Overview
  • Specifications & Downloads
  • Video & Gallery
  • Photometric & Spectral Data
  • Kits & Accessories

The Q5 Color is a 185W 5” LED Fresnel that generates high-quality RGBW light output. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color quality and optical versatility that are superior to previous generations of LED fresnels. With its wide spot/flood range, smooth dimming to 0%, no flicker, and high CRI, the Q5 Color combines the extensive feature set of top-tier RGBW LEDs with the performance of a tungsten fresnel.

The Q5 light head weighs only 7 lbs, and its innovative V-mount power system means that the fixture’s power supply can be easily swapped out with compatible V-mount batteries. Light settings can be adjusted on the Q5’s back panel via the directional pad or the intuitive control knobs. The directional pad can also access the Q5’s different fan and dimming modes, as well as the various control modes, which include CCT, HSI, Gels, and Effects in both 8-bit and 16-bit versions.

FEATURES

  • High-CRI white light in CCT mode (2000-10000K)
  • Additional 8 and 16-bit color modes (RGBW, Effects, HSI, Gel Presets, CCT+RGBW, CCT+HSI, etc.)
  • 12°-55° spot/flood range with no optical aberrations
  • Barndoor cuts clean with no color splitting
  • Dims down to 0% without flicker or color shift
  • V-mount power supply swaps easily with 26V battery
  • Smooth and Sharp dimming modes
  • Three fan speed modes (Full, Variable, Silent)
  • Removable fresnel for wider throw/softbox compatibility
  • IP-24 water-resistant
Separator

ITEMS INCLUDED

(1) Q5 Light Head

(1) Power Adapter

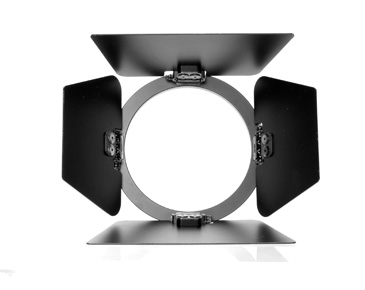

(1) 5" Barndoor

SPECIFICATIONS

Fresnel Diameter5”
Beam Angle12°-55° (80° without fresnel)
CCT Range2800-10000K continuous tuning + magenta/green shift
CRI 95 Typical.
Control ModesRGBW, CCT, HSI, Gel Presets, Effects, CCT + RGBW, CCT + HSI, CIE xy
Dimming100% - 0%
Dimming ModesSmooth, Sharp
Light Engine1x 165W DiCon Dense Matrix LED
Power Consumption185W AC | 165W DC
DC Input24V-48V DC
AC Input100-240V, 50~60Hz
Power Port XLR-3
DMX Port XLR-5
WeightFixture: 7.3lbs / 3.3kg | Power Supply: 2.6lbs / 1.2kg
Size (L x W x H)11.1" x 7.2" x 13.2" / 28.3cm x 18.2cm x 33.6cm
Mount TypeCombo (baby stud female / junior stud male)
IP RatingIP-24 (Water-Resistant)
Thermal DesignAluminum extrusion cooling system w/ fan
Operating Temperature 0-40º C / 32-104º F

Separator

DOWNLOADS

VIDEOS

Q5 Color Features Overview

The Q5 Color is an incredibly versatile LED fresnel. Watch this video to learn about its key features. [02:56]Play

Q5 Color Demo with Jeff Lee

The Q5 Color is an incredibly versatile LED fresnel with full-color capabilities. Watch Fiilex's Chief Product Designer Jeff Lee give the rundown on its many features in this informative video. [03:55]Play

PHOTOMETRIC DATA

Fiilex Q5 Photometric figure

Fiilex Q5 Photometric figure

BEAM PROFILE

Fiilex Q5 Beam Profile

Separator

SPECTRAL DATA

Fillex Q5 CIE1931 3200K 5600K 6500K
CRI
Measurement
R1R2R3 R4R5R6R7R8R9
3200K989787989895969389
5600K979993989797999589
CRI
Measurement
R10R11 R12R13R14R15 CRI
Ra
CRI
Extended
TLCI
Results
3200K889681999196959390
5600K949584989596979596

COMPATIBLE ACCESSORIES
