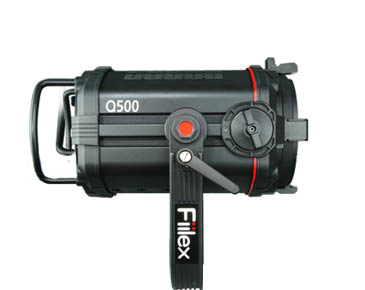

Q500 Cinematic LED Light

  • Fillex Q500
  • Fillex Q500
  • Fillex Q500
  • Fillex Q500
  • Fillex Q500
  • Fillex Q500
Fillex Q500
Fillex Q500
Fillex Q500
Fillex Q500
Fillex Q500
Fillex Q500
  • Overview
  • Specifications & Downloads
  • Video & Gallery
  • Photometric & Spectral Data
  • Kits & Accessories

The Q500 leads the revolution in LED Lighting, offering intense power, color accuracy and control in a compact form. Boasting 750W of color-tunable output, the lighting world just got a lot brighter and a lot more efficient. With a color temperature range between 2800-6500K, hue control ±.25 Magenta/Green, and cool running temperature, the Q500 lets you leave your color correction gels, scrims, and grip gloves behind. An LCD display makes setting your color temperature, intensity, and hue a breeze by allowing you to adjust your settings efficiently and accurately in seconds before even turning the light on, and the built-in DMX allows you to add the light easily into your set-up for remote operation. The Q500 also saves you valuable time in post-production thanks to its stellar color accuracy (CRI ≥93) and flicker-free light, capturing your shot at any frame rate. Let the Q500 take your work to the next level and redefine what is possible with LED lighting.


  • 750W tungsten equivalent, 185W draw
  • Extended Color Temperature Range 2800-6500K
  • Hue Control ±.25 Magenta / Green
  • High CRI ≥93 (3000-5600K)
  • Full Dimming
  • Flicker Free at any Frame Rate
  • Adjustable Beam Angle 27° to 49° (with 5" Fresnel);
    11° to 23° (with 8" Fresnel, Not Inlcuded)
  • Solid State Technology (No Bulbs to Break)
  • DMX Control Built In
  • LCD Display


(1) Q500-AC Light Head

(1) Q Series Barndoor

(1)5" Fresnel Lens

(1) 20' PowerCon Cable

(1) Cord Tie


SizeL 12″ x W 12.75″ x H 15″ (with Yoke)
305mm X 325mm x 380mm with yoke
L 12″x W 9″ x H 6.75″ without
305mm X 230mm x 172mm without
Weight (Include Yoke)12 lbs / 5.5 kg
LEDDense Matrix LED
Thermal DesignAdvanced Vapor Cooling
Beam Angle54° (Without Accessories)
27°-49° (With 5″ Fresnel Lens)
11°-23° (With 8″ Fresnel Lens) Not Included
CCT Range2800-6500K Continuous Tuning
Hue Controlplus/minus .25 Magenta/Green
CRI≥93 (3000-5600K)
LED Lifetime42,000 hrs
Power Consumption185W Max / Comparable in Output to 750W Tungsten
Input VoltageAC Power: 100-240 V AC, 50~60Hz, Max 185W
Input PortDetachable Power Con Cable
DMX Control2 XLR ports and 2 RJ45 ports (512 Addresses)
Temperature Range32-104ºF / 0-40º C (over Temperature Protection)
Mount StyleBaby Stud 5/8" Female (16mm) and
Junior Stud 1-1/8" Male (28mm)
Barndoor Mount SizeSize III




Brilliance in Motion

Director of Photography Gabriel Bienczycki plays with light and movement in gorgeous slow motion images. Learn how the Q500's flicker-free light, color tunability and hue adjustment enhance his images and speed up his workflow. [02:54]Play

High Quality, High Intensity

The Fiilex Q500 is a powerful Fresnel light, perfect for image makers that need intense, controllable illumination. At only 12lbs, this DMX-integrated LED uses a 5" fresnel to produce an amazing 750W tungsten equivalent output with only a 185W draw. [00:49]Play

Change The Way You View Color

Compact and portable, the Q500 offers an intense light, is easily controllable, and has a remarkably high CRI (≥93). Save valuable time on location and in post-production with the Q500's color temperature tunability, the Magenta/Green hue adjustment, and the accurate color reproduction. [01:21]Play


The Q-Series is where you'll find the most powerful point-source lighting fixtures that Fiilex offers. [01:56]Play

Pro-Tip: Hue Control

Hue Control is the perfect tool for getting your skin tones just right. Save hours of hassle in color correction with the twist of a dial! [00:32]Play

Get Soft Light In Seconds

The Fiilex Dome Diffuser spreads and softens light, great for lighting people. Its compact design lets you get diffuse light in tight places where a softbox just won't fit. The dome uses our magnetic attachment system to easily pop on and off of your Q500. [00:16]Play


Fiilex Q500 Photometric figure

Fiilex Q500 Photometric figure

Fiilex Q500 hotometric figure

Fiilex Q500 Photometric figure

Fiilex Q500 Photometric figure

Fiilex Q500 Photometric figure

Fiilex Q500 Photometric figure

Fiilex Q500 Photometric figure

Fiilex Q500 Photometric figure


Fillex Q500 AC CIE1931 3000K 5600K
R1R2R3 R4R5R6R7R8R9
R10R11 R12R13R14R15 CRI
