Q8Junior Cinematic LED Light

  • Fillex Q8 Junior
  • Fillex Q8 Junior
  • Fillex Q8 Junior
  • Fillex Q8 Junior
  • Fillex Q8 Junior
  • Fillex Q8 Junior
Fillex Q8 Junior
Fillex Q8 Junior
Fillex Q8 Junior
Fillex Q8 Junior
Fillex Q8 Junior
Fillex Q8 Junior
Fillex Q8 Junior
0%
    • Overview
    • Specifications & Downloads
    • Photometric & Spectral Data
    • Accessories & Kits

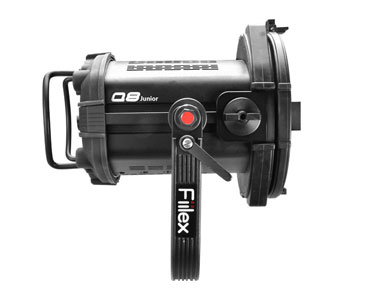

    The Fiilex Q8 Junior is a 170W tunable LED Fresnel with best-in-class optical performance. Its precisely designed 8” Fresnel lens produces a smooth light field at all beam angles (12-50°).

    The Q8 Junior includes three other key features that address the needs of many film and video productions. First, the tunable CCT and hue enable the Q8’s output to blend seamlessly with existing lighting. Second, the robust construction ensures that the Q8 can withstand rough transportation and rigging conditions. Third, the intuitive LCD display and manual control knobs allow filmmakers to make quick adjustments on set.

    With a built-in power supply and a weight of 15 pounds, the Fiilex Q8 Junior is a great LED fixture both for on-location lighting setups and permanent studio installations.

    FEATURES

    • 170W power draw
    • Focus/flood range of 12-50°
    • Dimming down to 0%
    • Flicker free at any frame rate
    • AC input power
    • Tunable CCT (2800-6500K)
    • Hue control (±0.25 green/magenta)
    • High CRI at any color temperature
    • Broadband full-spectrum LED source
    • Designed in USA. Assembled in USA/Taiwan
    Separator

    ITEMS INCLUDED

    (1) Q8 Junior Light Head

    (1) 5' PowerCon Cable

    SPECIFICATIONS

    Fresnel Size8”
    Beam Angle12°-50°
    CCT Range2800-6500K Continuous Tuning
    Hue Control±0.25 Green/Magenta
    CRI 94 Typical.
    Dimming100% - 0%(Cut off @ 0.2%)
    LED(One) 150W DiCon Dense Matrix LED
    Input Power120V-240VAC
    Power Consumption170W Max
    Power Adapter Input: 100-240 VAC, 50~60Hz
    Power PortPower Con
    DMX PortTwo XLR-5P Ports and Two RJ45 Ports
    (3 Channels: Dimming, CCT, & Hue)
    USB 5VNo
    WeightFixture: 14.94lb / 6.78kg (Includes Yoke)
    SizeL 12.12" x W 12.25" x H 16.44"
    L 308mm x W 311mm x H 418mm
    Mount TypeBaby Stud 5/8" Female (16mm) and
    Junior Stud 1-1/8" Male (28mm)
    IP RatingIP-20
    Thermal DesignAdvanced Vapor Cooling System (Fan Cooled)
    Operating Temperature 32-104ºF / 0-40º C

    Separator

    DOWNLOADS

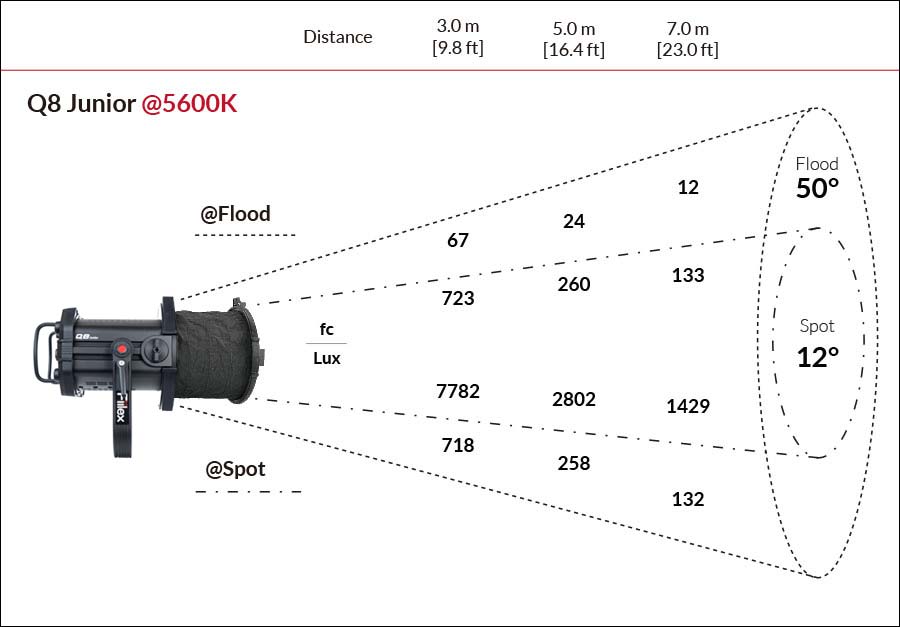

    PHOTOMETRIC DATA

    Fiilex Q8 Photometric figure

    Fiilex Q8 Photometric figure

    Separator

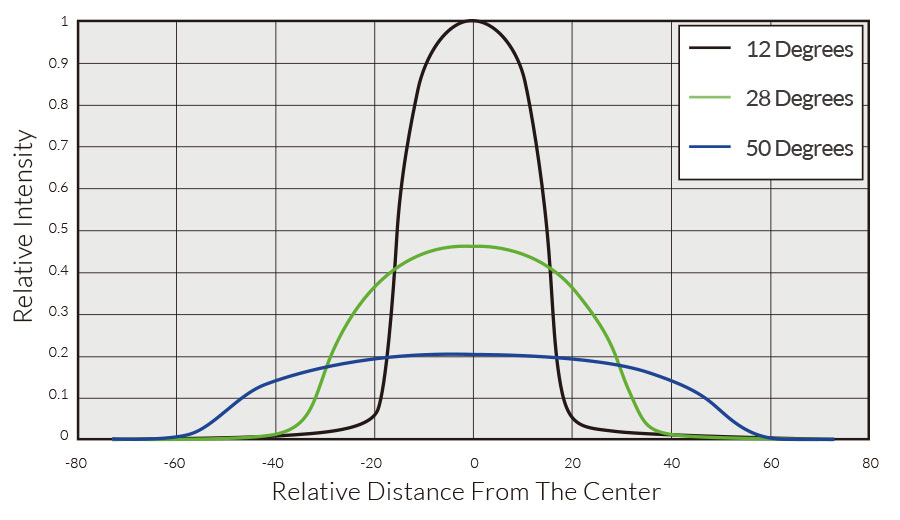

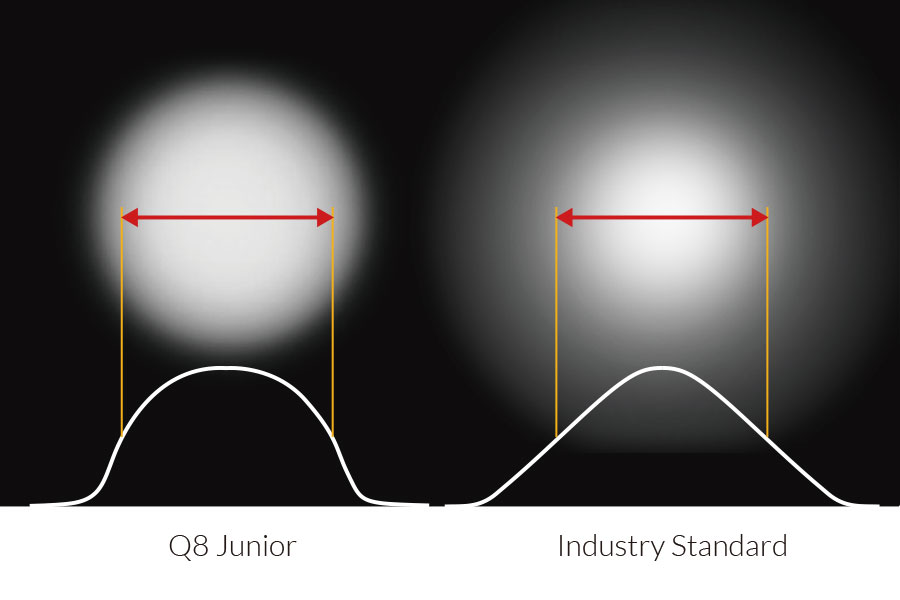

    BEAM PROFILE

    Fiilex Q8 Travel Beam Profile

    Fiilex Q8 Travel Beam Profile

    Separator

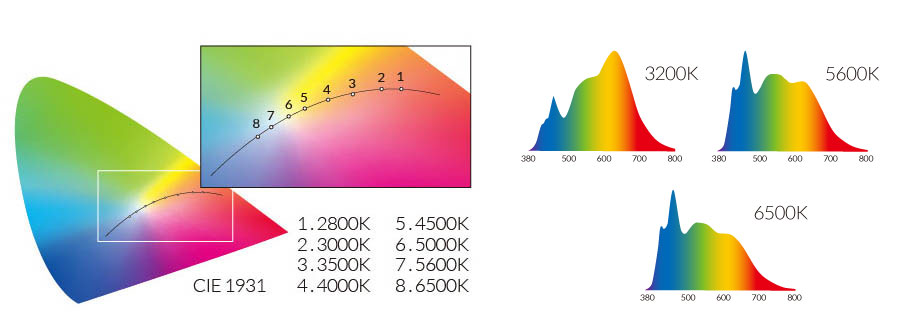

    SPECTRAL DATA

    Fillex Q8 CIE1931 3000K 5600K
    CRI
    Measurement
    R1R2R3 R4R5R6R7R8R9
    3200K999894989796989891
    5600K979897899496929180
    CRI
    Measurement
    R10R11 R12R13R14R15 CRI
    Ra
    CRI
    Extended
    TLCI
    Results
    3200K909683999598979596
    5600K938978989994949294
