Q8 Travel Cinematic LED Light

  • Overview
  • Specifications & Downloads
  • Video & Gallery
  • Photometric & Spectral Data
  • Kits & Accessories

The Fiilex Q8 Travel is a 320W tunable LED Fresnel with best-in-class optical performance. Its precisely designed 8” Fresnel lens produces a smooth light field at all beam angles (12-60°).

The Q8 Travel includes three other key features that address the needs of many film and video productions. First, the tunable CCT and hue enable the Q8’s output to blend seamlessly with existing lighting. Second, the robust construction ensures that the Q8 can withstand rough transportation and rigging conditions. Third, the intuitive LCD display and manual control knobs allow filmmakers to make quick adjustments on set.

With 48V DC battery compatibility and a weight of only 16 pounds, the Fiilex Q8 Travel is a great LED lighting fixture for on-location use.

FEATURES

  • 320W power draw
  • Unmatched focus/flood range of 12-60°
  • Smooth dimming down to 0%
  • Flicker free at any frame rate
  • IP-24 Rating (water-resistant)
  • Tunable CCT (2800-6500K)
  • Hue control (±0.25 green/magenta)
  • High CRI at any color temperature, 97 typical.
  • Broadband full-spectrum LED source
  • Designed in USA. Assembled in USA/Taiwan
Separator

ITEMS INCLUDED

(1) Q8 Travel Light Head

(1) Power Adapter

(1) Clamp Mount

SPECIFICATIONS

Fresnel Size8”
Beam Angle12°-60°
CCT Range2800-6500K Continuous Tuning
Hue Control±0.25 Green/Magenta
CRI 98 Typical.
Dimming100% - 0%(Cut off @ 0.1%)
LED(One) 300W DiCon Dense Matrix LED
Input PowerDC 48V-54V
Power Consumption320W Max AC | 300W Max DC
Power Adapter AC Input: 100-240V AC, 50~60Hz | DC Output: 48V
DC Power PortXLR-3P
DMX PortTwo XLR-5P Ports and Two RJ45 Ports
(3 Channels: Dimming, CCT, & Hue)
USB 5VYes
WeightFixture: 16.2 lbs / 7.35kg (Includes Yoke)
Power Adapter: 5.6 lbs/2.6kg
SizeL 14.1" x W 12.3"x H 17.2"
L 357mm x W 312mm x H 438mm
Mount TypeBaby Stud 5/8" Female (16mm) and
Junior Stud 1-1/8" Male (28mm)
IP RatingIP-24 (Water-Resistant)
Thermal DesignAdvanced Vapor Cooling System (Fan Cooled)
Operating Temperature 32-104ºF / 0-40º C

Separator

DOWNLOADS

VIDEOS

Q8 Travel LED Fresnel from Fiilex

This product overview video demonstrates the major features of the Q8 Travel LED Fresnel [02:09]Play

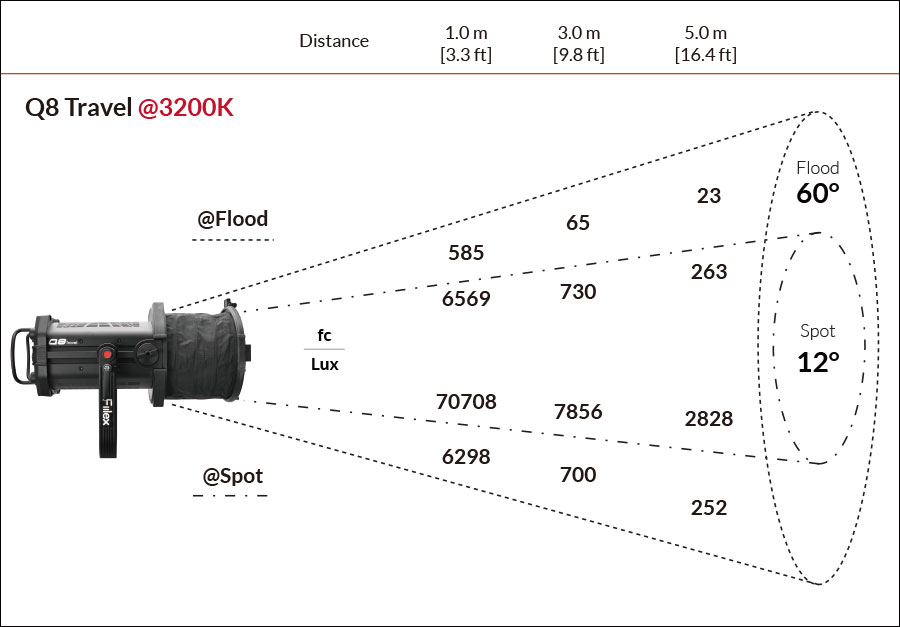

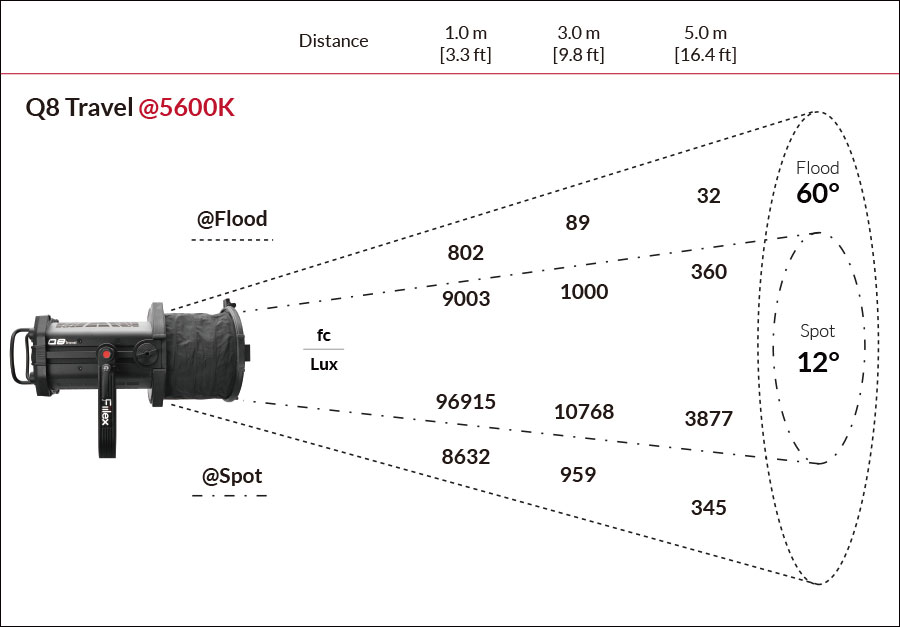

PHOTOMETRIC DATA

Fiilex Q8 Photometric figure

Fiilex Q8 Photometric figure

Separator

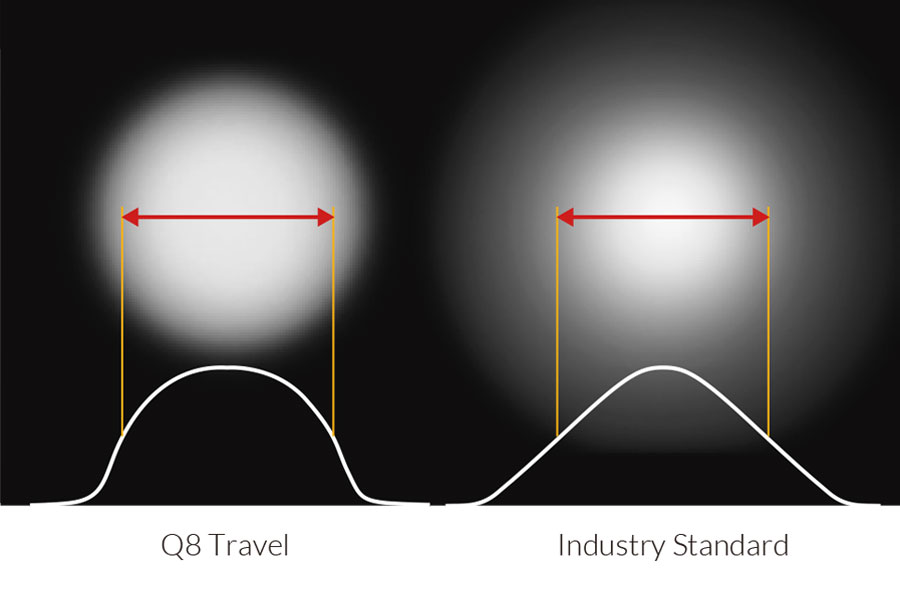

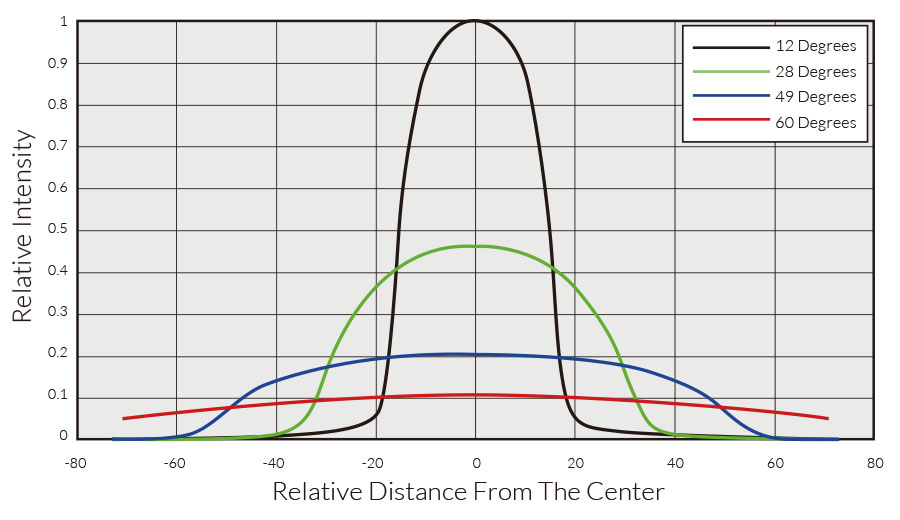

BEAM PROFILE

Fiilex Q8 Travel Beam Profile

Fiilex Q8 Travel Beam Profile

Separator

SPECTRAL DATA

Fillex Q8 CIE1931 3000K 5600K
CRI
Measurement
R1R2R3 R4R5R6R7R8R9
3200K989994989897989796
5600K989897969796979794
CRI
Measurement
R10R11 R12R13R14R15 CRI
Ra
CRI
Extended
TLCI
Results
3200K959789989597979698
5600K959687999898979698
