QUAD (P/N: FLXQUAD-KT2)

QUAD

5K Punch Light

  • Overview
  • Specifications & Downloads
  • Video & Gallery
  • Photometric & Spectral Data
  • Kits & Accessories

The QUAD punch light draws 1360W of power and produces an output greater than a 5K tungsten soft light. Powerful yet compact, the QUAD combines four Matrix fixtures in one ruggedized frame weighing a total of 75lbs and standing less than 3ft high. The streamlined fixture includes an integrated power supply, DMX cables, and Fiilex DMX Controller (in addition to XLR5 input/outputs) for easy transportation and control. This comprehensive design makes it possible for users to take the QUAD on-location to cramped/low-ceiling spaces, or to suspend the fixture from large sets and studios.

The QUAD’s versatility continues with its multi-mode color control and light-shaping accessories. With high CRI and TLCI (95 Typical) and color settings (CCT, HSI, RGBW, Effects, Gel, ect.), all Matrix fixtures must pass an extensive 304-point color calibration that ensures consistent quality at every intensity, internal temperature, CCT, and hue. The QUAD can also be used with optional Quad Fresnel Lenses, which narrow the beam angle to 33º and increases beam intensity by more than 2x. It is also compatible with DoP light banks when using softbox or spacelight tabs connectors.

FEATURES

  • ~5000W tungsten output (1360W draw)
  • 2800–1000K continuous CCT tuning
  • RGBW Color Modes (HSI, Effects, Gels, etc.)
  • High CRI values at every color temperature
  • Dims to 0% without flicker or color shift
  • Precise color calibration for consistent quality
  • Integrated cable management & power supply
  • DMX control (via included controller or XLR5 input)
  • Compatible with industry standard softboxes
  • Optional Quad Fresnel Lens
Separator

ITEMS INCLUDED

QUAD

SPECIFICATIONS

Beam Angle101° (33° with Quad Fresnel)
CCT Range2800 - 10000K Continuous Tuning
Hue Control±0.25 Green
CRI 95 Typical.
Color Control 360° Color
Dimming100% - 0% Flicker Free
Light EngineDense Matrix LED
Power Draw1360W Max
Max Intensity~540fc (at 3m, 5600K)
AC Input100 - 240V AC, 50 ~ 60Hz
DMX Interface XLR5 & Attached Fiilex DMX Controller
Weight75lbs / 34kg
Size (L x W x H)2’ 9” x 10” x 2’ 7” / 84cm x 25cm x 79cm
Mount TypeJunior Stud 1-1/8” Male (28mm)

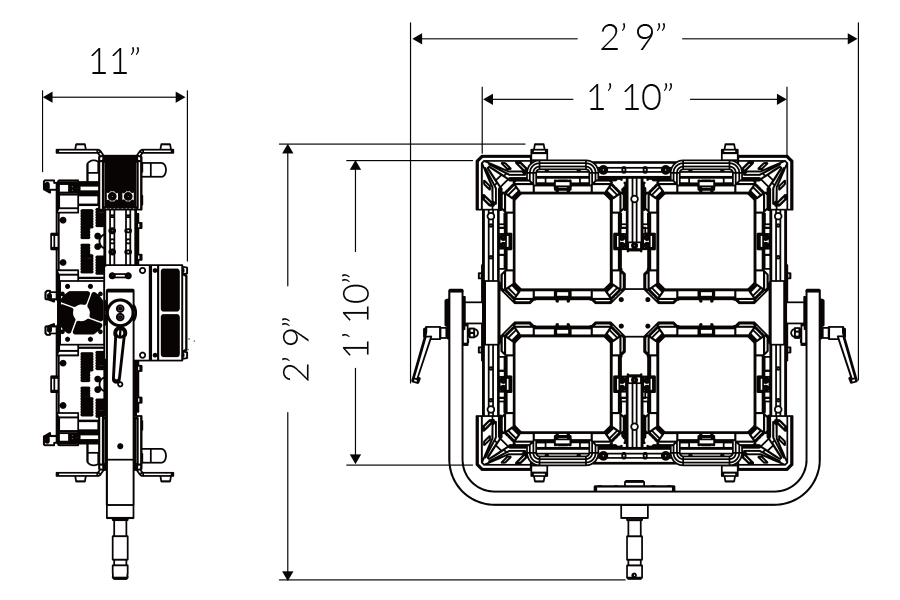

Mechanical Drawing

Fiilex QUAD Mechanical drawing
Separator

DOWNLOADS

GALLERY

PHOTOMETRIC DATA

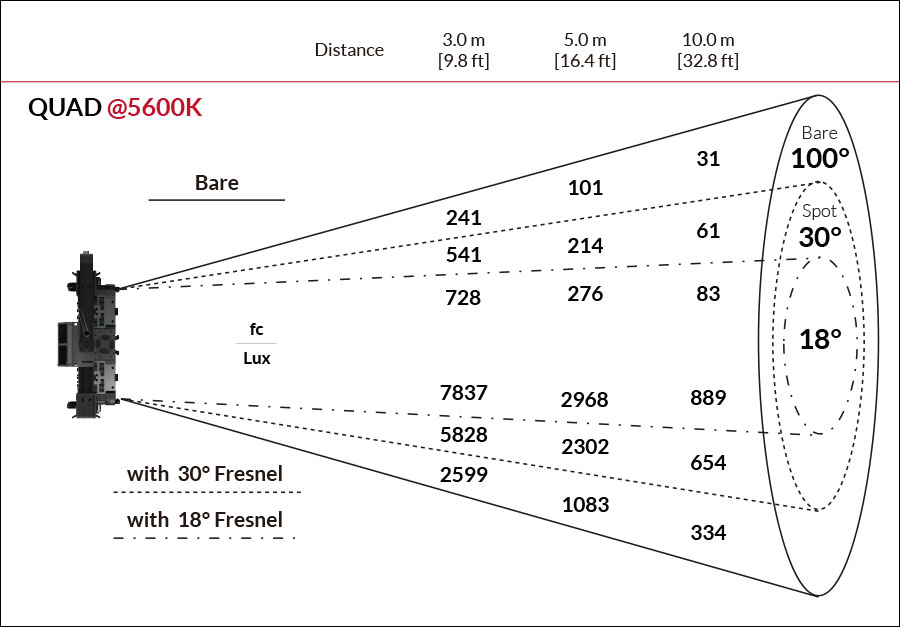

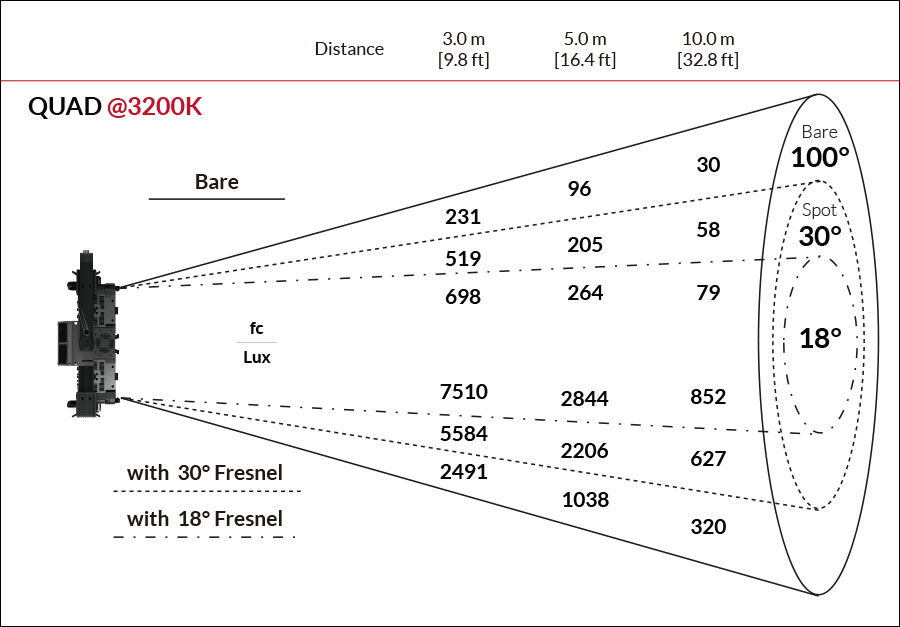

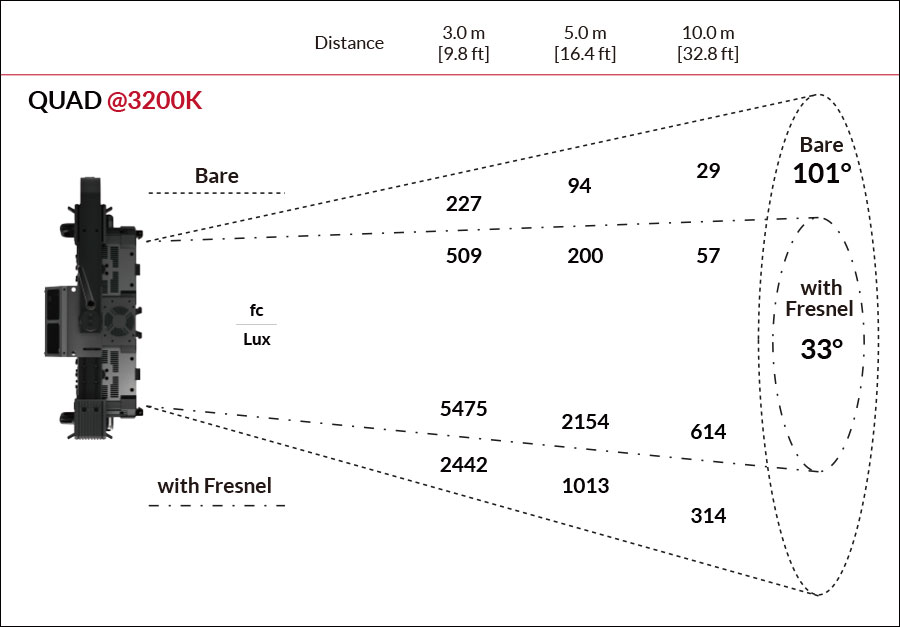

Fiilex QUAD Photometric figure @3200K

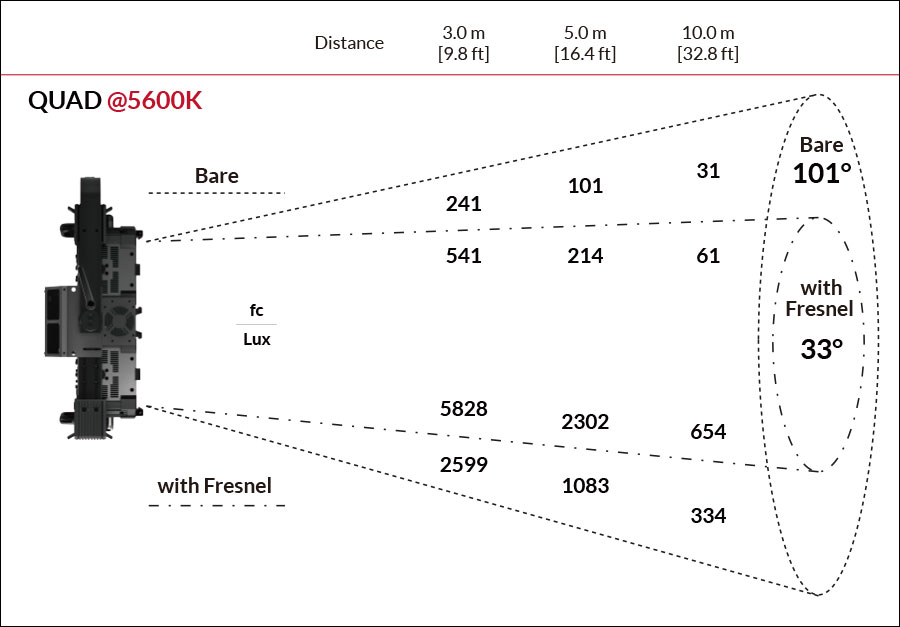

Fiilex QUAD Photometric figure @5600K

Separator

SPECTRAL DATA

CRI
Measurement
R1R2R3 R4R5R6R7R8R9
3200K969886959896959187
5600K989691979694979690
CRI
Measurement
R10R11 R12R13R14R15 CRI
Ra
CRI
Extended
TLCI
Results
3200K889486989095949392
5600K869586979497969495
