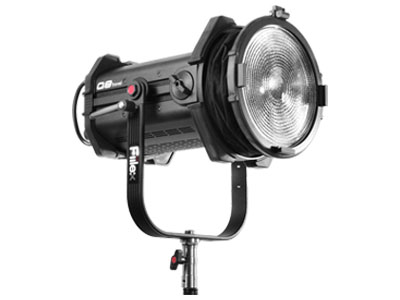

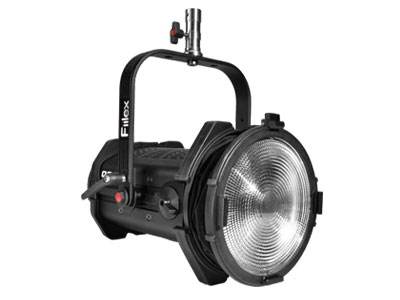

Q8 Travel

P/N: FLXQ8TL

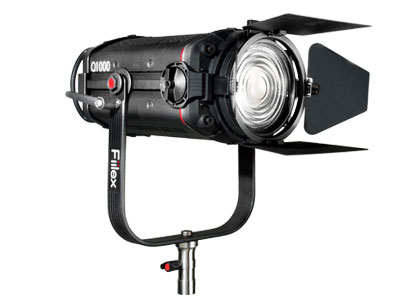

Q1000

P/N: FLXQ1DC

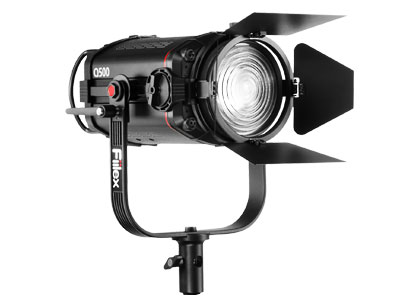

Q500

P/N: FLXQ5AC

Fresnel Size

8"

5"

5"

Beam Angle

12° - 60°

63°
32° - 57° (With 5" Fresnel)

52°
27° - 49° (With 5" Fresnel)

CCT Range

2800K - 6500K

2800K - 6500K

2800K - 6500K

Hue

± 0.25 Green/Magenta

± 0.25 Green/Magenta

± 0.25 Green/Magenta

Tungsten Equivalent

>1000W

~1000W

>500W

Power Draw

340W

340W

170W

DC Input

48V DC

48 - 54V DC

N/A

AC Input

100 - 240V AC (Adapter)

100 - 240V AC (Adapter)

100 - 240V AC

DMX

3-CH (Dimming, CCT, Hue)

3-CH (Dimming, CCT, Hue)

3-CH (Dimming, CCT, Hue)

Display Type

LCD

LCD

LCD

Weight

16.2lbs / 7.4kg

12.8lbs / 5.8kg

12lbs / 5.5kg

Dimensions

L14.05" x W 12.3" x H 17.23"

L12.8" x W12.75" x H15.7"

L12" x W12.75" x H15"

IP Rating

IP-24

IP-24

IP-20

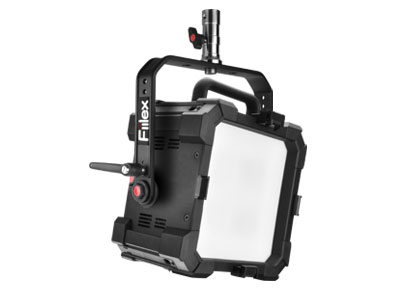

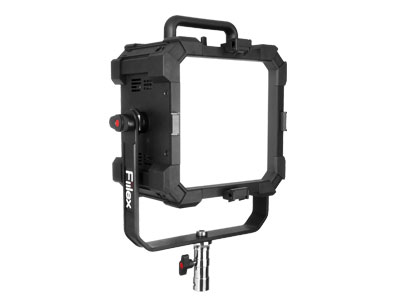

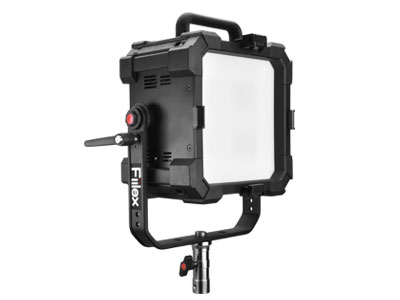

Matrix II RGBW

P/N: FLXMXRGBW

Matrix II Tunable White

P/N: FLXMXG2

Fresnel Size

Quad Fresnel (Optional)

Quad Fresnel (Optional)

Beam Angle

99°
31° ( With Quad Fresnel )

99°
31° ( With Quad Fresnel )

CCT Range

2800 - 10000K RGBW

2800 - 6500K

CRI

95 Typical

96 Typical

Hue

± 0.25 Green

± 0.25 Green

Tungsten Equivalent

>1000W

>1000W

Power Draw

340W

340W

DC Input

48V DC

48V DC

AC Input

100 - 240V AC (Adapter)

100 - 240V AC (Adapter)

DMX

CCT Mode / HSI Mode / RGBW Mode

3-CH (Dimming, CCT, Hue)

Display Type

OLED

OLED

Weight

9.7lbs / 4.4kg

9.7lbs / 4.4kg

Dimensions

L6.7" x W12.2" x H16.5"

L6.7" x W12.2" x H16.5"

IP Rating

IP-24

IP-24

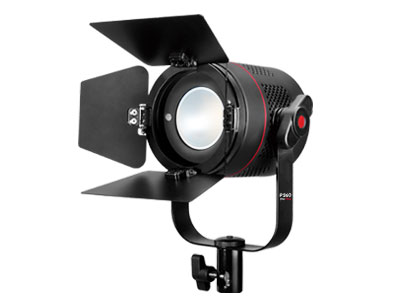

P360
Pro Plus

P/N: FLXP360PP

P360
Pro

P/N: FLXP360P

P360
Classic

P/N: FLXP360CL

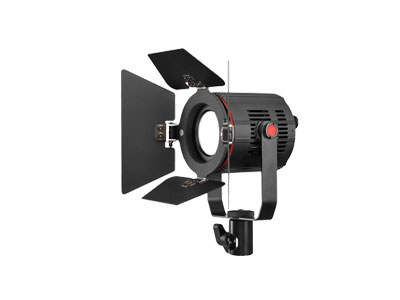

P180
ENG

P/N: FLXP180

Fresnel Size

2" (Optional)

2" (Optional)

2" (Optional)

2" (Optional)

Beam Angle

65°
30° (With 2" Fresnel)

65°
30° (With 2" Fresnel)

65°
30° (With 2" Fresnel)

47°
28° (With 2" Fresnel)

CCT Range

2800 - 6500K

2800 - 6500K

2800 - 6500K

3000 - 5600K

CRI

95 Typical

93 Typical

93 Typical

92 Typical

Hue

± 0.25 Green

N/A

N/A

N/A

Tungsten Equivalent

360W

360W

360W

180W

Power Draw

90W

90W

90W

40W

DC Input

12-30V DC

12-30V DC

12-30V DC

12-28V DC

AC Input

100 - 240V AC (Adapter)

100 - 240V AC (Adapter)

100 - 240V AC (Adapter)

100 - 240V AC (Adapter)

DMX

3-CH (Dimming, CCT, Hue)

2-CH (Dimming, CCT)

N/A

N/A

Display Type

OLED

OLED

N/A

N/A

Weight

1.9lbs / 0.8kg

1.9lbs / 0.8kg

1.8lbs / 0.8kg

1.2lbs / 544g

Dimensions

L4.8" x W5.8" x H8.1"

L4.8" x W5.8" x H8.1"

L4.8" x W5.8" x H8.1"

2.9” Dia x 3.8L

IP Rating

IP-24

IP-24

IP-24

IP-24

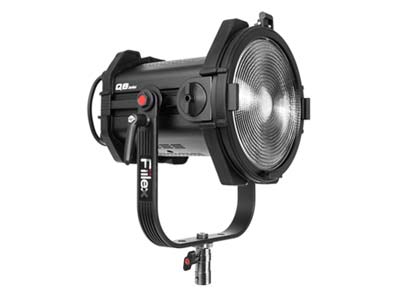

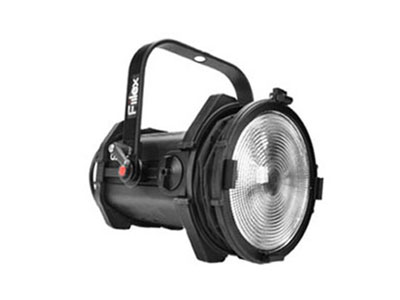

Q8 Junior

P/N: FLXQ8JR

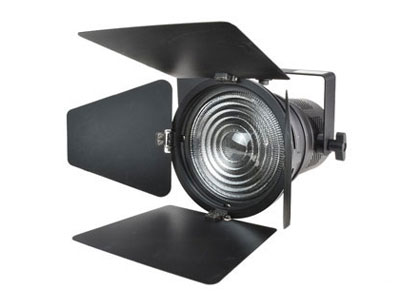

C365

P/N: FLXC365-PP

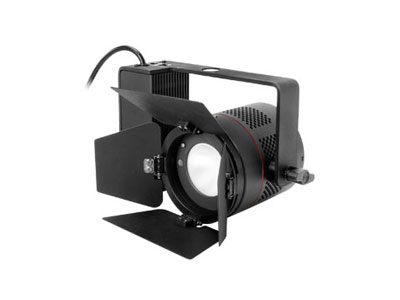

C360

P/N: FLXC360-PP

Fresnel Size

8"

5"

2" (Optional)

Beam Angle

15°- 50°

12°- 31°

65°
33° (With 2" Fresnel)

CCT Range

2800 - 6500K

2800 - 6500K

2800 - 6500K

CRI

94 Typical

95 Typical

95 Typical

Hue

± 0.25 Green

± 0.25 Green

± 0.25 Green

Tungsten Equivalent

~650W

360W

360W

Power Draw

170W

85W

85W

AC Input

100 - 240V AC

100 - 240V AC

100 - 240V AC

DMX

3-CH (Dimming, CCT, Hue)

3-CH (Dimming, CCT, Hue)

3-CH (Dimming, CCT, Hue)

Display Type

LCD

OLED

OLED

Weight

14.9lbs / 6.8kg

4.41lbs / 2.0kg

3.31lb / 1.5kg

Dimensions

L12.1" x W12.3" x H16.4"

L8.4" x W8.2" x H7.5"

L5.6" x W8.2" x H4.7"

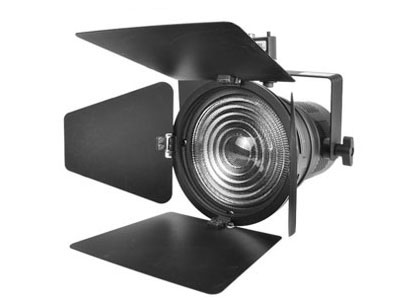

T365

P/N: FLXT365-PP

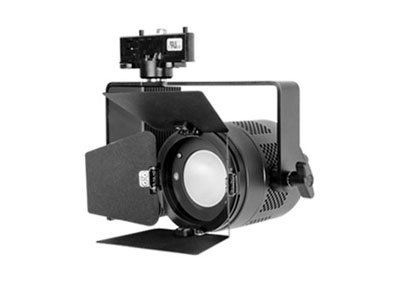

T360

P/N: FLXT360-PP

Fresnel Size

5"

2" (Optional)

Beam Angle

12°- 31°

65°
33° (With 2" Fresnel)

CCT Range

2800 - 6500K

2800 - 6500K

CRI

95 Typical

95 Typical

Hue

± 0.25 Green

± 0.25 Green

Tungsten Equivalent

360W

360W

Power Draw

85W

85W

AC Input

120V AC

120V AC

DMX

3-CH (Dimming, CCT, Hue)

3-CH (Dimming, CCT, Hue)

Display Type

OLED

OLED

Weight

4.08lbs / 1.85kg

2.98lbs / 1.35kg

Dimensions

L8.4" x W8.2" x H7.5"

L5.6" x W8.2" x H4.7"

V360

P/N: FLXV360P

V70

P/N: FLXV071

Beam Angle

60°
33° (With 2" Fresnel)

85°
139° (With Dome Diffuser)

CCT Range

2800 - 6500K

3000 / 4000 / 5000 / 6500K

CRI

96 Typical

≥90

Power Draw

90W

11 - 13W

DC Input

12 - 30V DC

24V DC

AC Input

100 - 240V AC

100 - 240V AC (Adapter)

Display Type

OLED

N/A

Weight

7.6lbs / 3.4kg

2.76lbs / 1.25kg

Dimensions

Light Size (L x W x H): 5.5in x 4.0in x 4.7in / 14.0cm x 10.2cm x 12.0cm
Arms Size (Fully Extended): 36.2in / 91.9cm

W6.8" x H27.2"
