T360 & T365

DMX LED Track Light

  • Overview
  • Specifications & Downloads
  • Photometric & Spectral Data
  • Kits & Accessories

With the T360, Fiilex brings its advanced LED technology to the world of track lighting. No other LED track fixture comes close to matching the T360's combination of a compact form-factor with intense, broadcast-quality illumination. Unobtrusive and powerful, the T360 can turn any space into a studio.

The T360 is compatible with a wide range of light-modifying accessories. Smaller magnetic attachments include diffusers, fresnels, honeycombs, and gel holders. The safety-minded design of the T-Series includes integrated lockdown screws for available accessories.

The T365 model features the 5" Zoom Fresnel, a powerful attachment that narrows the light's output, increasing intensity by 800% at full focus.

Each fixture is also DMX512 compatible, allowing users to operate them remotely via the Fiilex DMX Controller or any standard DMX board.

In addition to being extremely low-profile, these 85W lights boast many of the same advanced control features of the Fiilex second generation P-Series, including wide-gamut color tuning, full dimming, and hue adjustment. At every setting these lights maintain excellent CRI (95 Typical). Fixtures are also available in white for better integration into mixed-use spaces.

FEATURES

  • DMX controllable (3-CH: intensity, CCT, hue)
  • Dims to 0% without flicker or color shift
  • 2800 - 6500K continuous CCT tuning
  • ±0.25 green/magenta adjustment
  • High CRI at every color temperature
  • 300W tungsten output, 85W power draw
  • Designed for use with standard pipe-clamps
  • Less than 12" of clearance required
  • Lightweight (less than 4.5lbs with AC power cable)
  • Integrated power supply
  • Compatible with light modifiers

Separator

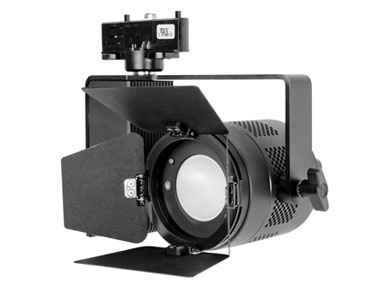

T360

2" Fresnel Accessory Attachment

65° Native Beam Angle

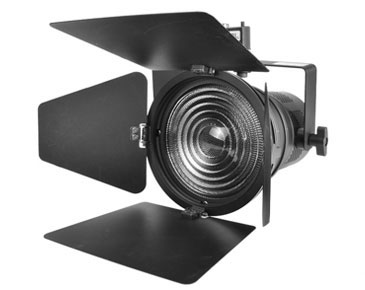

T365

5" Zoom Fresnel Lens

12° - 31° Beam Angle
Separator

ITEMS INCLUDED

(1) T360 Track Light

or

(1) T365 Track Light

SPECIFICATIONS

CCT Range2800 - 6500K continuous tuning
CRI 95 typical.
TLCI 90 typical.
Hue Control±0.25 green/magenta
Dimming100% - 0% flicker free
Light EngineDense Matrix LED
Power Draw85W max (300W tungsten equivalent)
AC Input120V AC, 60Hz
DMX Control3-CH (intensity, CCT, hue) via TRRS Ports
Display TypeOLED
MountLocking DMX track attachment
Thermal DesignAdvanced vapor cooling system (fan cooled)
Acoustic Noise22.7dB (professional recording studio level)
Operating Temperature 32-104ºF / 0-40ºC

  T360 T365
Fresnel Size N/A 5"
Beam Angle 65° (33° with 2" fresnel) 12° - 31°
Weight 2.98lbs / 1.35kg 4.08lbs / 1.85kg
Size L 5.6" x W 8.2" x H 4.7" L 8.4" x W 8.2" x H 7.5"

Separator

DOWNLOADS

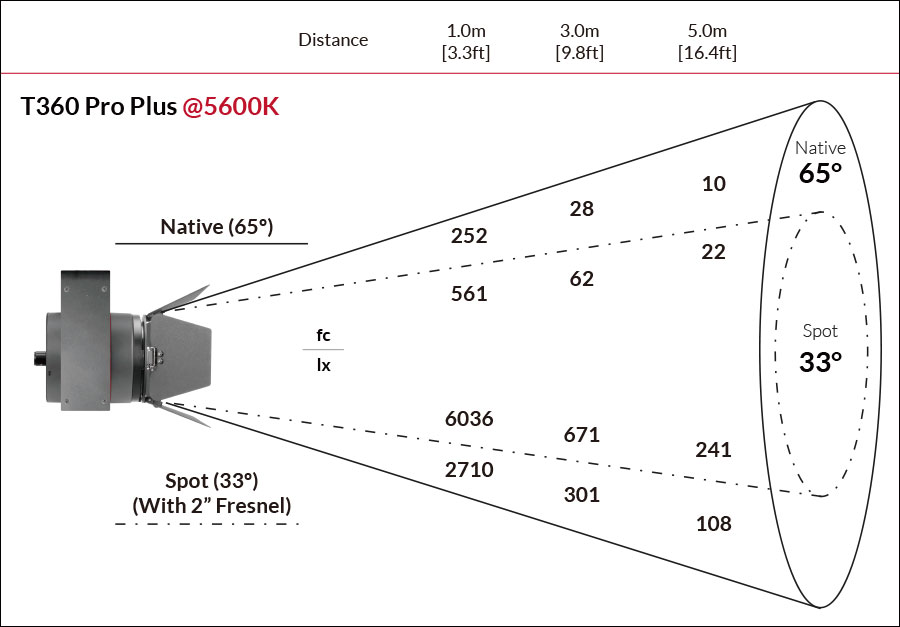

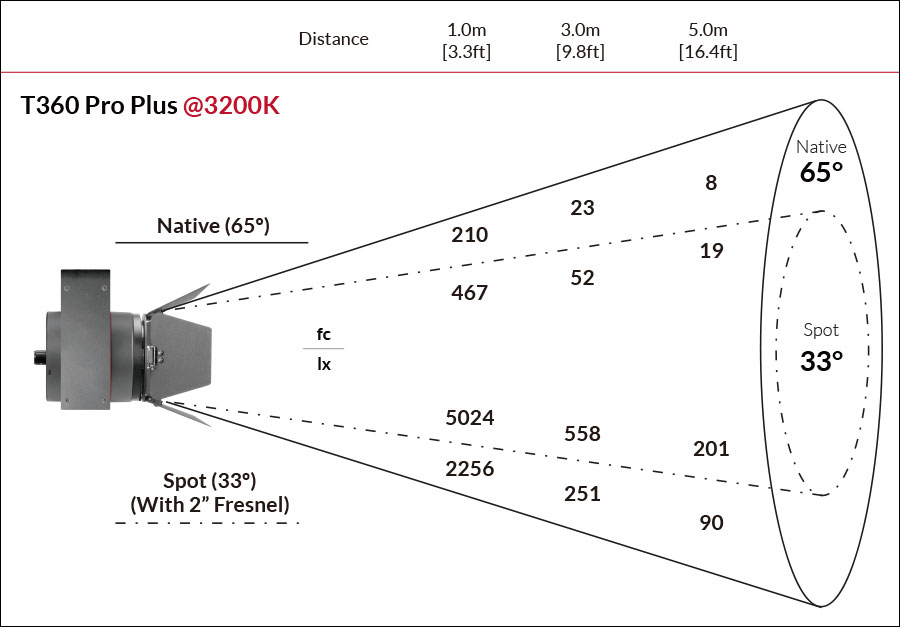

PHOTOMETRIC DATA

Fiilex T360 Photometric figure

Fiilex T360 Photometric figure

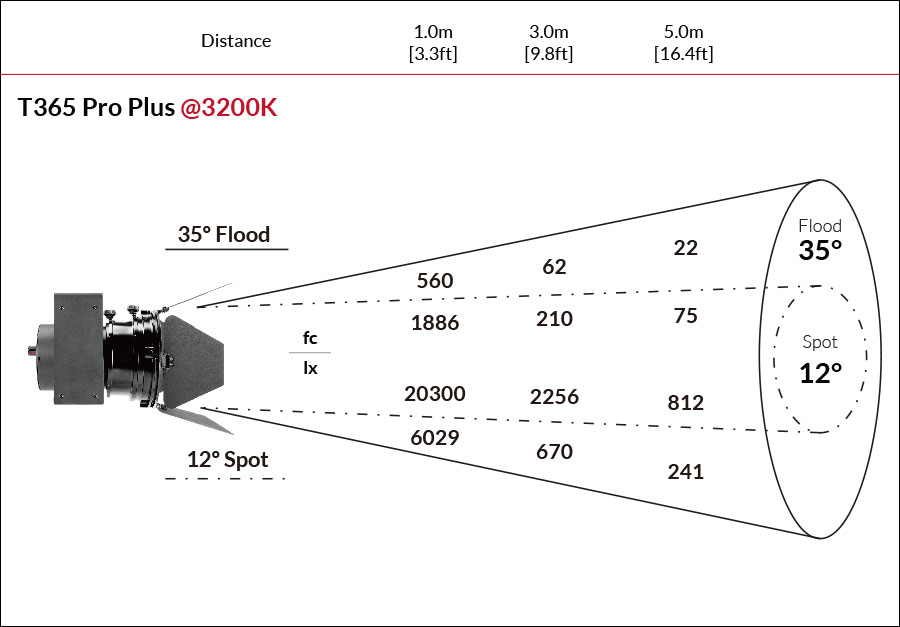

Fiilex T365 Photometric figure

Fiilex T365 Photometric figure

T360 COMPATIBLE ACCESSORIES

Fiilex Locking 2

Locking 2" Fresnel

Fiilex Locking Dome Diffuser

Locking Dome Diffuser

Fiilex Locking Snoot

Locking Snoot

Fiilex Locking Louver

Locking Louver

Fiilex Locking Honeycomb-N

Locking Honeycomb-N

Fiilex Locking Honeycomb-W

Locking Honeycomb-W

Fiilex Mini Softbox Kit

Mini Softbox Kit

Fiilex Wall Controller

Wall Controller

Separator

T365 COMPATIBLE ACCESSORIES

Fiilex 5

5" Gel Holder

Fiilex Wall Controller

Wall Controller
