V70

Color Viewing Lamp
DenseMatrixLED
  • Fillex V70 Color Viewing Lamp
  • Fillex V70 Color Viewing Lamp
  • Fillex V70 Color Viewing Lamp
  • Fillex V70 Color Viewing Lamp
  • Fillex V70 Color Viewing Lamp
  • Fillex V70 Color Viewing Lamp
  • Fillex V70 Color Viewing Lamp
  • Fillex V70 Color Viewing Lamp
Fillex V70 Color Viewing Lamp
Fillex V70 Color Viewing Lamp
Fillex V70 Color Viewing Lamp
Fillex V70 Color Viewing Lamp
Fillex V70 Color Viewing Lamp
Fillex V70 Color Viewing Lamp
Fillex V70 Color Viewing Lamp
Fillex V70 Color Viewing Lamp

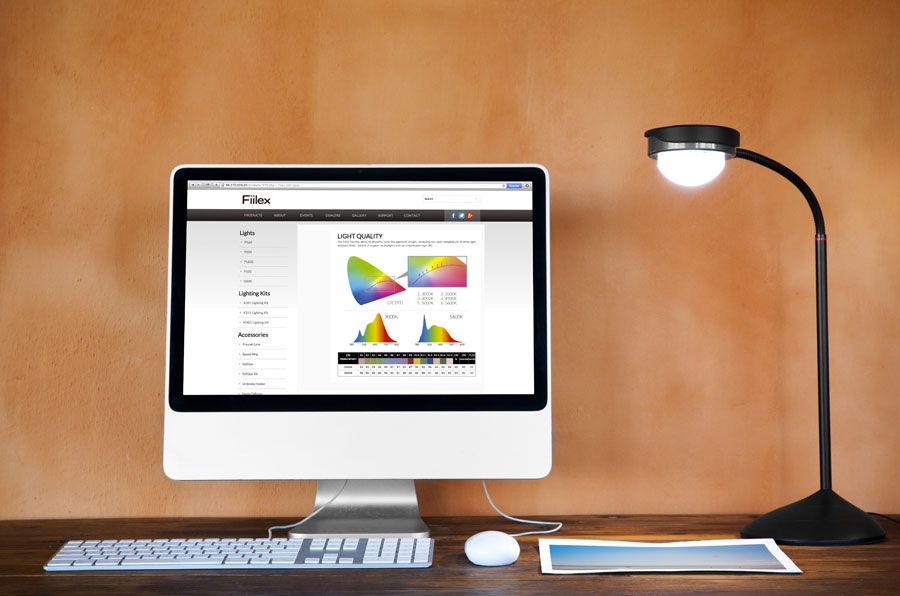

Let Fiilex V70 LED Viewing Lamp transform your desk into a color viewing workstation. At a fraction of the size and cost of traditional viewing stations, the V70 offers the same clean D50 and D65 light used by professionals to evaluate and compare colors in prints, paints, and fabrics. Its high CRI guarantees that your colors will look beautiful, and four color temperature settings (3000K, 4000K, 5000K, 6500K, accurate to +/- 100K) allow you to assess your work in a variety of lighting conditions. The V70 includes a low profile Dome Diffuser and is compatible with many other Fiilex accessories, giving you even greater versatility in image viewing. Operated by three touch controls, this sleek lamp allows user to turn the light on/off, dim the light smoothly, and change the color setting. Streamline your color-critical workflow with the V70, the perfect addition to the modern image maker's office.

Separator

FEATURES

  • High CRI (≥90)
  • Full Spectrum Quality Light

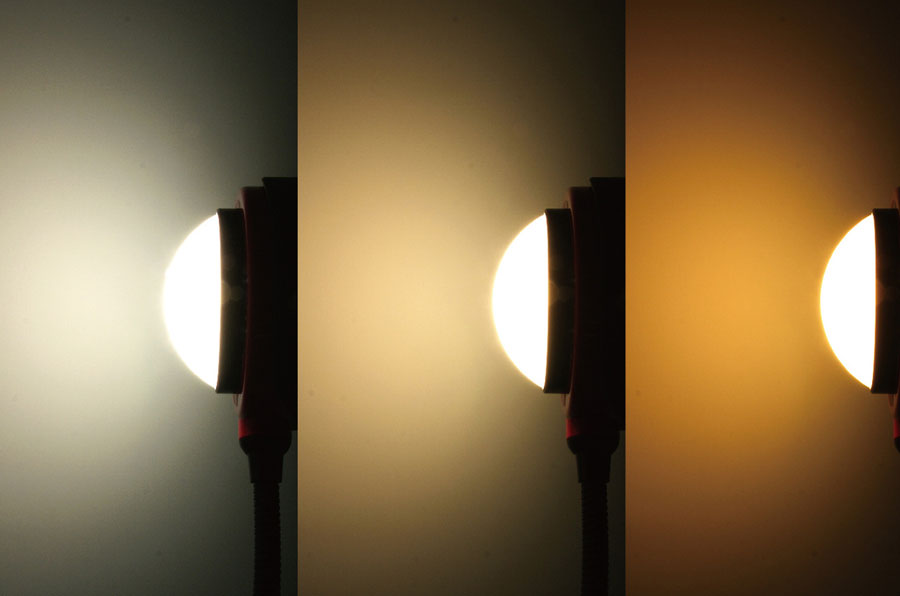

  • Color Temperature Range (4 Color Settings: Warm 3000K, Middle Warm 4000K, D50 Daylight 5000K, D65 Daylight 6500K)
  • Continuous Dimming 100%-20%
  • Intuitive 3-Zone Touch Control
  • Does Not Emit UV Radiation
  • AC/DC Power, Cool to Touch
  • Compatible with Fiilex Accessories
Separator

SPECIFICATIONS

Size 6.8" (Width) x 27.2" (Height)
Weight 2.76 lbs / 1.25 kg
LED Dense Matrix LED
Thermal Design Fanless Cooling System
CCT Range 3000 / 4000K / 5000K / 6500K
Dimming Continuous Between 100%-20%
CRI ≥90
Power Consumption 11-13W Max
Input Voltage 12-28VDC ±5%
AC Adaptor 100-240V AC, 50 - 60Hz (Input) / 24 VDC, 1A, 24 W (Output)
Operating Temperature 32° - 104°F / 0 - 40° C

Separator

SPECTRAL DATA

Fillex V70 Color Viewing Lamp CIE1931 3000K 4000K 5000K 6500K
CRI
Measurement
R1R2R3 R4R5R6R7R8R9
3000K979794969595979274
4000K979998939496959276
5000K969898909395939073
6500K959897899295928970
CRI
Measurement
R10R11 R12R13R14R15 CRI
Ra
CRI
Extended
3000K8693799595939592
4000K9191769698949592
5000K9289739699929491
6500K9388769599919391

*Values in this table are typical.
**CRI Ra is the averaged result of R1 to R8, CRI Extended is the averaged value of R1 to R15.

Separator

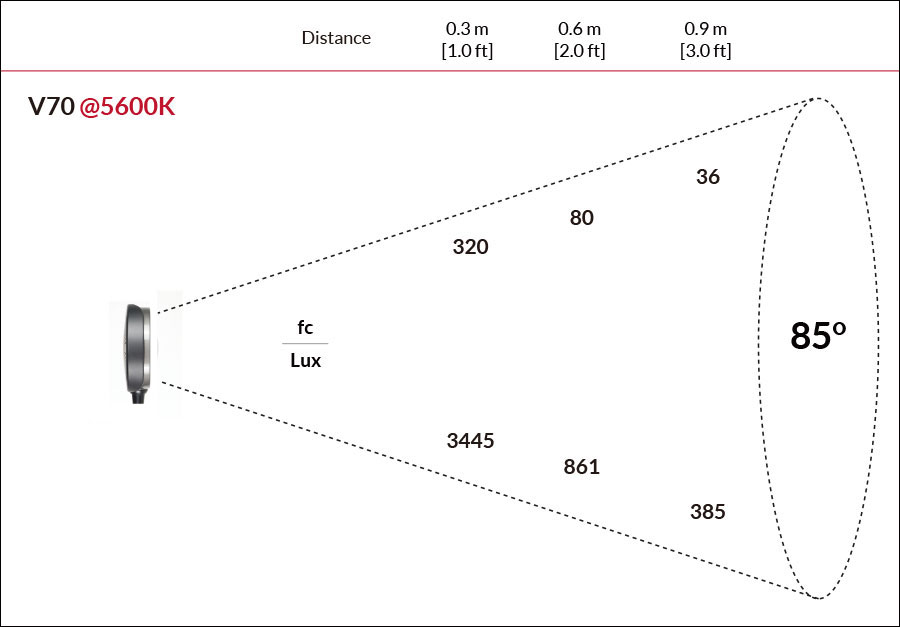

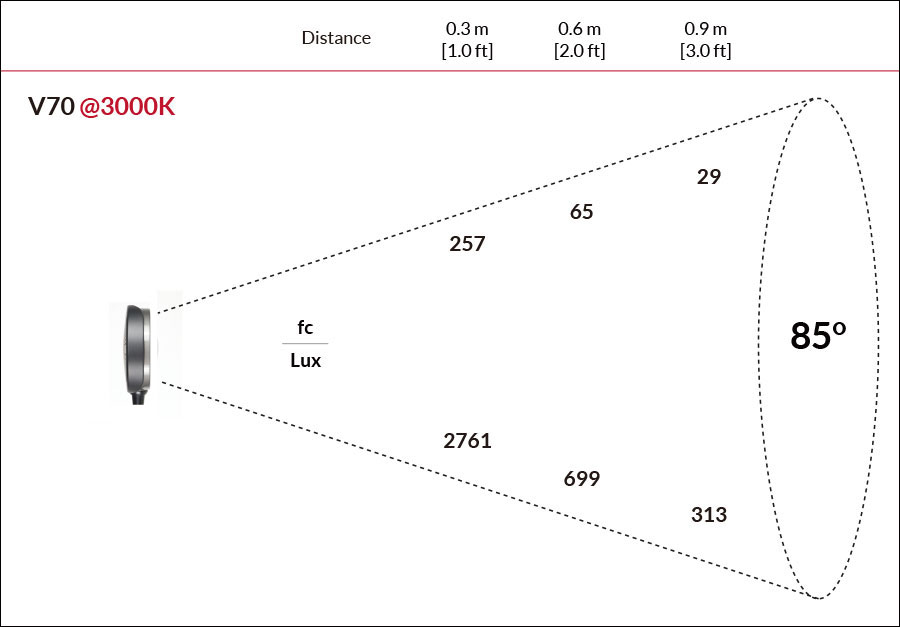

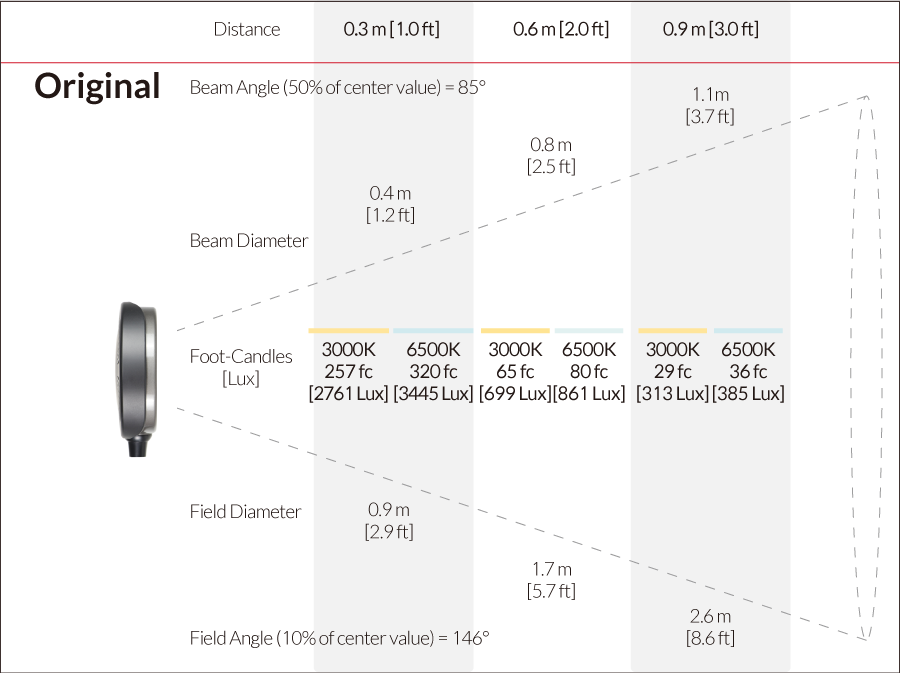

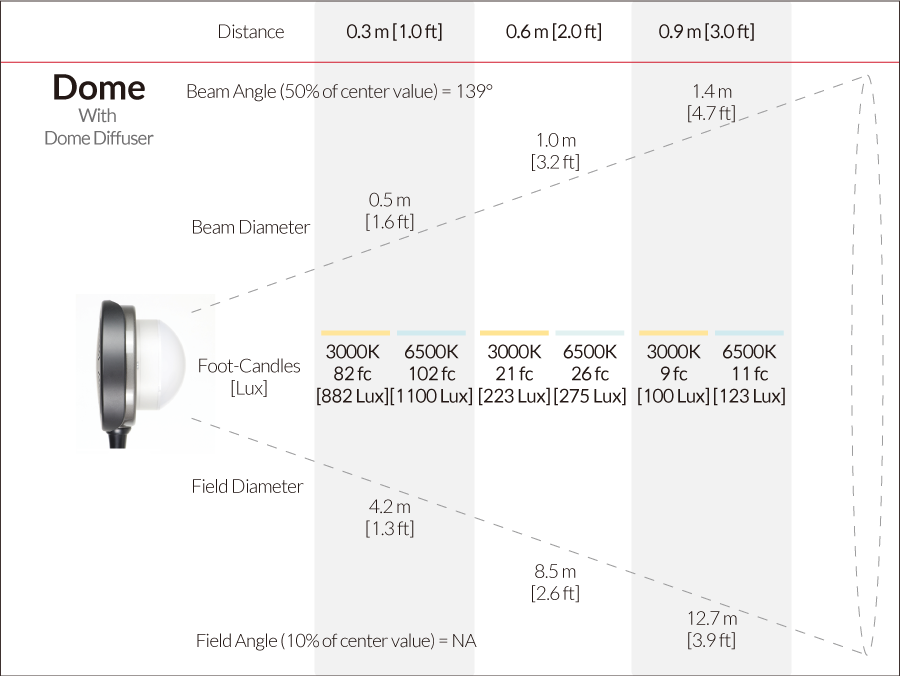

PHOTOMETRIC DATA

Fillex V70 Color Viewing Lamp Photometric Data Fillex V70 Color Viewing Lamp Photometric Data
Separator

SHOWCASE

Color Viewing Lamp

Let the Fiilex V70 LED Viewing Lamp transform your desk into a color viewing workstation. Its high CRI guarantees that your colors will look beautiful, and four color temperature settings (3000K, 4000K, 5000K, 6500K, accurate to +/- 100K) allow you to assess your work in a variety of lighting conditions. [01:21]Play

See Your Work In A Whole New Light

Evaluate color like a pro with the Fiilex V70, the touch-controlled LED task lamp that features the D50 and D60 industry-standard light used by professional image viewers. With 4 precise color temperature settings and high CRI, color has never looked this good. [00:52]Play

Precise Light, Perfect Color

Hugh Milstein is co-founder of the post-production company Digital Fusion. With over 15 years of experience, this industry veteran knows the importance of controlled lighting and accurate color translation. Watch as he shares his thoughts on the V70 and its impressive color feedback. [02:56]Play

Get Soft Light in Seconds

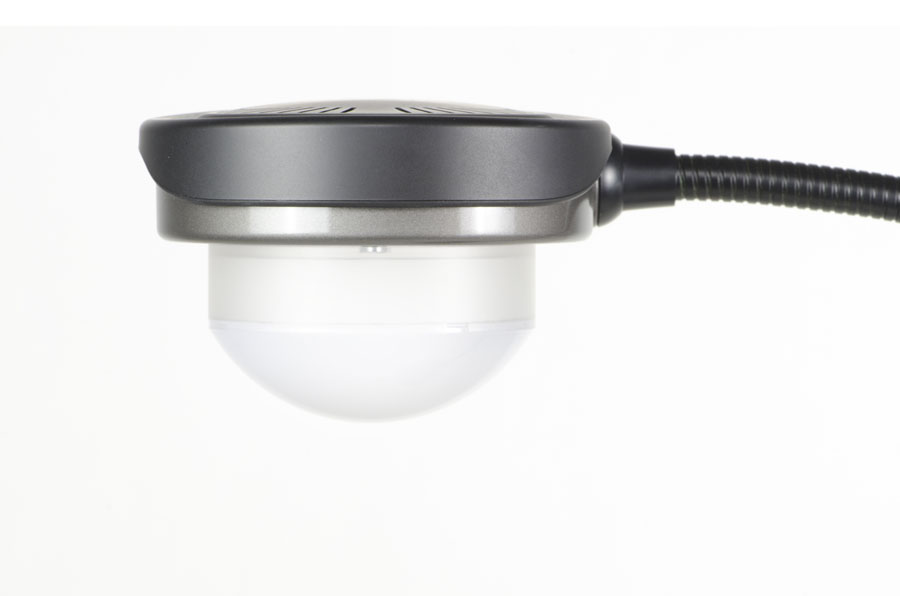

The Fiilex Dome Diffuser spreads and softens light, great for seeing how your images look under varied lighting conditions. The dome uses our magnetic attachment system to easily pop on and off of the V70. [00:16]Play

Separator

Items Included

Fillex V70 Color Viewing Lamp

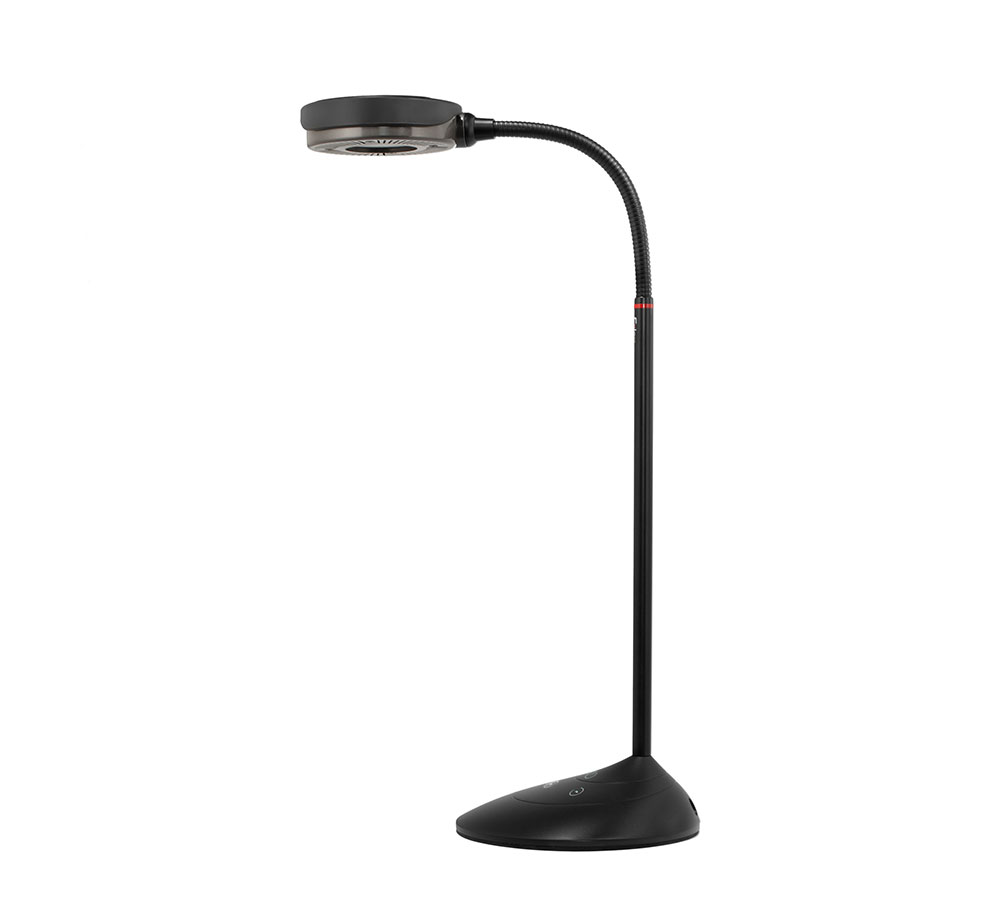

(1) V70 LED Viewing Lamp

Fillex V70 Color Viewing Lamp accessory

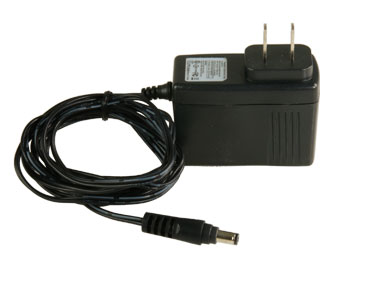

(1) Power Supply

Fillex V70 Color Viewing Lamp accessory

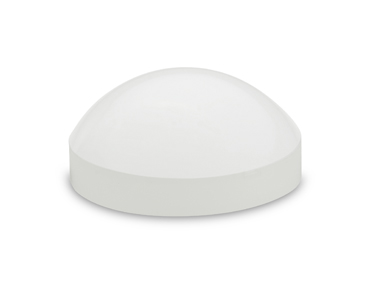

(1) Low Profile Dome Diffuser

Separator

Compatible Accessories

Fillex Optional Accessory Dome Diffuser

Dome Diffuser



Fillex Optional Accessory Fresnel Lens

Fresnel Lens



Fillex Optional Accessory Gel Holder

Gel Holder
