Fiilex Q3 COLOR-LR

90W LED Fresnel

Fiilex Q3 COLOR-LR

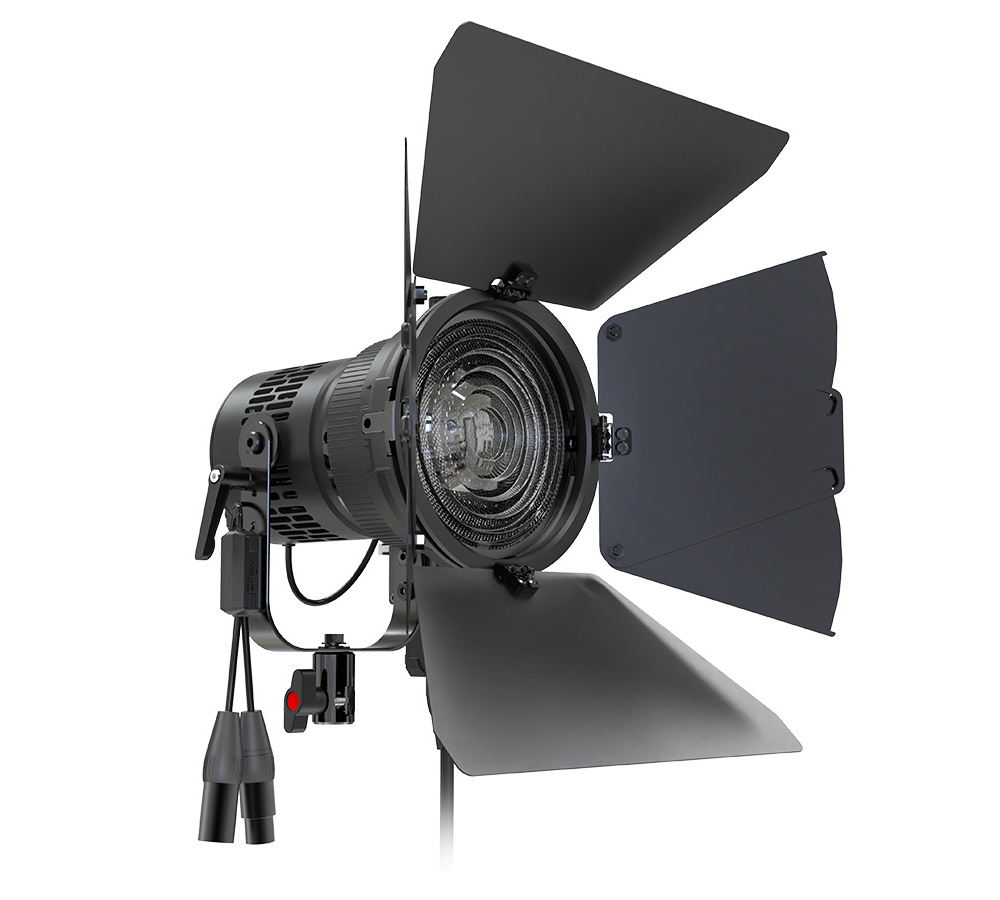

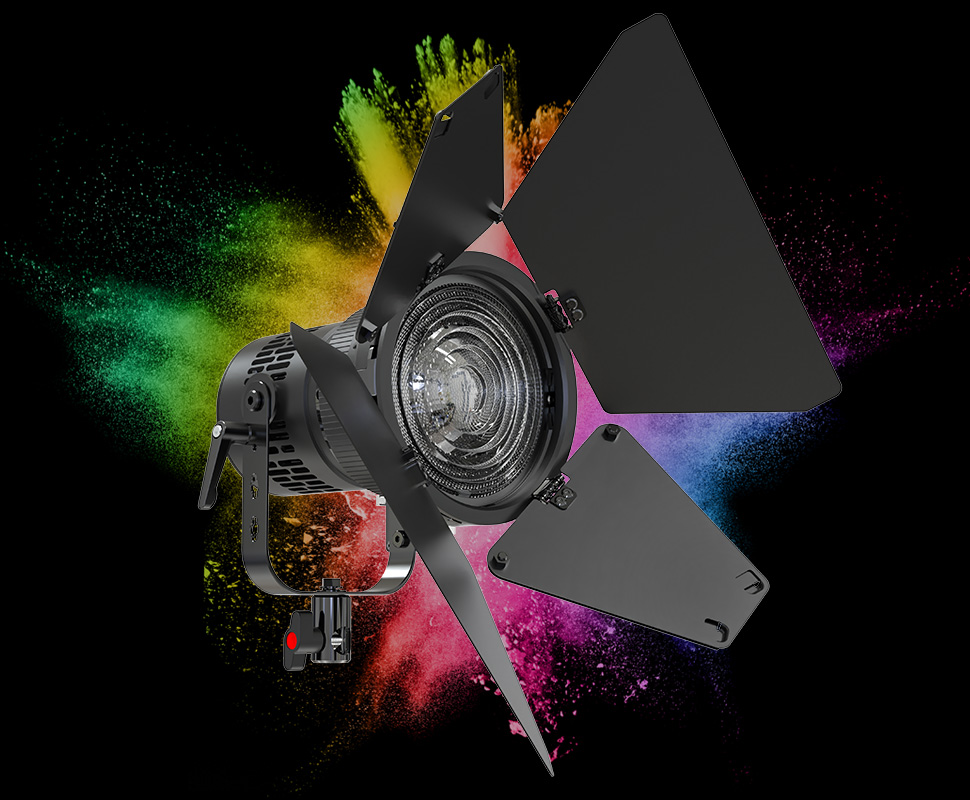

The Q3 COLOR-LR is a cinema-grade 90W full-color fresnel that packs a ton of features into its compact four pound housing. Almost a point source, this LED is capable of producing crisp shadows and clean barndoor cuts. Its IP-X5 rating and flexible mounting options also means it can be used and rigged in harsh and dynamic environments. No other portable LED fixture can match the Q3's combination of power, size, and control.


Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 33

FIXTURES & KITS

Fiilex Q3 COLOR-LR
FLXQ3CLRLR

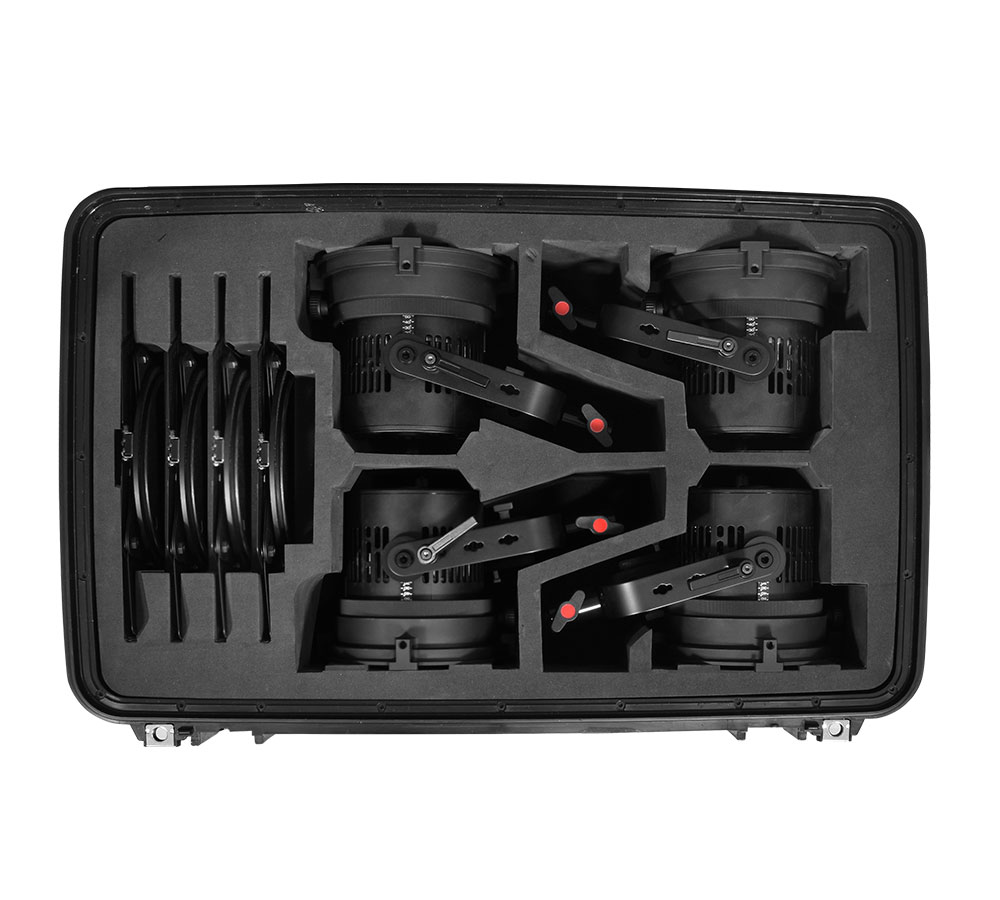

Fiilex Q3 COLOR-LR K4 Kit
FLXQ3CLRLR-K4-KIT

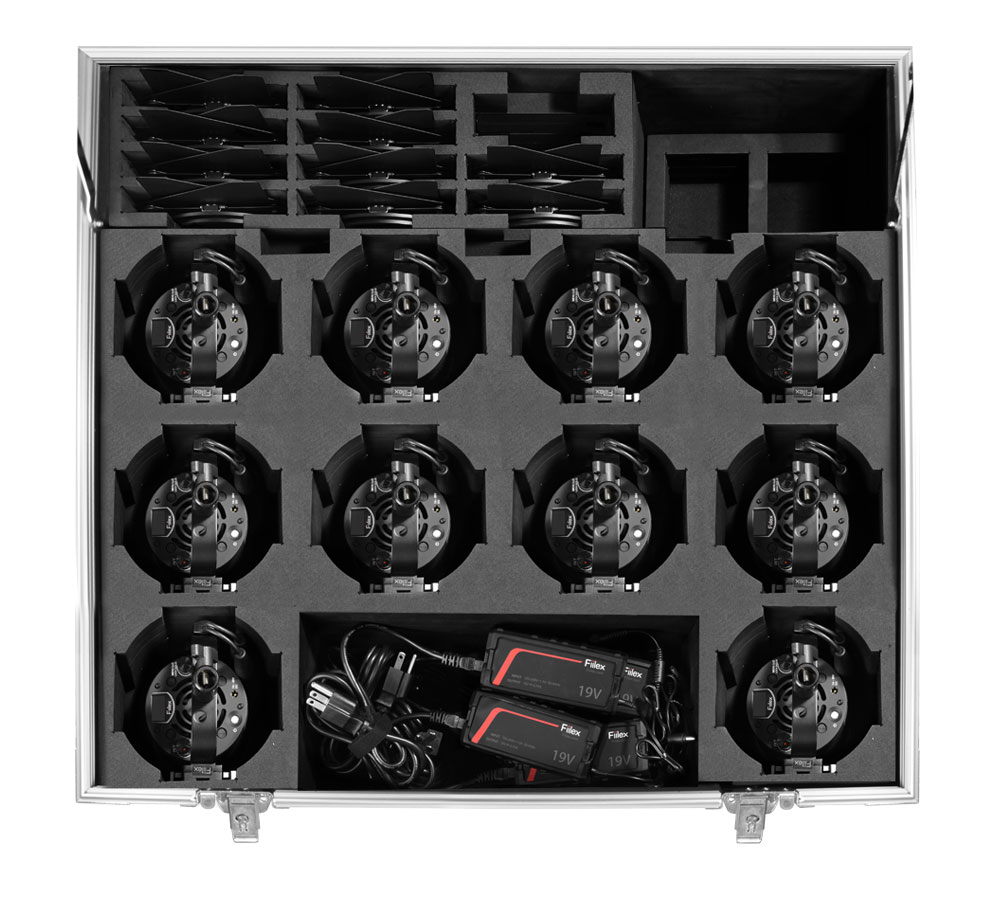

Fiilex Q3 COLOR-LR B10 Kit
FLXQ3CLRLR-B10-KIT
Separator

ACCESSORIES

Fiilex RPU
FLXRPU-HEAD
Fiilex Locking DMX Adapter TRRS to XLR5
FLXQ3CLR-TRRS2XLR5
Fiilex Flexible Energy Source 270
FLXFES-270
Fiilex D-Tap Cable 2ft Curled D-Tap to Barrel
FLXPSU-DCJ2C-DTAPBRL
Fiilex D-Tap to Barrel Cable, 96"
FLXPSU-DCJ96S-DTAPBRL
Fiilex 90W V-Mount PSU
FLXQ3CLR-PSU-90V
Fiilex Surface Mount Trim Accessory, 3
FLXQ3CLR-SURFMNT3
Fiilex Surface Mount Trim Accessory, 5
FLXQ3CLR-SURFMNT5
Fiilex Recessed Trim Accessory, 4
FLXQ3CLR-REC4WIDE
Fiilex Recessed Trim Accessory, 4
FLXQ3CLR-REC4NARROW
Separator

SPECIFICATIONS

Fresnel Diameter5”
Beam Angle15°-45° with fresnel (55° without fresnel)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming Modes / CurveSmooth, Sharp / Linear, Gamma
Light EngineDiCon Dense Matrix LED
Power Consumption90W max AC | 80W max DC
BTUs/hour307 (BTUs/hour) max
DC Input14 - 30V DC (via 5.5mm x 2.5mm Barrel)
AC Input100 - 240V AC, 50 ~ 60Hz
DMX/RDM PortTRRS (XLR-5 via adapter)
Wireless Control Integrated LumenRadio CRMX
USB Power Output5V/1A (via USB-C)
WeightFixture: 4.5 lbs / 2kg (includes yoke, barndoors) | Power adapter: 1.1 lbs/0.5kg
Size (L x W x H)5.7" x 6.8" x 9.0" / 14.4cm x 17.4cm x 23.0cm
Mount TypeBaby stud 5/8" female (16mm)
IP RatingIP-X5 (water-resistant)
Thermal DesignControllable fan
Operating Temperature 0-40ºC / 32-104ºF
