QUAD COLOR

1360W LED Fresnel Punch Light

5K Tungsten Equivalent
100°, 30° and 18° Lens Options
Weighs only 75 lbs
Fiilex QUAD COLOR

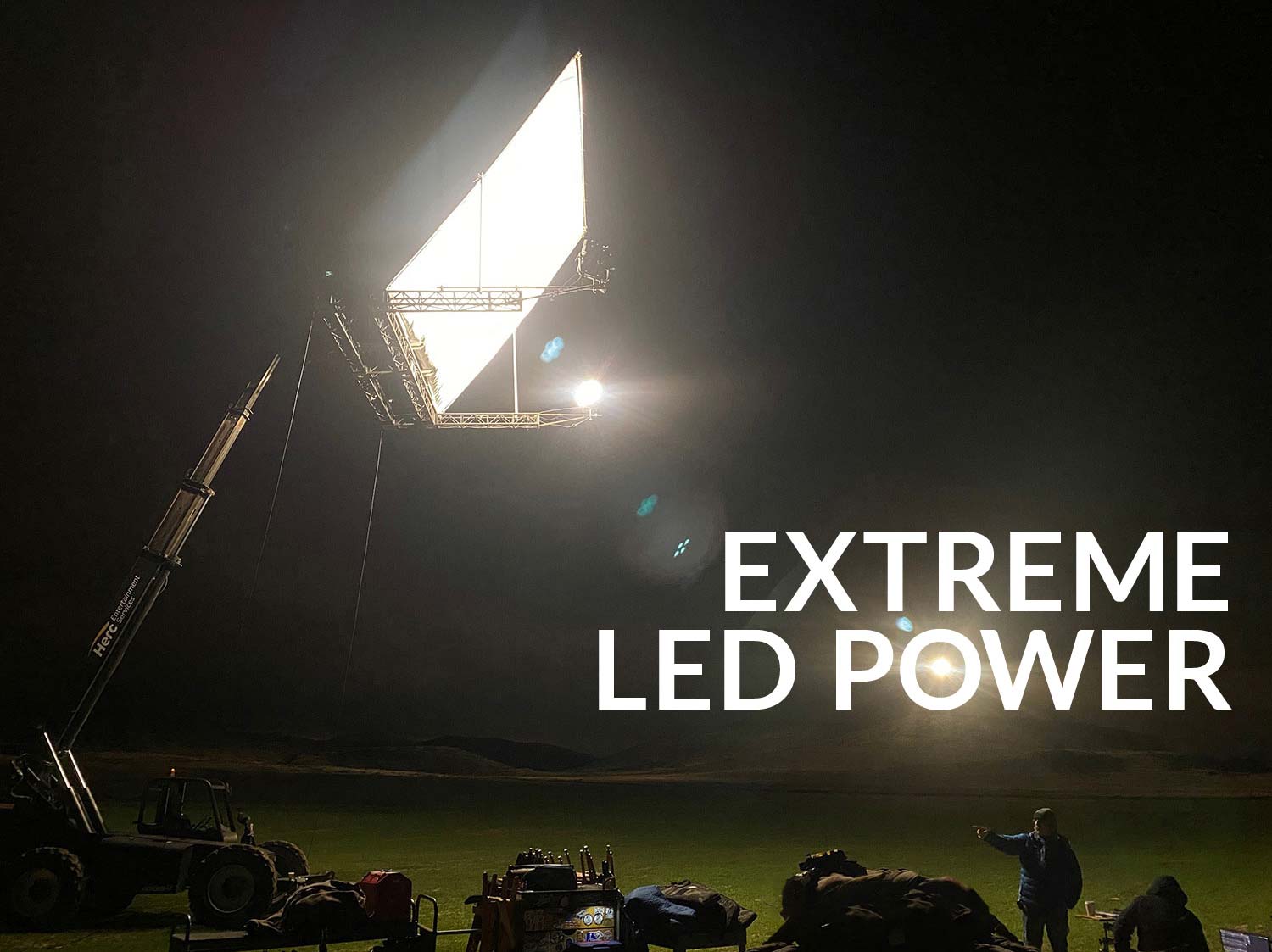

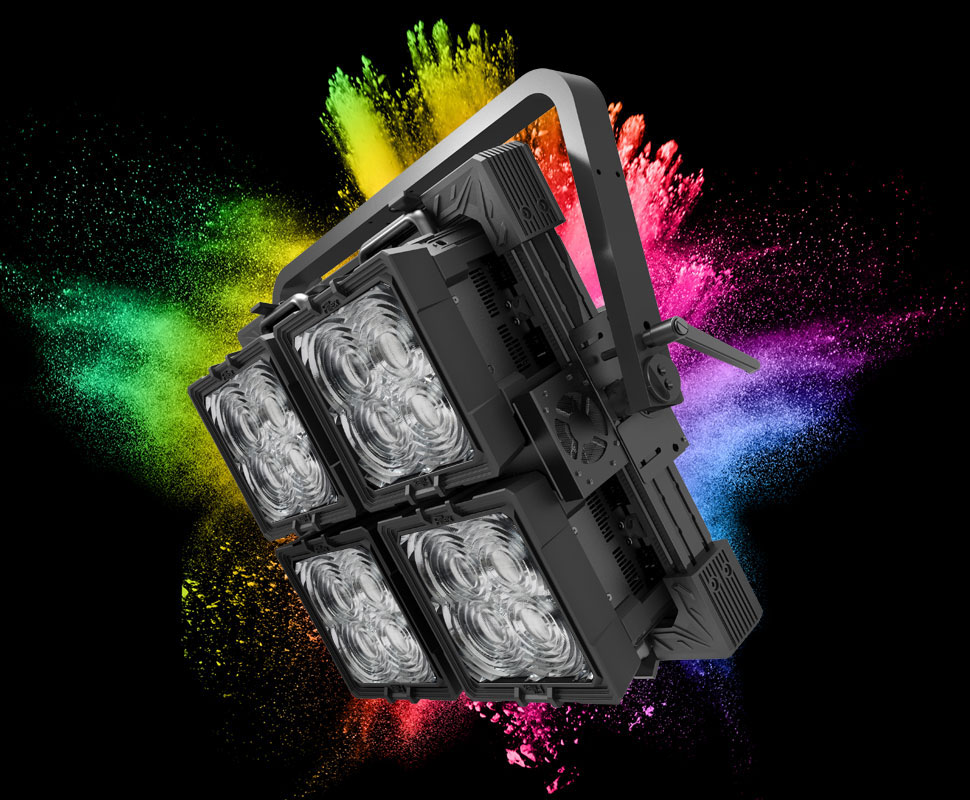

The QUAD COLOR is a super-bright punch light that emits 1360W of LED illumination. Powerful yet compact, the QUAD COLOR combines four Matrix fixtures in one ruggedized frame weighing a total of 75lbs (34kg) and standing less than one meter high. This streamlined fixture includes an integrated power supply, cabling, and controls (in addition to XLR5 DMX in/out) for easy rigging and settings adjustment. With this comprehensive design, the QUAD COLOR excels in any production setting, whether it’s set on a floor stand or suspended from a studio lighting grid.

Fiilex QUAD COLOR

Fiilex QUAD COLOR

Fiilex QUAD COLOR

Fiilex QUAD COLOR

FIXTURES & KITS

Fiilex QUAD COLOR
FLXQUAD
Separator

ACCESSORIES

Fiilex Matrix Fresnel Lens 30deg
FLXMXCLR-FRNL30
Fiilex Matrix Fresnel Lens 18deg
FLXMXCLR-FRNL18
Separator

SPECIFICATIONS

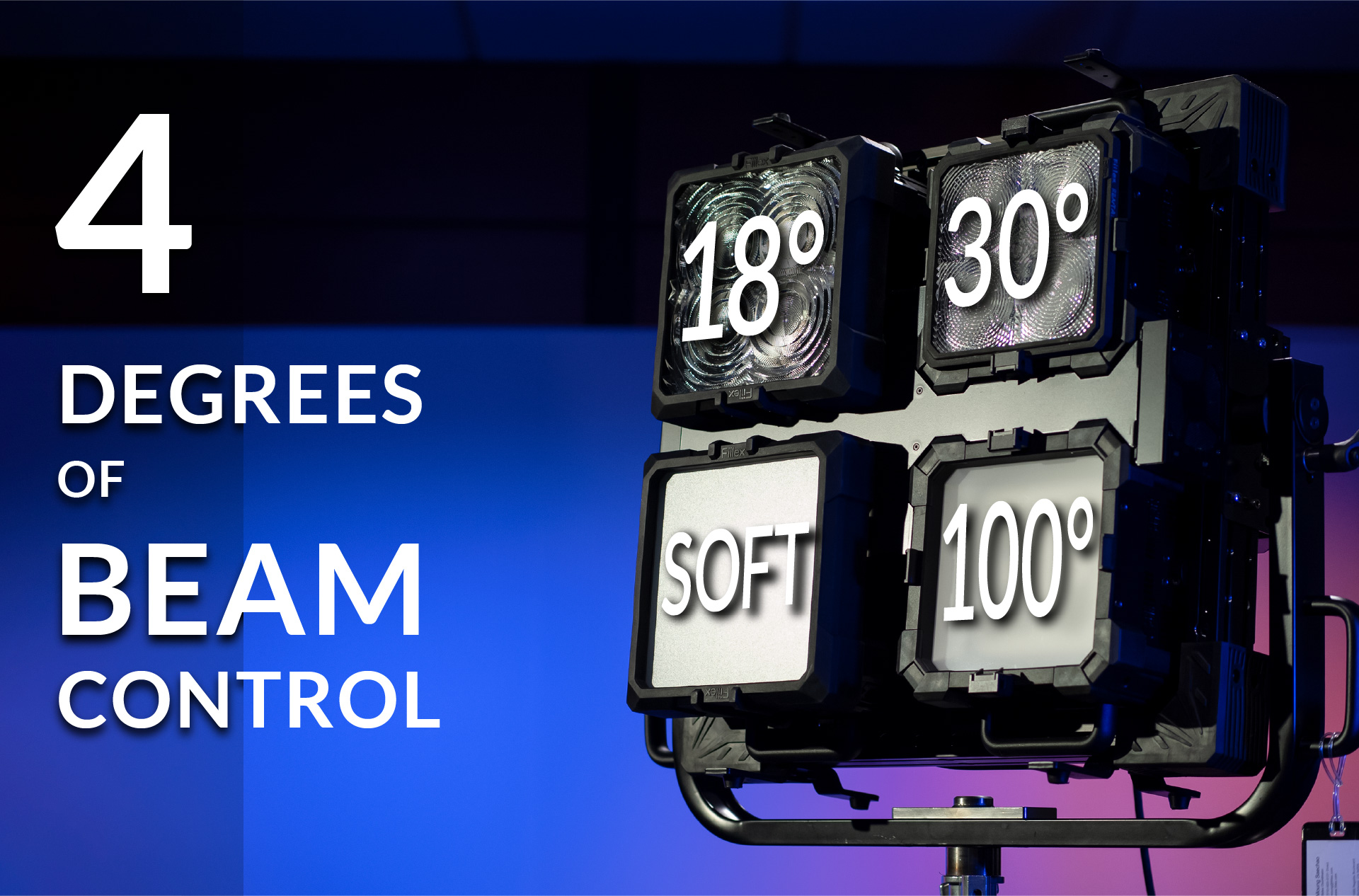

Beam Angle100° (30° or 18° with fresnel accessories)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming Modes / CurveSmooth, Sharp / Linear, Gamma
Light EngineDiCon Dense Matrix LED
Power Draw1360W max AC
BTUs/hour4436 (BTUs/hour) max
AC Input100 - 240V AC, 50~60Hz (via powerCON TRUE1)
DMX/RDM Interface XLR5 & attached Fiilex DMX controller
Wireless Control IIntegrated LumenRadio CRMX TimoTwo
Ethernet sACN, ArtNet (via RJ45)
USB Power Output 5V/1A (via USB-A)
Weight75 lbs / 34 kg
Size (L x W x H)2’ 9” x 11” x 2’ 9” / 84cm x 27cm x 82cm
Mount TypeJunior stud 1-1/8” male (28mm)

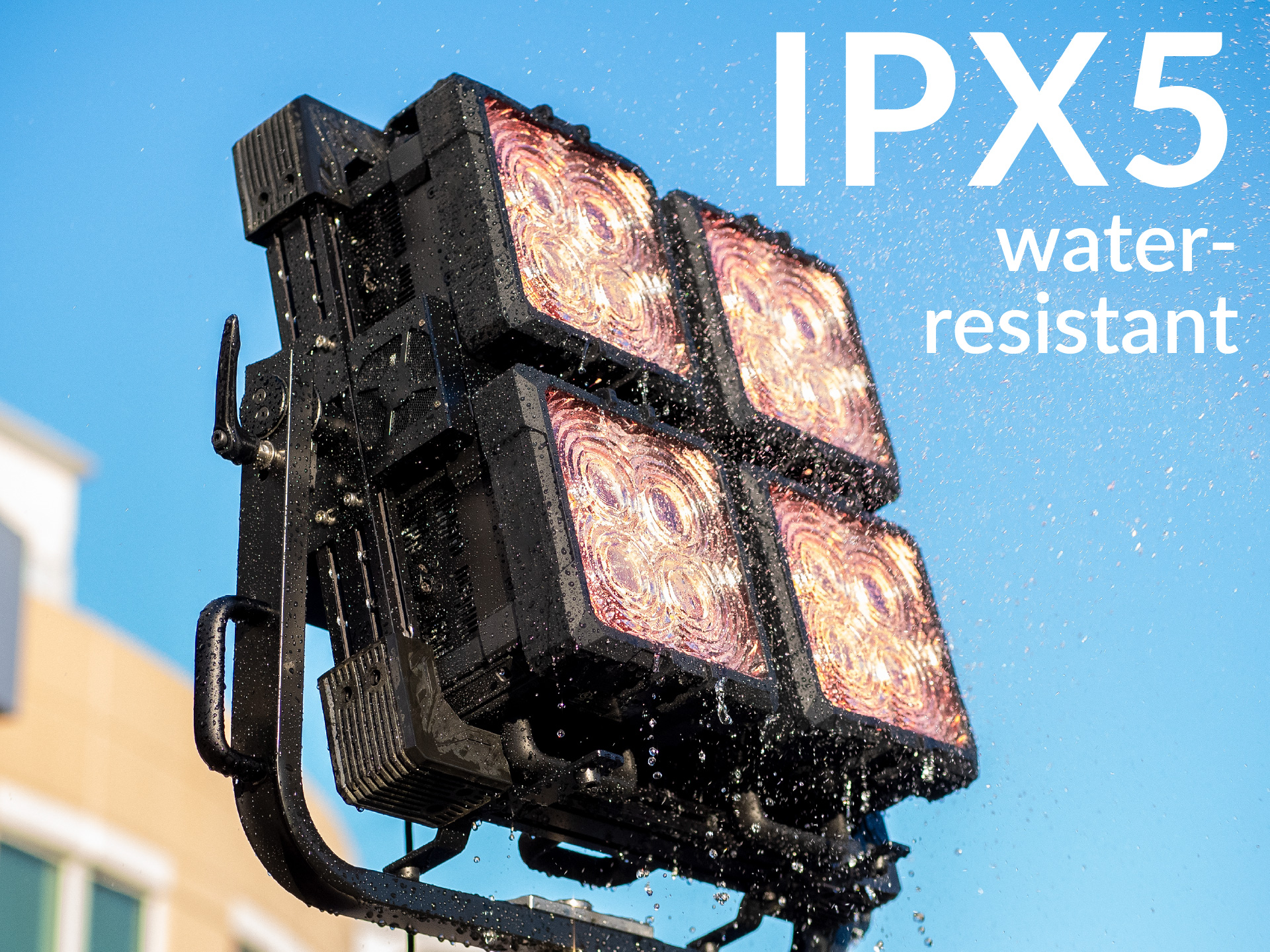

IP RatingIP-X5 (water-resistant)
Thermal DesignControllable fan
Operating Temperature 0-40ºC / 32-104ºF
