900W Punch Light

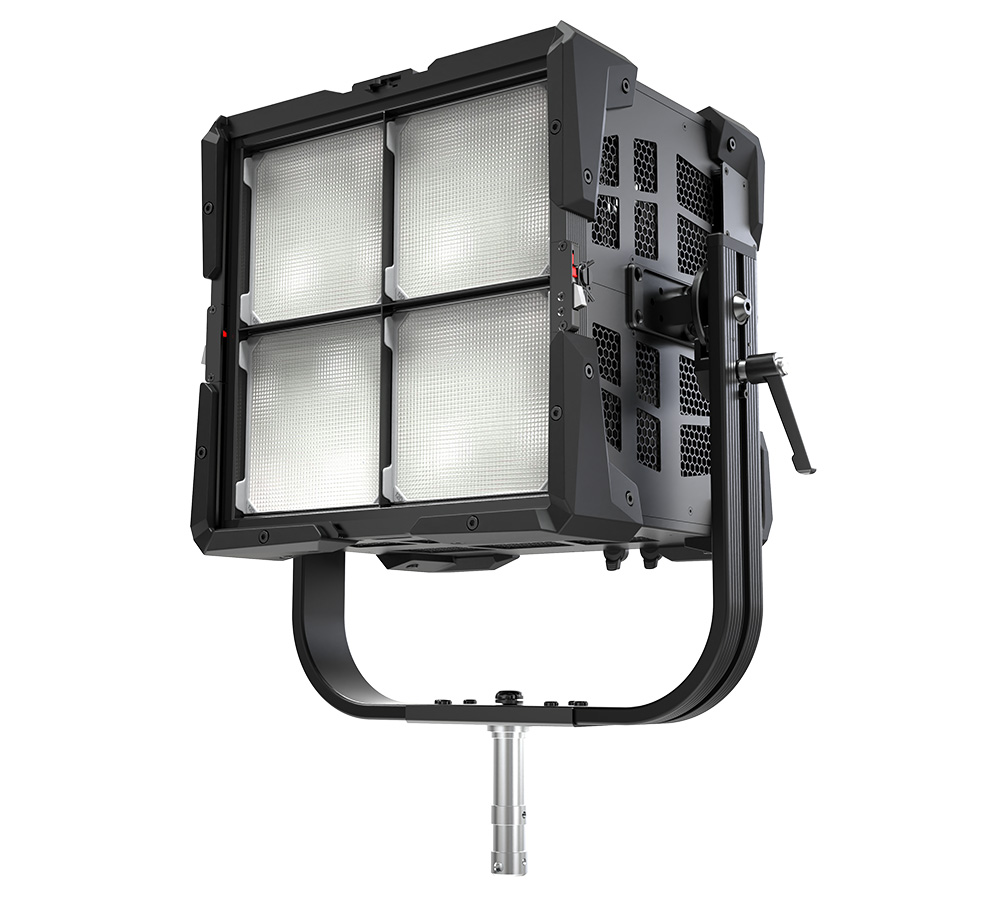

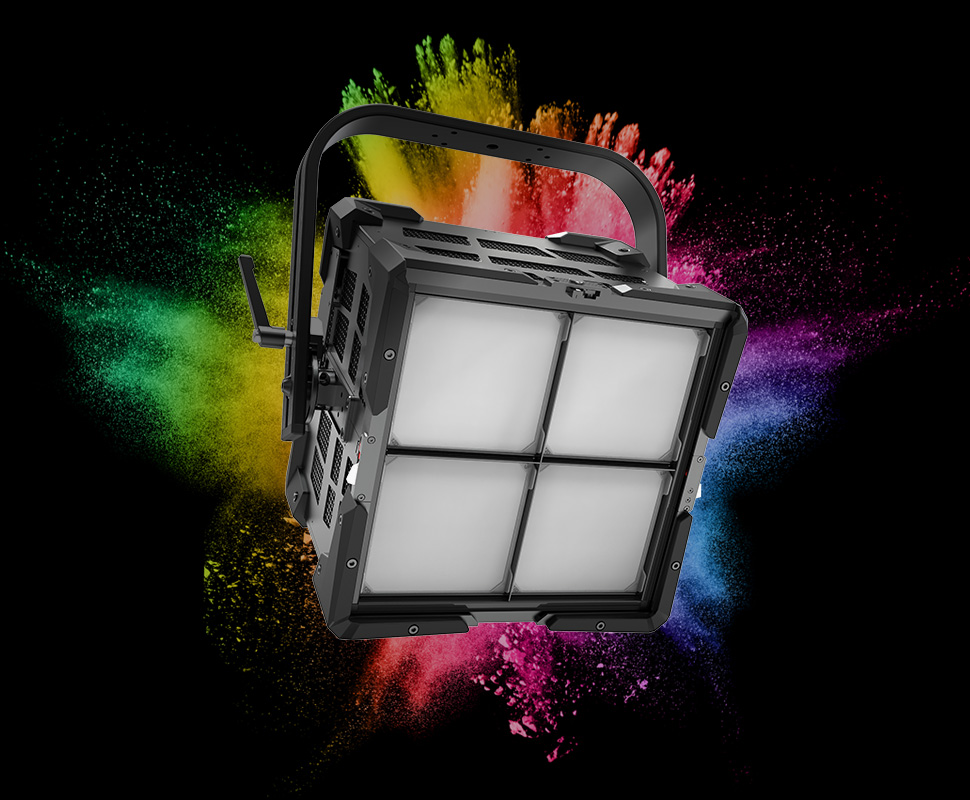

Fiilex K10 COLOR

The K10 COLOR is a super-bright punch light that emits 900W of LED illumination in a tiny 12" x 12" form factor. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color quality and optical versatility that are superior to previous generations of LED punch lights. Individually swappable lenses and pixel control allow for incredibly high levels of customization and control over the light output. With its smooth dimming from 0-100%, no flicker, high CRI, and CRMX wireless built in, the K10 COLOR excels in any production setting and can be used on a floor stand, rigged into a grid, or hung side by side on a rail.

Request More Info



All fields are required for submitting this request


Name*
Email*
Phone*
City*
State/Province*
Country*
You are interested in Fiilex products, because you are *
Comments*

Experience with Fiilex, Affiliations (Local 728/479/52/873/600 etc), Upcoming Projects.

0 characters entered / Maximum 500 characters.


Enter the displayed 6-character code in the box below
(6 characters, no space in between, not case sensitive.)


Request Product Info: K10 COLOR

The above information was sent successfully!

Separator

FIXTURES & KITS

Fiilex K10 COLOR
FLXK10CLR

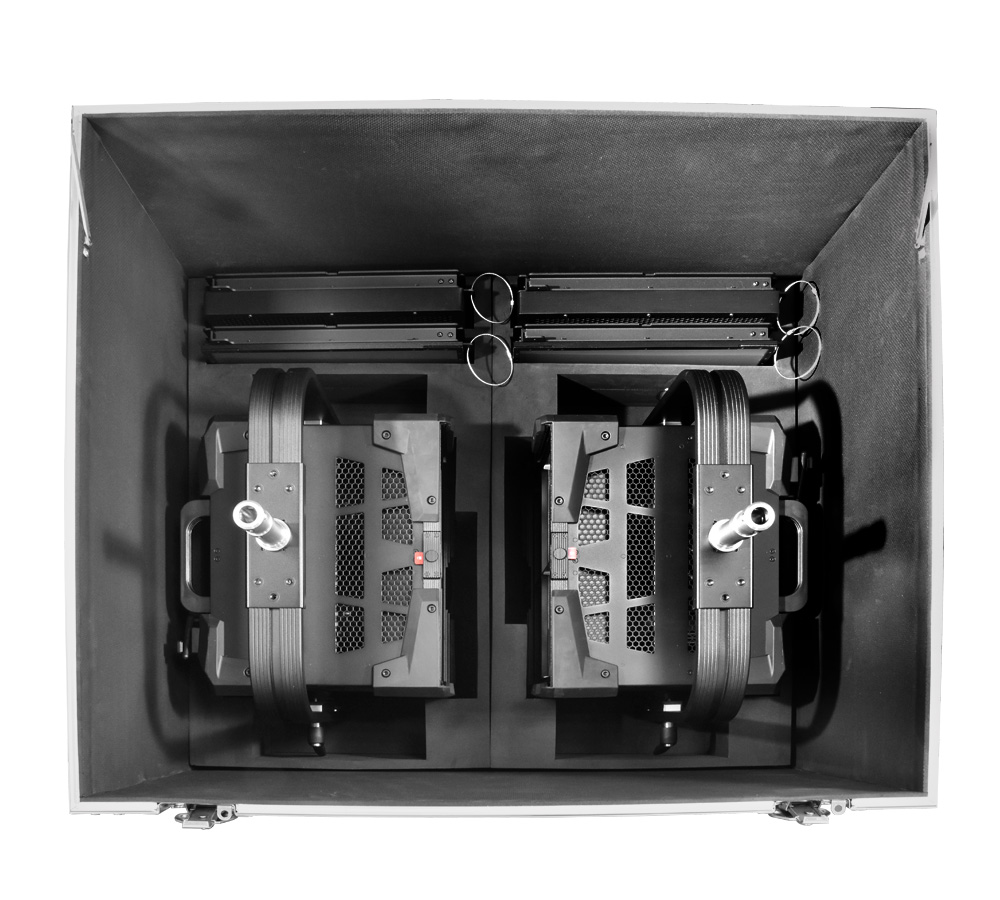

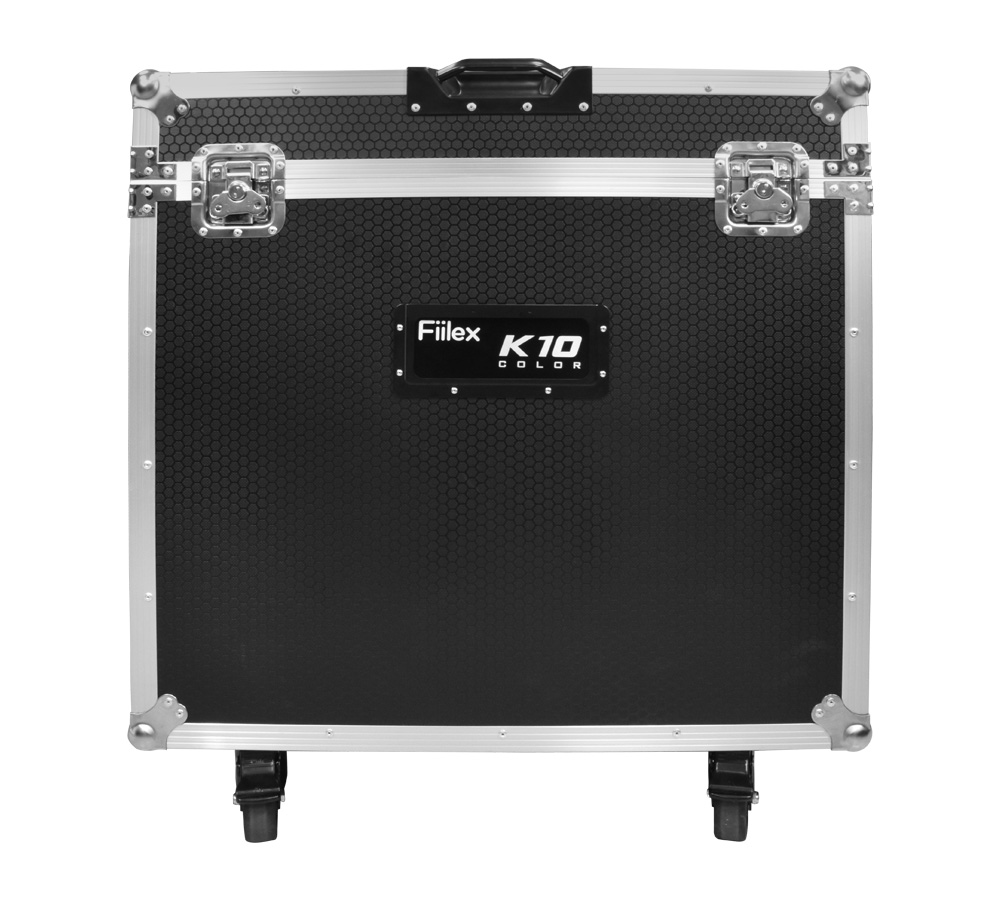

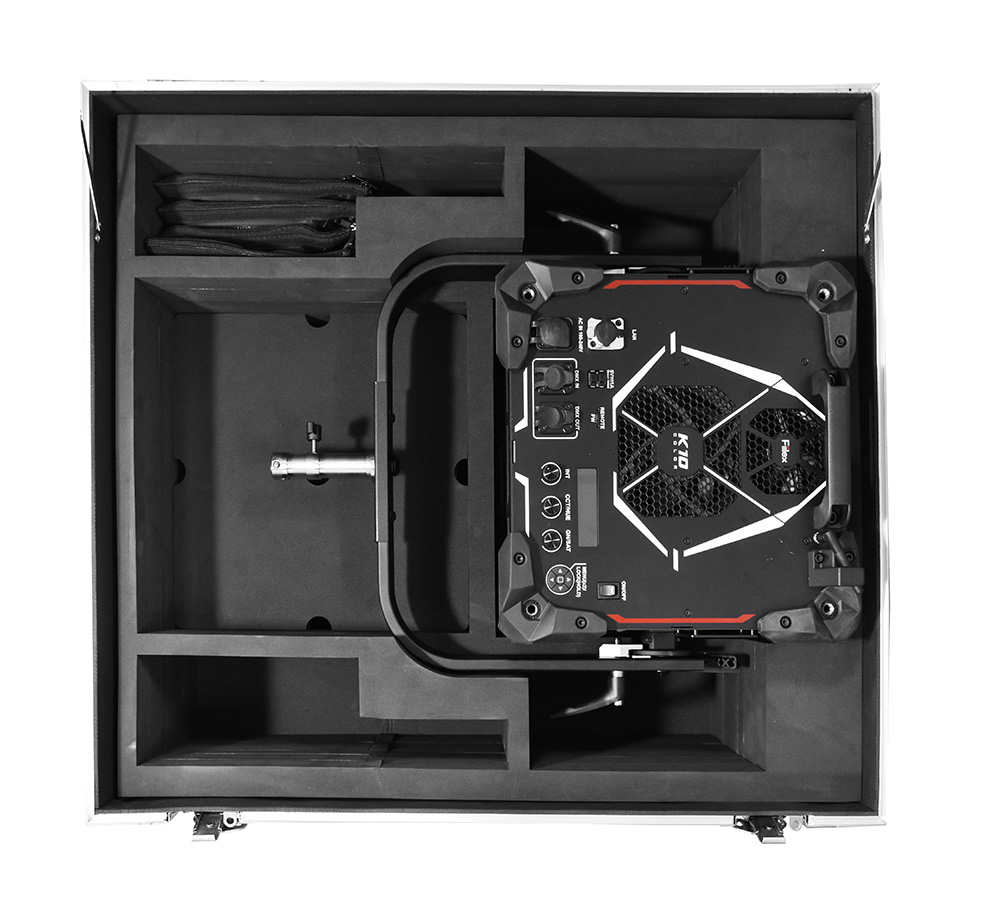

Fiilex K10 COLOR D2 Kit
FLXK10CLR-D2-KIT
Separator

ACCESSORIES

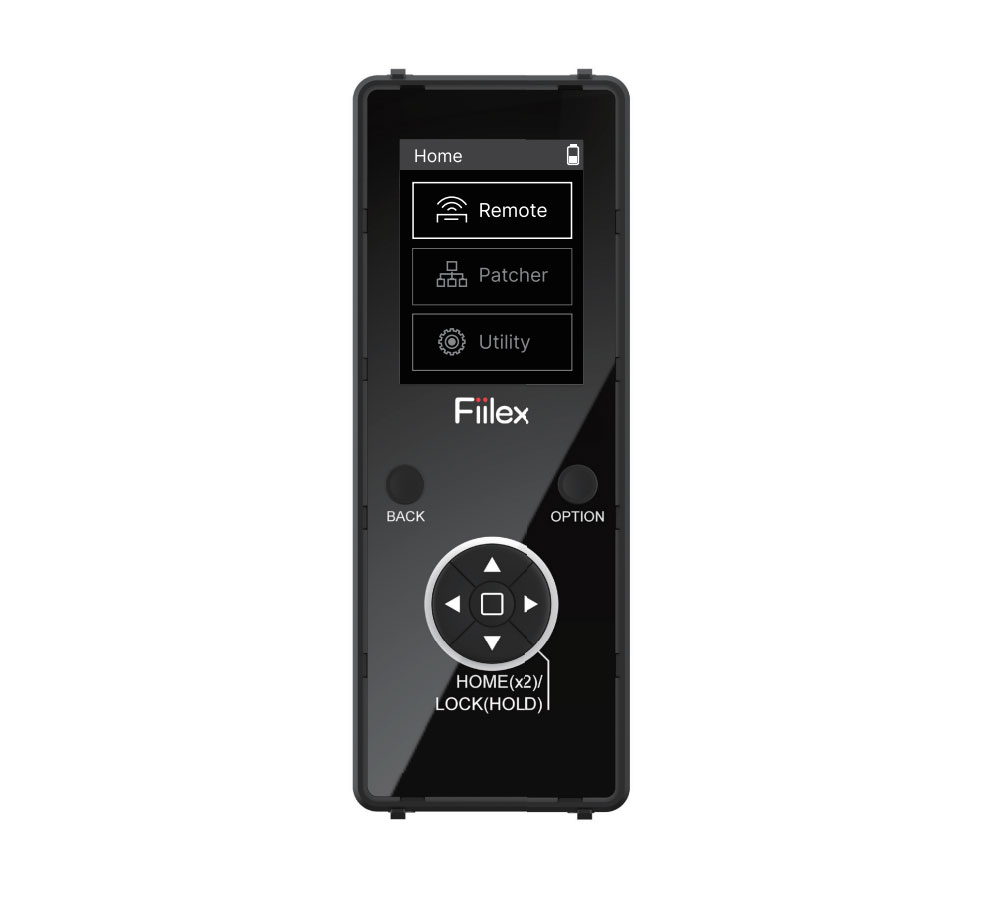

Fiilex RPU
FLXRPU-HEAD

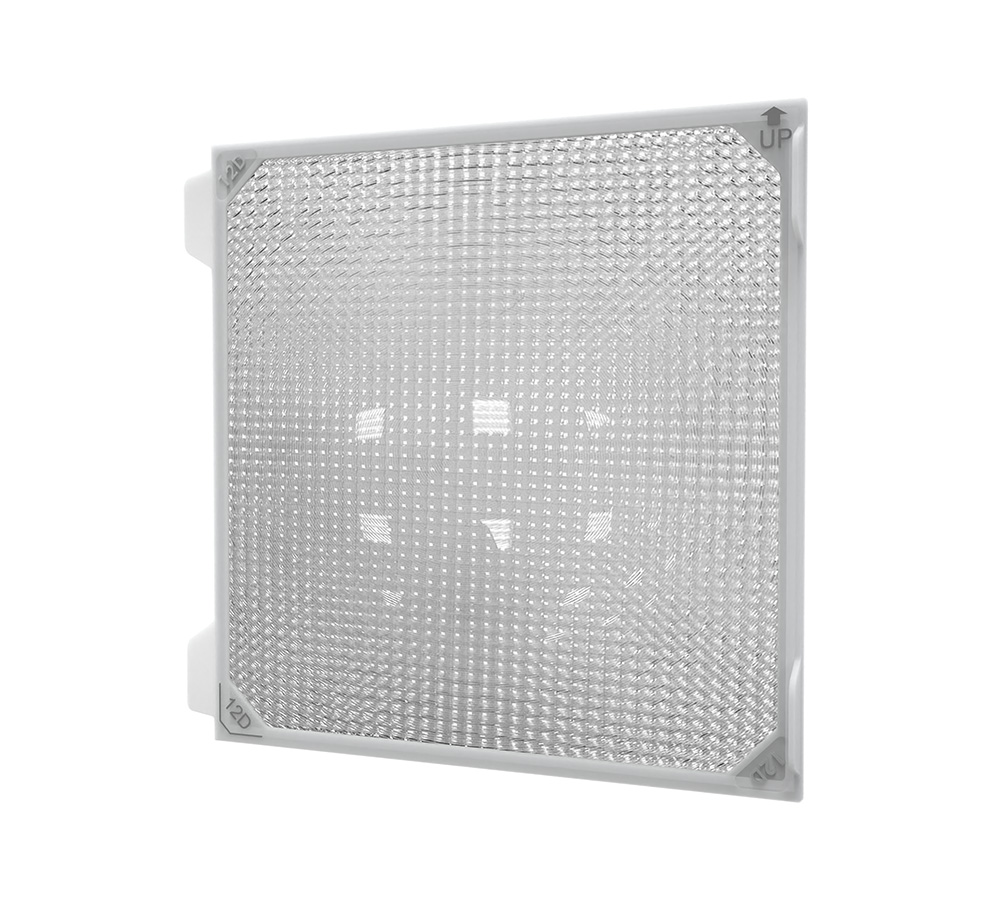

Fiilex 12 Degree Fresnel Lens
FLXK10CLR-FRNL12
(Pack of 4)

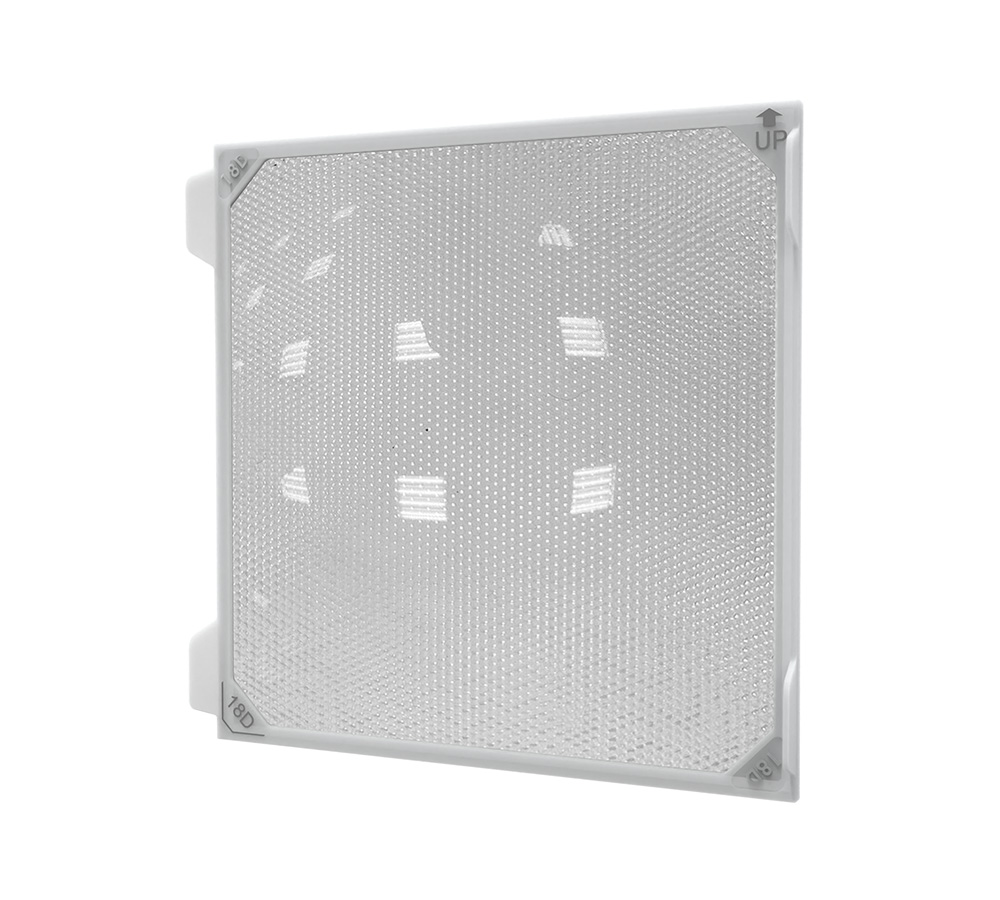

Fiilex 18 Degree Fresnel Lens
FLXK10CLR-FRNL18
(Pack of 4)

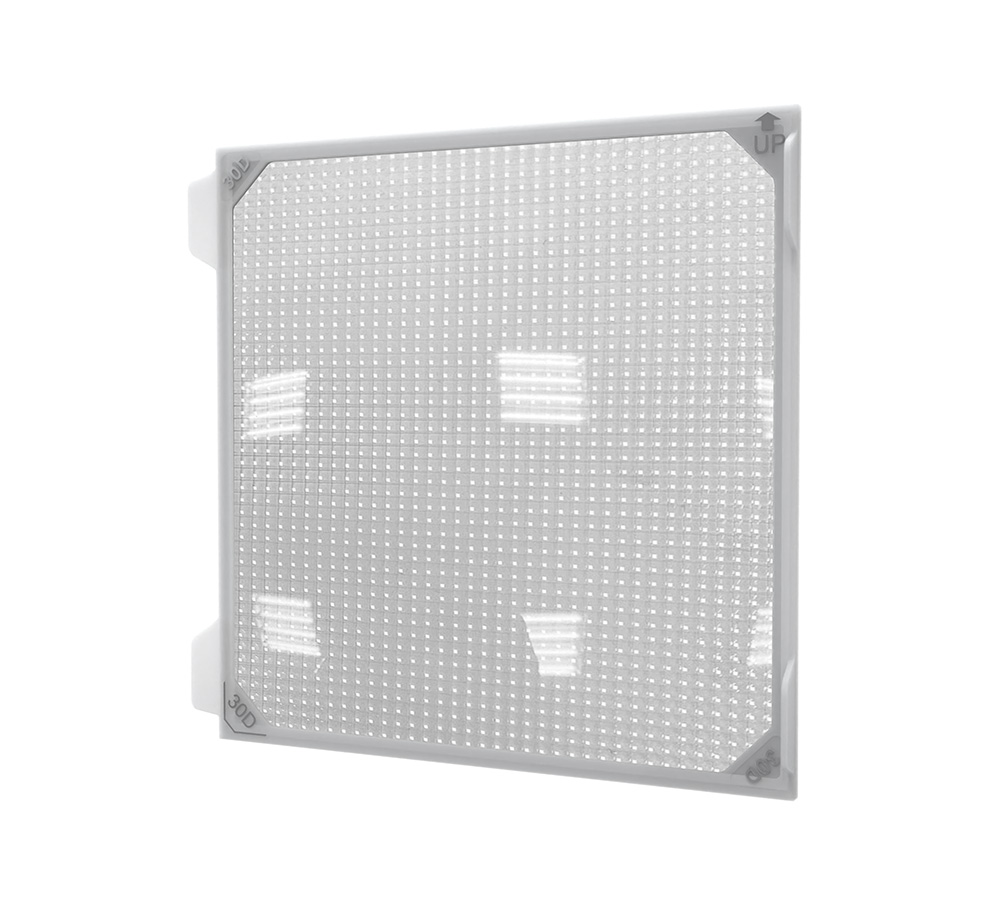

Fiilex 30 Degree Fresnel Lens
FLXK10CLR-FRNL30
(Pack of 4)

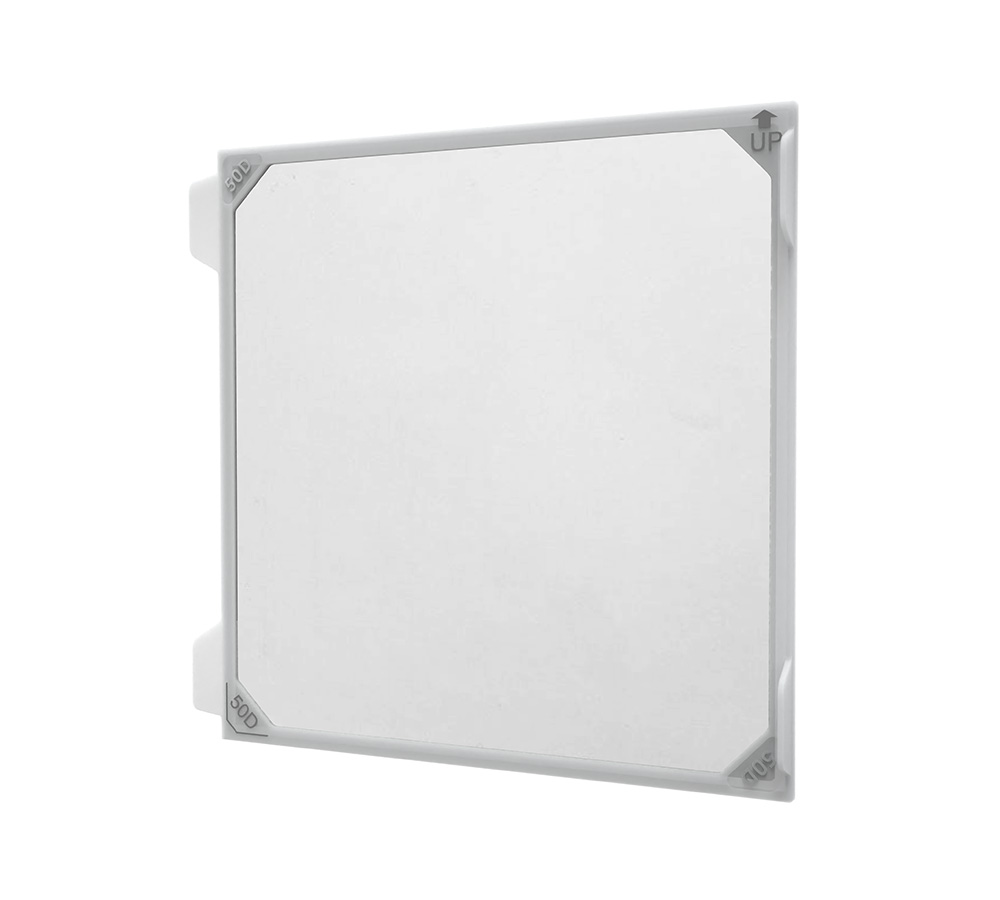

Fiilex 50 Degree Fresnel Lens
FLXK10CLR-FRNL50
(Pack of 4)

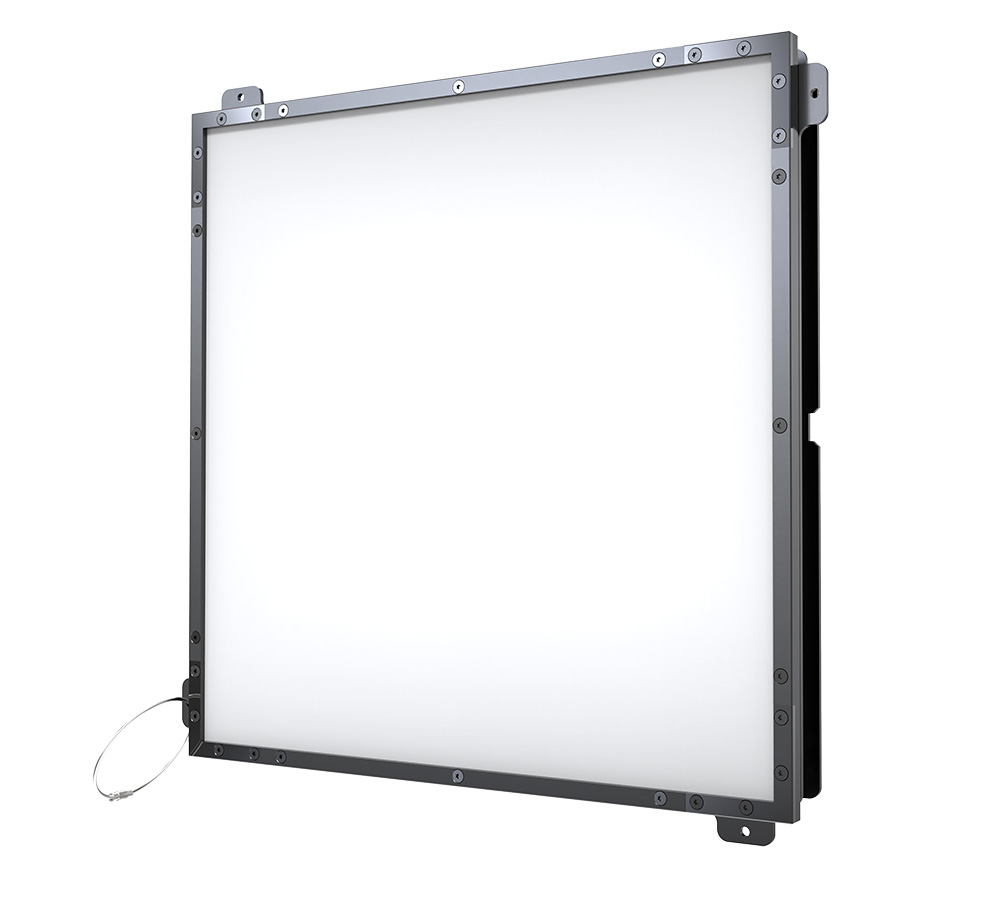

Fiilex K10 Light Diffusion
FLXK10CLR-LIGHTDIFF

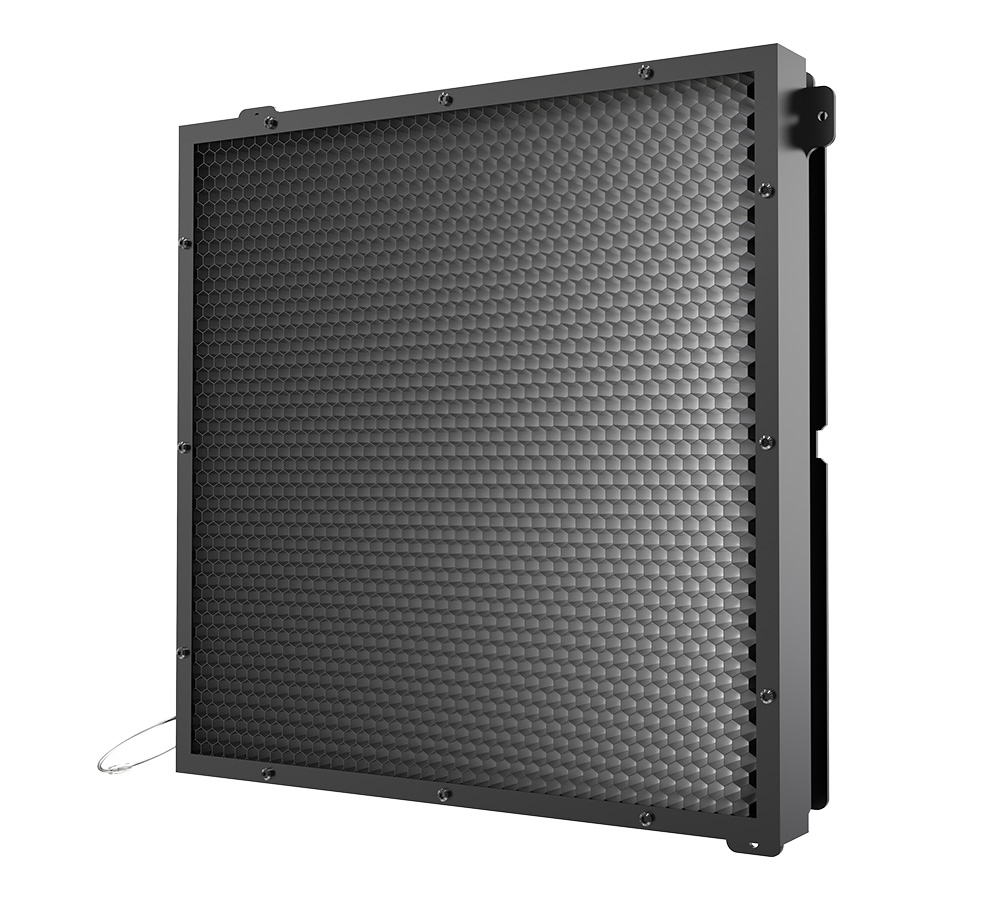

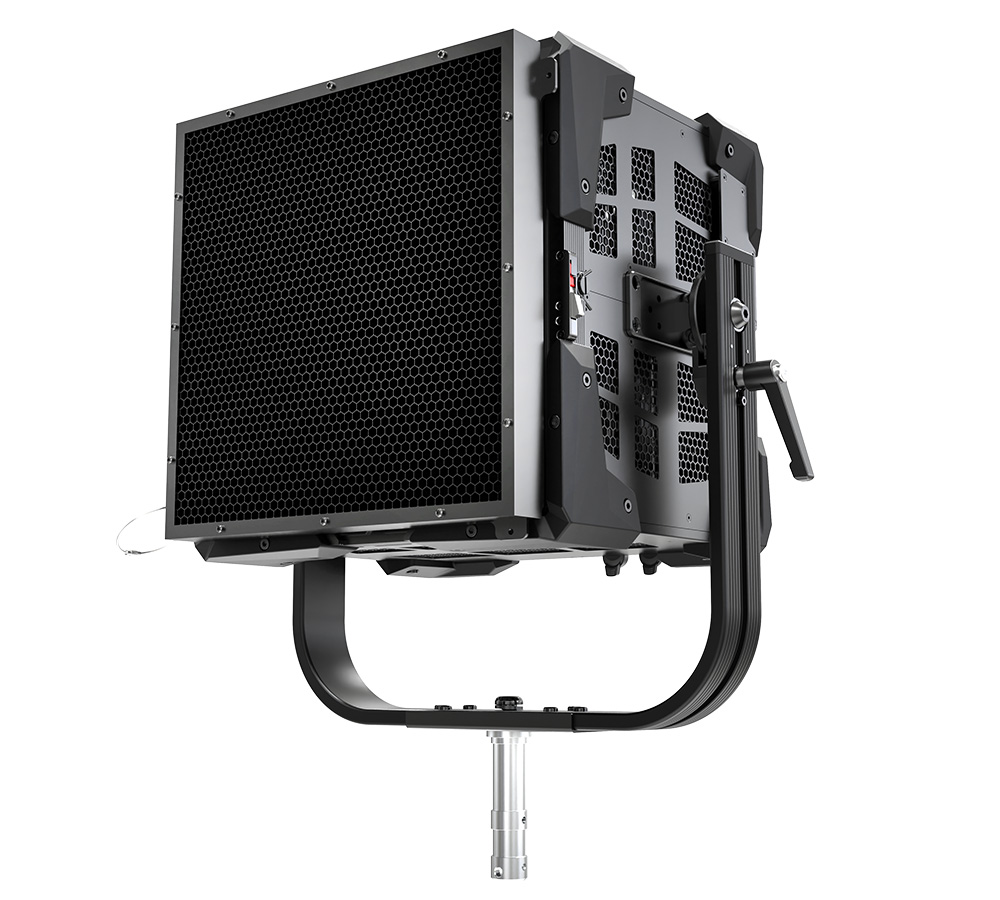

Fiilex K10 Honeycomb
FLXK10CLR-HONEYCOMB
Separator

SPECIFICATIONS

Beam Angle12° with lens (18°/30°/50° with optional lens accessories)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming Modes / CurveSmooth, Sharp / Linear, Gamma
Light EngineDiCon Dense Matrix LED
Power Draw900W max AC
BTUs/hour3071 (BTUs/hour) max
AC Input100 - 240V AC, 50~60Hz
DMX/RDM Interface XLR-5
Wireless Control Integrated LumenRadio CRMX TimoTwo
Ethernet sACN, ArtNet (via etherCON)
USB Power Output 5V/1A (via USB-A)
USB-C Interface FW Update / Remote
Weight 34.1lbs / 15.5kg (With Yoke)
Size (L x W x H)23.0" x 20.3" x 12.6" / 58.3cm x 51.6cm x 31.9cm (With Yoke)
13.6" x 14.4" x 12.6" / 34.5cm x 36.7cm x 31.9cm (Light Head Only)
Mount TypeCombo (baby stud female / junior stud male)
IP RatingIP-X5 (water-resistant)
Thermal DesignControllable fan (OFF / SILENT / AUTO / FULL)
Operating Temperature0-40°C / 32-104°F
