Fiilex RPU

Remote Patcher Utility


Fiilex RPU

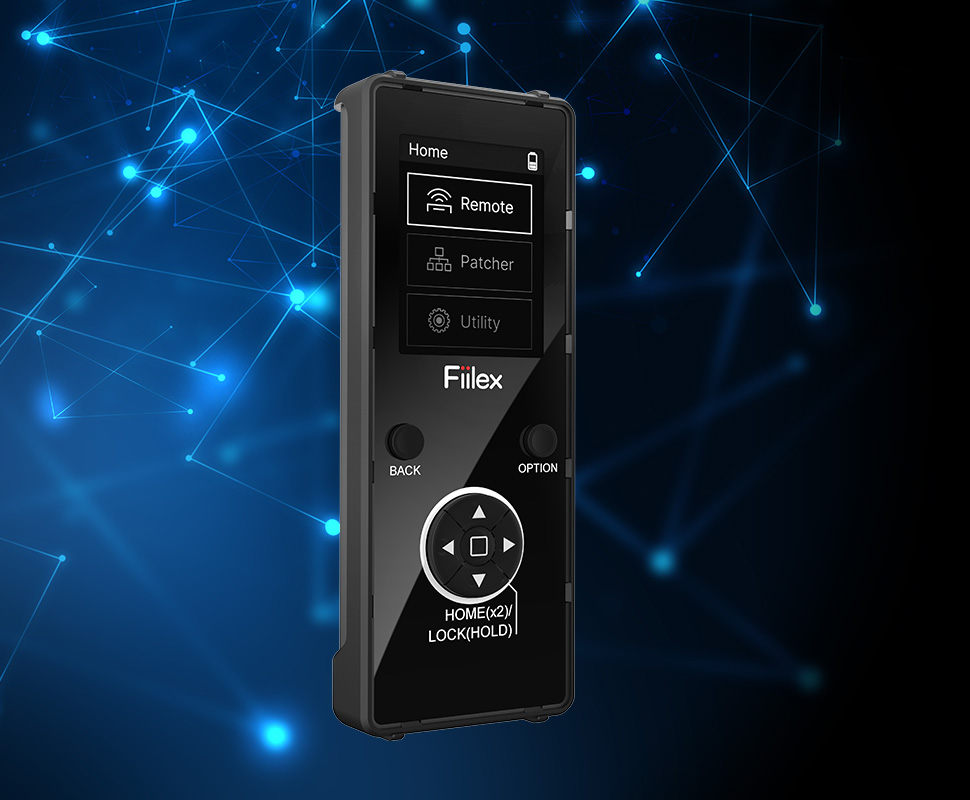

The RPU, Remote Patcher Utility, is a multi-functional tool designed for lighting professionals, able to control and troubleshoot any lighting setup. The Remote tool lets users modify fixture parameters and output on the fly. The Patch tool allows for quick multi-fixture patching and saving patch presets, which can be done wirelessly or through wired connections. The Utility tool lets users view, output, and analyze DMX signals, in addition to updating firmware on all Fiilex fixtures. As with all Fiilex fixtures, the RPU has a rugged, water-resistant design enabling it to perform in the most challenging environments. And with multiple ways to mount and carry, it is a useful item to bring anywhere.

Fiilex RPU

Fiilex RPU

Fiilex RPU

FIXTURES & KITS

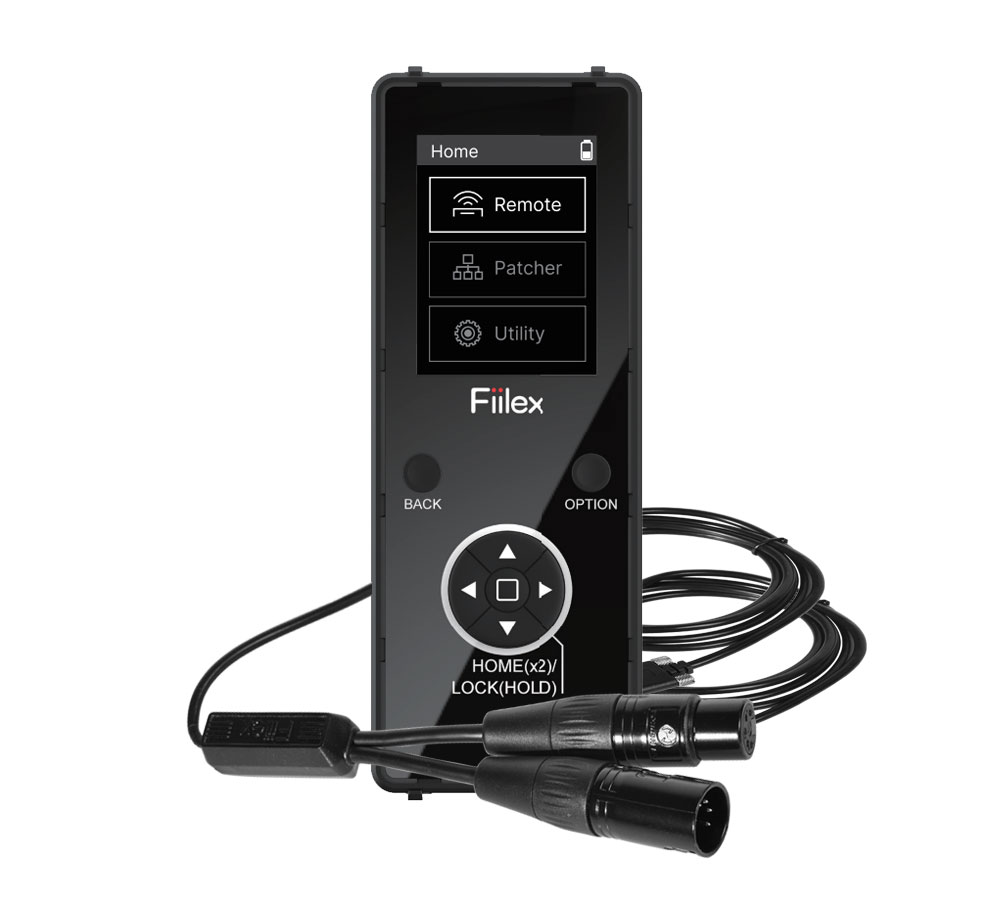

Fiilex Fiilex Remote Patcher Utility
FLXRPU
Separator

SPECIFICATIONS

Size (L x W x H)6.0" x 2.2" x 1.1" / 15.2 cm x 5.6 cm x 2.8 cm
Weight0.49 lbs / 0.22 kg
Battery Life / Charging via Type - C3 hour / 90% charge in 60 minutes
Storable Data1 hours of full 512 channel DMX Playback
IP RatingIP-X4
DMX Output Speeds20 - 44 Hz
LCD Screen2.4 inch, TFT
DMX / RDM PortTRS (XLR-5 via adaptor)
Wireless ControlIntegrated LumenRadio CRMX TimoTwo
Mount1/4" - 20 / Magnets / Lanyard
Updatesvia Wi-Fi / USB

DOWNLOADS

Data Sheet
Separator
Firmware Update File V2.8

LAST UPDATED: DEC 20,2024

[Release note]

  • Remote/Patch/Utility Feature:
    Support K10 COLOR firmware update.

  • Bundled firmware versions
    P3 COLOR : CB V4.14 / DB V4.1
    Q5 COLOR : CB V4.14 / DB V4.1
    Q8 COLOR LR : CB V4.14 / DB V4.1
    Q10COLOR LR : CB V4.14 / DB V4.1
    Q6/G6 COLOR : CB V4.13 / DB V4.5
    Q3/G3 COLOR : CB V4.13 / DB V4.5
    MOTOK40 : CB V4.15 / DB V4.5
    K10 COLOR : CB V4.15 / DB V4.5
