P3 COLOR

90W Portable Light

IPX5 Water-Resistant
Battery Compatible
Less Than 2 Pounds

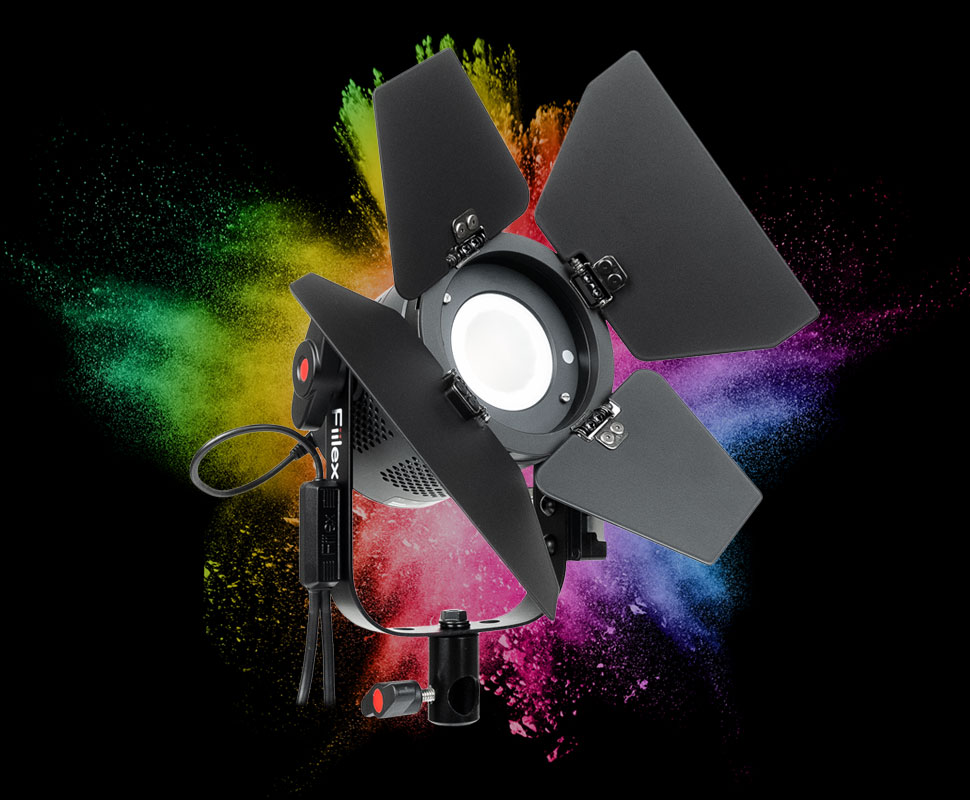

Fiilex P3 Color

The P3 Color is a portable 90W LED fixture that packs a ton of features into its compact two pound frame. The P3´s white light output ranges from 2000 - 10000K with excellent CRI, and its various color control modes allow users to access the full range of vibrant RGB illumination. At the core of the P3 is Fiilex´s patented Dense Matrix LED, which is an extremely small light source capable of producing crisp shadows and clean barndoor cuts. Accessory attachments can diffuse or focus the P3´s output. No other portable LED fixture can match the P3´s combination of power, size, and versatility.

Fiilex P3 Color - CUT & SHAPE - small LED source enables precision beam control
Fiilex P3 Color - Native vs 20° fresnel
Fiilex P3 Color - Clean Shadows with no color fringe
Fiilex P3 Color - IP25 weather-resistant

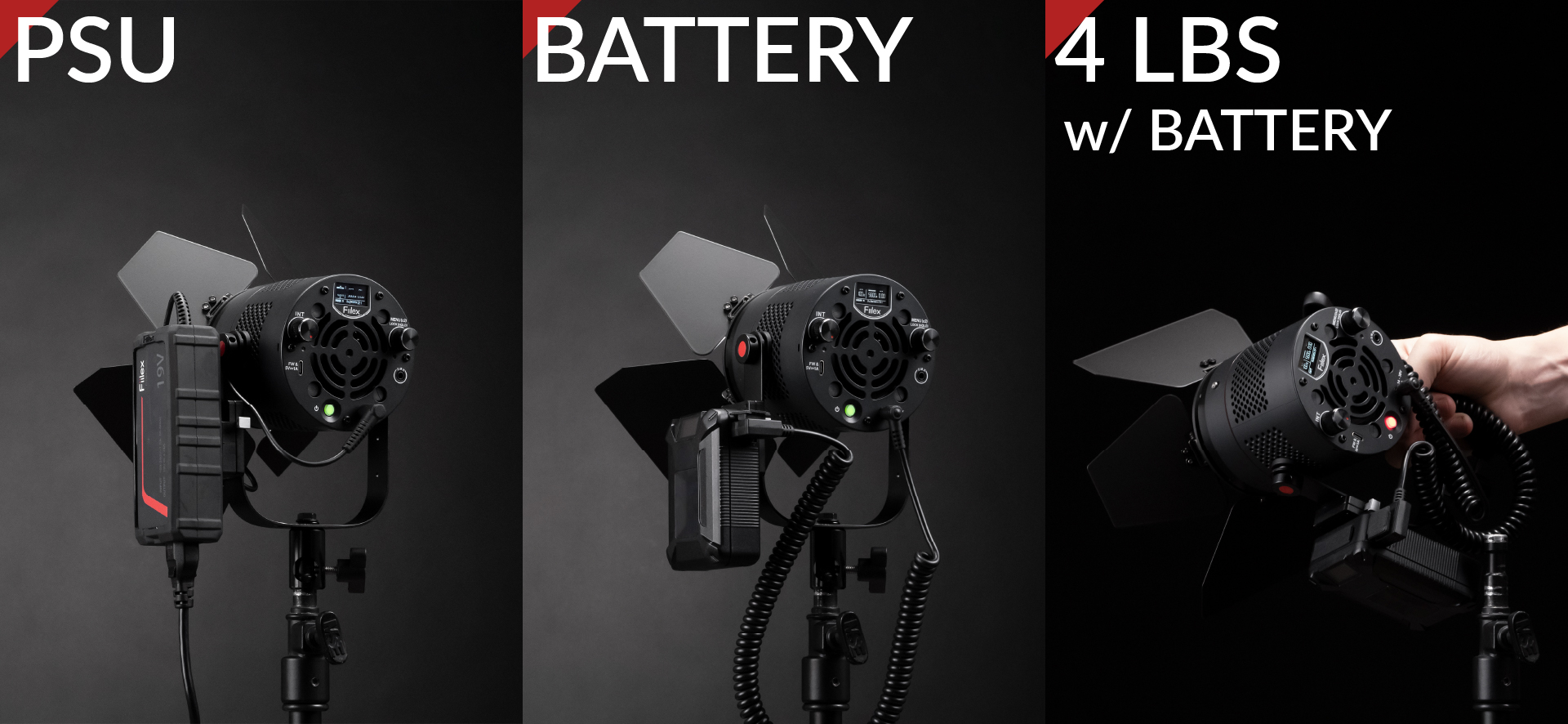

Fiilex P3 Color - PSU vs BATTERY vs 4 LBS w/ BATTERY
Fiilex P3 Color - TOTAL CONTROL

STANDARD ITEMS

P3 COLOR Fixture

Fiilex P3 Barndoors

P3 Barndoors

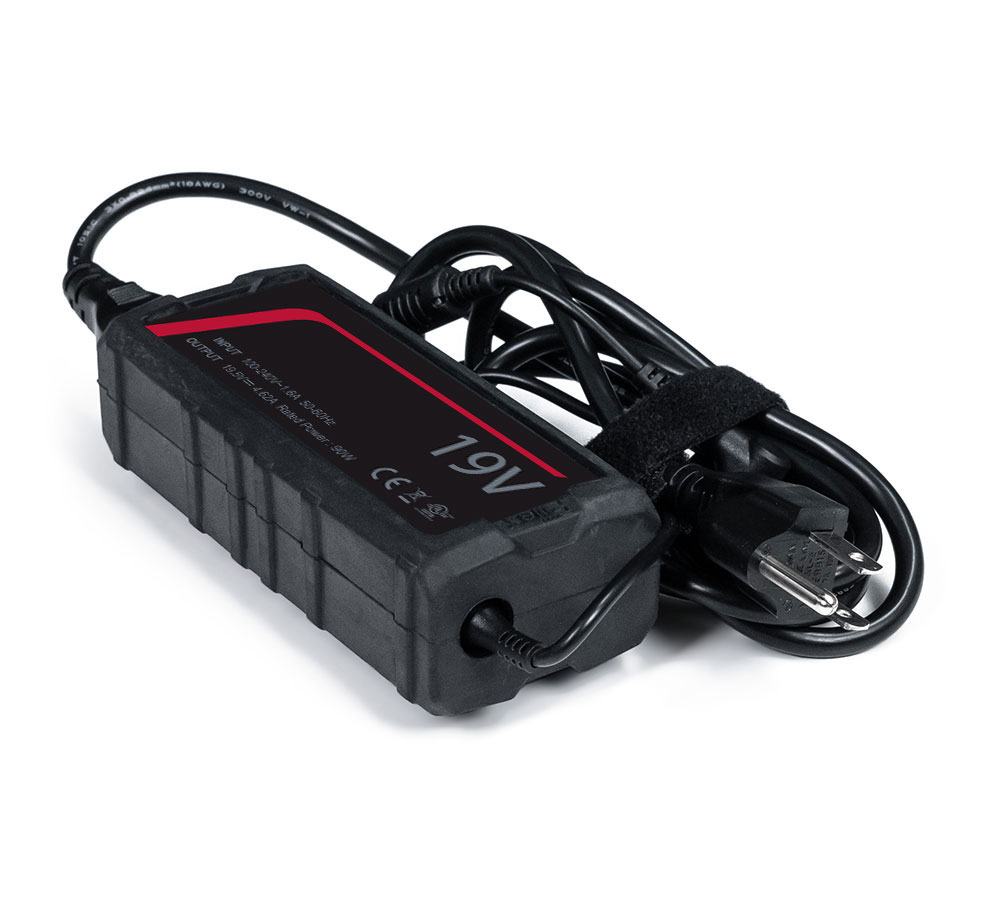

Fiilex 90W PSU

90W PSU

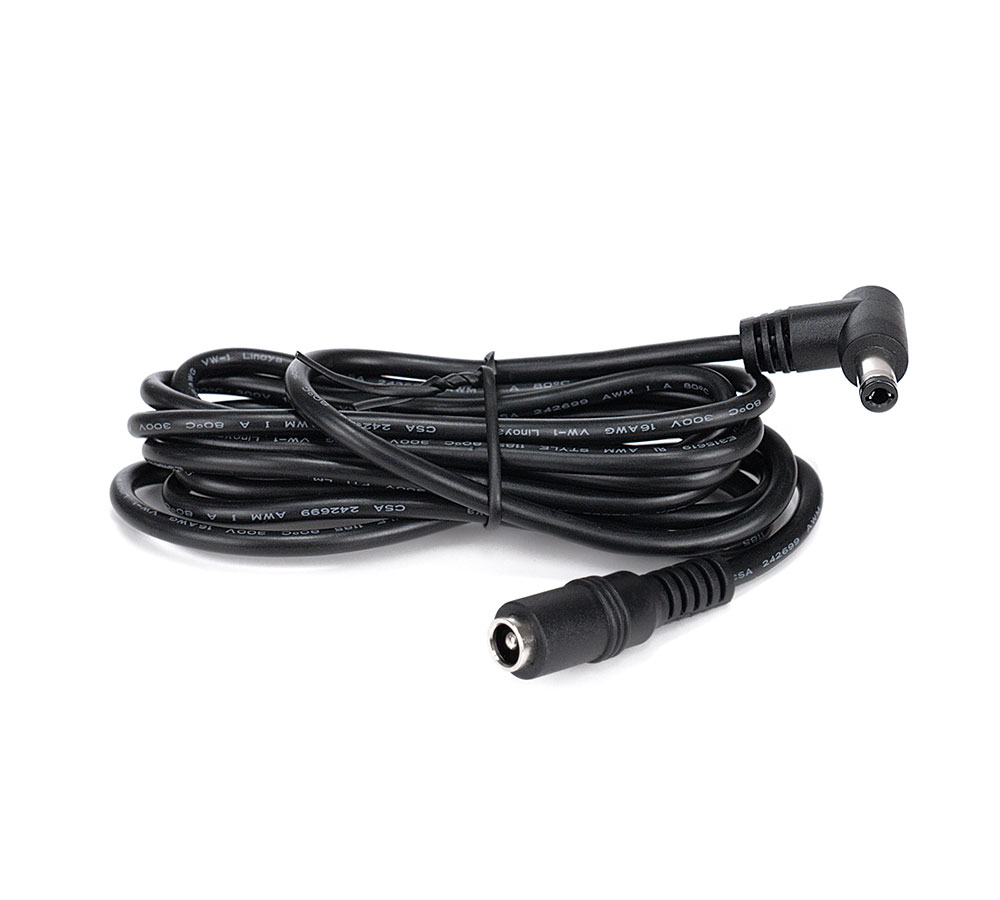

Fiilex 6’ DC Extension Cable

6’ DC Extension Cable

Separator

ACCESSORIES

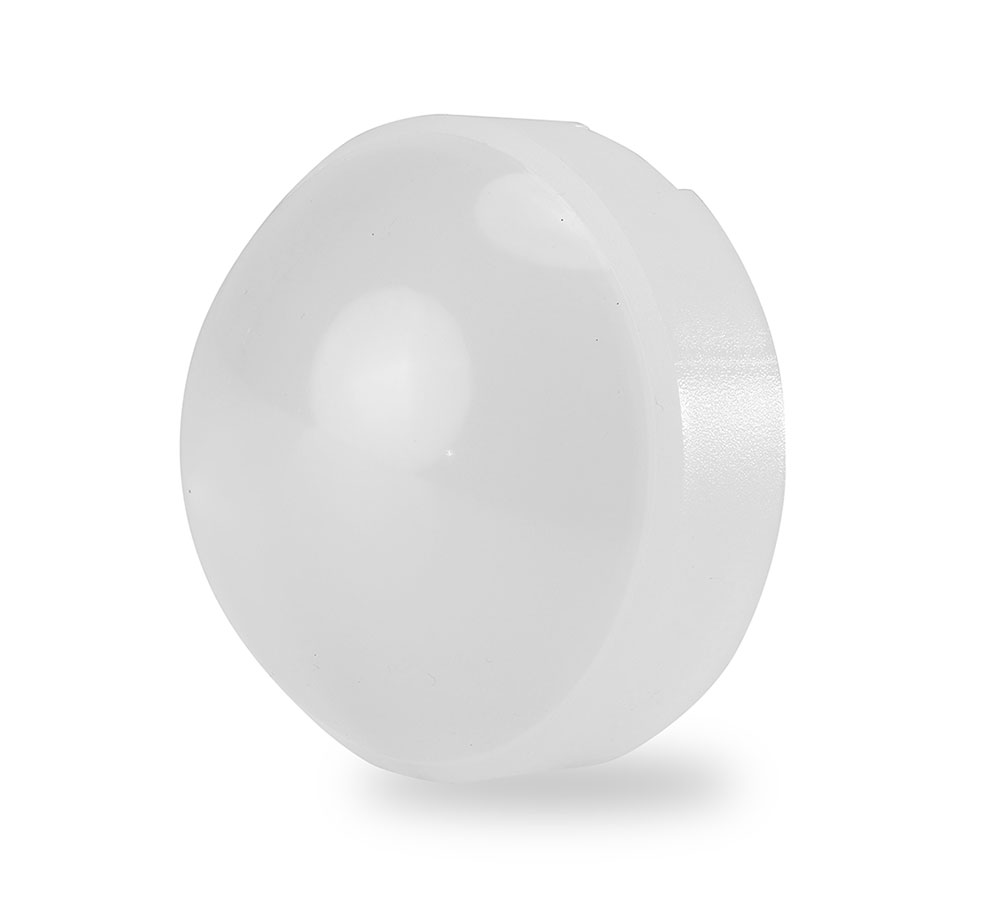

Fiilex Dome Diffuser

Dome Diffuser

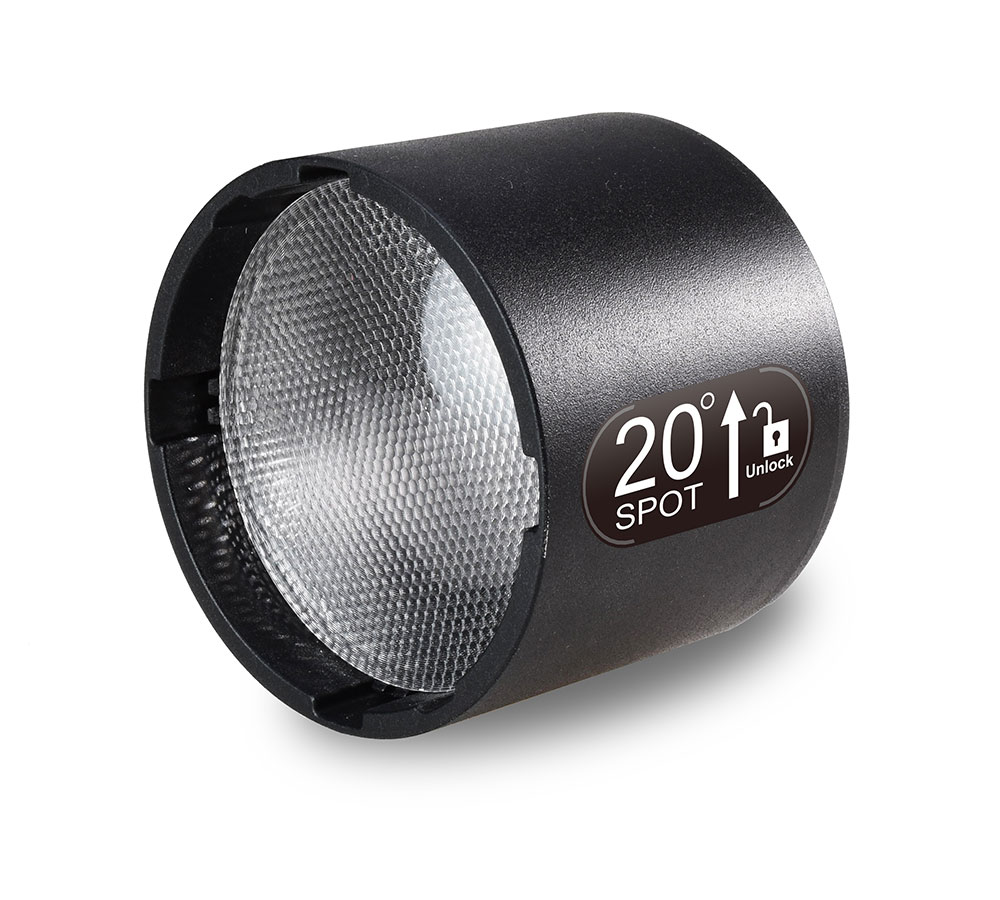

Fiilex Fresnel (20°)

Fresnel (20°)

Fiilex Dome Diffuser Extension

Dome Diffuser Extension

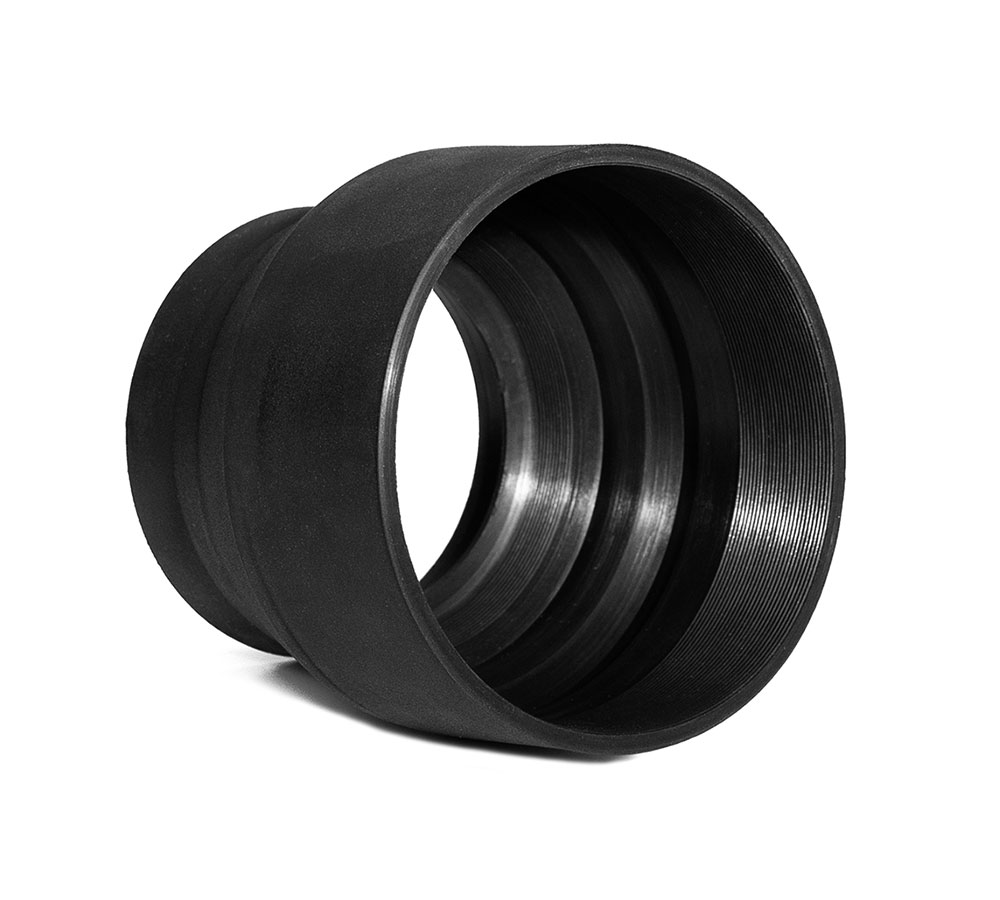

Fiilex Snoot for Fresnel

Snoot for Fresnel

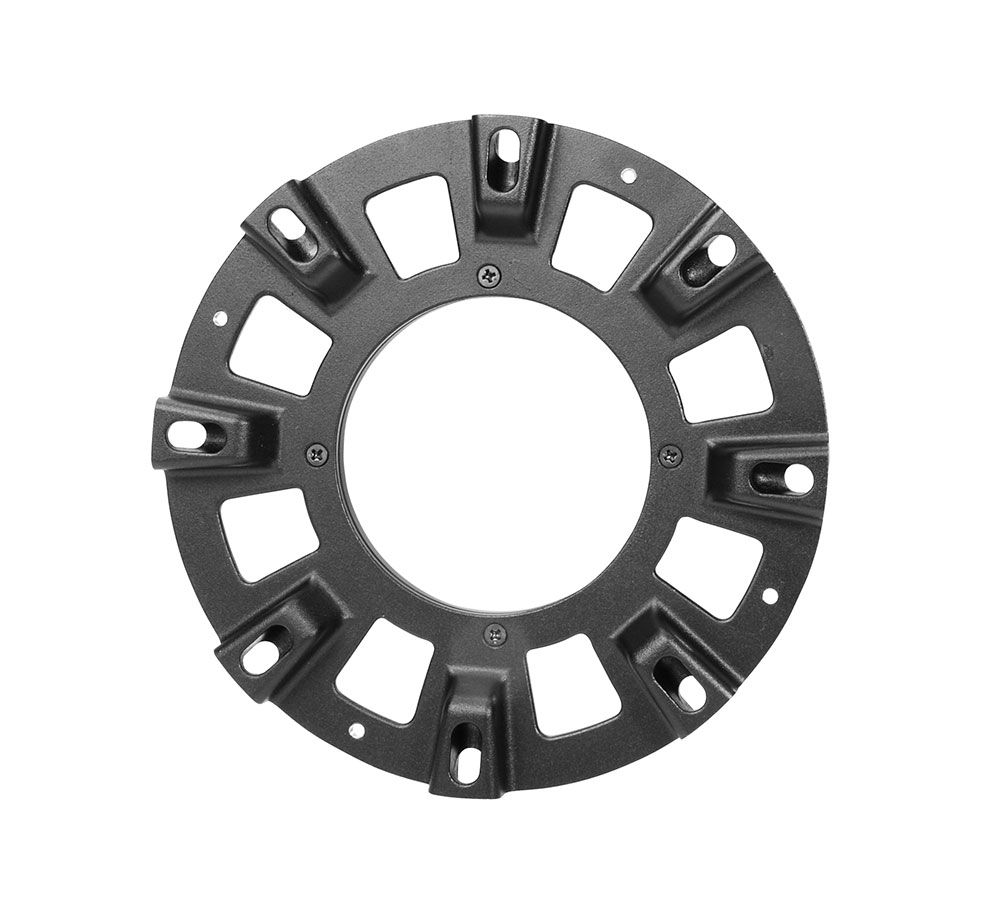

Fiilex P3 Speed Ring

P3 Speed Ring

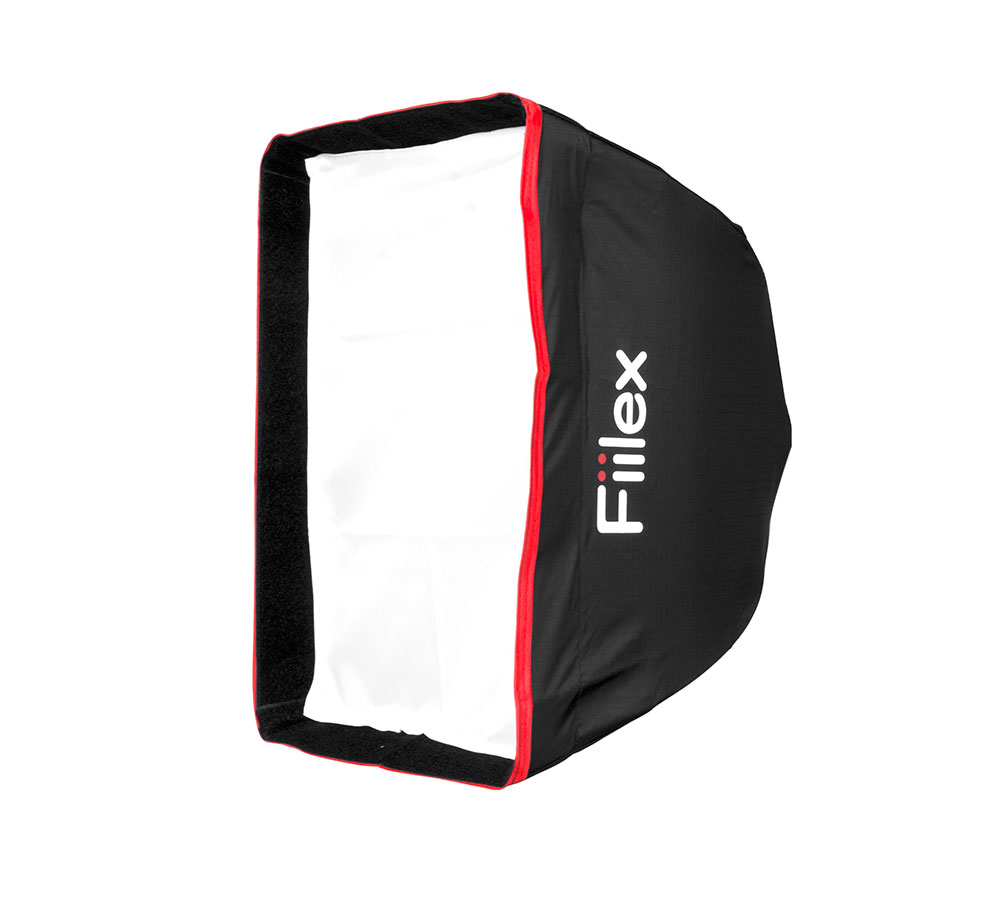

Fiilex P3 12

P3 12" x 16" Softbox Kit

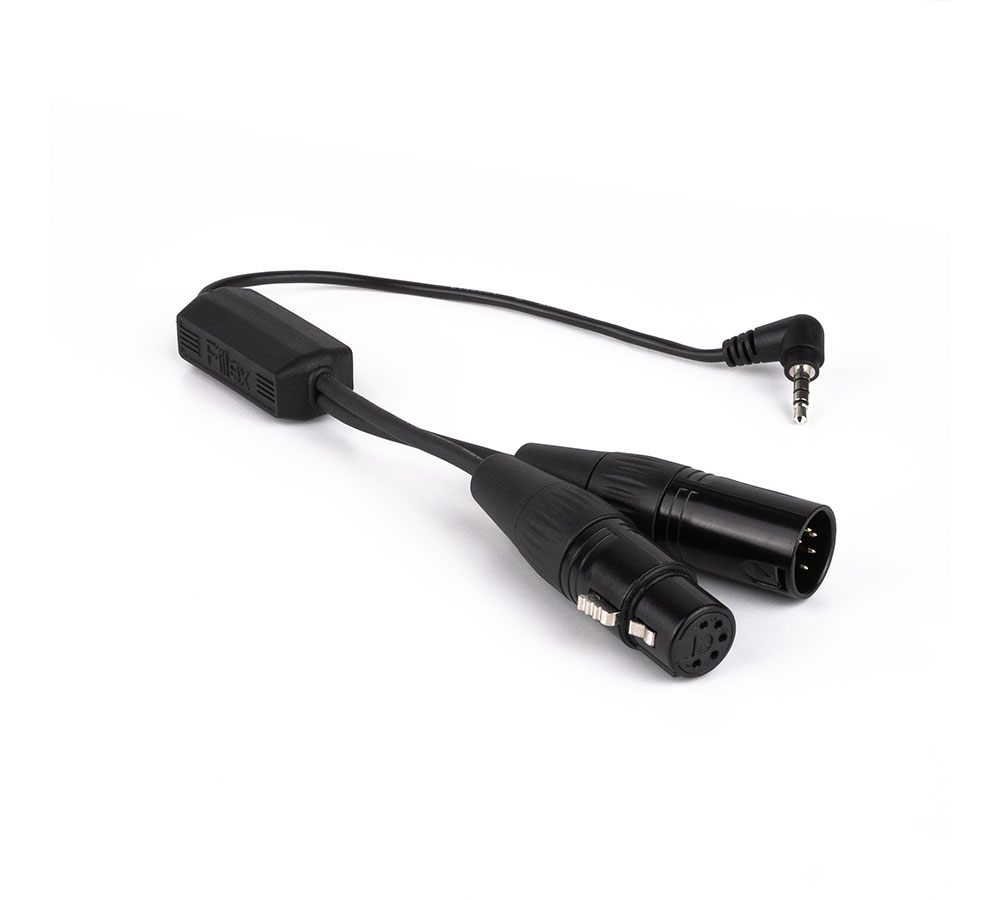

Fiilex DMX Adapter

DMX Adapter

Fiilex 3’ XLR4 Jumper/Splitter

3’ XLR4 Jumper/Splitter

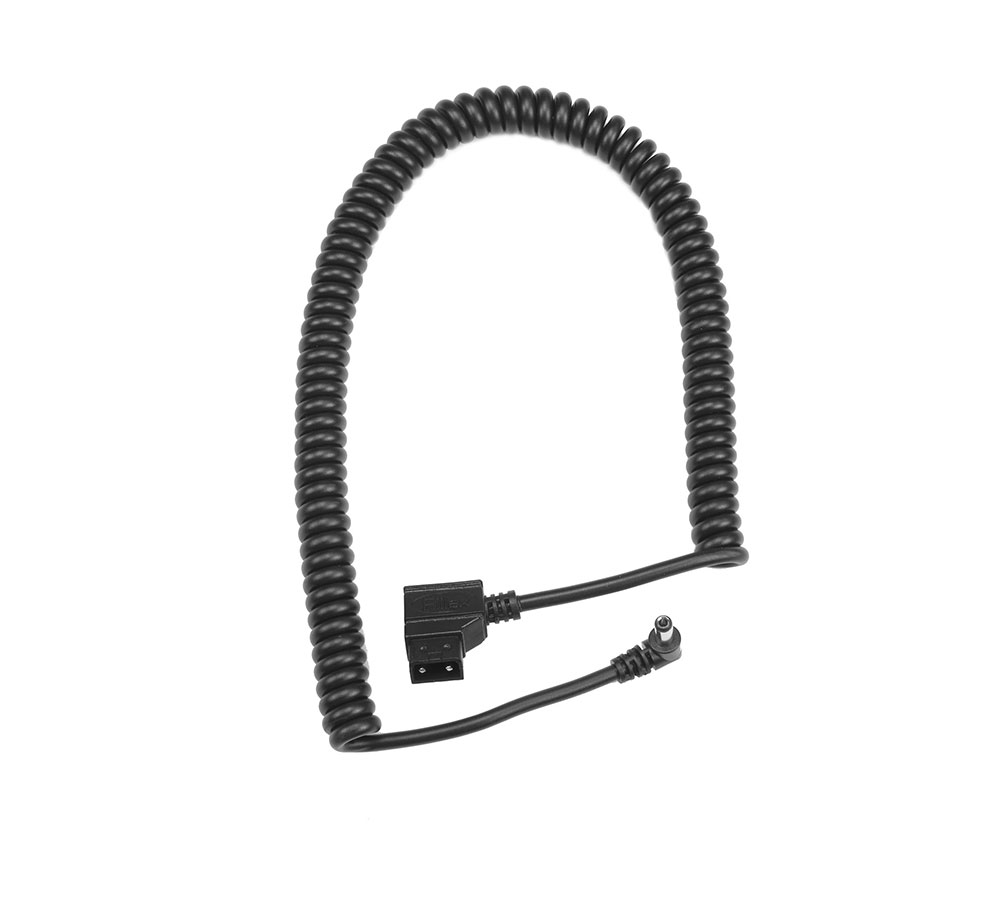

Fiilex D-Tap to Barrel Cable, 24

D-Tap to Barrel Cable, 24"

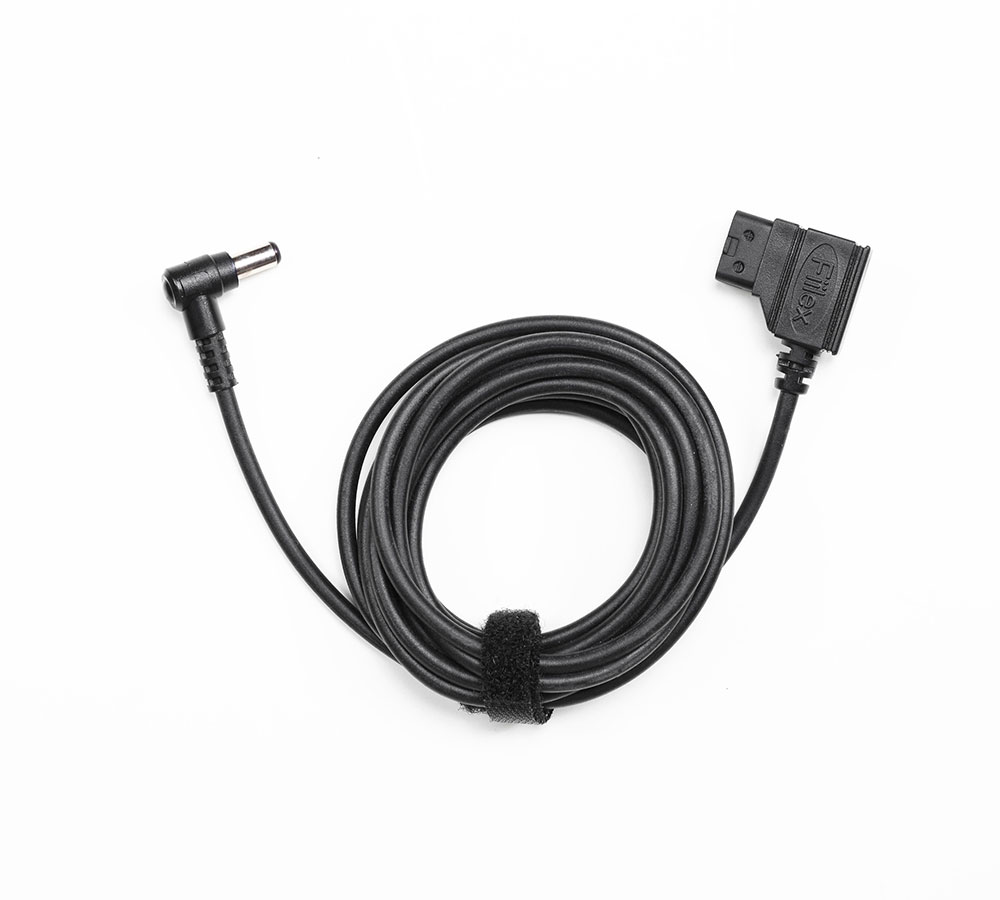

Fiilex D-Tap to Barrel Cable, 96

D-Tap to Barrel Cable, 96"

Fiilex 6’ DC Extension Cable

6’ DC Extension Cable

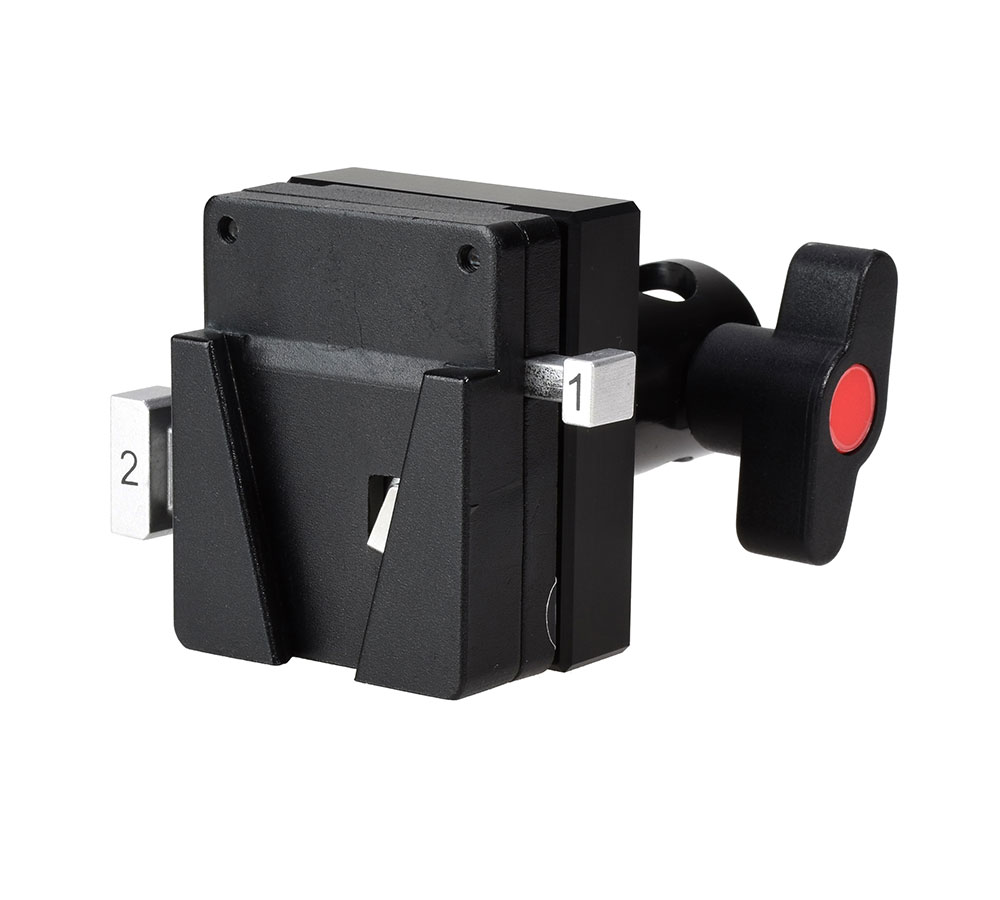

Fiilex V-Mount with 5/8

V-Mount with 5/8" Baby Pin Receiver

Fiilex V-Mount for Yoke

V-Mount for Yoke

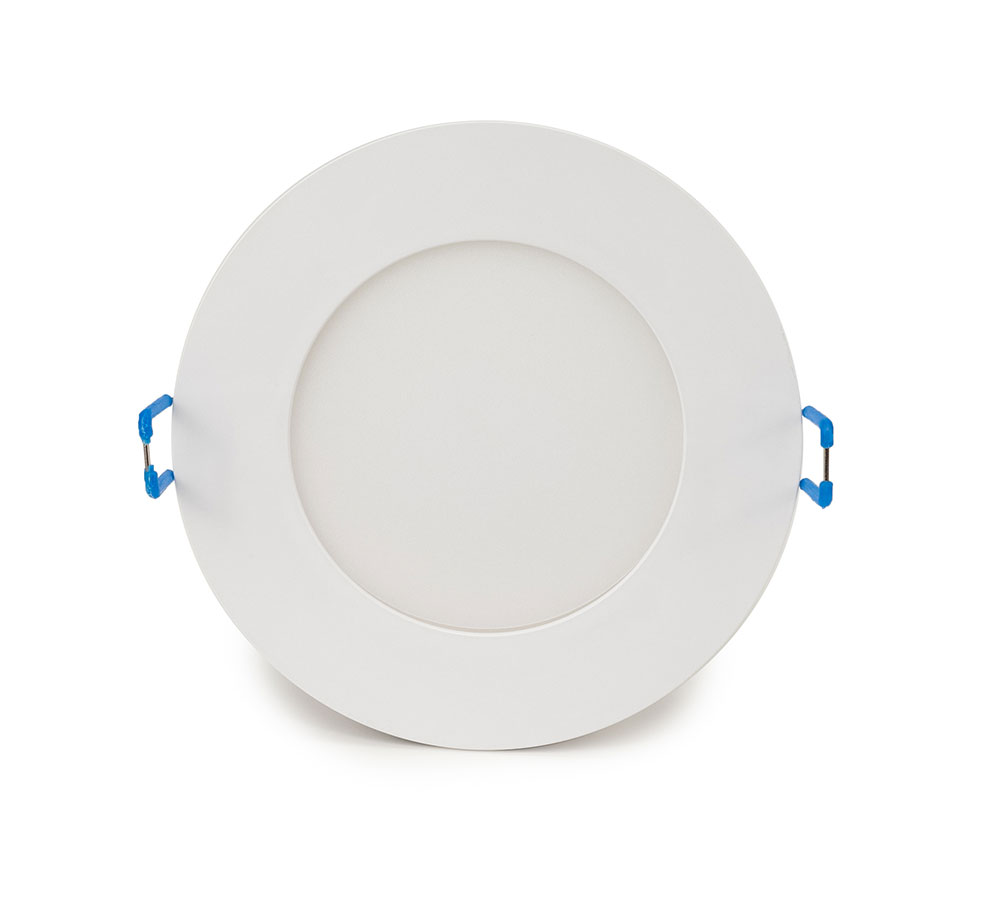

Fiilex P3 Recessed Lens, Wide

P3 Recessed Lens, Wide

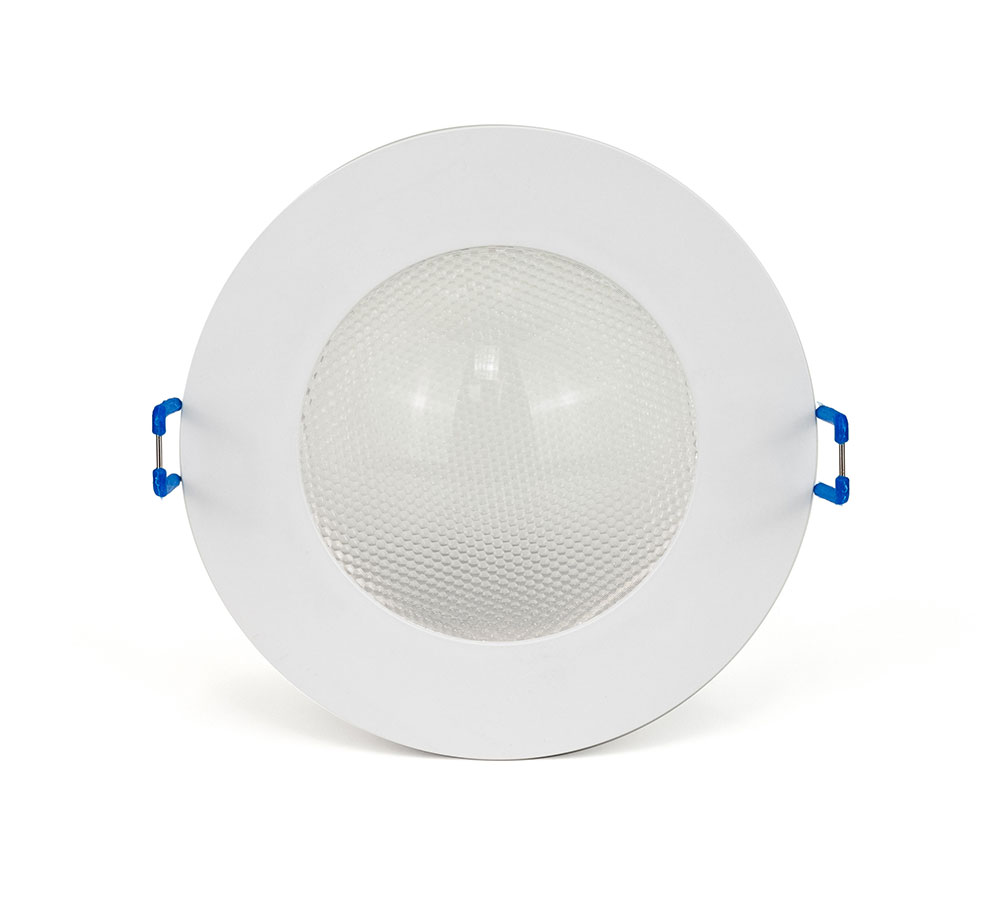

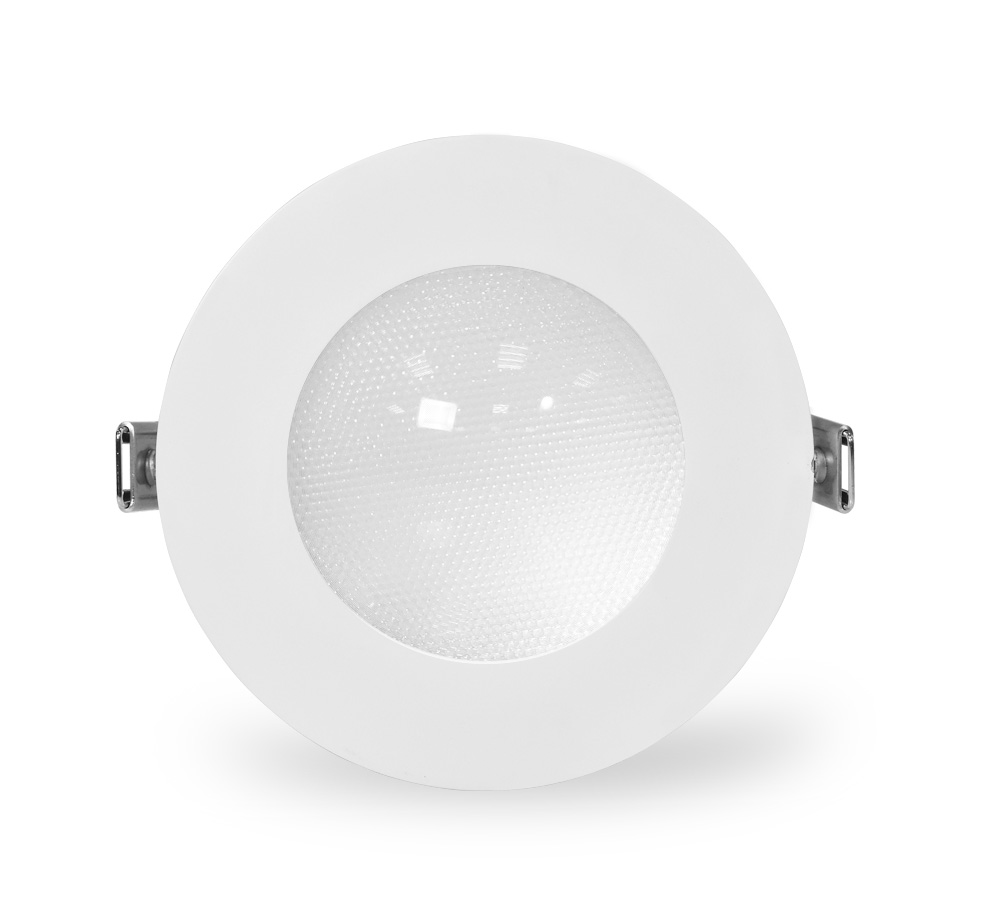

Fiilex P3 Recessed Lens, Narrow

P3 Recessed Lens, Narrow

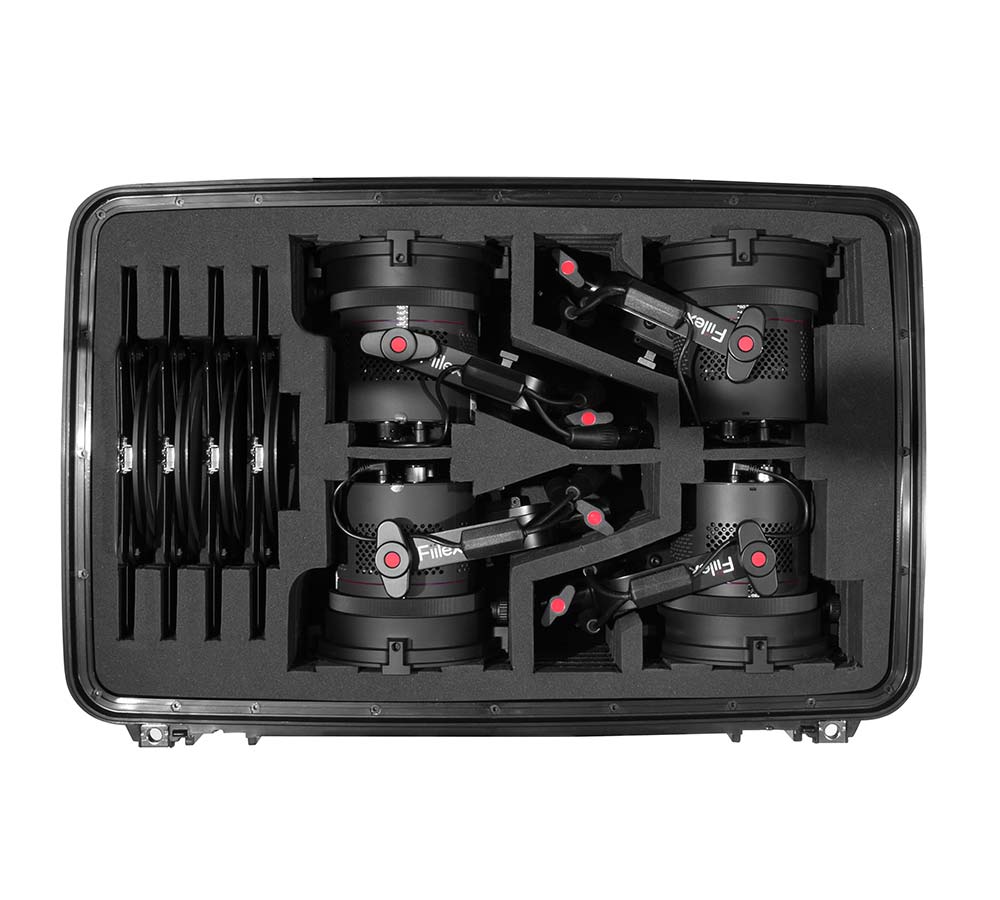

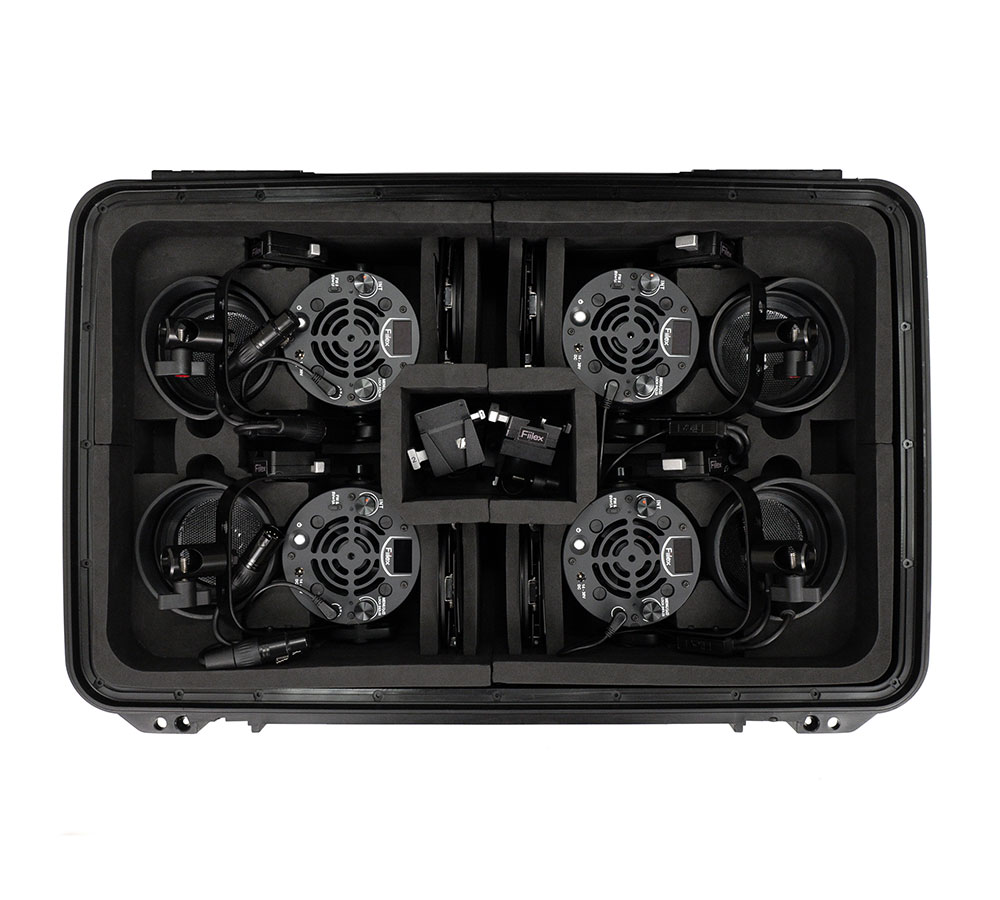

Fiilex K4 Case

K4 Case

Separator

FLEXIBLE ENERGY SOLUTIONS

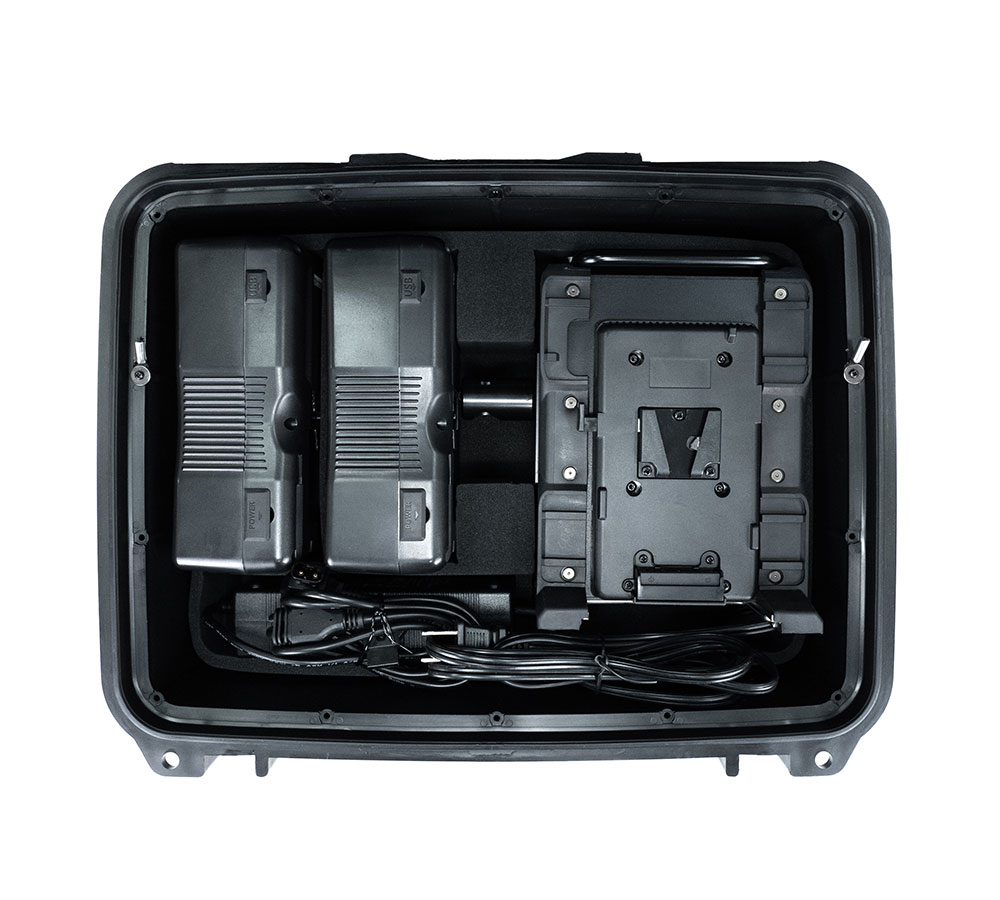

Fiilex 540 WHr Juice Box Kit

540 WHr Juice Box Kit

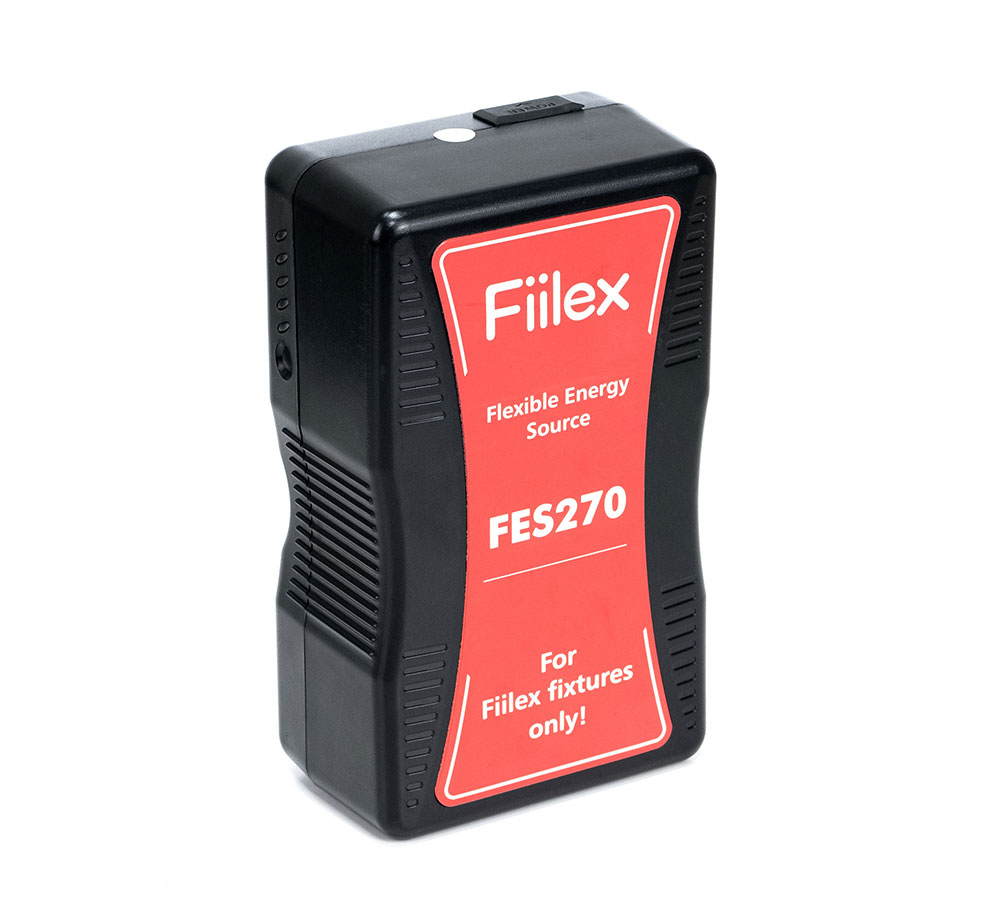

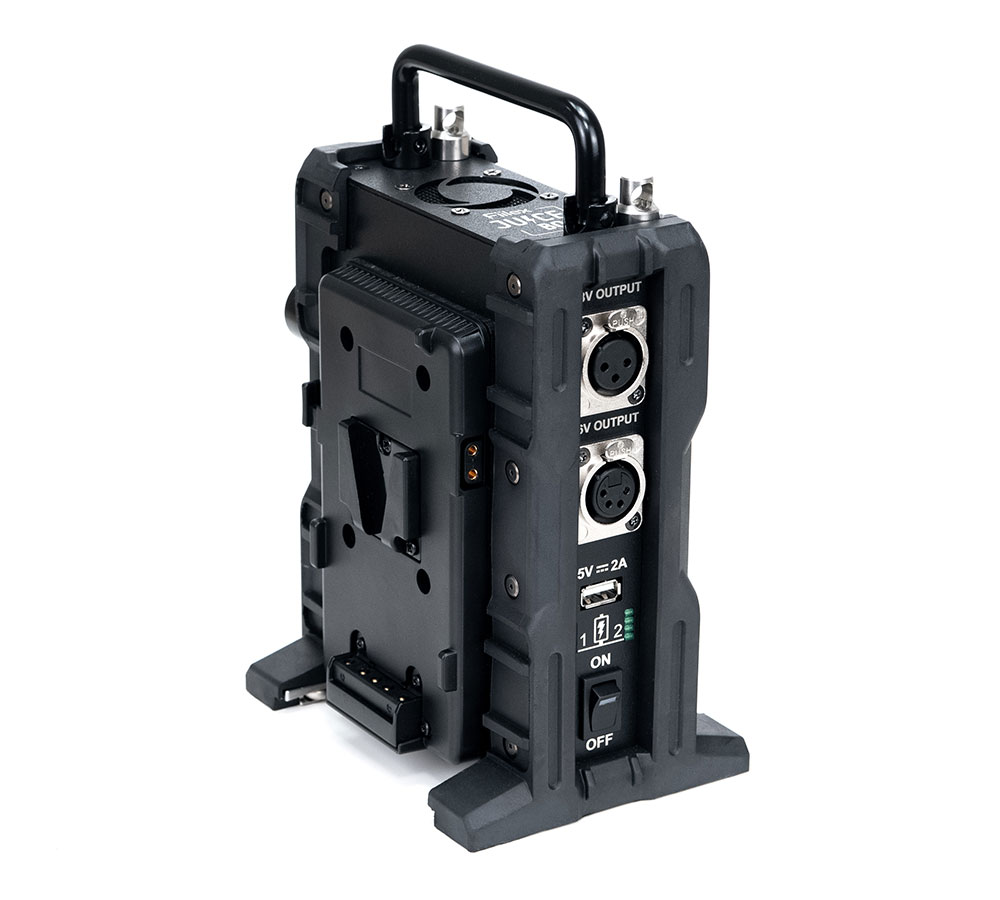

Fiilex Juice Box Flexible Energy Station

Juice Box Flexible Energy Station

Separator

BUNDLES & KITS

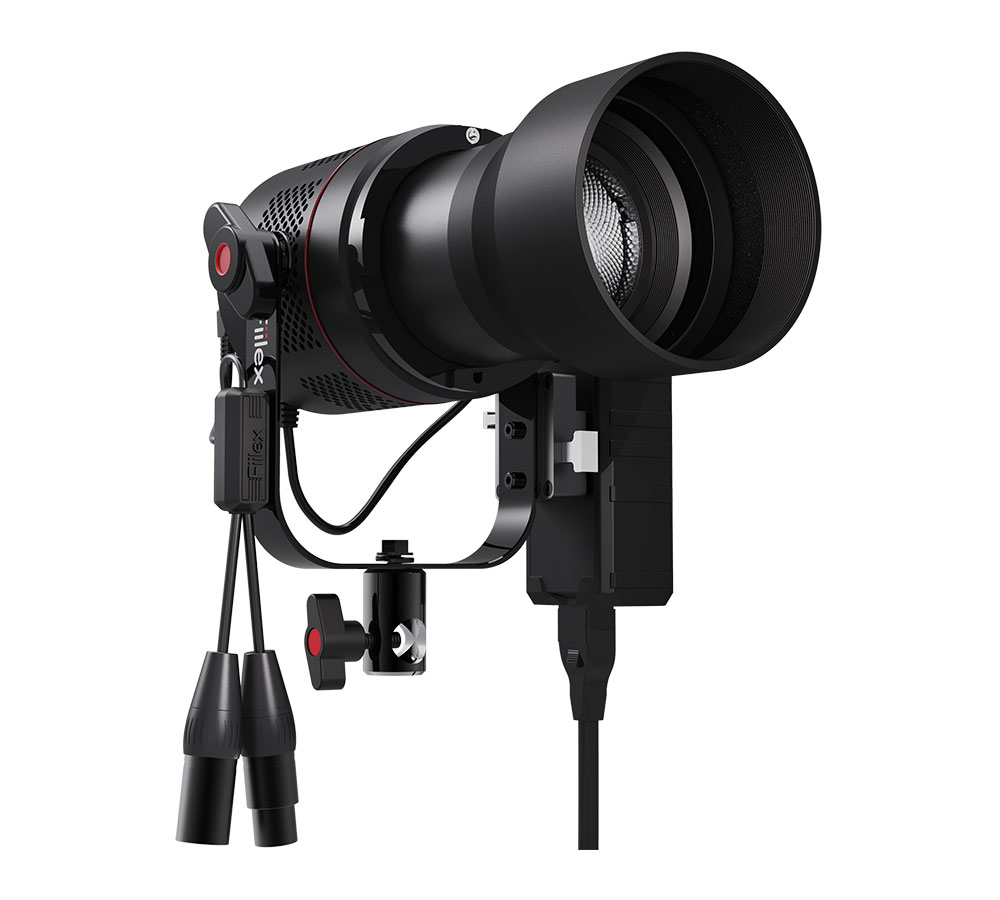

Fiilex P3 Pro Bundle

P3 Pro Bundle

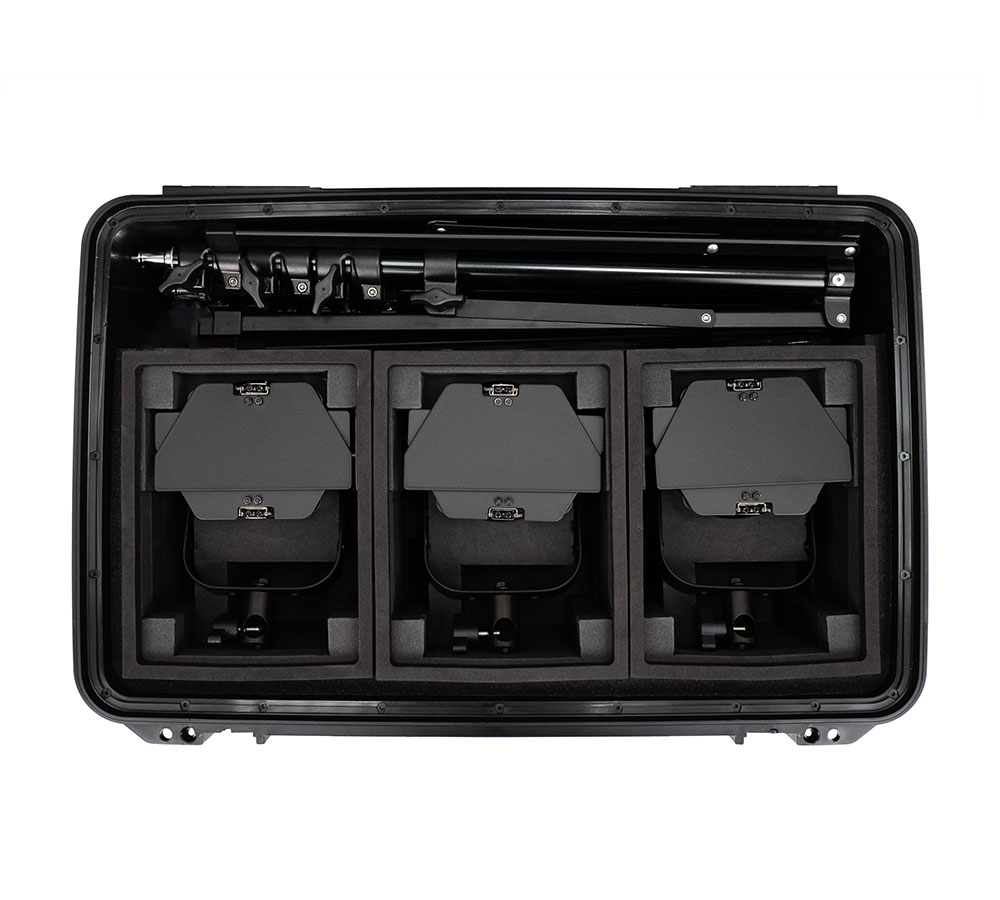

Fiilex K300 Kit

K300 Kit

Separator
Separator

SPECIFICATIONS

Beam Angle60° (20° with fresnel accessory)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control ModesCCT, HSI, RGBW, Gel, Effects, CIExy, CCT + HSI, CCT + RGBW, etc.
Dimming100% - 0% flicker free
Max. Power Draw90W AC | 80W DC
BTUs/hour307 (BTUs/hour) max
DC Input14 - 30V DC
AC Input100 - 240V AC, 50 ~ 60Hz
DMX/RDM PortTRRS (XLR-5 DMX Adapter accessory available)
Weight2.0lbs / 0.9kg
Dimensions4.7" x 5.6" x 8.1" / 11.9cm x 14.2cm x 20.6cm
MountBaby stud female (5/8” / 16mm)
IP RatingIP-X5 (water-resistant)
Thermal DesignAluminum extrusion cooling system w/ fan
Operating Temperature 0-40ºC / 32-104ºF
