Flexible Energy Station
0%

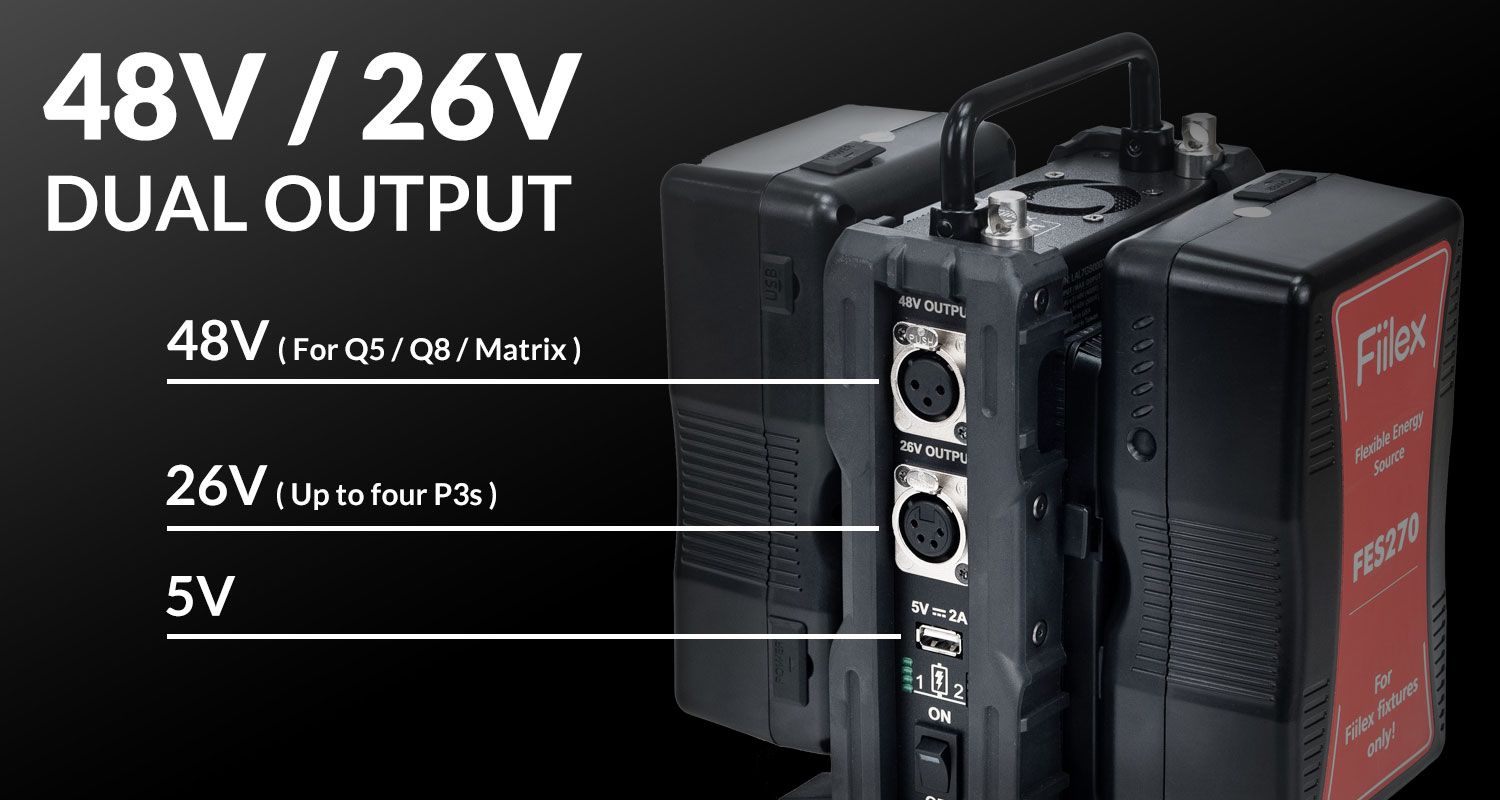

The Juice Box Flexible Energy Station has both 48V and 26V power for Fiilex COLOR series lights. The 48V XLR3 output can run a single Q5 for over 3 hrs at full intensity, a single P3 for over 6 hrs at full intensity, and Q8 or Matrix light for over 1.5 hrs. The 26V XLR4 output can run up to four P3s simultaneously. It uses V-mount batteries which can be “hot-swappable” meaning they can be swapped during and without interrupting operation and output.
COMPATIBILITY TABLE
Fixture |
Req. Cable |
Run Time @100% Intensity w/ 2 FES Batteries |
|---|---|---|
| P3 COLOR | 3' XLR4 Jumper/Splitter | > 6 hrs* |
| Q3 COLOR | 3' XLR4 Jumper/Splitter | > 6 hrs* |
| Q5 COLOR | 6' XLR3 Jumper Cable | > 3 hrs |
| Q6 COLOR | 6' XLR3 Jumper Cable | > 3 hrs |
| Q8 COLOR | 6' XLR3 Jumper Cable | > 1.5 hrs |
| Matrix COLOR | 6' XLR3 Jumper Cable | > 1.5 hrs |
*Run time given for a single fixture.
- FLXPSU-DCJ3-XLR4BRL cable connects up to four P3/Q3 fixtures simultaneously.
- with approx. 1.2 hrs of run time per fixture.
Separator
FIXTURES & KITS
FLXJB
FLXJB-S540-KIT
Separator
ACCESSORIES
FLXFES-270
FLXJB-RAINCOVER
FLXFES-CHRG-2DTAP
FLXPSU-DCJ3-XLR4BRL
FLXPSU-DCJ6-BRLBRL
FLXPSU-DCJ6-XLR3XLR3
Separator
SPECIFICATIONS
| Max Output Wattage | 500W |
| DC output 1 | 48V DC (via XLR-3) |
| DC output 2 | 26V DC (via XLR-4) |
| USB Power Output | USB-A, 5V/2A |
| Weight | 3.46lbs / 1.57kg |
| Size (L × W × H) | 8.7" × 6.0" × 7.1" / 22.1 cm × 15.2 cm × 18 cm |

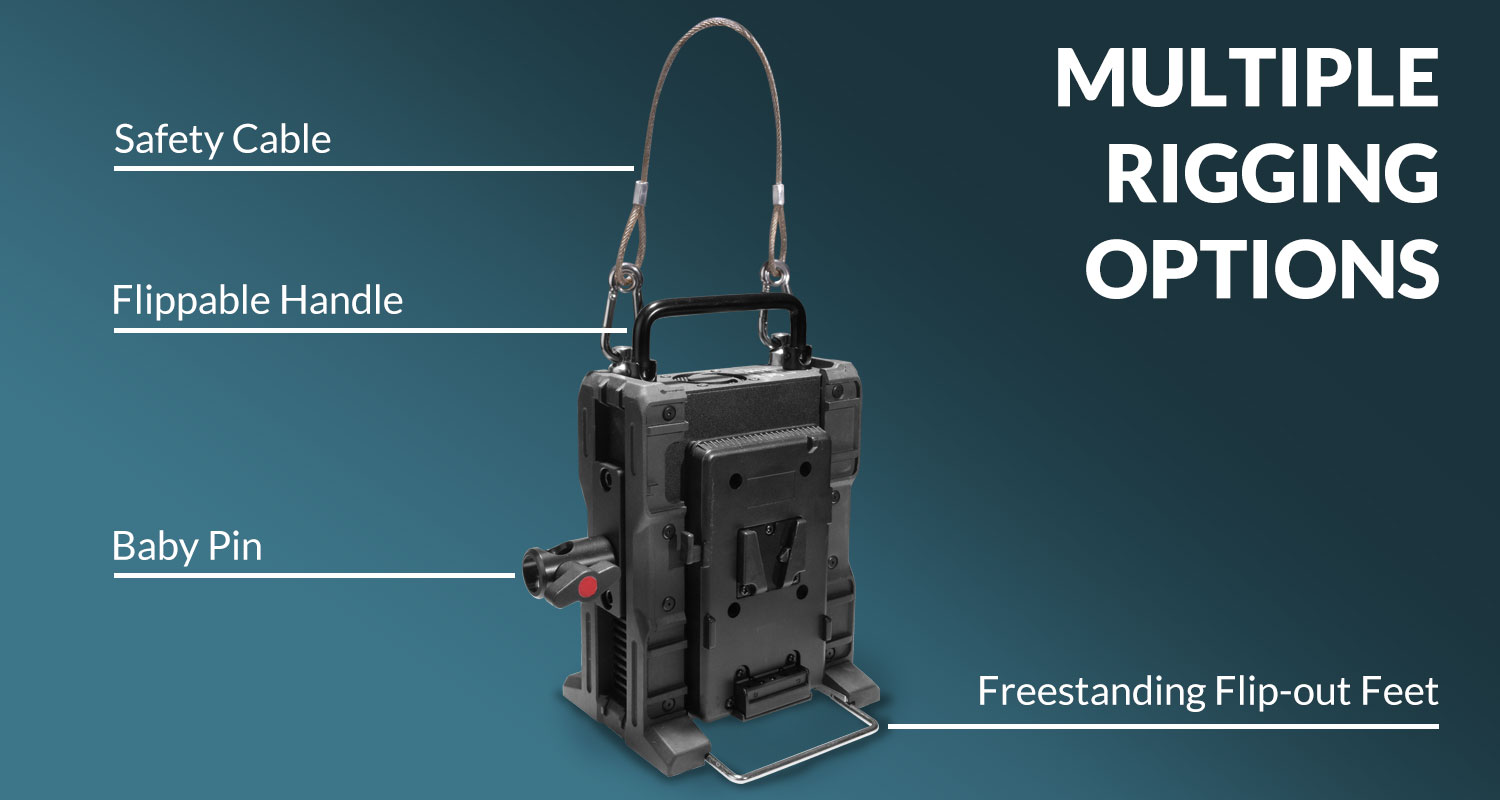

| Mount Type | Safety Cable / Baby Pin / Flip-out Feet |
| IP Rating | IP-X5 (rain-resistant) with *FLXJB-RAINCOVER |
*FLXJB-RAINCOVER sold separately.
