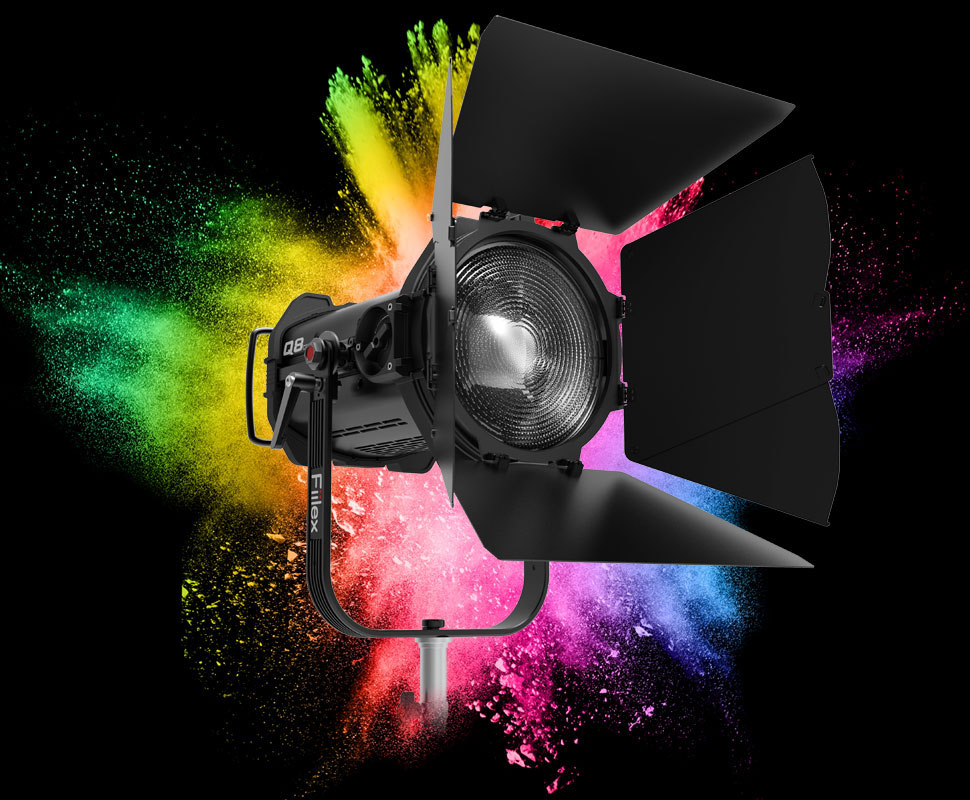

320W LED Fresnel
The Q8 Color is a 320W 8” LED Fresnel that generates high-quality full-color light output. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color fidelity and optical versatility that are superior to previous generations of LED fresnels. With an extremely wide spot/flood range, smooth dimming to 0%, no flicker, and high CRI, the Q8 Color combines the extensive feature set of top-tier RGBW LEDs with the performance of a tungsten fresnel.
Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
FIXTURES & KITS
FLXQ8CLRLR
FLXQ8CLRLR-H1-KIT
Separator
ACCESSORIES
FLXQ8CLR-OCTA4
FLXQ8CLR-OCTA4-GRID
FLXQ8CLR-SPRG1
FLXFES-270
FLXPSU-DCJ6-XLR3XLR3
FLXPSU-VMOUNT-BABY
Separator
FLEXIBLE ENERGY SOLUTIONS
FLXJB-S540-KIT
FLXJB
Separator
SPECIFICATIONS
| Fresnel Diameter | 8" |
| Beam Angle | 12°-62° |
| CCT Range | 2000-10000K continuous tuning + magenta/green shift |
| CRI / TLCI | 95 / 90 typical |
| Control Modes | CCT, HSI, RGBW, Gels, CCTRGBW, CCTHSI, CIExy, ICTHS, and more |
| Dimming | 100 - 0% flicker free |
| Dimming Modes | Smooth, Sharp |
| Light Engine | DiCon Dense Matrix LED |
| Power Consumption | 320W max AC | 300W max DC |
| BTUs/hour | 1091 (BTUs/hour) max |

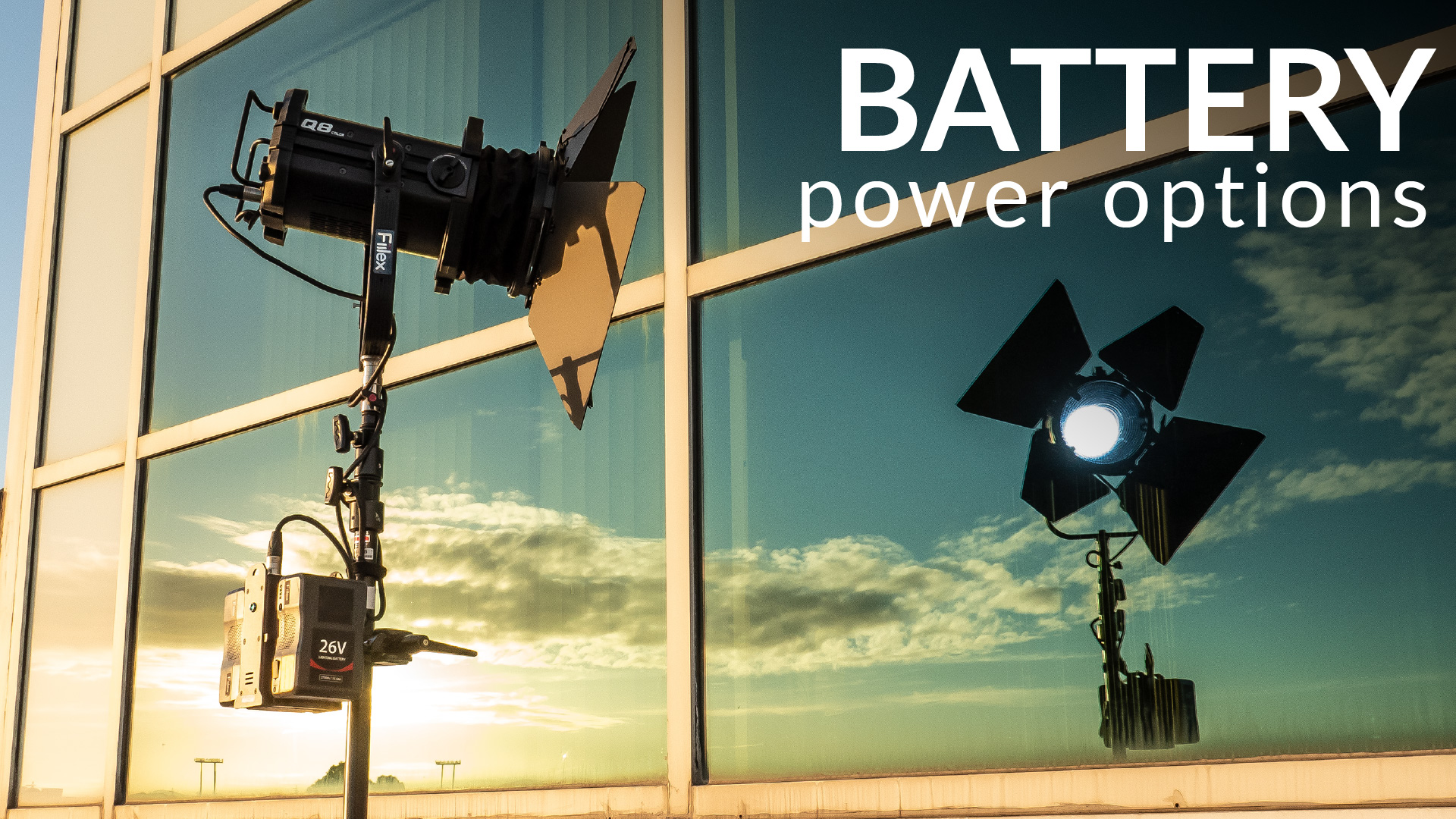

| DC Input | 48V DC (via XLR-3) |
| AC Input | 100 - 240V AC, 50 ~ 60Hz (via powerCON TRUE1) |
| DMX/RDM Port | XLR-5 |

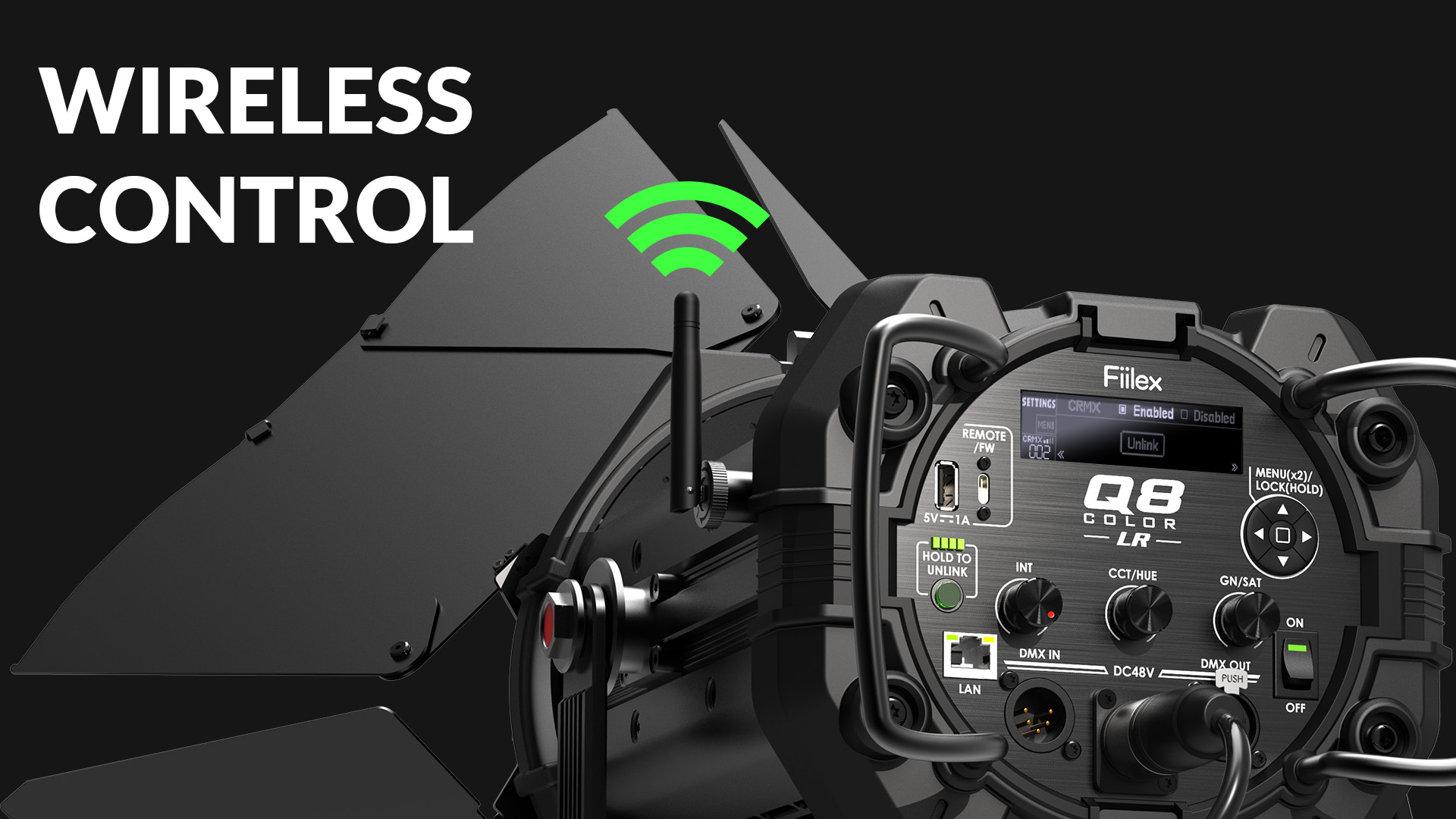

| Wireless Control | Integrated LumenRadio |
| Ethernet | sACN, ArtNet (via RJ45) |
| USB Power Output | 5V/1A (via USB-A) |
| Weight | Fixture: 17 lbs / 7.7kg (includes yoke) | Power adapter: 4.8lbs / 2.2kg |
| Size (L x W x H) | 13.6” x 12.7” x 19.6” / 34.7cm x 32.3cm x 49.9cm |
| Mount Type | Combo (baby stud female / junior stud male) |
| IP Rating | IP-X5 (rain-resistant) |
| Thermal Design | Aluminum extrusion cooling system w/ fan |
| Operating Temperature | 0-40ºC / 32-104ºF |
