3600W Punch Light

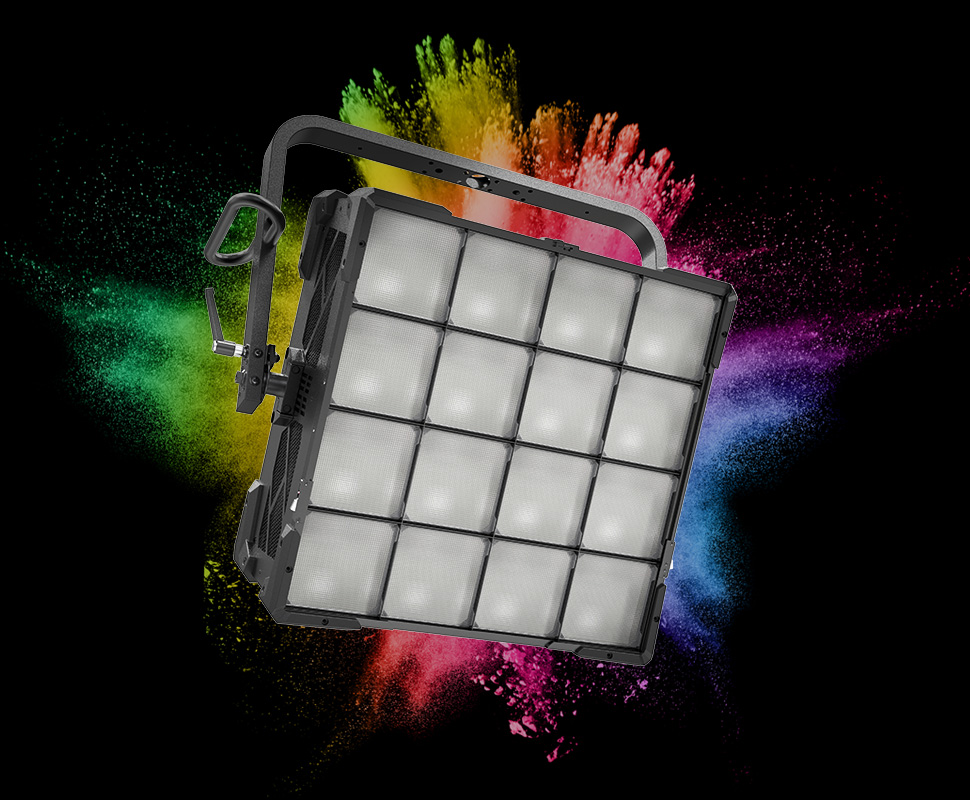

Fiilex K40 COLOR

The K40 COLOR is a super-bright punch light that emits 3600W of LED illumination. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color quality and optical versatility that are superior to previous generations of LED punch lights.Individually swappable lenses and pixel control allow for incredibly high levels of customization and control over the light output. With its smooth dimming from 0-100%, no flicker, high CRI, and CRMX wireless built in, the K40 COLOR excels in any production setting and can be used on a floor stand, rigged into a grid, or hung from a Condor.

Request More Info



All fields are required for submitting this request


Name*
Email*
Phone*
City*
State/Province*
Country*
You are interested in Fiilex products, because you are *
Comments*

Experience with Fiilex, Affiliations (Local 728/479/52/873/600 etc), Upcoming Projects.

0 characters entered / Maximum 500 characters.


Enter the displayed 6-character code in the box below
(6 characters, no space in between, not case sensitive.)


Request Product Info: K40 COLOR

The above information was sent successfully!

Separator

FIXTURES & KITS

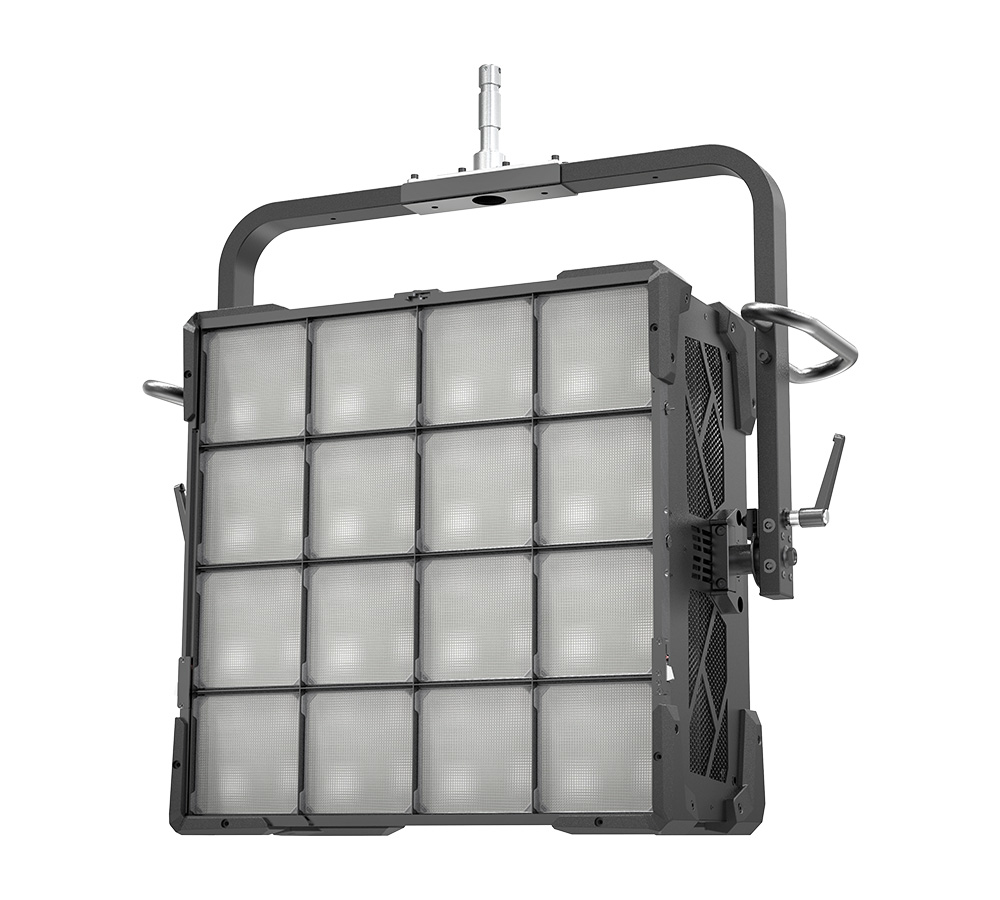

Fiilex K40 COLOR
FLXK40CLR
Separator

ACCESSORIES

Fiilex RPU
FLXRPU-HEAD
Fiilex 12 Degree Fresnel Lens
FLXK40CLR-FRNL12
(Pack of 16)
Fiilex 18 Degree Fresnel Lens
FLXK40CLR-FRNL18
(Pack of 16)
Fiilex 30 Degree Fresnel Lens
FLXK40CLR-FRNL30
(Pack of 16)
Fiilex 50 Degree Fresnel Lens
FLXK40CLR-FRNL50
(Pack of 16)

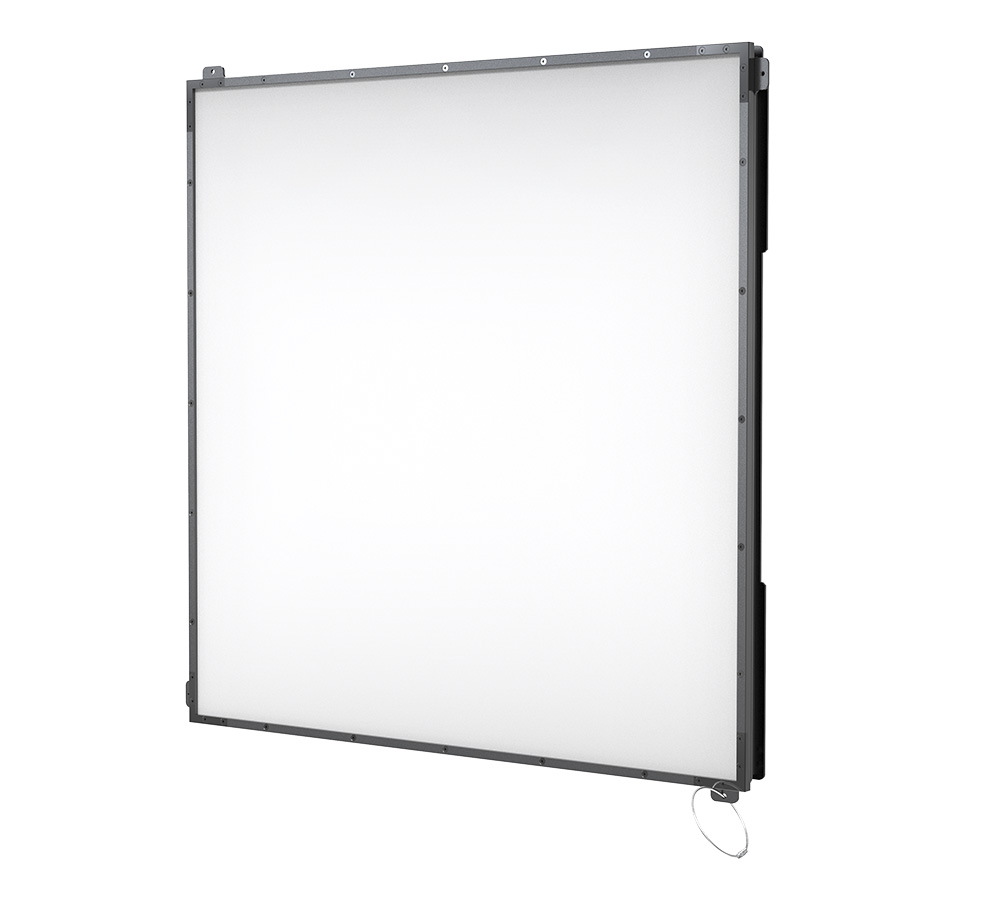

Fiilex K40 Light Diffusion
FLXK40CLR-LIGHTDIFF

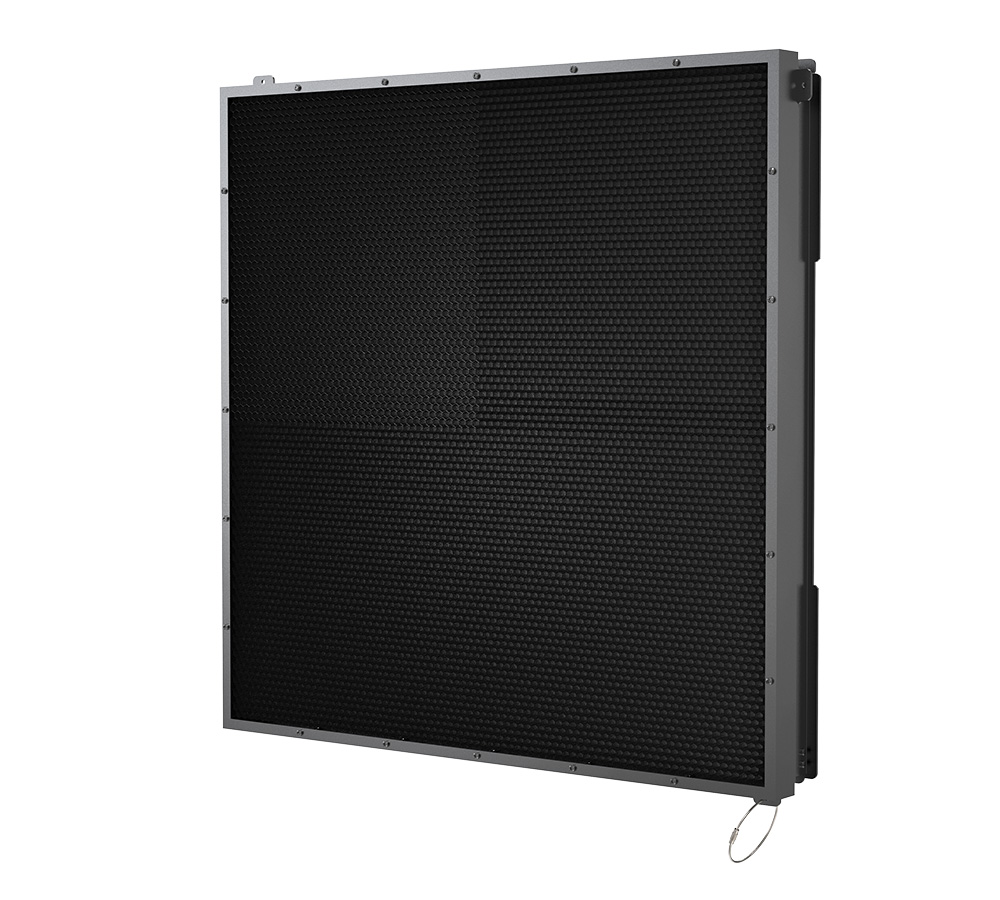

Fiilex K40 Honeycomb
FLXK40CLR-HONEYCOMB
Separator

SPECIFICATIONS

Beam Angle12° with lens (18°/30°/50° with optional lens accessories)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming Modes / CurveSmooth, Sharp / Linear, Gamma
Light EngineDiCon Dense Matrix LED
Power ConsumptionSingle AC Input 1500W / Dual AC Input 3600W
BTUs/hour12283 (BTUs/hour) max
AC Input100 - 240V AC, 18A Max Each
DMX/RDM Port XLR-5
Wireless Control Integrated LumenRadio CRMX TimoTwo
Ethernet sACN, ArtNet (via etherCON)
USB Power Output 5V/2A (via USB-A)
USB-C Interface FW Update / Remote
Weight 107lbs/48.5kg (With Yoke)
Size (L x W x H)35.1" x 37.2" x 14.3" / 89.2cm x 94.6cm x 36.2cm (With Yoke)
24.4" x 24.4" x 14.3" / 62.0cm x 62.0cm x 36.2cm (Light Head Only)

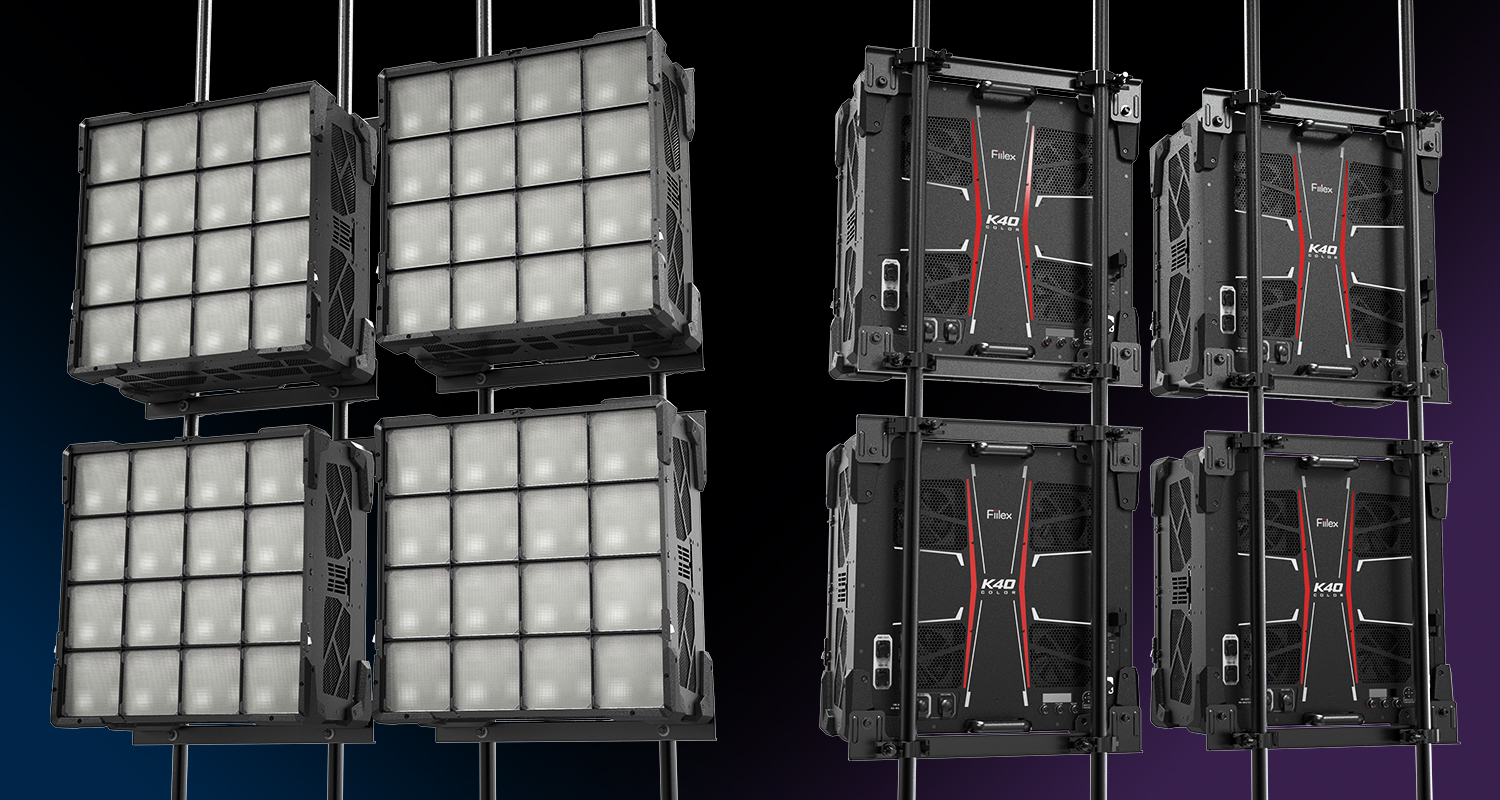

Mount TypeCombo (baby stud female / junior stud male) / Dual Truss Clamp Optional
IP RatingIP-25 (water-resistant)
Thermal DesignControllable fan (OFF / SILENT / AUTO / FULL)
Operating Temperature0-40°C / 32-104°F
