HOMESpec Lighting

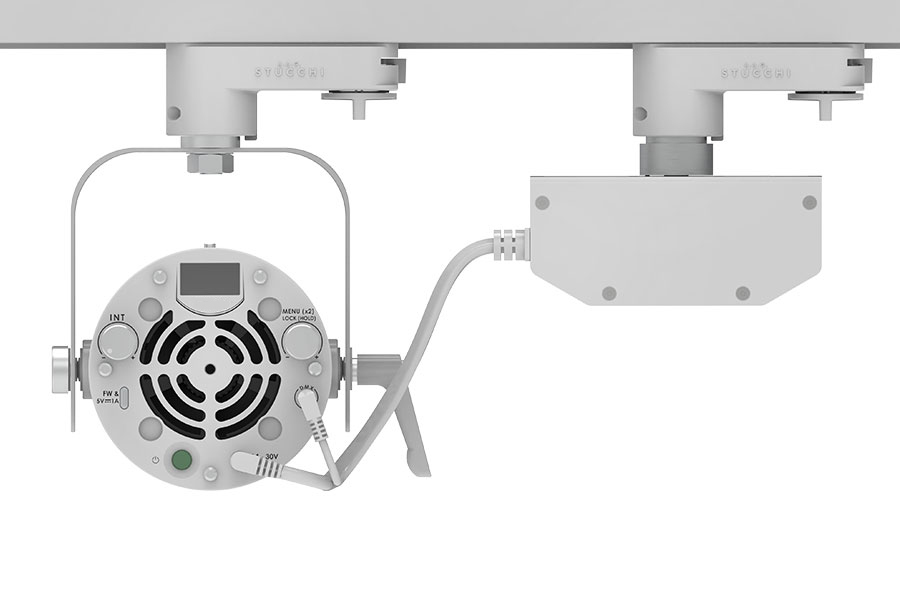

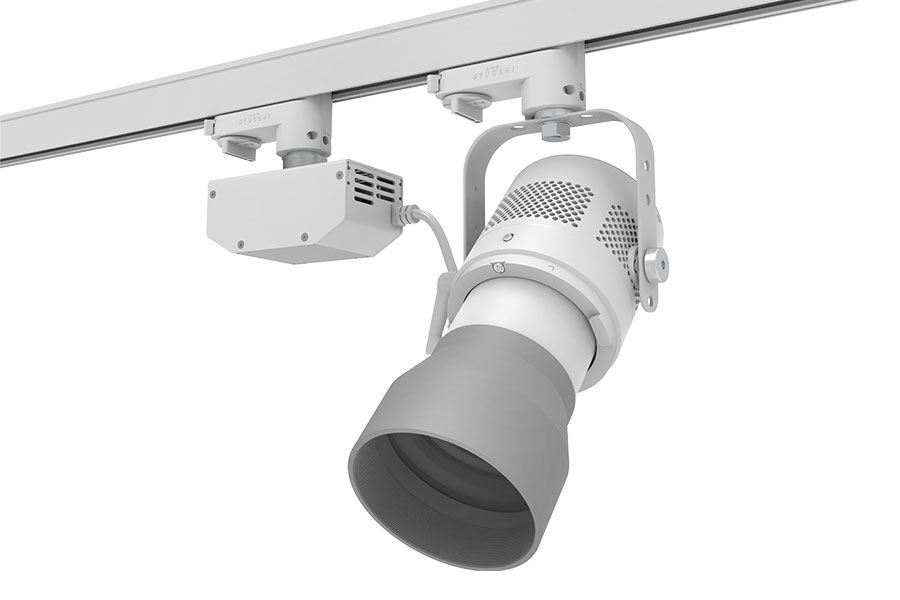

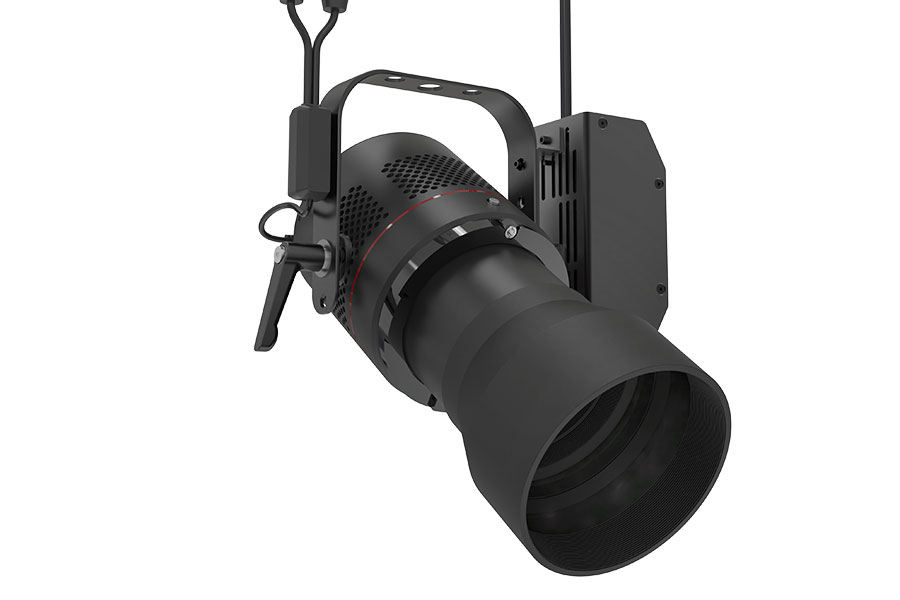

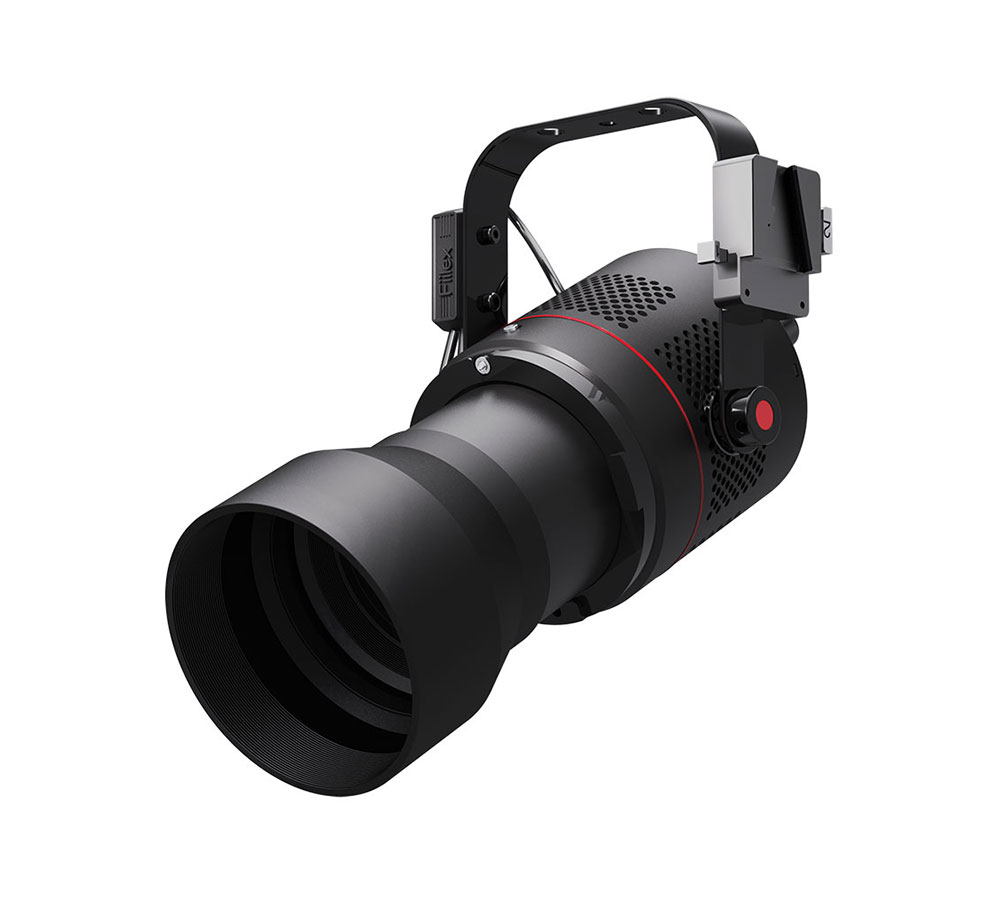

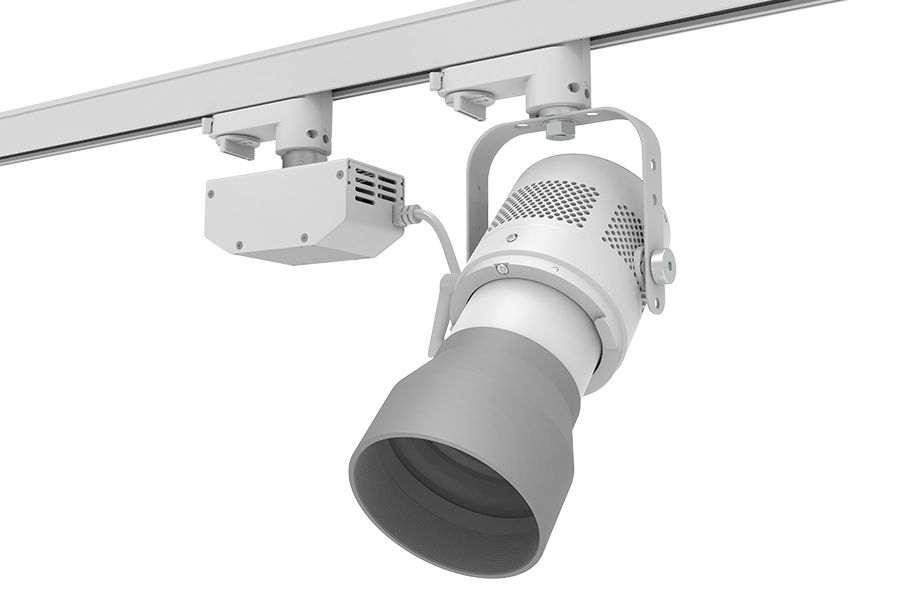

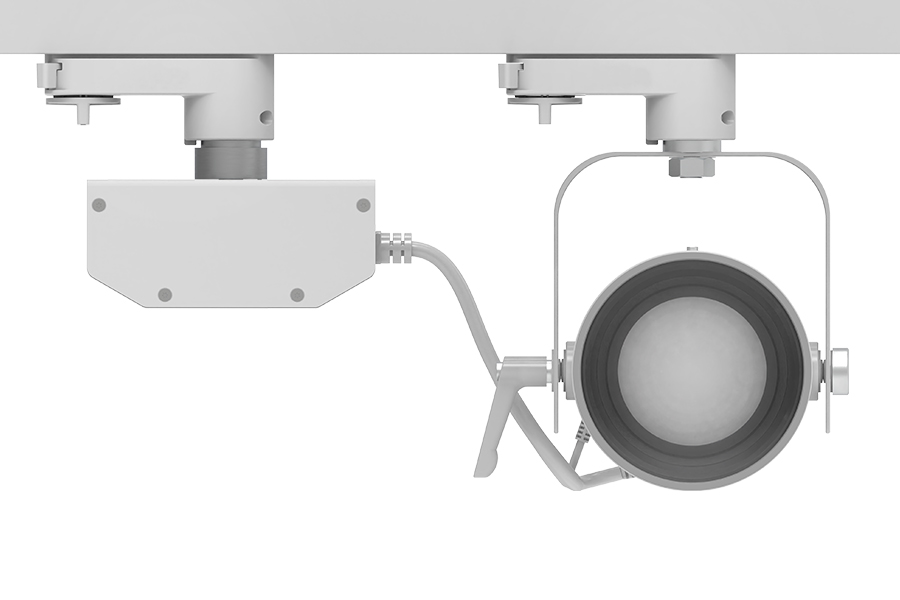

P3S Spot Light

90W LED / 20°

Model No: FLXP3S-

  • Fiilex P3S Spot Light
  • Fiilex P3S Spot Light
  • Fiilex P3S Spot Light
  • Fiilex P3S Spot Light
  • Fiilex P3S Spot Light
  • Fiilex P3S Spot Light
  • Fiilex P3S Spot Light
  • Fiilex P3S Spot Light
  • Fiilex P3S Spot Light
  • Fiilex P3S Spot Light
  • Fiilex P3S Spot Light
  • Fiilex P3S Spot Light
Fiilex P3S Spot Light
Fiilex P3S Spot Light
Fiilex P3S Spot Light
Fiilex P3S Spot Light
Fiilex P3S Spot Light
Fiilex P3S Spot Light
Fiilex P3S Spot Light
Fiilex P3S Spot Light
Fiilex P3S Spot Light
Fiilex P3S Spot Light
Fiilex P3S Spot Light
Fiilex P3S Spot Light

DOWNLOADS

Data Sheet (Track Mounting)
Data Sheet (Clamp Mounting)
IES Profiles
Specification Documents
CAD Files
DMX Profiles
Separator

SPECIFICATIONS

Beam Angle 20°
CRI/TLCI 95/90 typical (in CCT Mode of 2800K-6500K)
Dimming 100% - 0% flicker free
AC Power Draw 90W max
AC Input 100 - 240V AC, 50 - 60Hz
Remote Control DMX 512
Cooling Fan Cooled
Acoustic Noise 19 dBA (Auto Mode)
Operating Temp. 32 - 104ºF (0 - 40ºC)
Weight
(Fixture + Power Supply)		 3.4lb / 1.6kg (Track Type), 3.6lb / 1.7kg (Clamp Type)
Separator

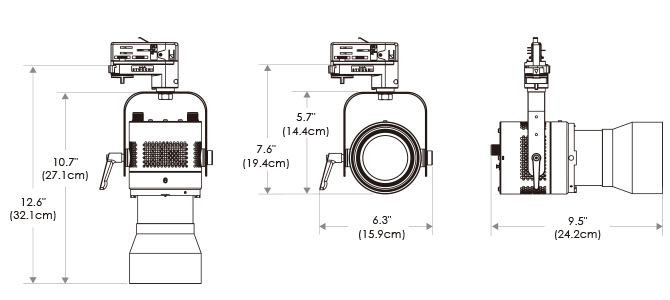

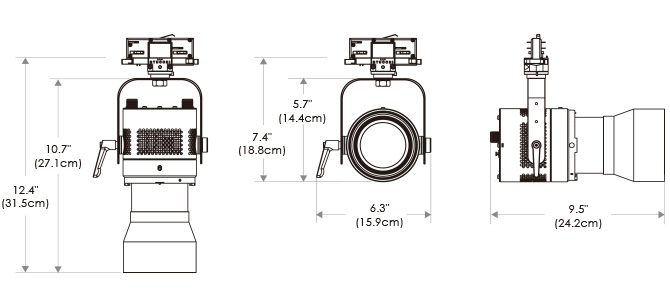

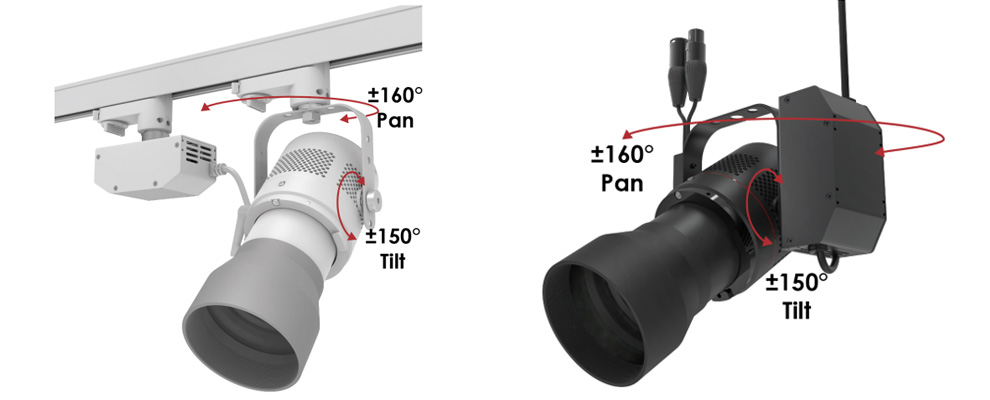

MECHANICAL FIGURES

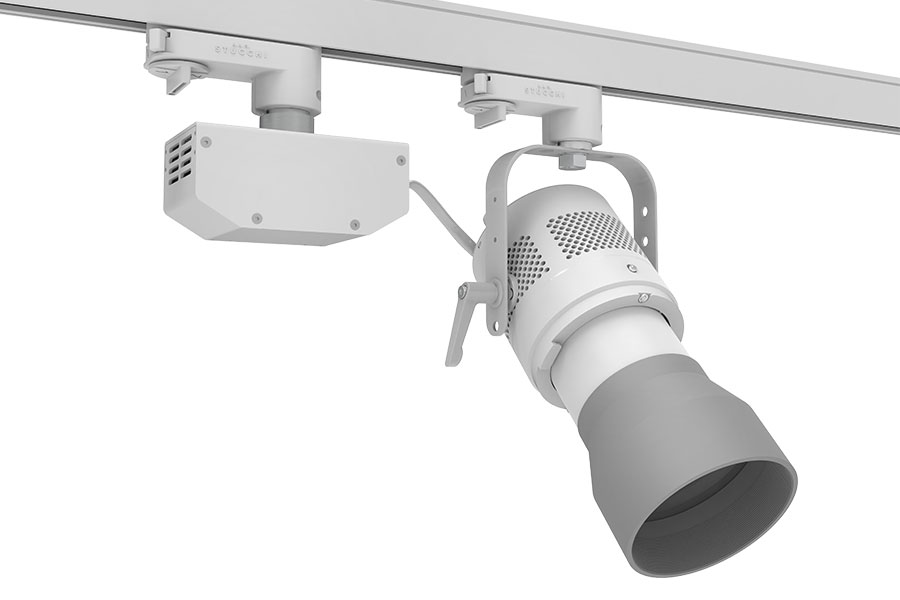

P3S (Track)

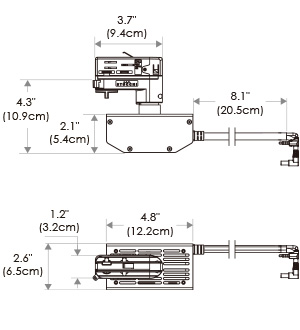

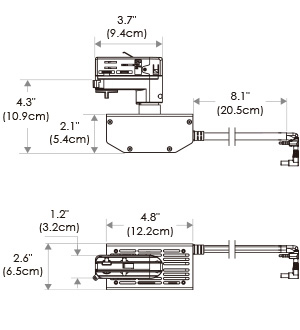

PSP US

Fiilex P3S Spot Light
Fiilex P3S Spot Light

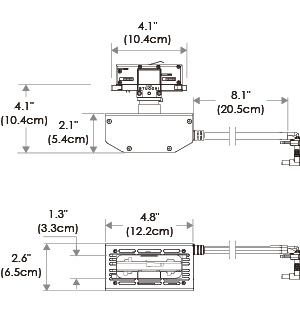

PSP EU

Fiilex P3S Spot Light
Fiilex P3S Spot Light

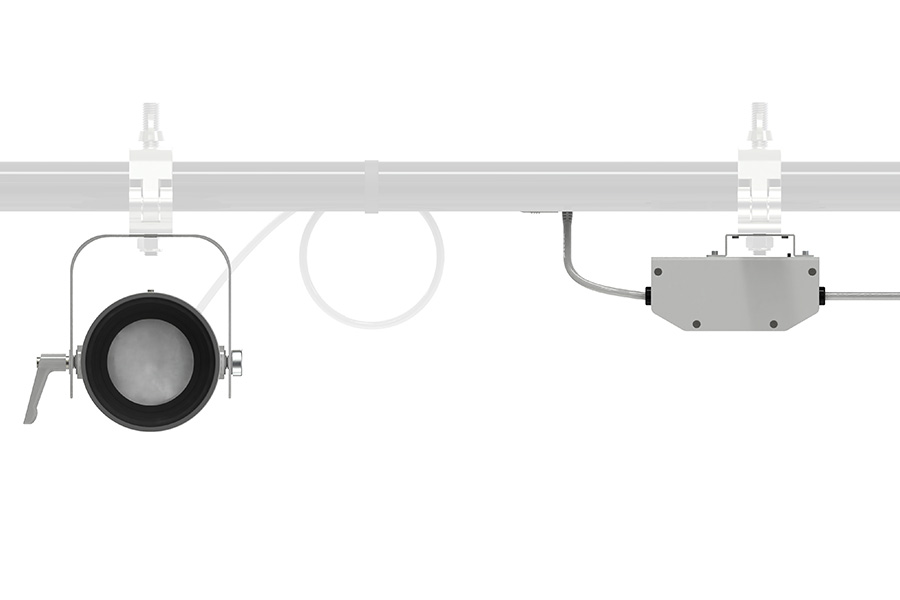

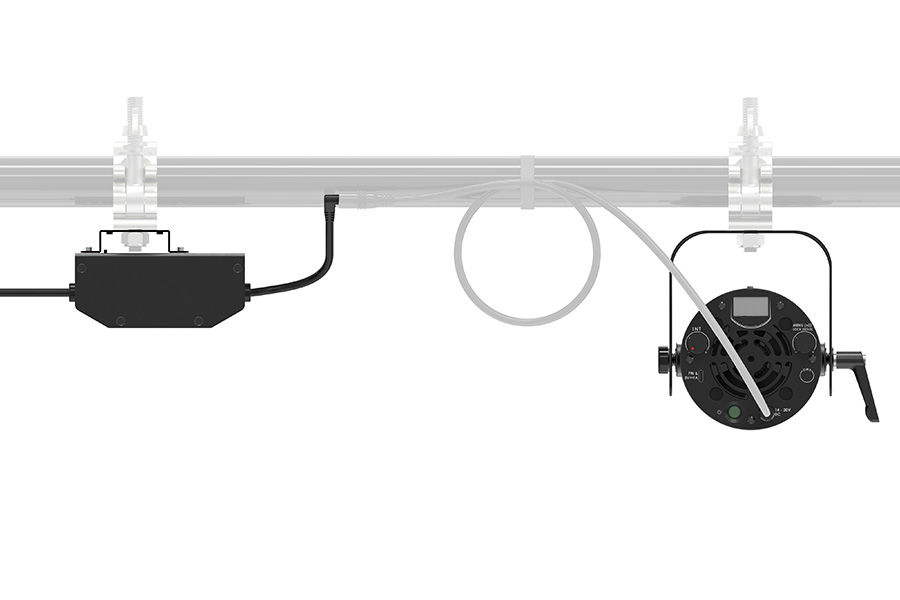

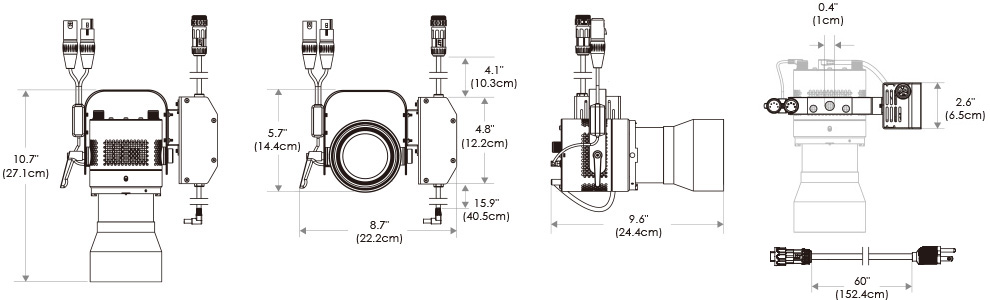

P3S (Clamp)

Fiilex P3S Spot Light


Separator

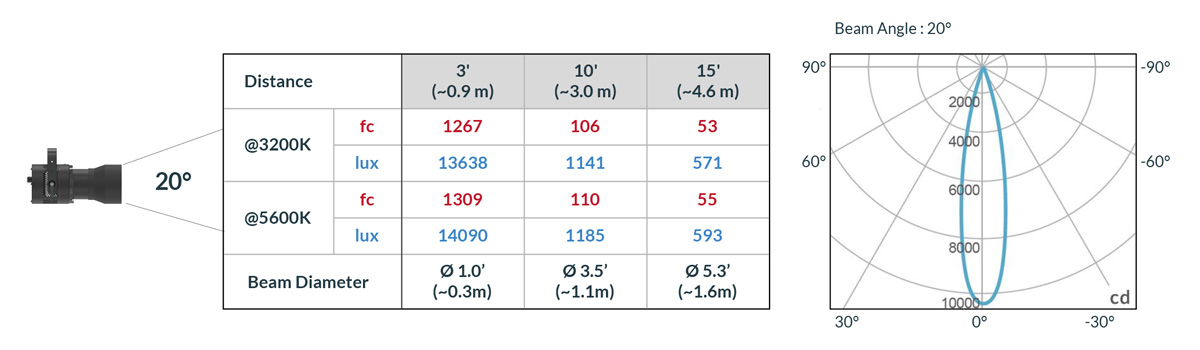

PHOTOMETRIC DATA

Fiilex P3S Spot Light Photometric Data

Separator

ITEMS INCLUDED

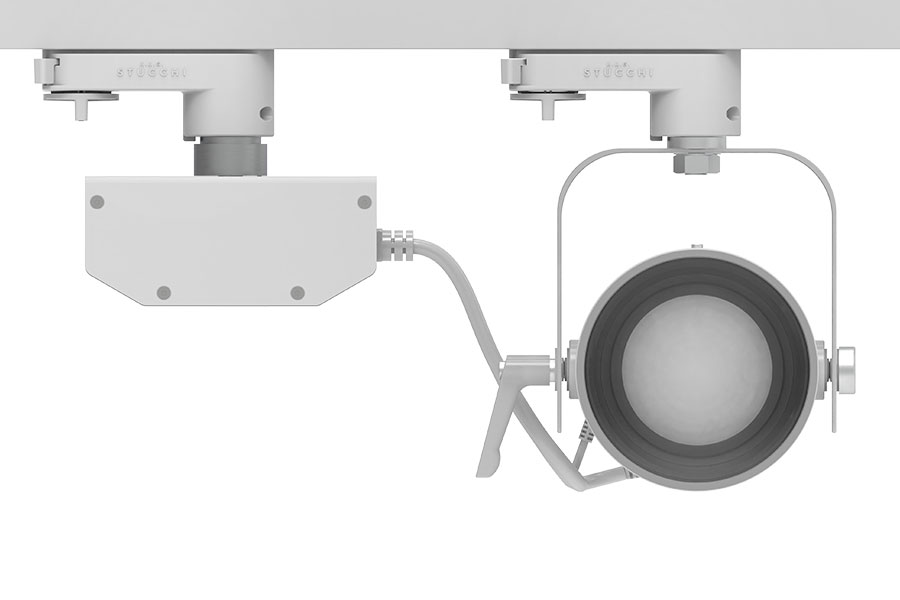

Track Type

Fiilex P3S Spot Light

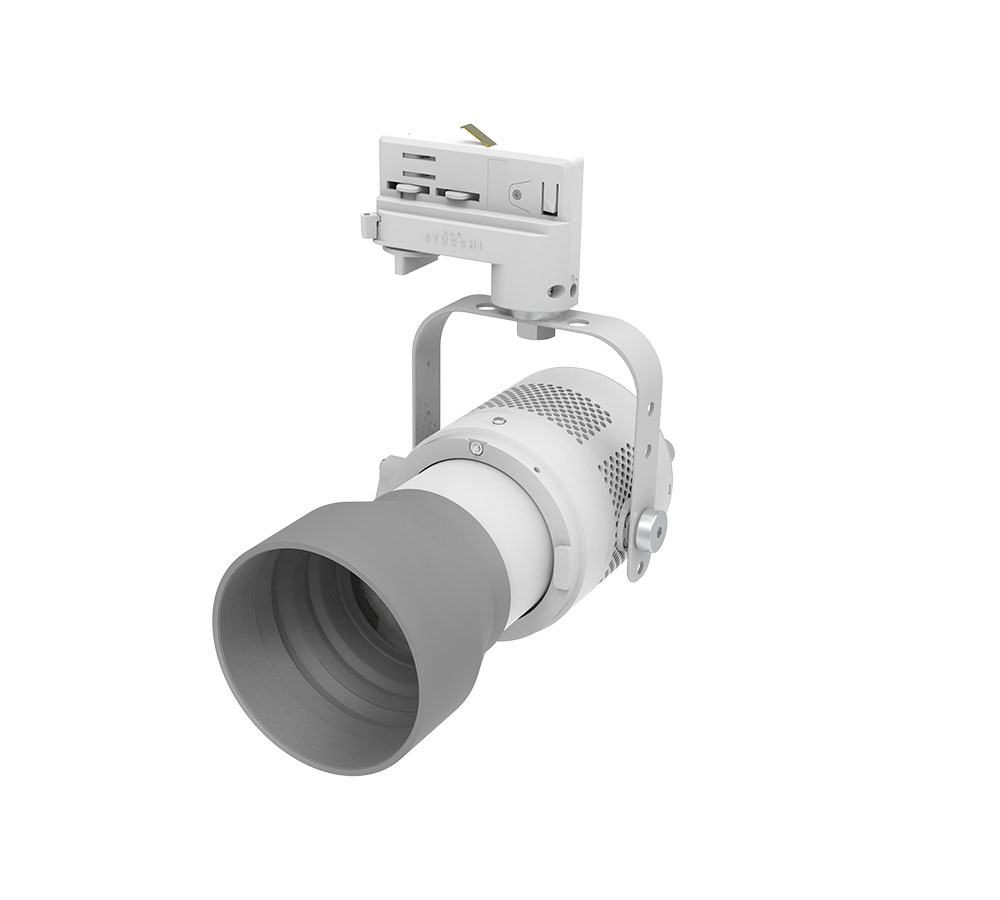

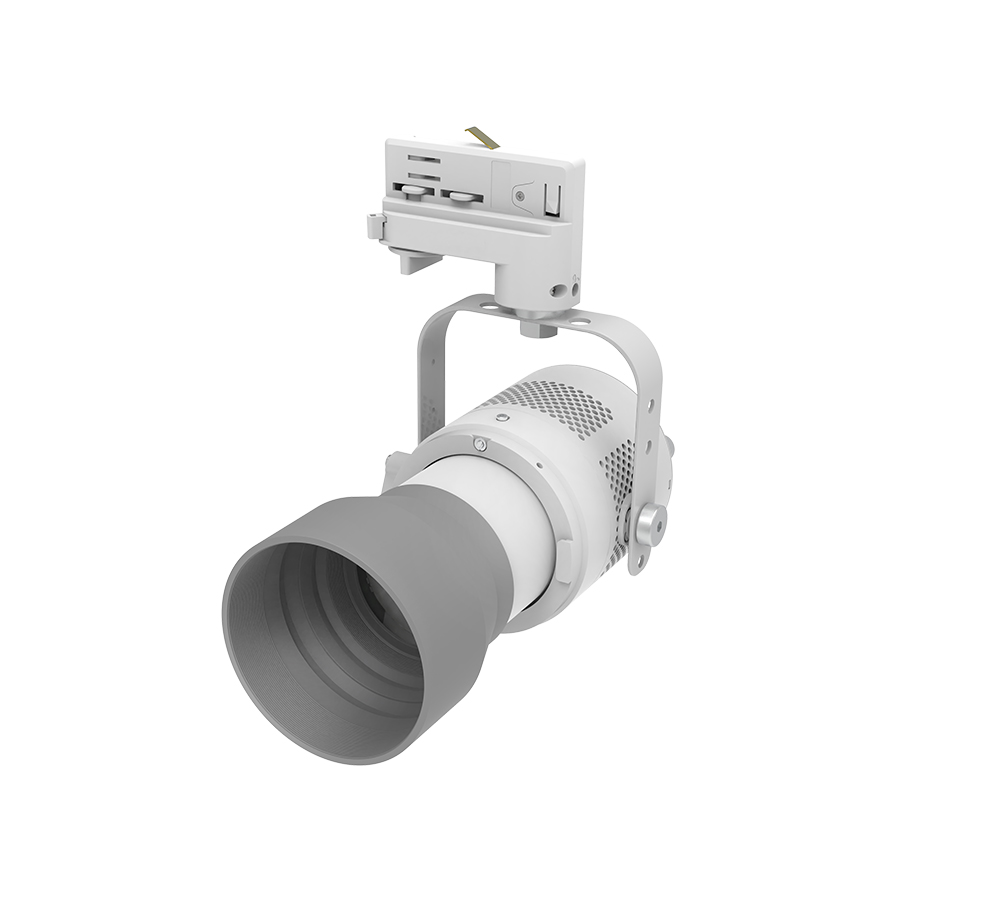

P3S (Track) fixture

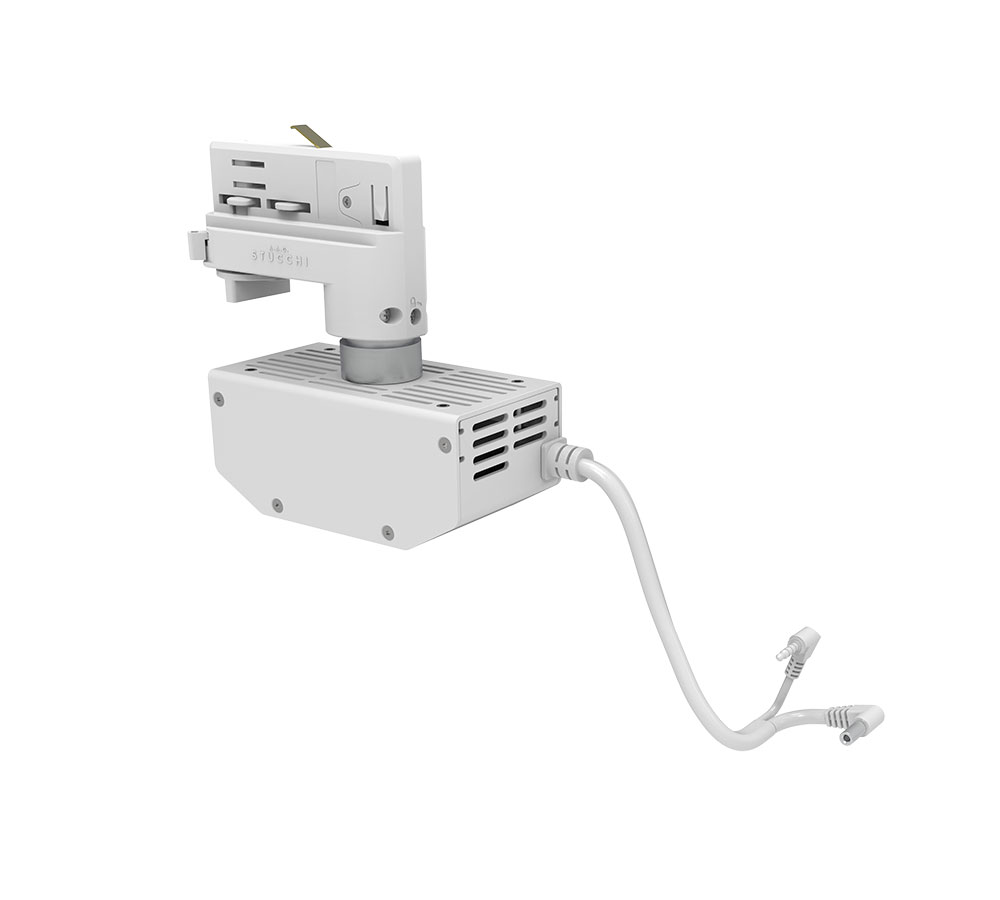

Track 90W PSU
90W, 24V, TOX Track Mount PSU

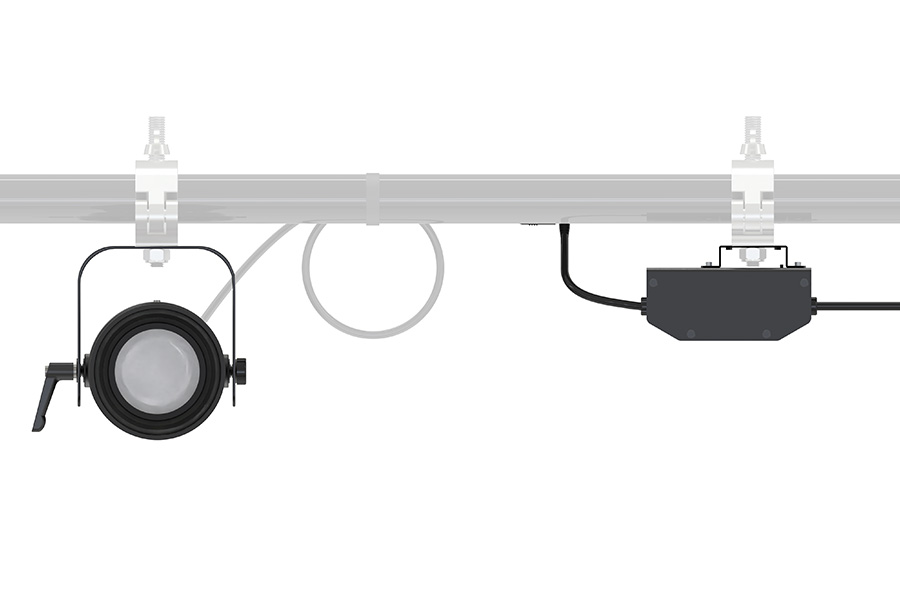

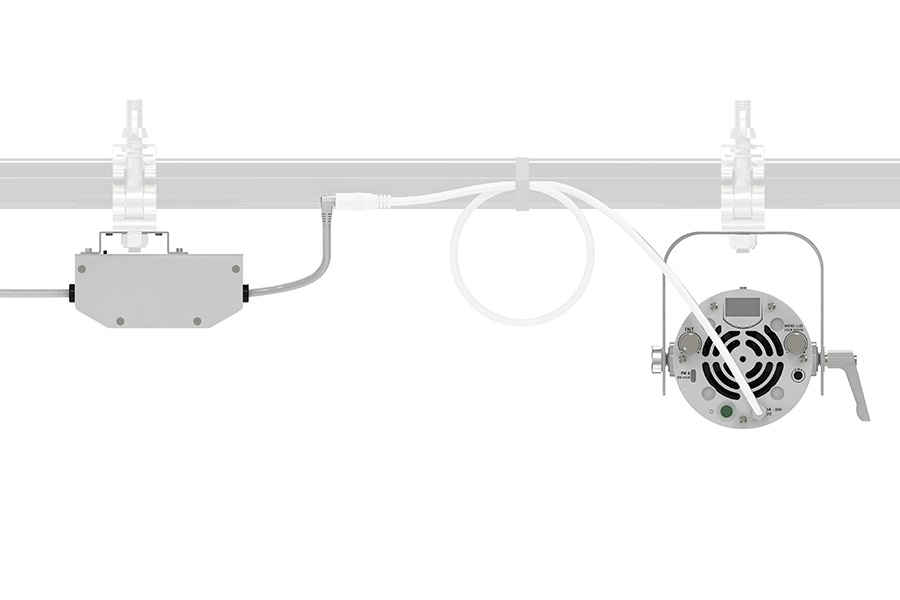

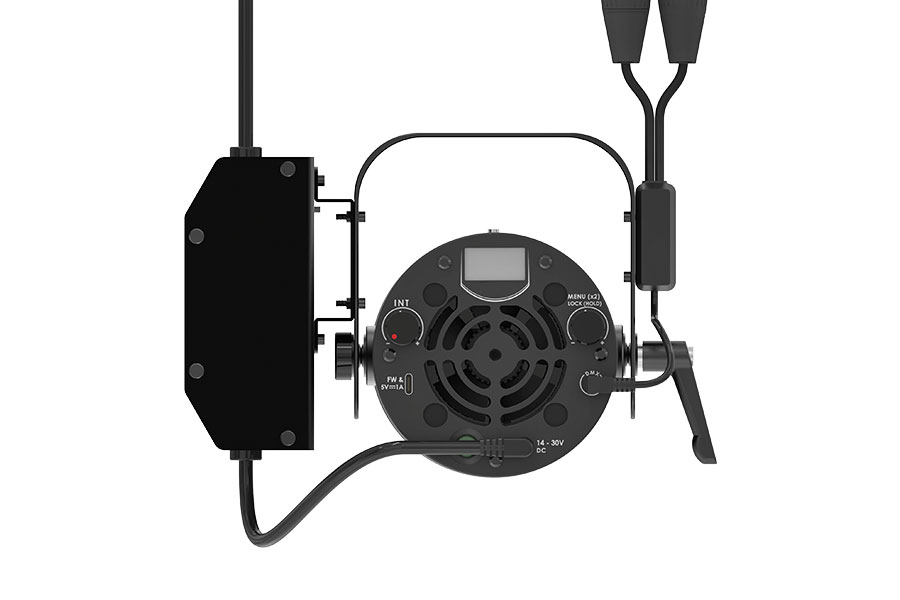

Clamp Type

Fiilex P3S Spot Light

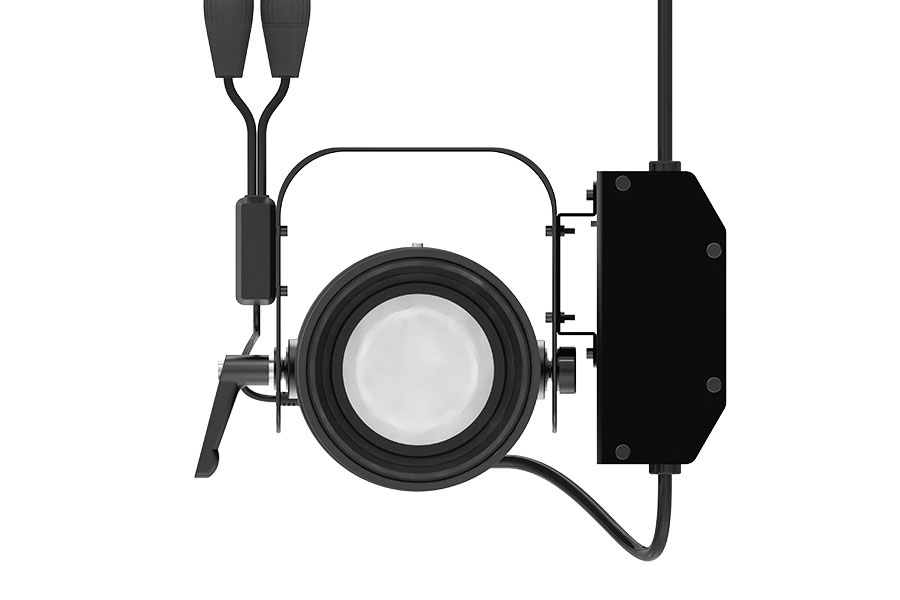

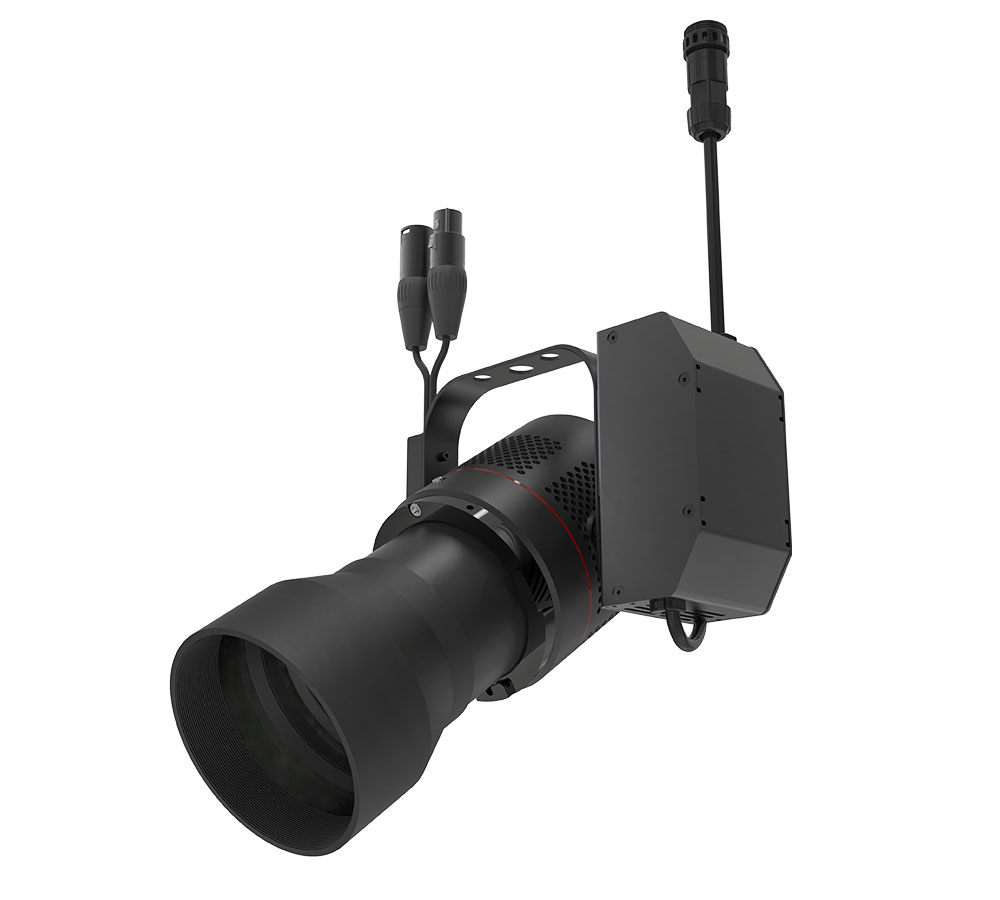

P3S (Clamp) fixture + PSU

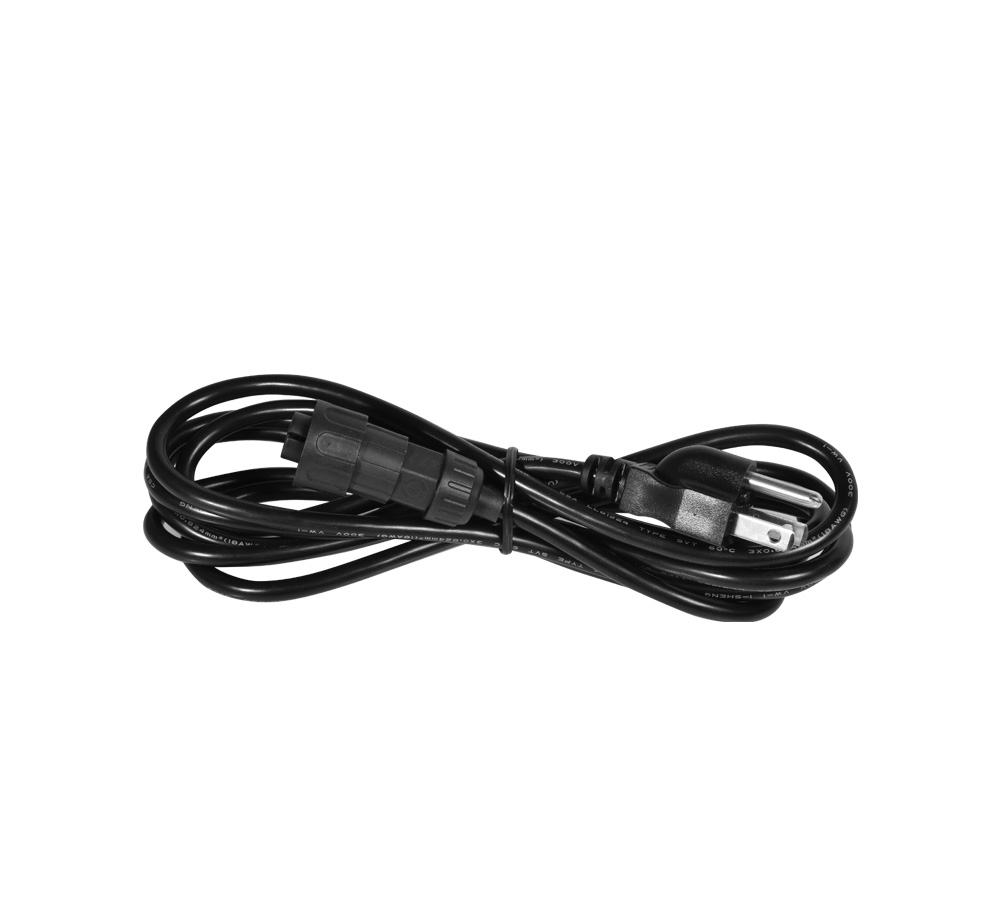

P3 PSU AC Jumper Cable 5ft
P3 PSU AC Jumper Cable 5ft
Separator

ACCESSORIES

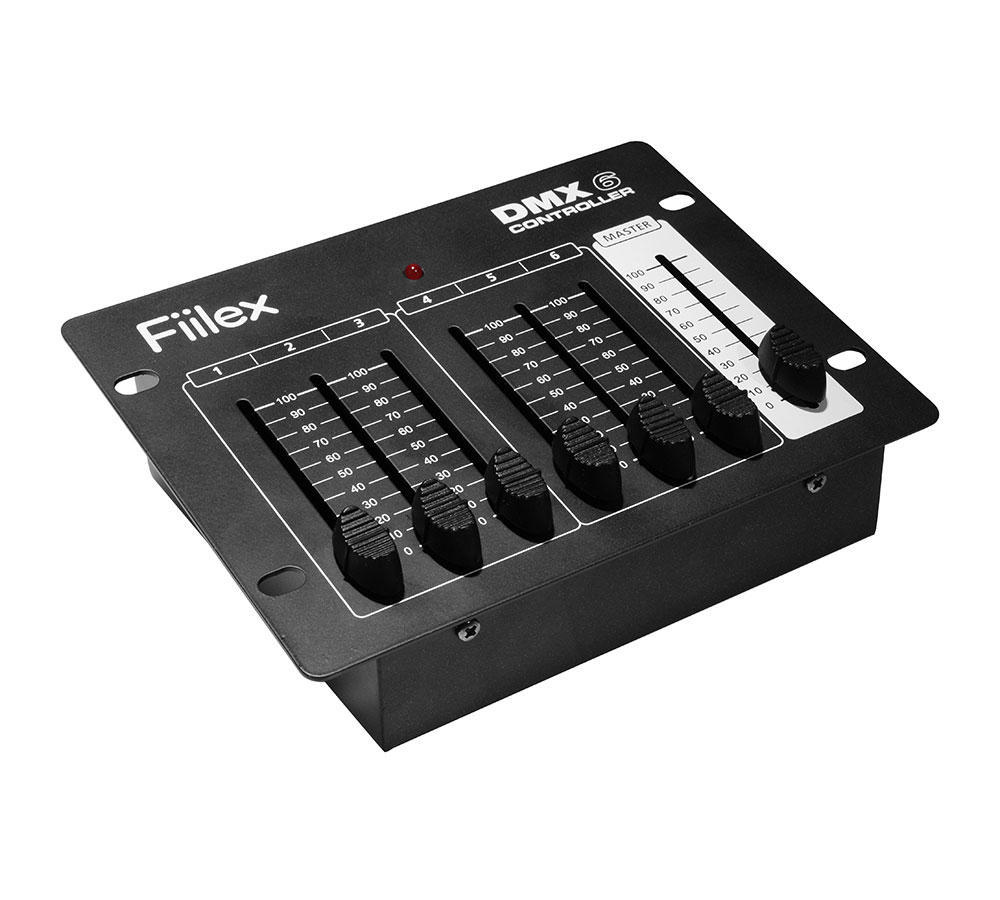

Fiilex DMX 6 Channel Controller
FLXCNTL-DMX6
Separator

PARTS

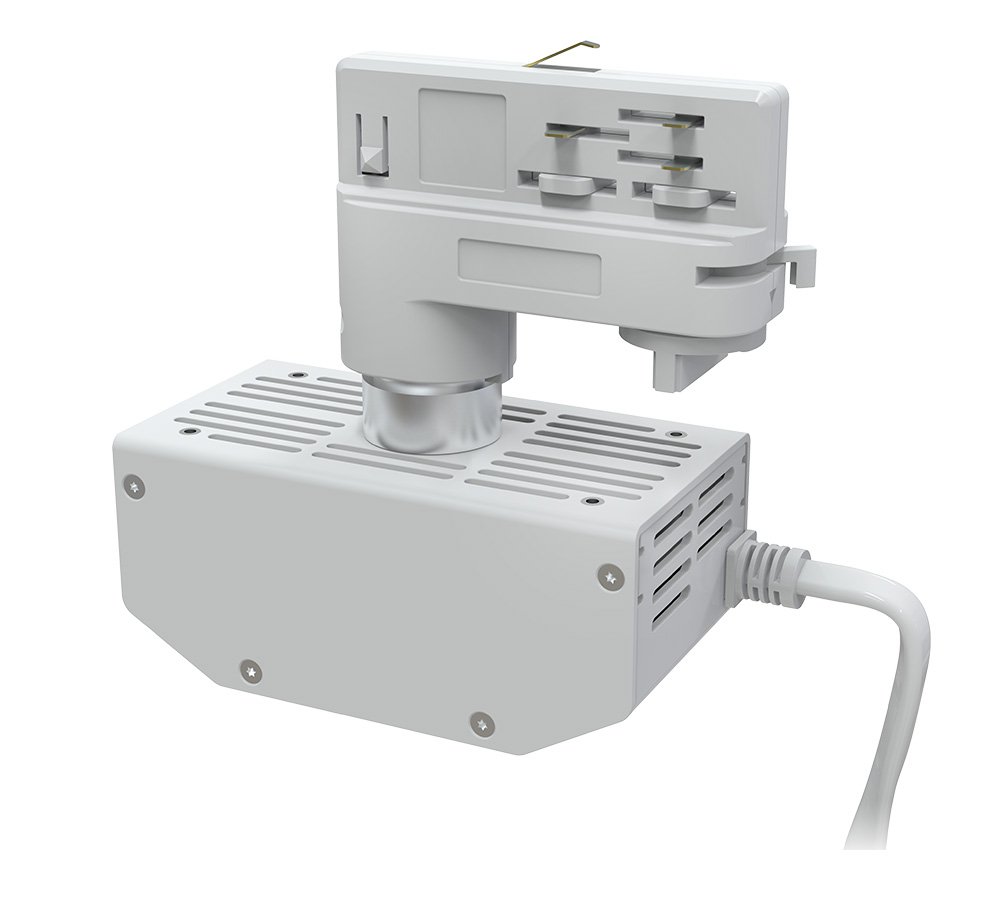

Fiilex 90W, 24V, TOX Track Mount PSU
FLXPSU90TOX

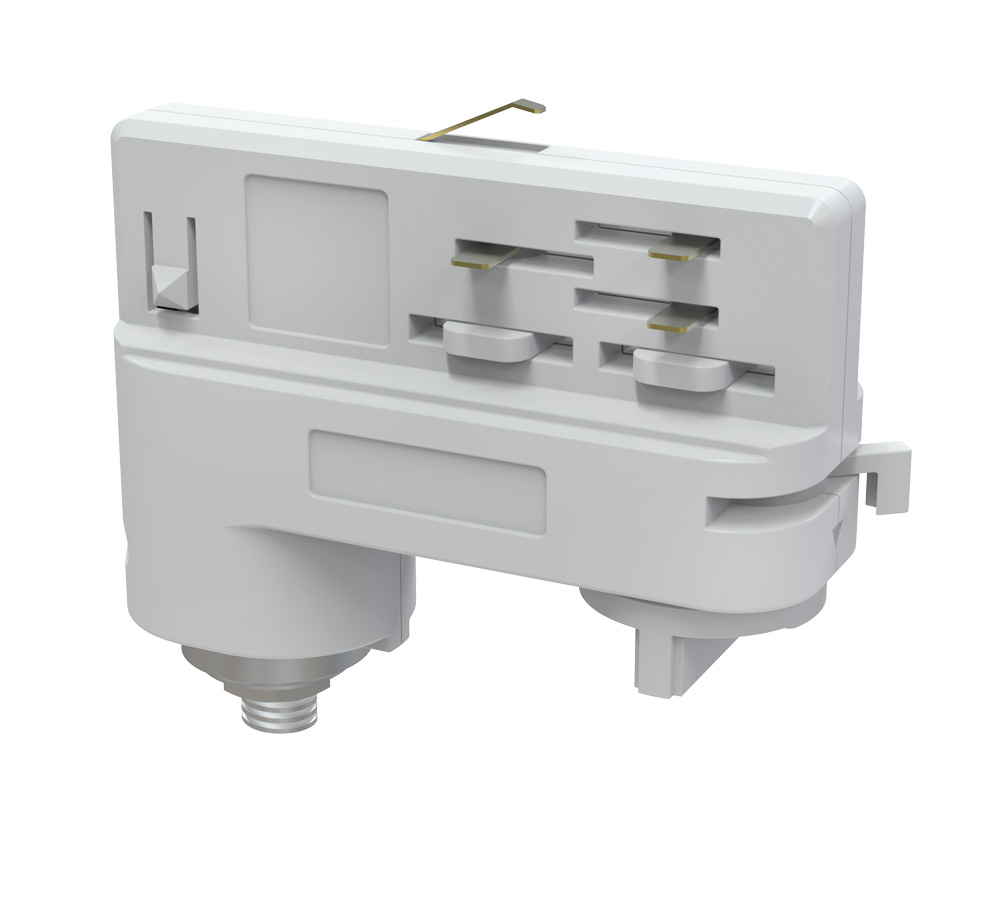

Fiilex Mount to TOX Track
FLXMT-TOX

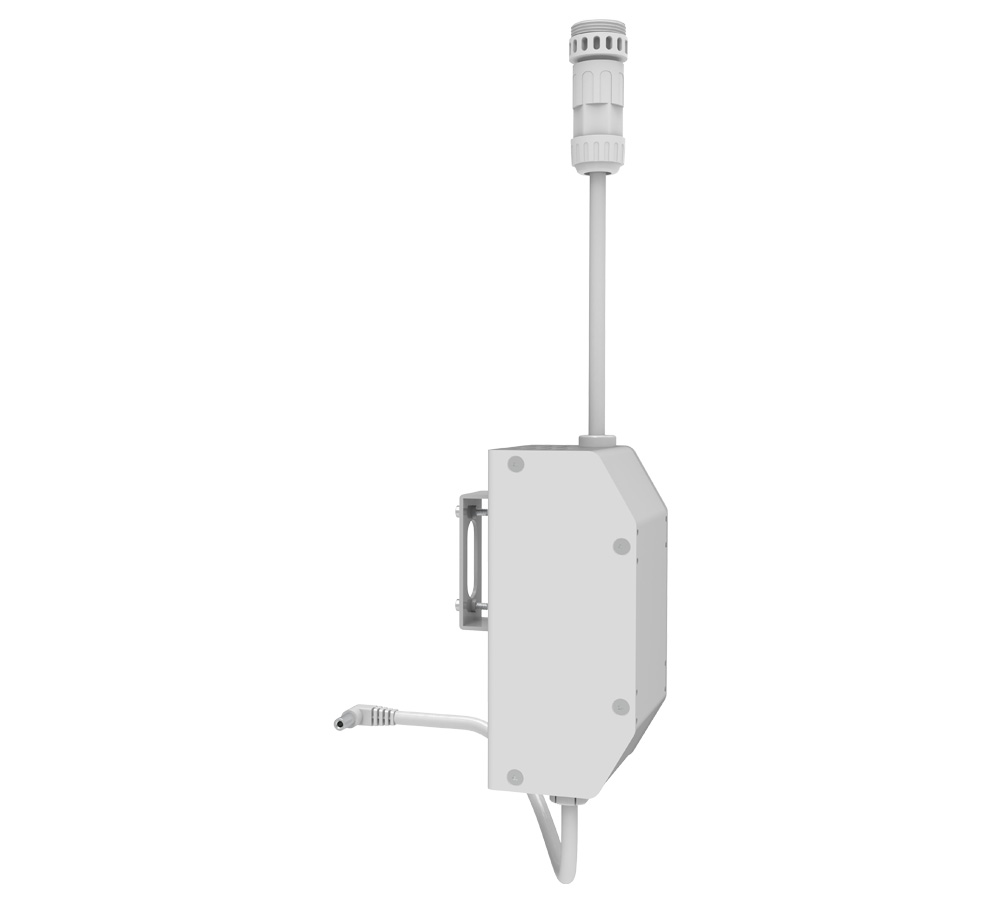

Fiilex 90W, 24V, Clamp Mount PSU
FLXPSU90CLP

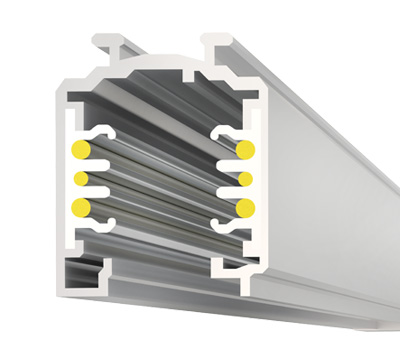

Fiilex One Track
2 Circuit Data Track
