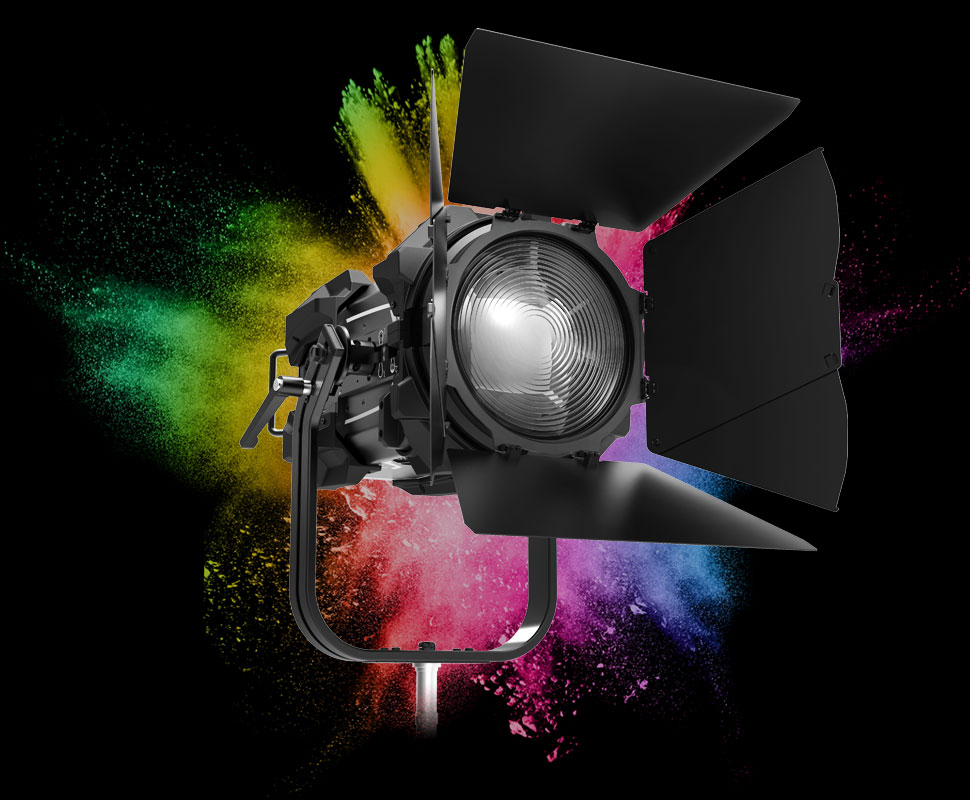

Fiilex Q10 COLOR

900W LED Fresnel


Fiilex Q10 COLOR

Fiilex Q10 is a 900W Color LED Fresnel with a 11° to 65° spot-to-flood range. This fixture is recognized by lighting designers as a "Modern Day 5K" and can replace old Tungstens on large productions. Each Q10 is calibrated precisely to the highest color standards and delivers the same uniform and consistent performance like all other Fiilex products.


Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25


Request More Info

All fields are required for submitting this request


Name*
Email*
Phone*
City*
State/Province*
Country*
Comments*

Experience with Fiilex, Affiliations (Local 728/479/52/873/600 etc), Upcoming Projects.


Enter the displayed 6-character code in the box below
(6 characters, no space in between, not case sensitive.)


Separator

FIXTURES & KITS

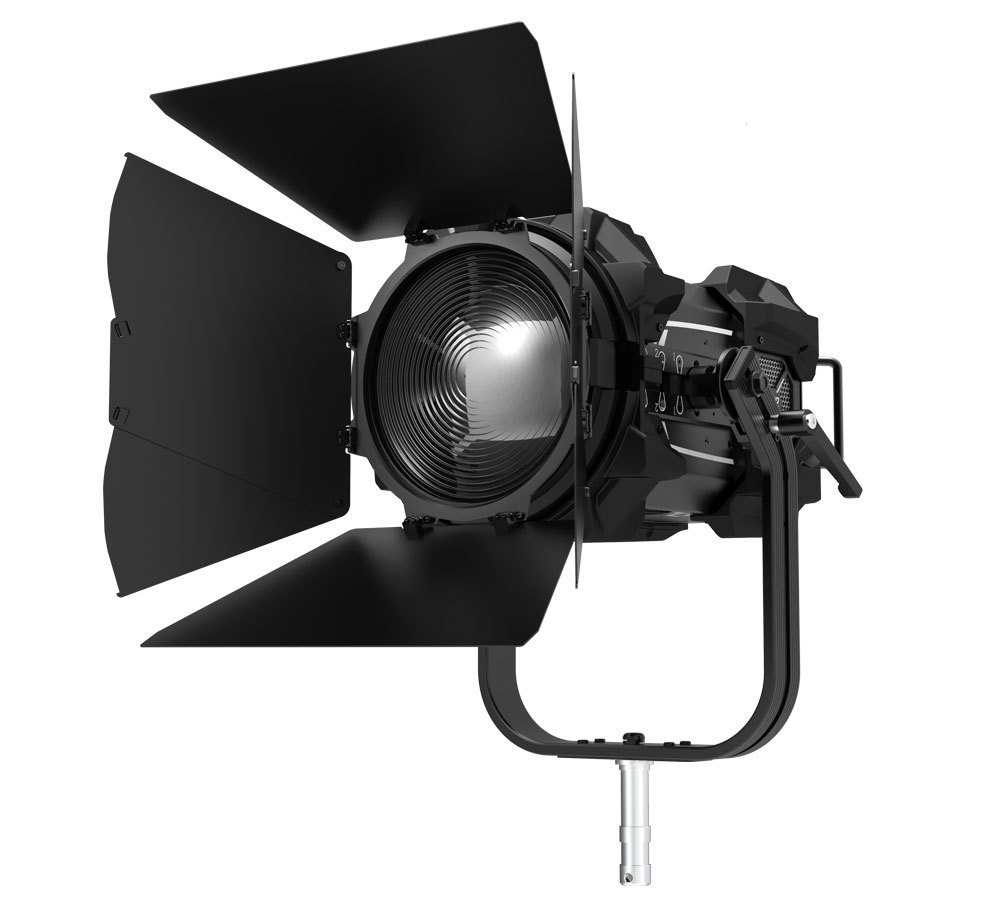

Fiilex Q10 COLOR-LR

FLXQ10CLRLR

Fiilex Q10 COLOR-LR A1 Kit

FLXQ10CLRLR-A1-KIT

Separator

ACCESSORIES

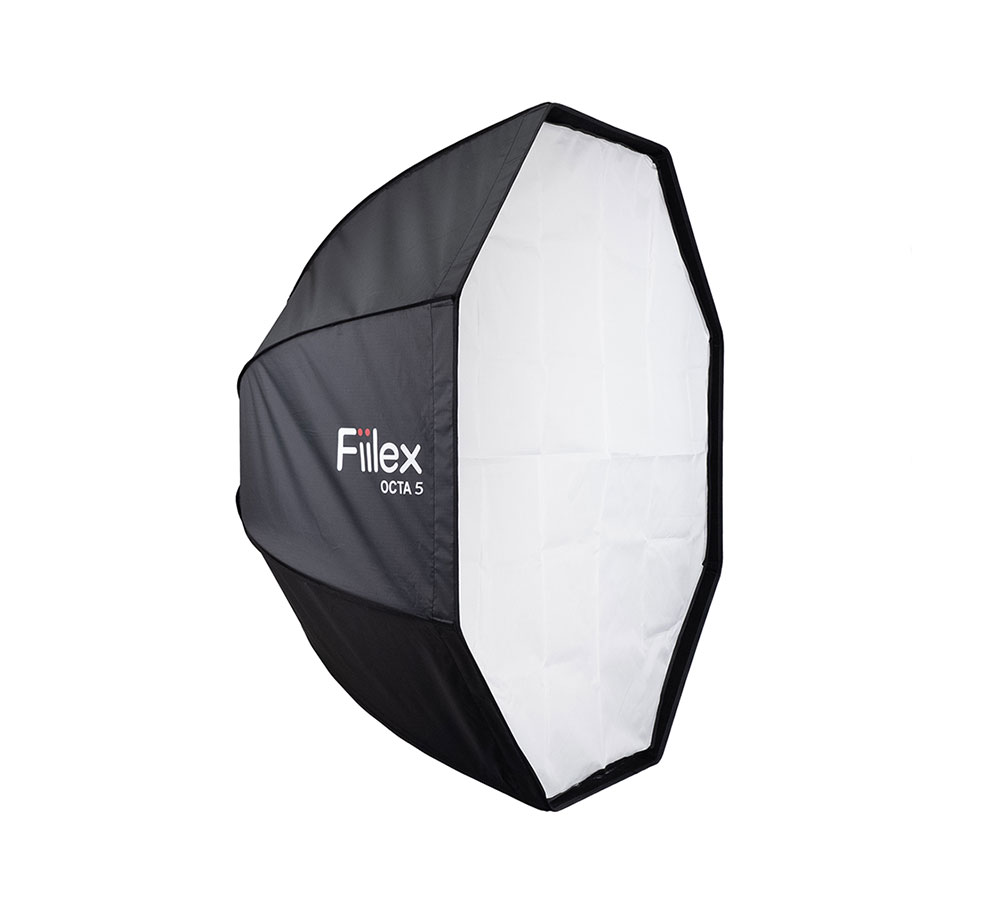

Fiilex Q10 OCTA 5

FLXQ10CLR-OCTA5

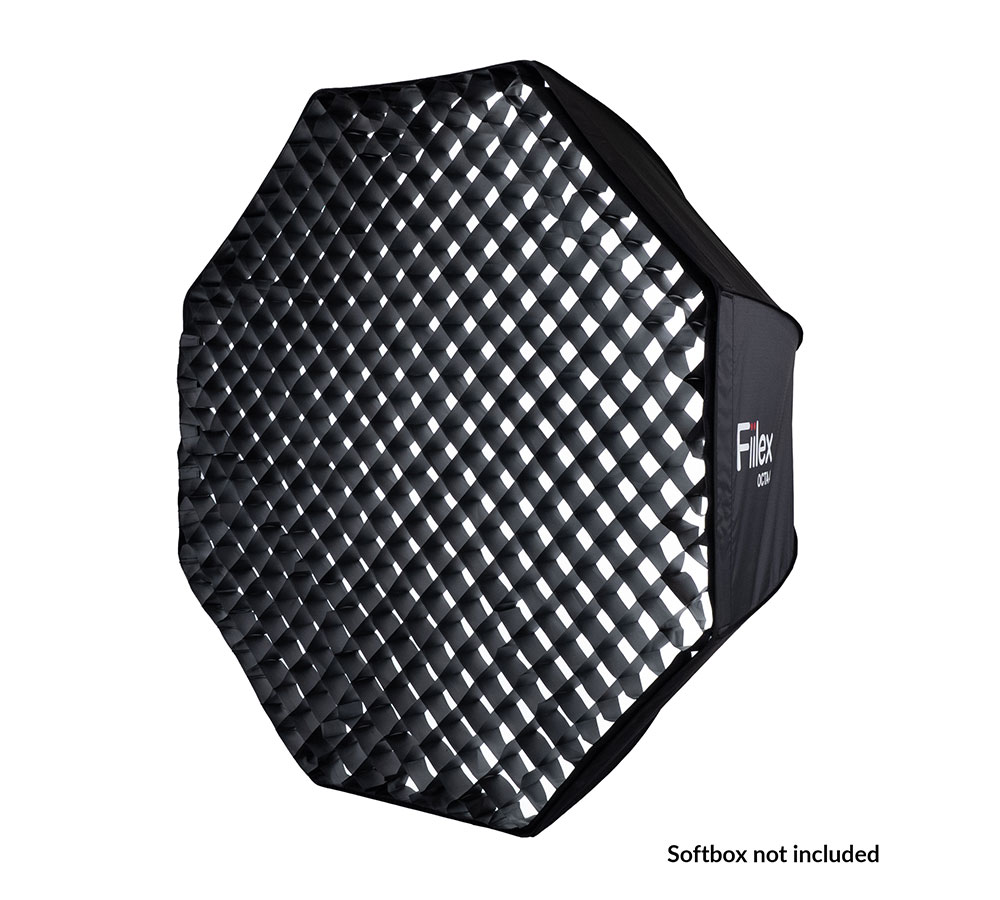

Fiilex Q10 OCTA 5 Soft Grid

FLXQ10CLR-OCTA5-GRID

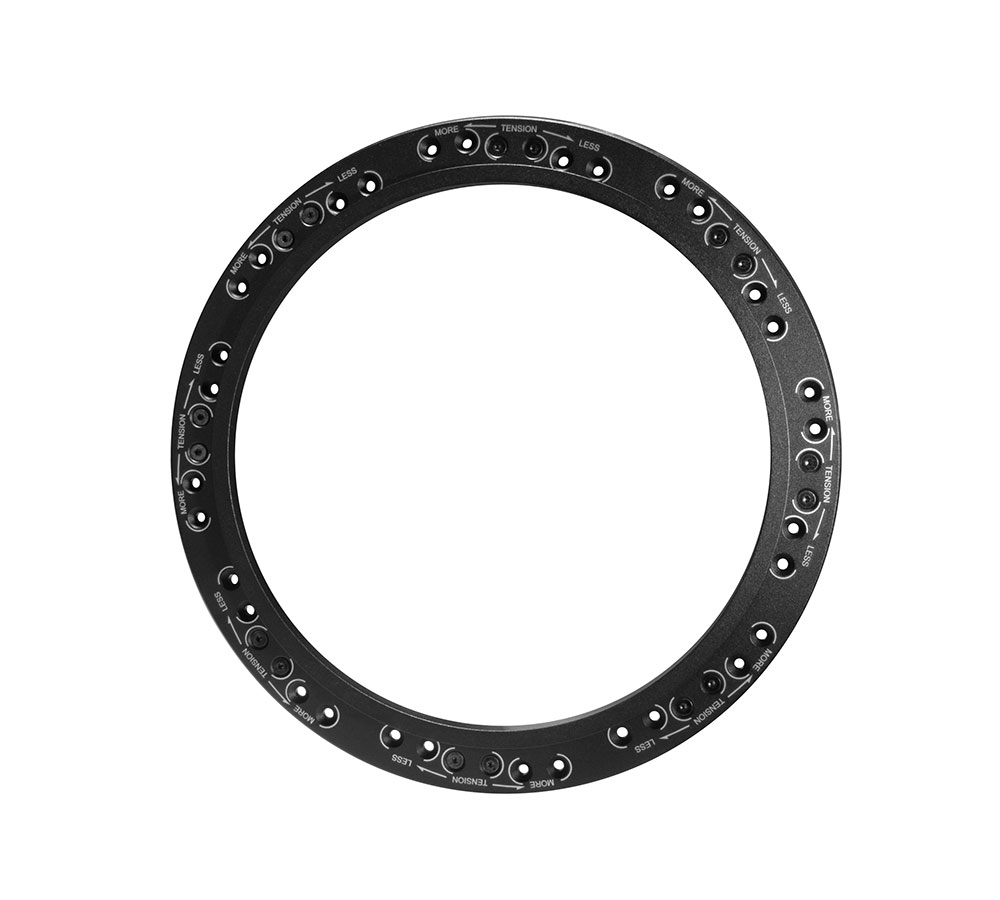

Fiilex Q10 Speed Ring

FLXQ10CLR-SPRG1

Separator

SPECIFICATIONS

Fresnel Diameter10"
Beam Angle11°-65° with Fresnel (78° without Fresnel)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, Gels, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming ModesSmooth, Sharp
Light EngineDiCon Dense Matrix LED
Power Consumption900W max AC | 850W max DC
BTUs/hour3071 (BTUs/hour) max
DC Input48V DC (via powerCON 32A)
AC Input100 - 240V AC, 50 ~ 60Hz (via powerCON TRUE1)
DMX/RDM Port XLR-5
Wireless Control Integrated LumenRadio
Ethernet sACN, ArtNet (via etherCON)
USB Power Output 5V/1A (via USB-A)
Weight44 lb / 20kg
Size (L x W x H)19.8" x 18.1" x 25.1" / 50.2cm x 45.9cm x 63.6cm
Mount TypeCombo (baby stud female / junior stud male)
IP RatingIP-X5 (rain-resistant)
Thermal DesignAluminum extrusion cooling system w/ fan
Operating Temperature 0-40ºC / 32-104ºF
