HOMEProducts

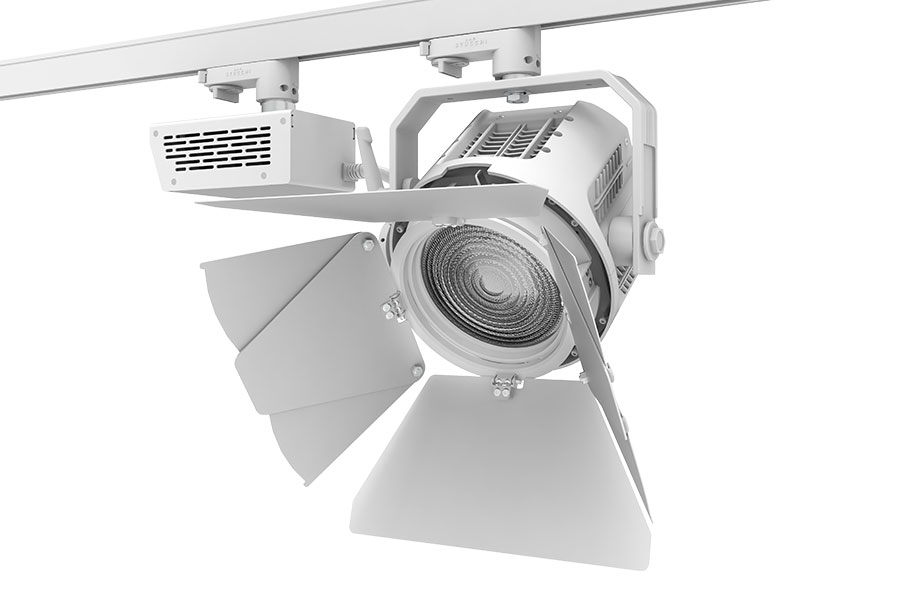

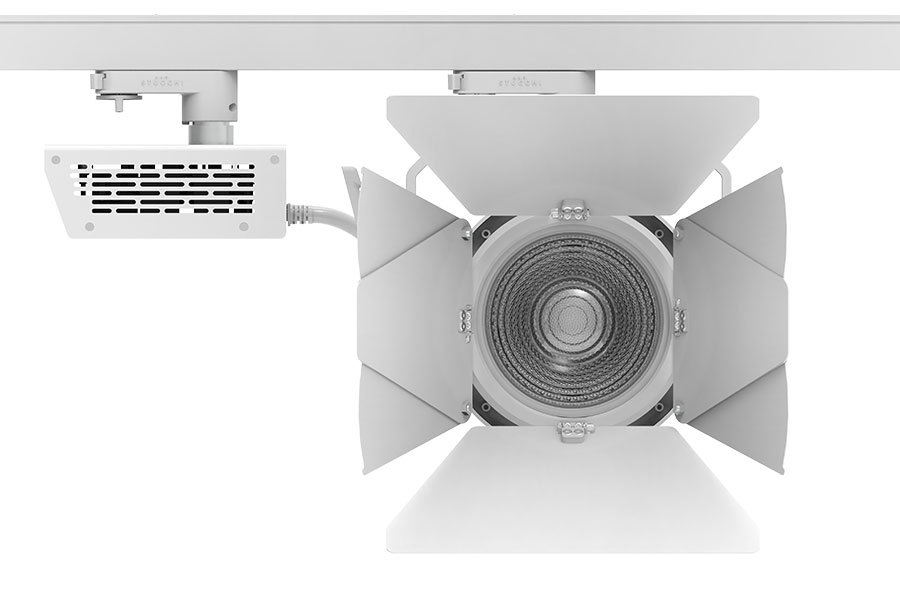

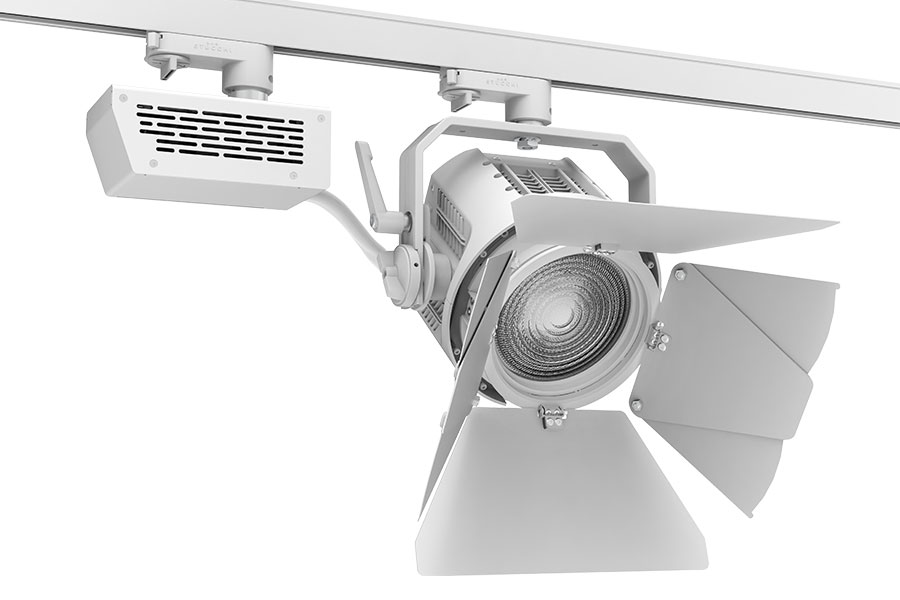

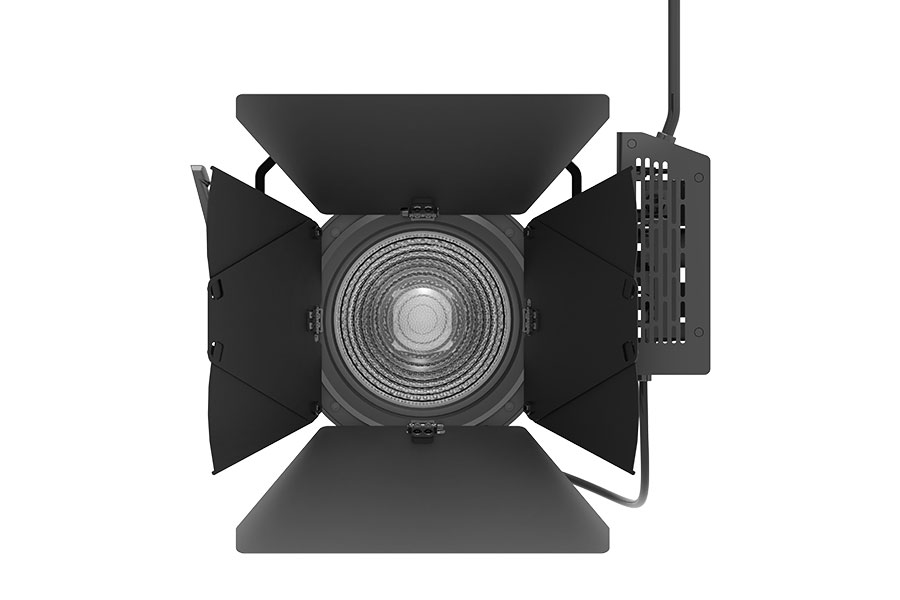

P5F Fresnel Light

175W LED / 12°-55°

Model No: FLXP5F-

  • Fiilex P5F Fresnel Light
  • Fiilex P5F Fresnel Light
  • Fiilex P5F Fresnel Light
  • Fiilex P5F Fresnel Light
  • Fiilex P5F Fresnel Light
  • Fiilex P5F Fresnel Light
  • Fiilex P5F Fresnel Light
  • Fiilex P5F Fresnel Light

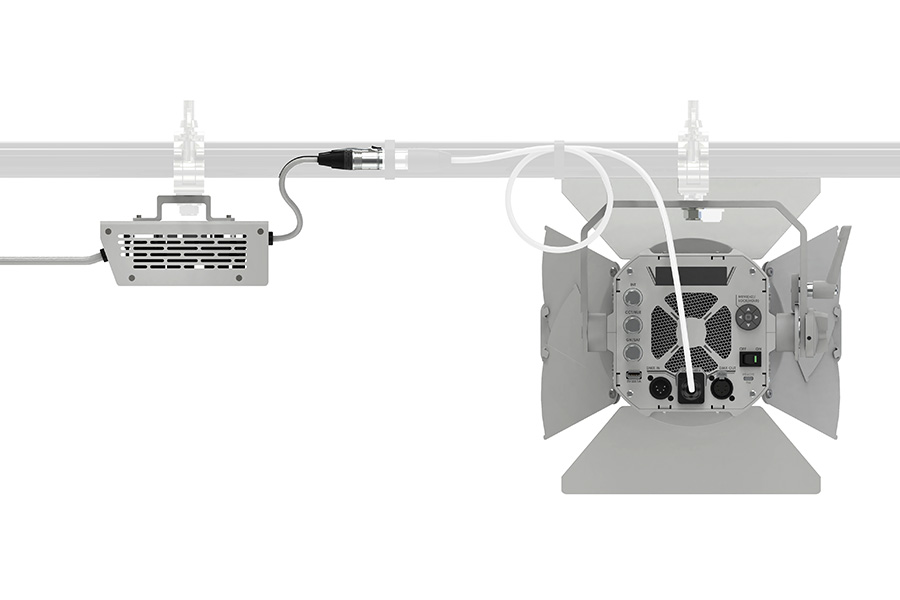

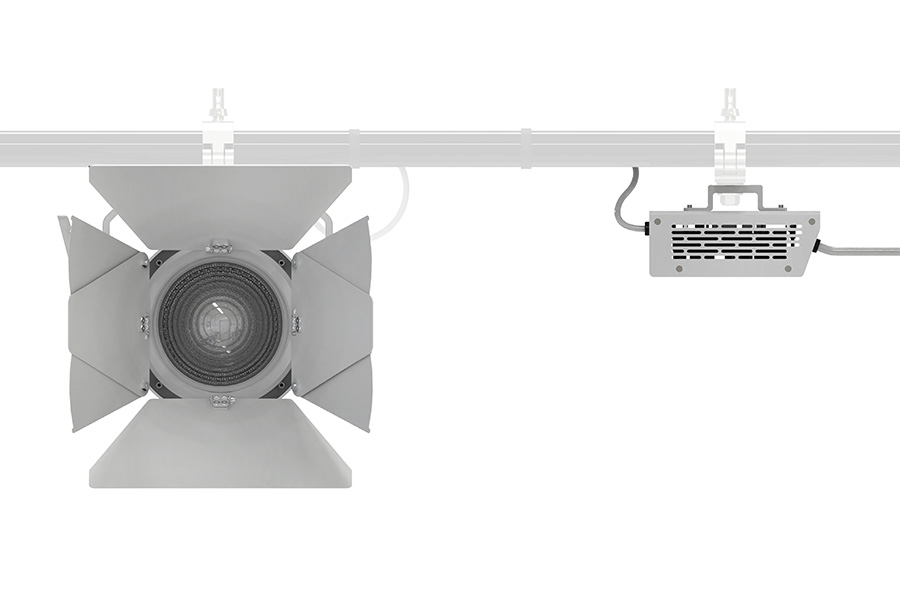

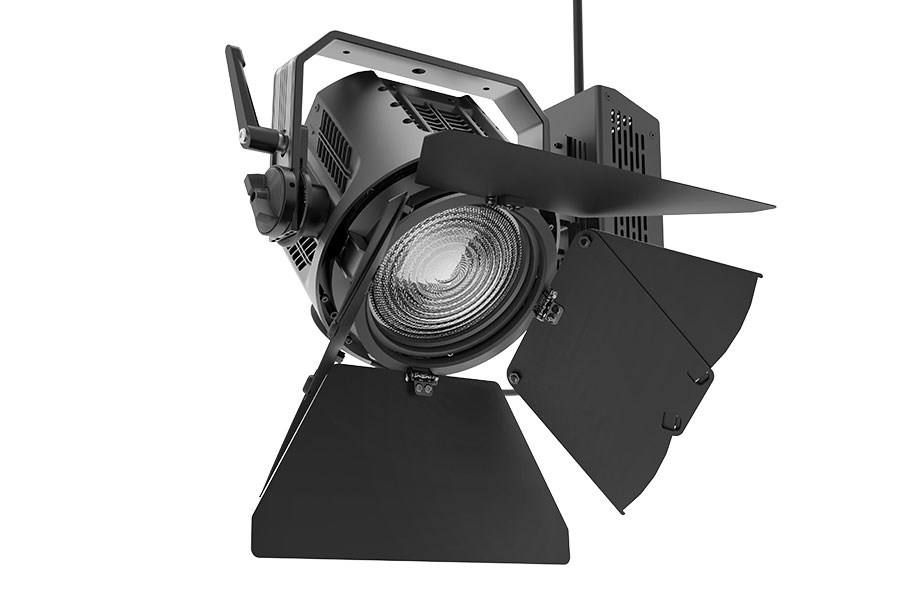

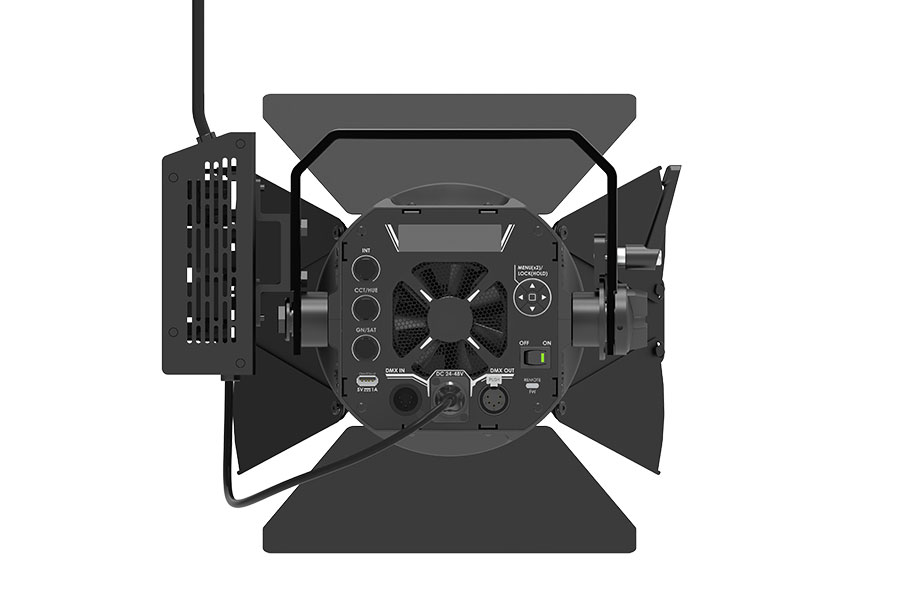

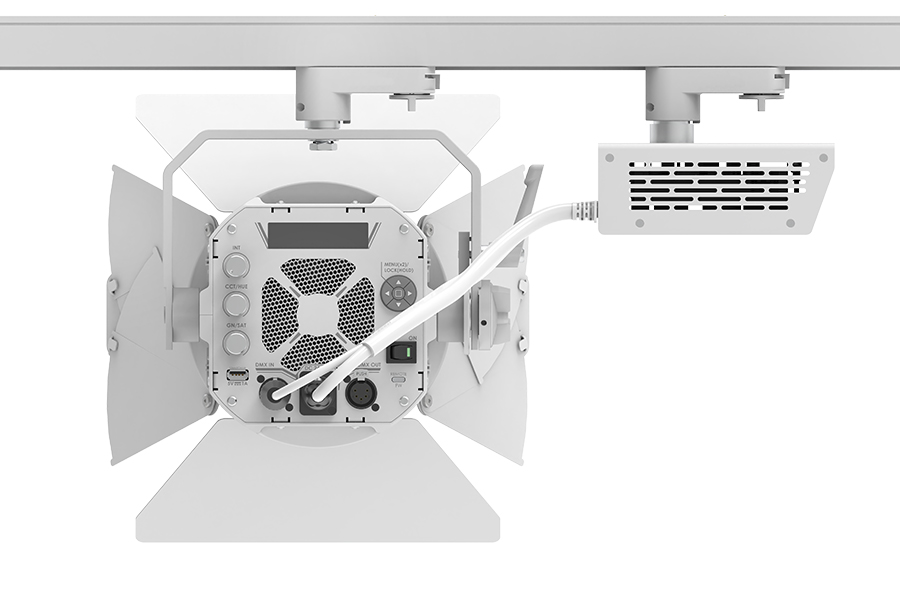

Fiilex P5F Fresnel Light
Fiilex P5F Fresnel Light
Fiilex P5F Fresnel Light
Fiilex P5F Fresnel Light
Fiilex P5F Fresnel Light
Fiilex P5F Fresnel Light
Fiilex P5F Fresnel Light
Fiilex P5F Fresnel Light

DOWNLOADS

P5F Data Sheet (Track Mounting)

LAST UPDATED:APR 10,2024

P5F Data Sheet (Clamp Mounting)

LAST UPDATED:APR 10,2024
IES Profiles
CAD Files
DMX Profiles
Separator

SPECIFICATIONS

Beam Angle12°-55°
CRI/TLCI 95/90 typical (in CCT Mode of 2800K-6500K)
Dimming 100% - 0% flicker free
Power Draw 175W max
AC Input 100 - 240V AC, 50 - 60Hz
Remote Control DMX 512
Cooling Fan Cooled
Operating Temp. 32 - 104ºF (0 - 40ºC)
Weight
(Fixture + Power Supply)		 8.9lb / 4.1kg (Track Type), 9.6lb / 4.4kg (Clamp Type)
Separator

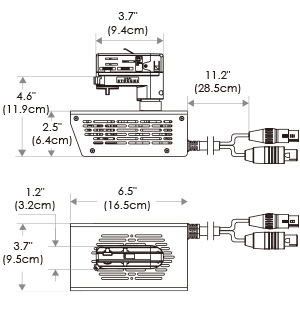

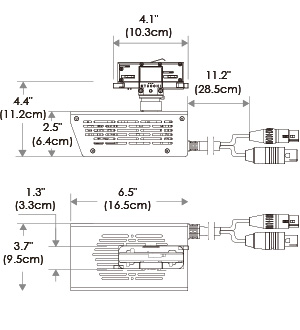

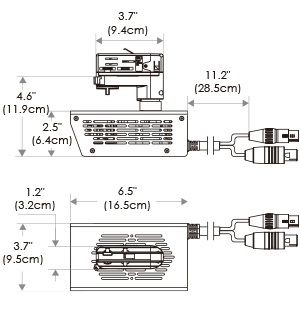

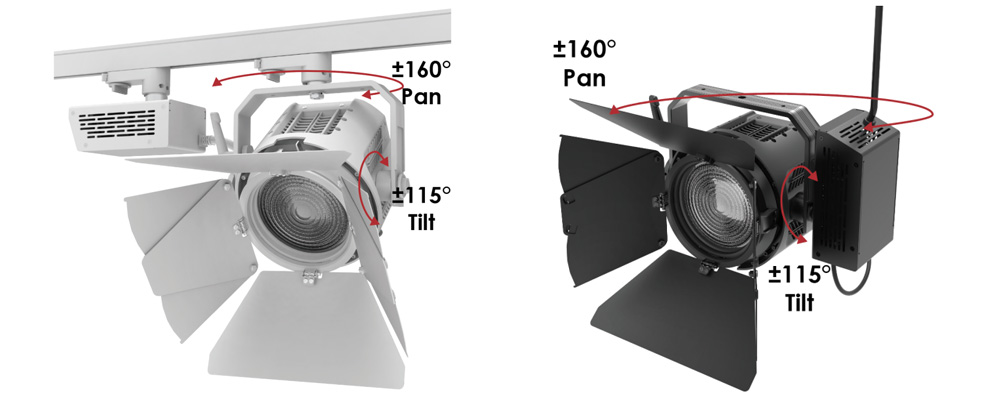

MECHANICAL FIGURES

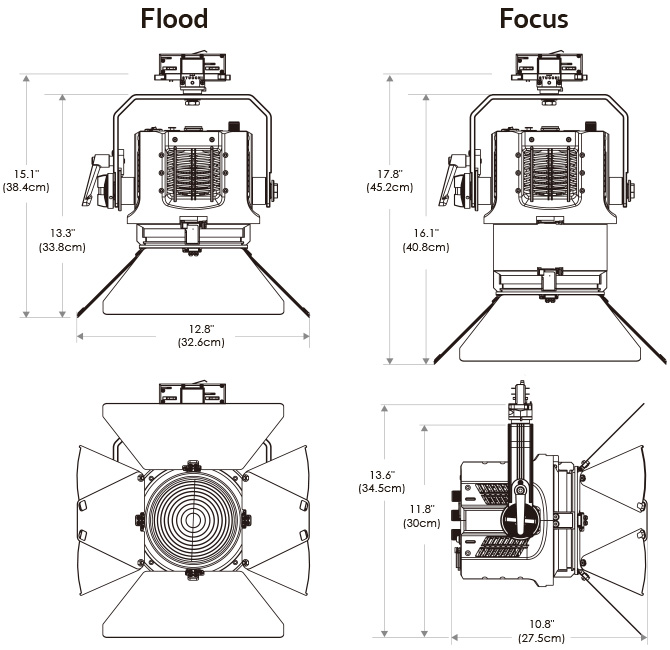

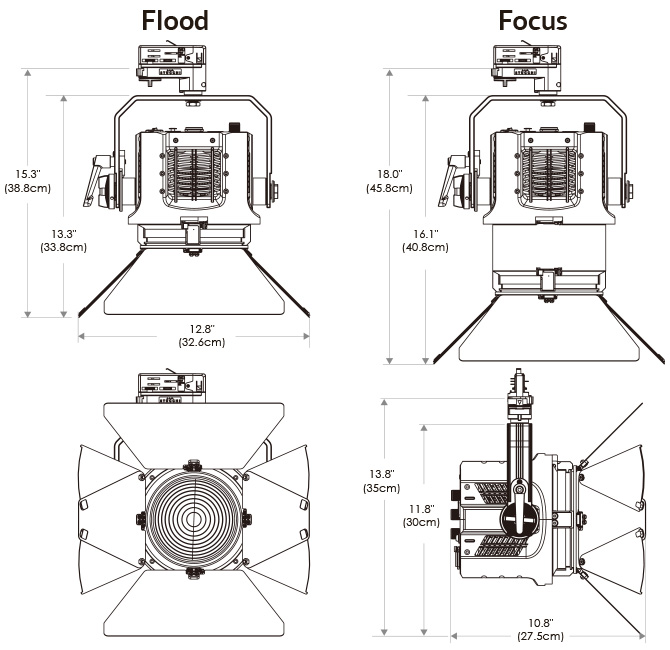

P5F (Track)

Fiilex P5F Fresnel Light
Fiilex P5F Fresnel Light

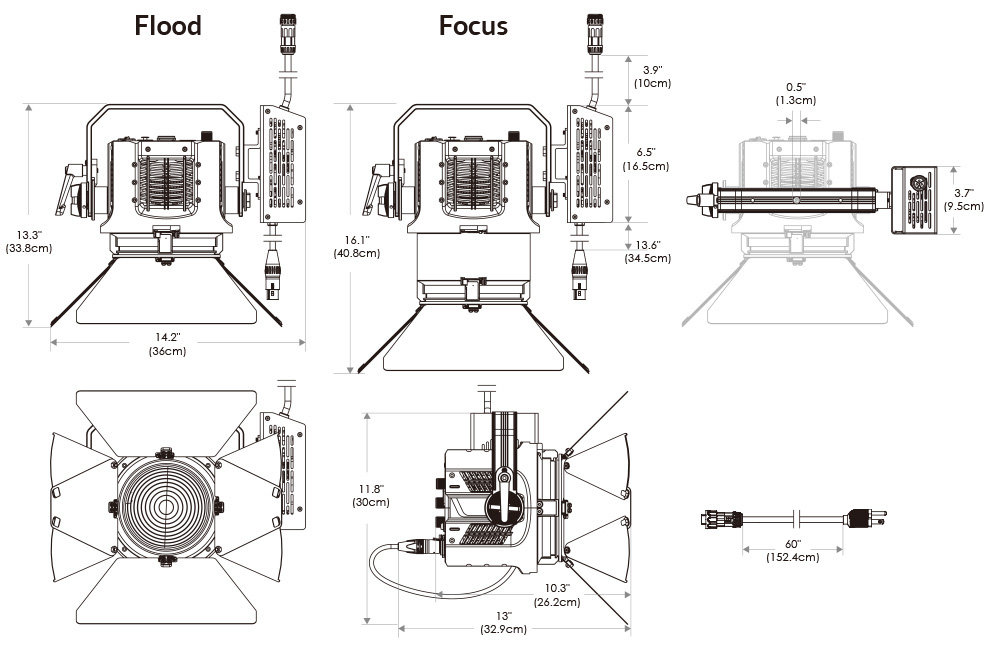

P5F (Clamp)

Fiilex P5F Fresnel Light


Separator

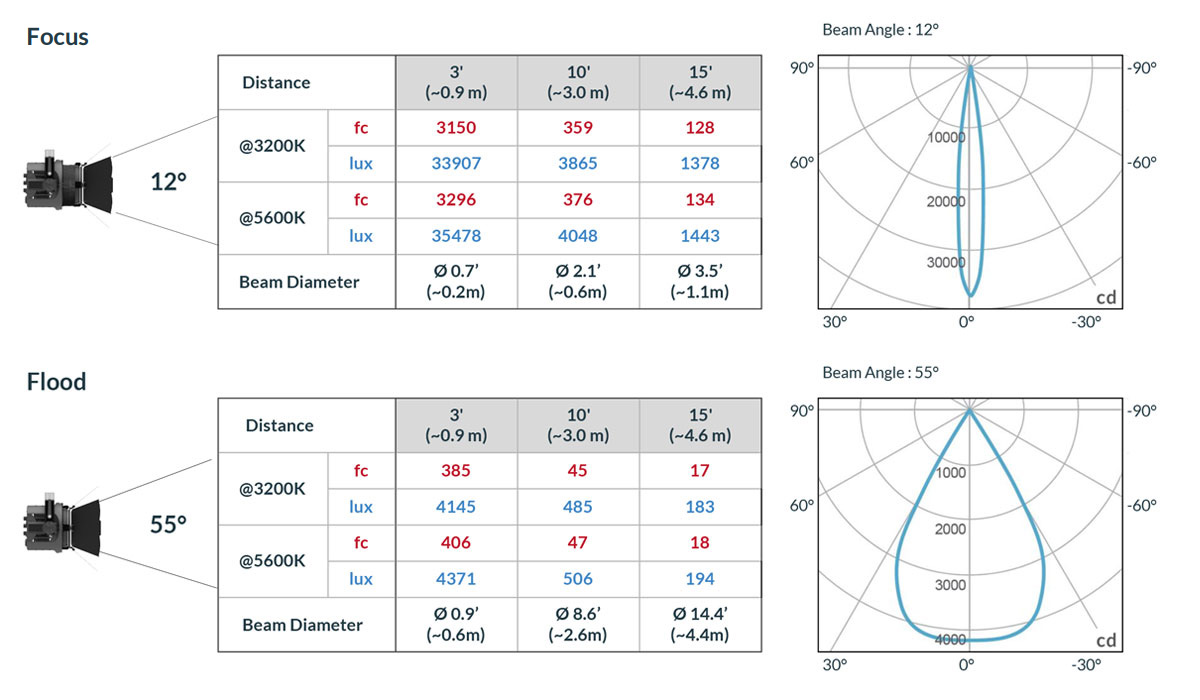

PHOTOMETRIC DATA

Fiilex P5F Fresnel Light Photometric Data

Separator

ITEMS INCLUDED

Track Type

Fiilex P5F Fresnel Light

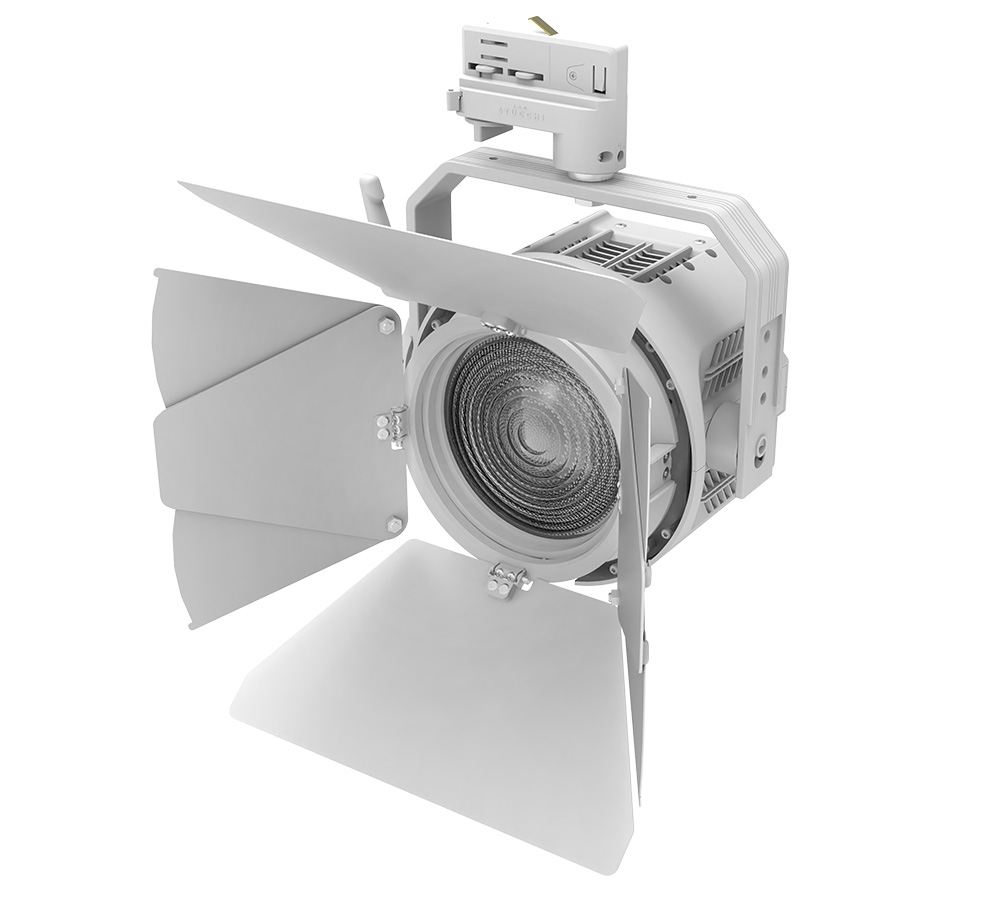

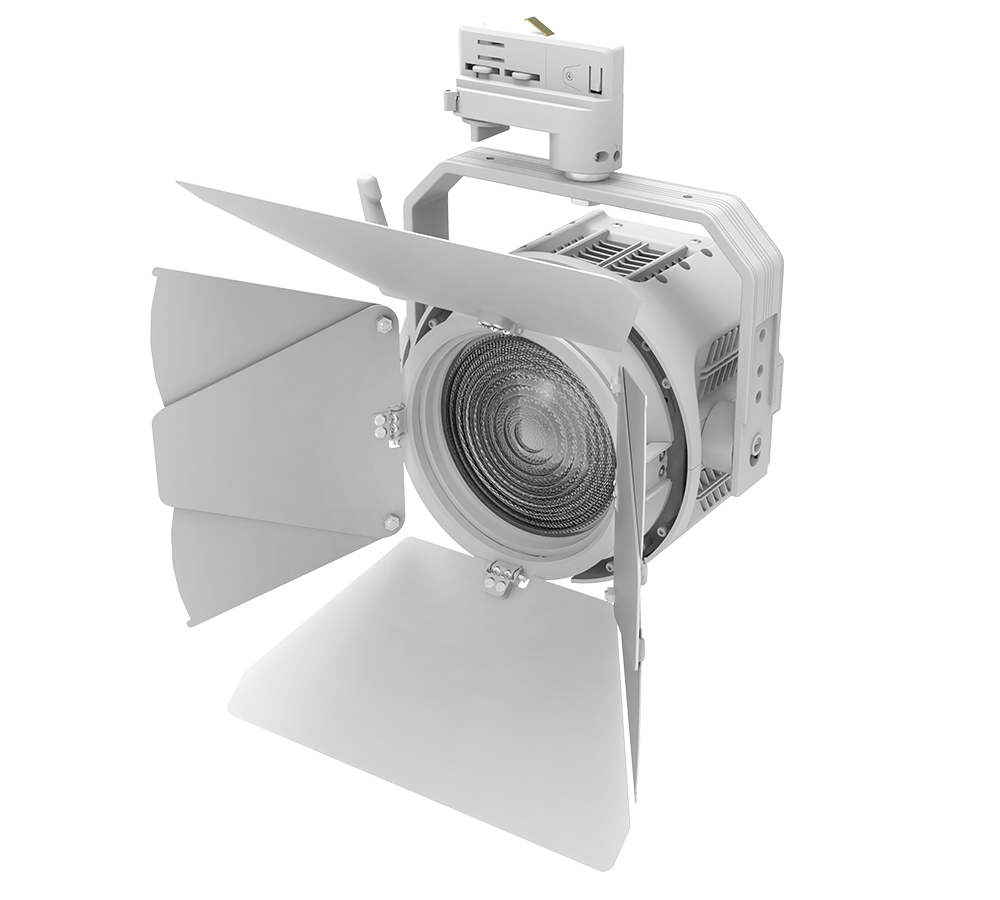

P5F (Track) fixture
Track 90W PSU

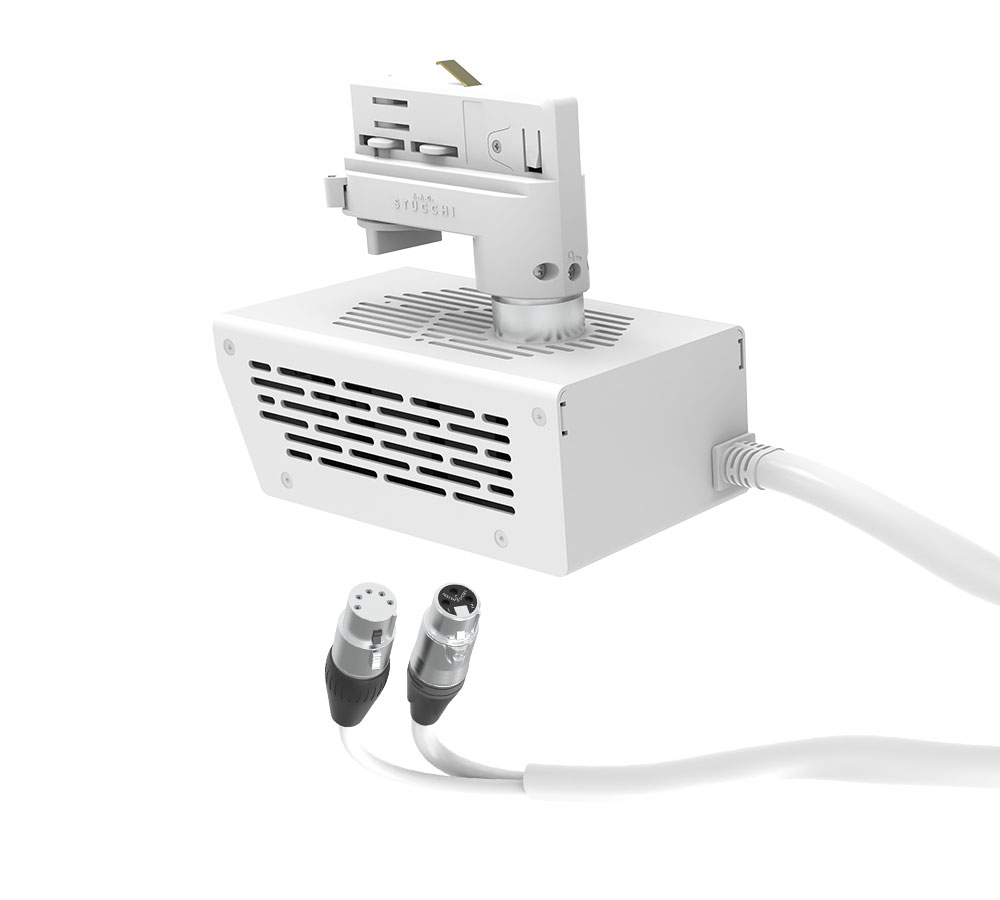

250W, 48V, TOX Track Mount PSU

Clamp Type

Fiilex P5F Fresnel Light

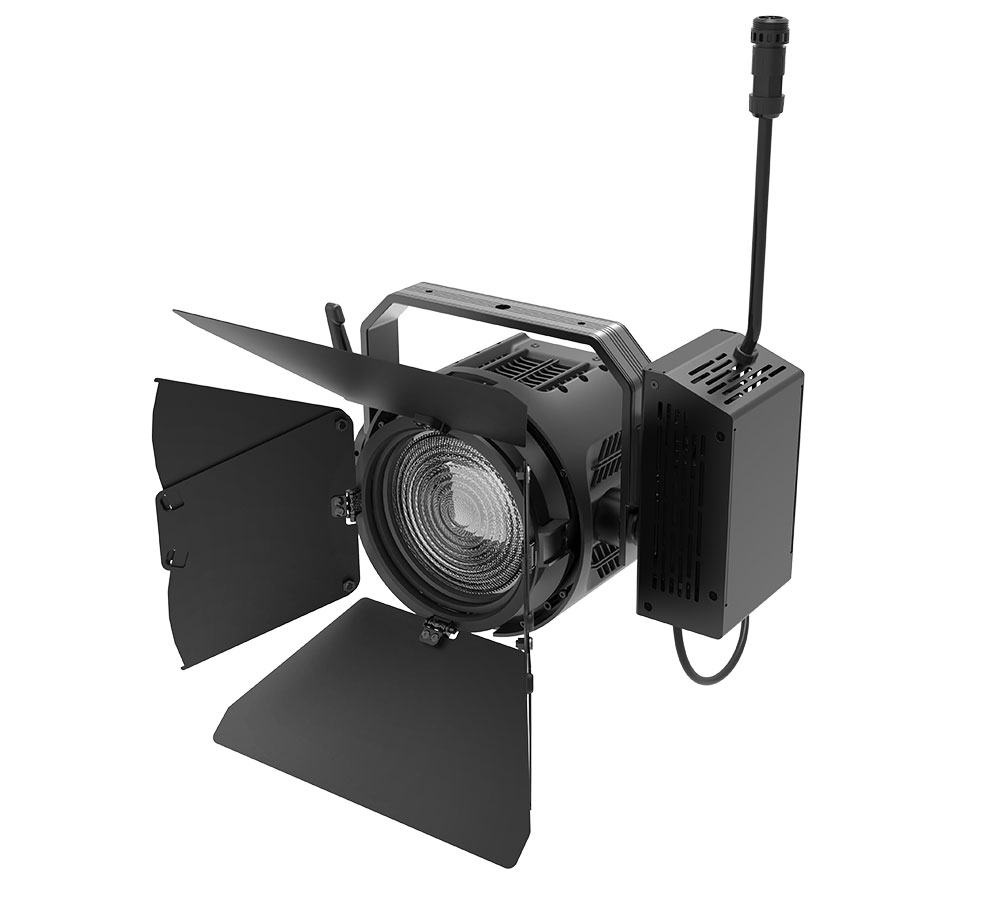

P5F (Clamp) fixture + PSU
P5 PSU AC Jumper Cable 5ft
P5 PSU AC Jumper Cable 5ft
Separator

ACCESSORIES

Fiilex DMX 6 Channel Controller
FLXCNTL-DMX6
Separator

PARTS

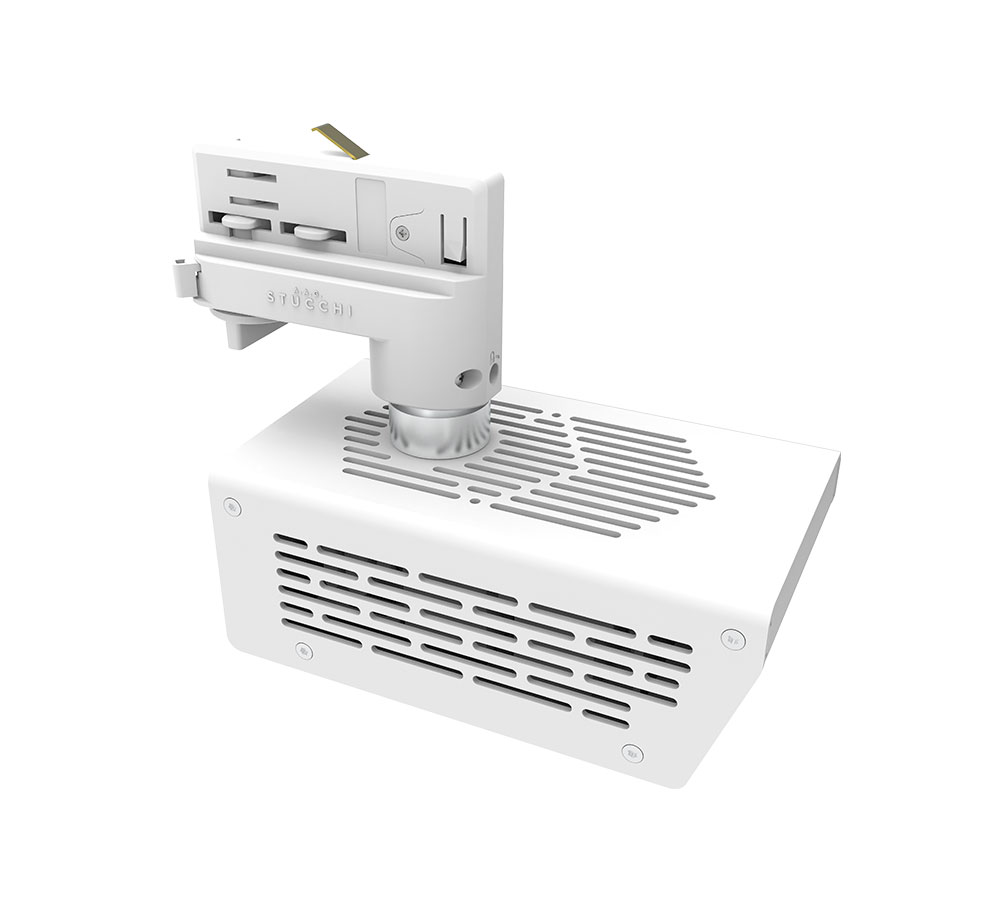

Fiilex 250W, 48V, TOX Track Mount PSU
FLXPSU250TOX

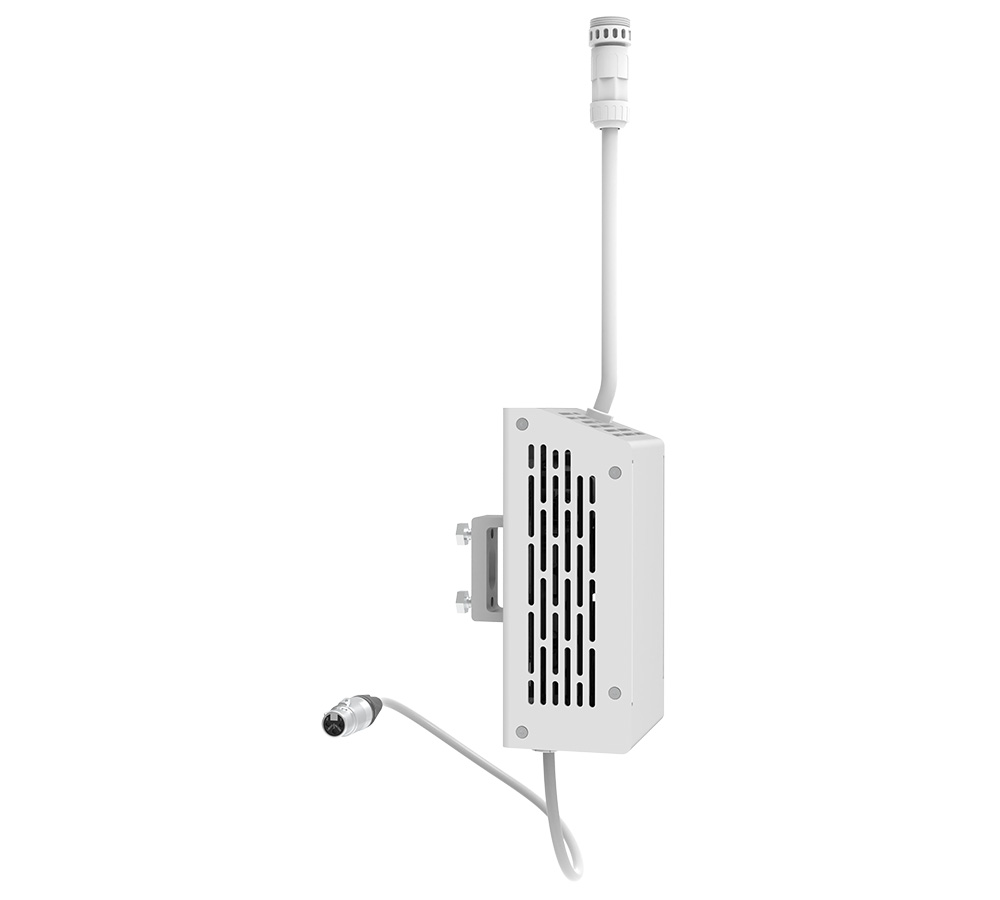

Fiilex 250W, 48V, Clamp Mount PSU
FLXPSU250CLP
Fiilex One Track
2 Circuit Data Track
