MATRIX COLOR

320W LED Fresnel Punch Light

1.2K Tungsten Equivalent

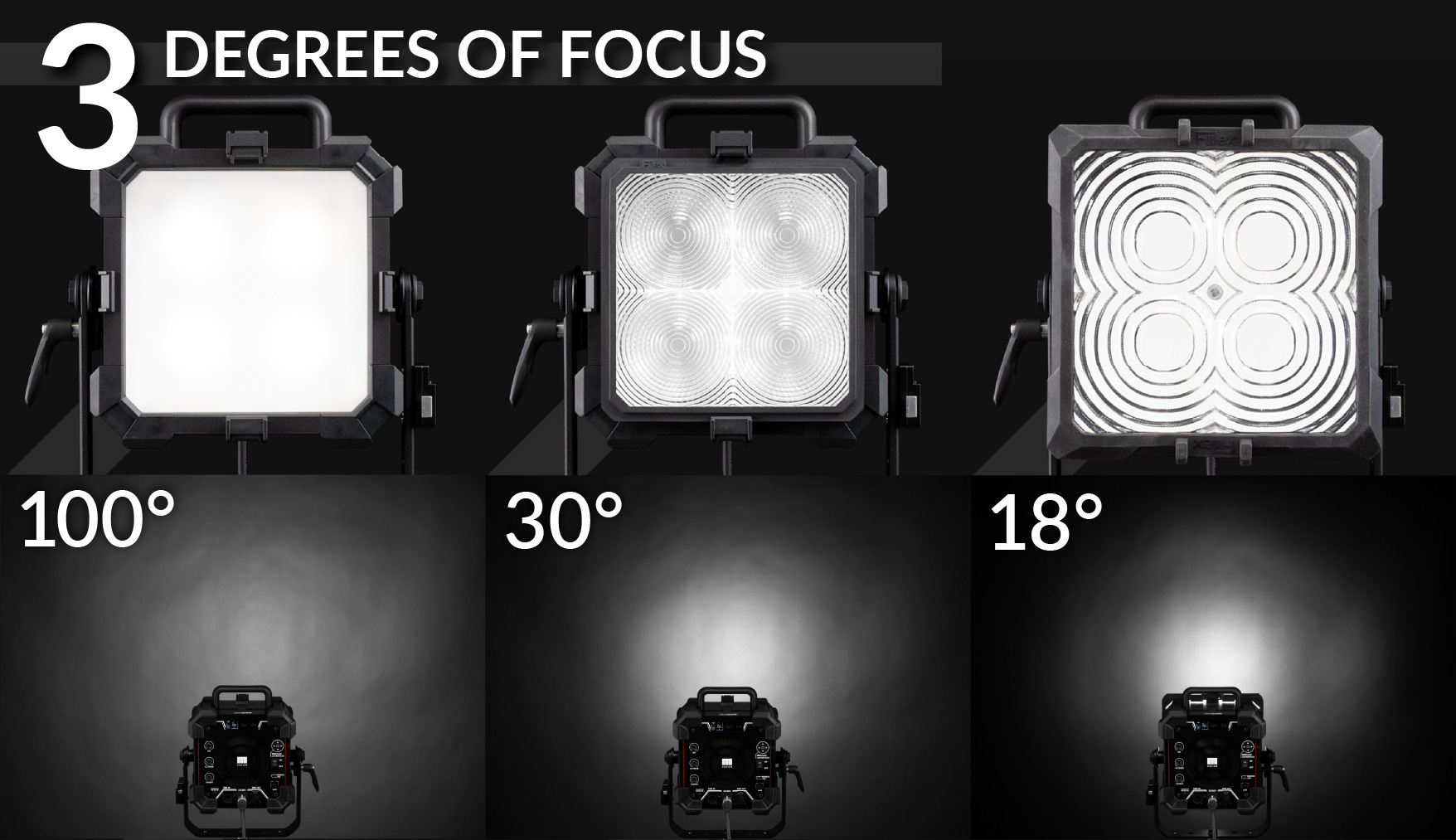

100°, 30° and 18° Lens Options

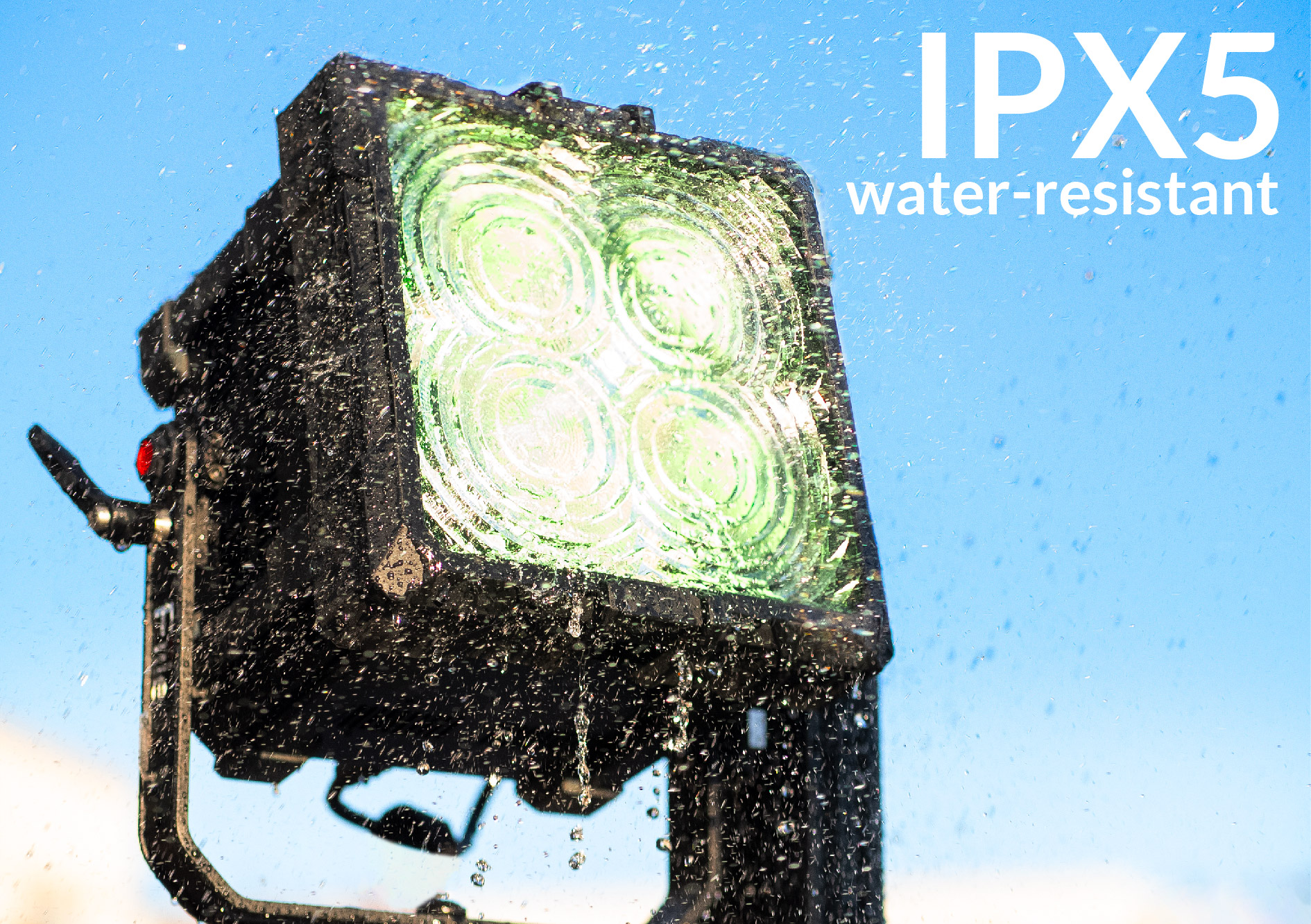

IPX5 Water-Resistant
Fiilex Matrix COLOR

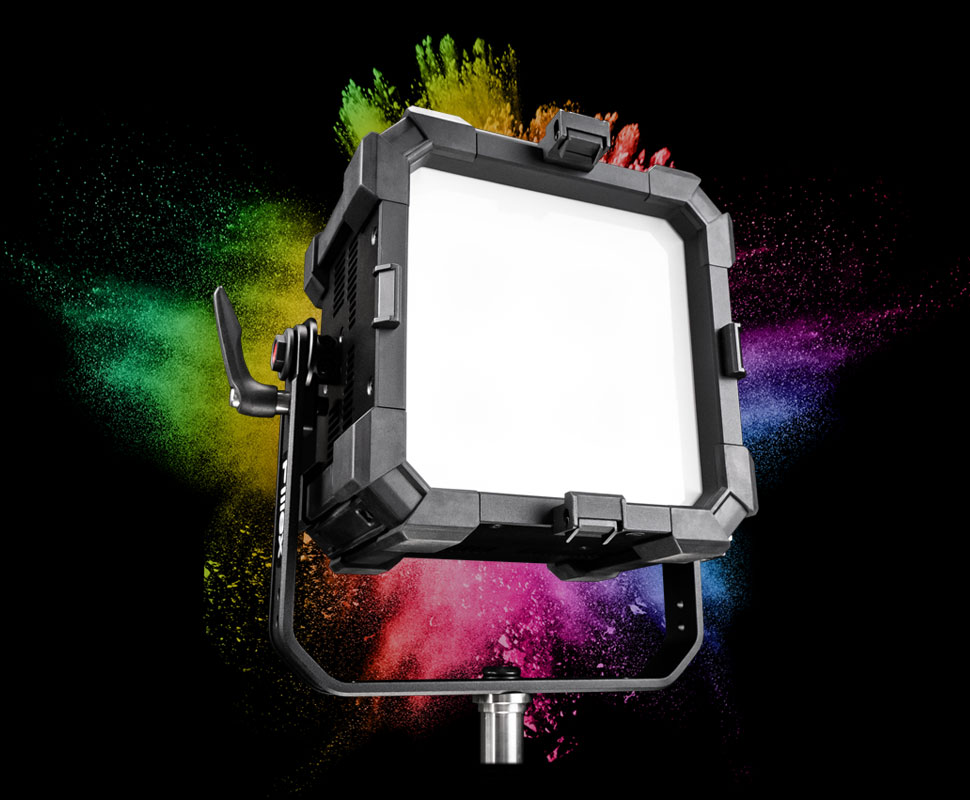

The Matrix Color is a 320W LED fixture that combines high-fidelity soft-source illumination with a focusable, fresnel-like forward punch. This optical versatility is made possible by Fiilex’s custom Dense Matrix LED technology, which also features smooth dimming to 0%, no flicker, and very high CRI. Two snap-on fresnel accessories are available to narrow the Matrix Color’s standard 100° spread down to 30 or 18°.


Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Fiilex Matrix COLOR

Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Fiilex Matrix COLOR

Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25

Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Fiilex Matrix COLOR

Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Fiilex Matrix COLOR

Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Fiilex Matrix COLOR

FIXTURES & KITS

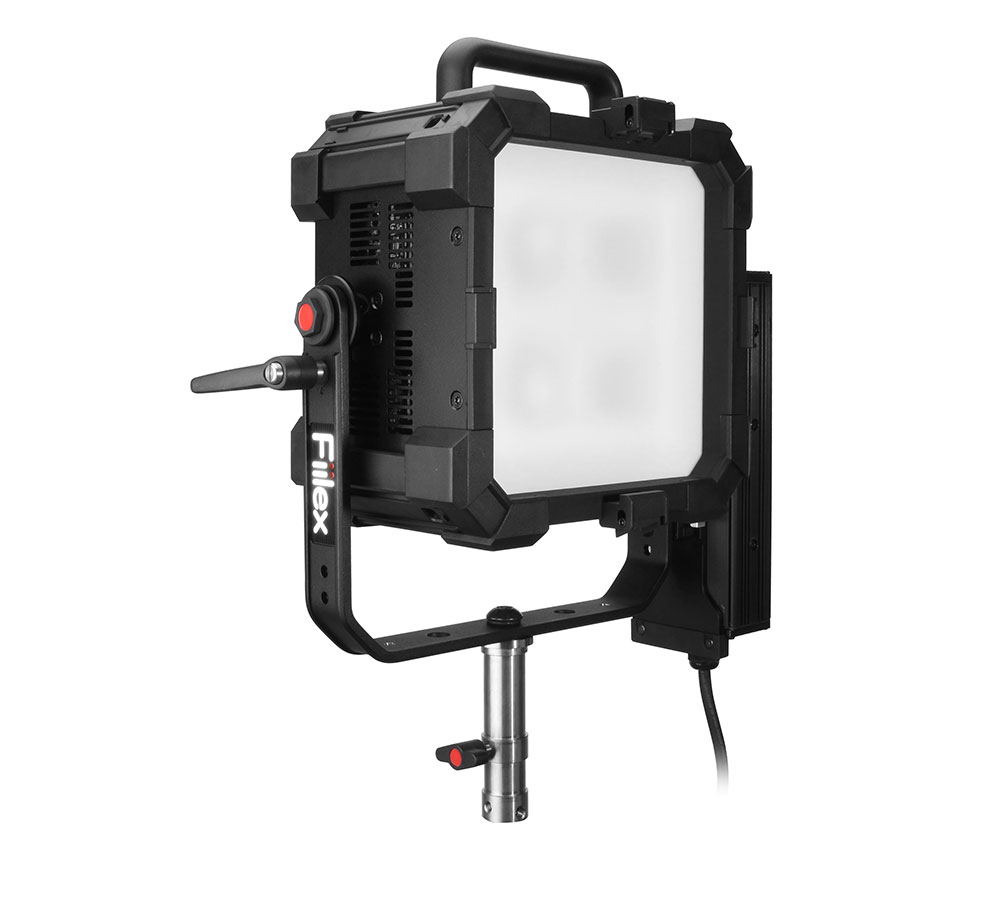

Fiilex Matrix COLOR

FLXMXCLR

Separator

ACCESSORIES

Fiilex Q8 OCTA 4

FLXQ8CLR-OCTA4

Fiilex Q8 OCTA 4 Soft Grid

FLXQ8CLR-OCTA4-GRID

Fiilex Matrix Speed Ring

FLXMXCLR-SPRG1

Fiilex Matrix Fresnel Lens 30deg

FLXMXCLR-FRNL30

Fiilex Matrix Fresnel Lens 18deg

FLXMXCLR-FRNL18

Fiilex Matrix COLOR Barndoor 4 Leaf

FLXMXCLR-BD4

Fiilex Flexible Energy Source 270

FLXFES-270

Fiilex DC Extension Cable 6ft XLR3 to XLR3

FLXPSU-DCJ6-XLR3XLR3

Fiilex V-Mount with 5/8" Baby Pin Receiver

FLXPSU-VMOUNT-BABY

Separator

FLEXIBLE ENERGY SOLUTIONS

Fiilex 540 WHr Juice Box Kit

FLXJB-S540-KIT

Fiilex Juice Box Flexible Energy Station

FLXJB

Separator

SPECIFICATIONS

Beam Angle100° (30° or 18° with fresnel accessories)
CCT Range 2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical

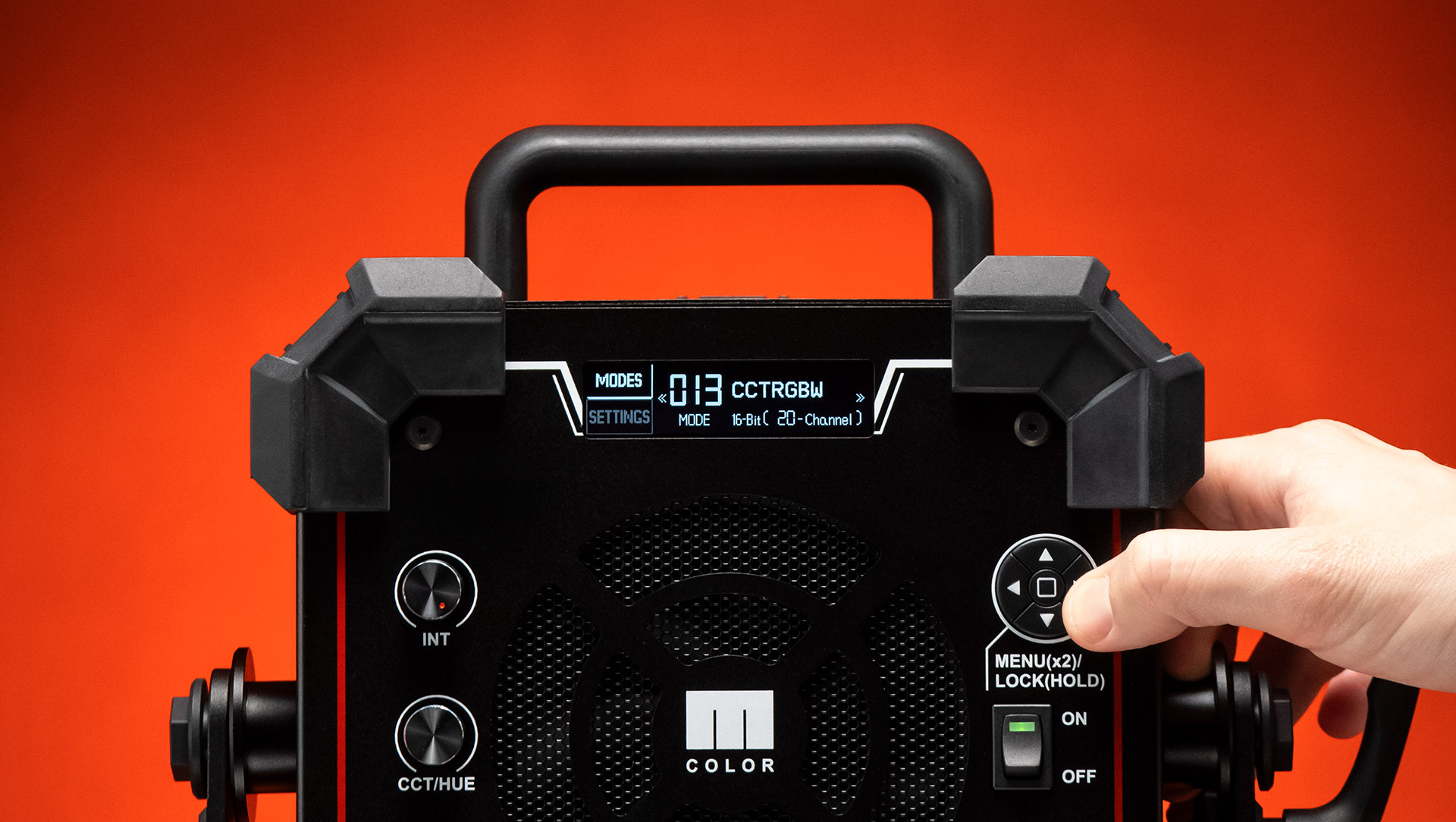

Control ModesCCT, HSI, RGBW, Gels, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100% - 0% flicker free
Dimming ModesSmooth, Sharp
Light EngineDiCon Dense Matrix LED

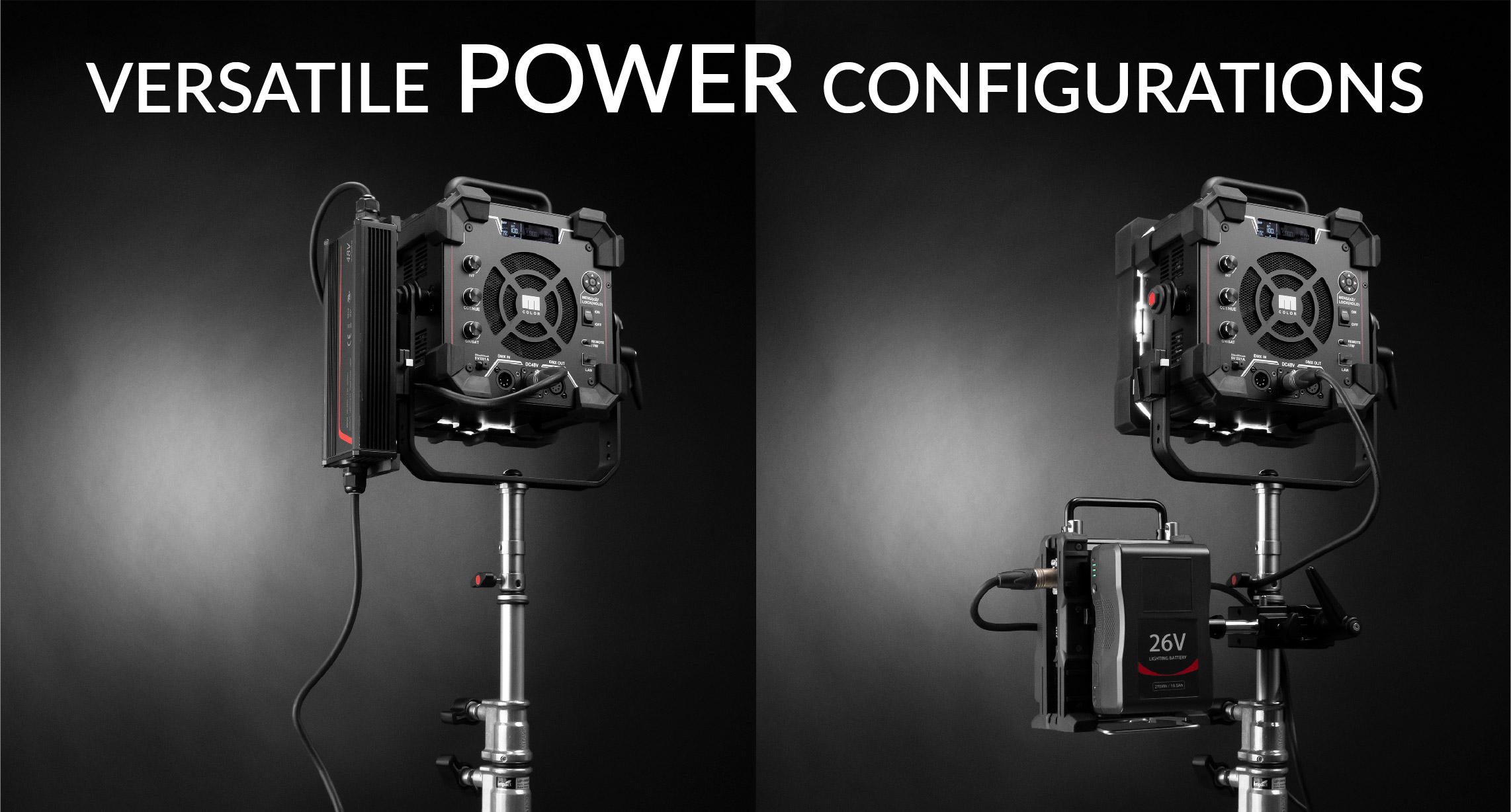

Power Consumption320W max AC | 300W max DC
BTUs/hour1091 (BTUs/hour) max
DC Input48V DC (via XLR-3)
AC Input100 - 240V AC, 50 ~ 60Hz (via powerCON TRUE1)
DMX/RDM PortXLR-5
Ethernet sACN, ArtNet (via RJ45)
USB Power Output 5V/1A (via USB-A)
WeightFixture: 9.9 lbs / 4.5kg (includes yoke) | Power adapter: 6.4lbs / 2.9kg
Size (L x W x H)6.7" x 12.6" x 17.7" / 17.1cm x 32.1cm x 45.0cm
Mount TypeBaby stud 5/8" female (16mm) & junior stud 1-1/8" male (28mm)
IP RatingIP-X5 (water-resistant)
Thermal DesignAdvanced vapor cooling system (fan cooled)
Operating Temperature 0-40ºC / 32-104ºF
