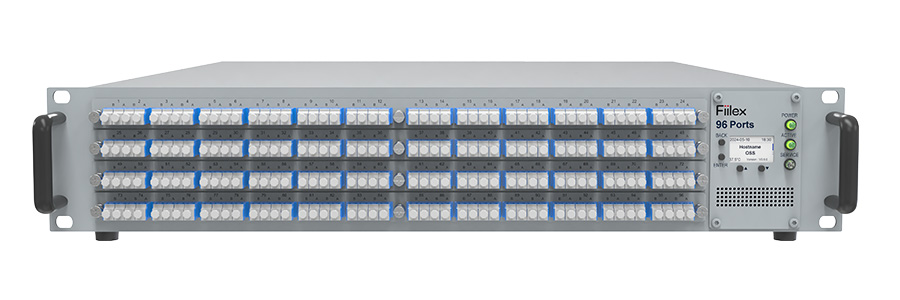

OPTICAL MATRIX SWITCH

96 DUPLEX PORTS

Model No: OSS-96MN-LC/UPC*96 Port Switch (*Other connector options are available.)

  • Fiilex 96 Duplex Ports
  • Fiilex 96 Duplex Ports
  • Fiilex 96 Duplex Ports
Fiilex 96 Duplex Ports
Fiilex 96 Duplex Ports
Fiilex 96 Duplex Ports

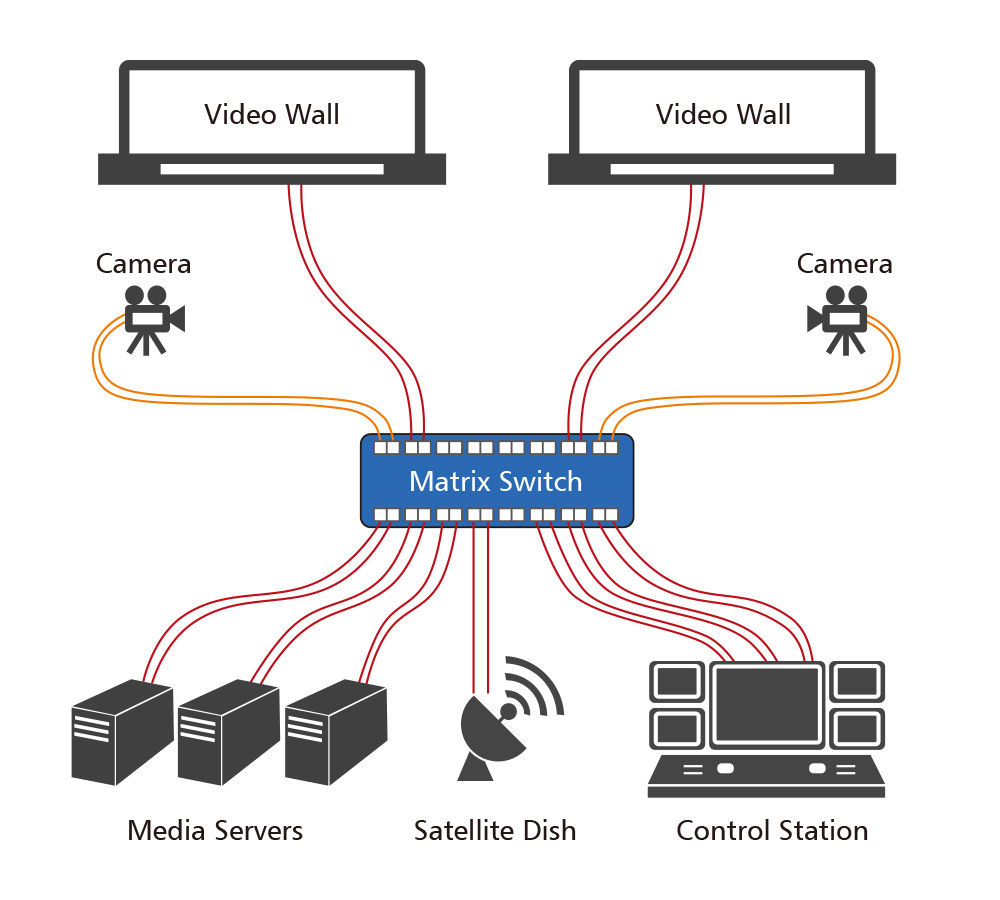

Fiilex Media Matrix Switch is designed to provide flexible connectivity to high bandwidth video transmission networks. This switch is often used to connect different data servers and broadcast studios to a central control center, or link media storages and large display walls to Back-of-House. The switching function is performed all optically, therefore, there is minimum latency and is future-proof of any data format changes. The product is compact, silent, consumes less electricity than any traditional optical-electrical-optical (OEO) switch, and has a proven track record of reliability. As a SDN ready network device, Fiilex Matrix Switch can be managed with a proprietary Web GUI or one of several standard network protocols.

Separator

FEATURES

  • All Optical Switch
  • No Latency
  • Low loss
  • Fast Switching Speed
  • SDN Ready
  • MEMS Durability

Separator

SPECIFICATIONS

Operating λ (nm)1260 – 1650
Insertion Loss (dB)2.0 max.
Crosstalk (dB)-60 max.
Back Reflection (dB)-45 max.
Switching Time (ms)25 max.
Fiber TypeSinglemode, Duplex Fiber
Switch TechnologyMEMS
Switch TypeNon-Blocking, Bidirectional
Operating Temp (°C)10 to 50
Storage Temp (°C)-20 to 60

OPERATION

Remote ManagementWeb GUI, REST API, NETCONF, SNMPv3, TL1, RS232

ELECTRICAL

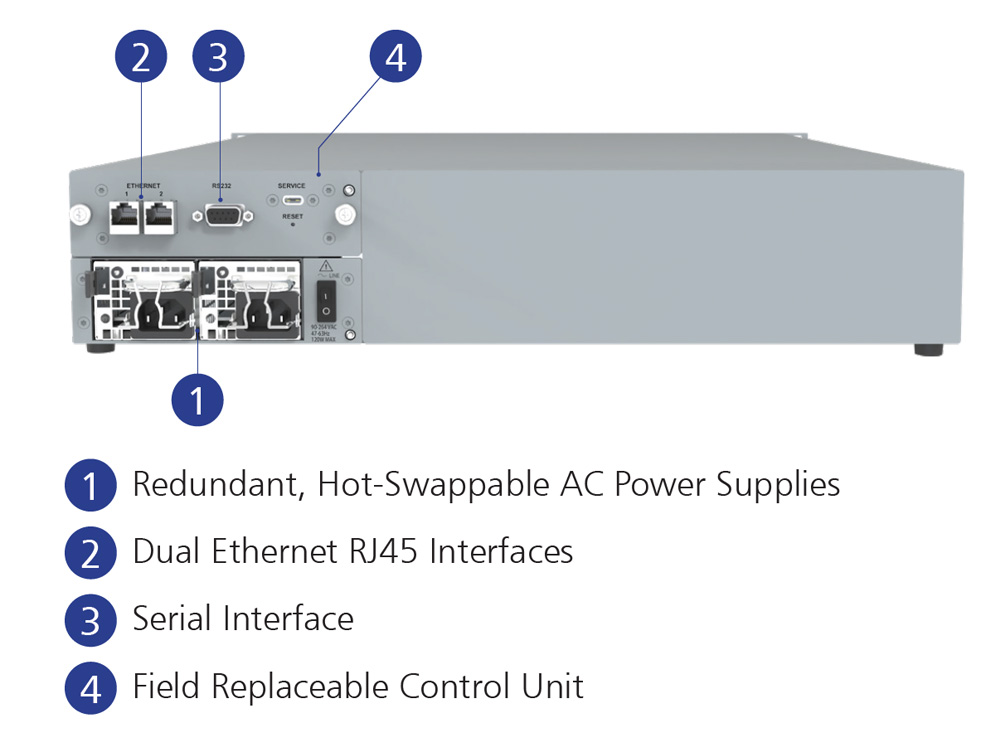

Power Supply100-240 VAC, 50-60Hz, Redundant
Power Consumption (W)50 typ.
InterfaceSerial & Dual Ethernet RJ45
Control UnitField Replaceable

Separator

MECHANICAL

1U 19" Rackmount Chassis
