HOMESpec Lighting

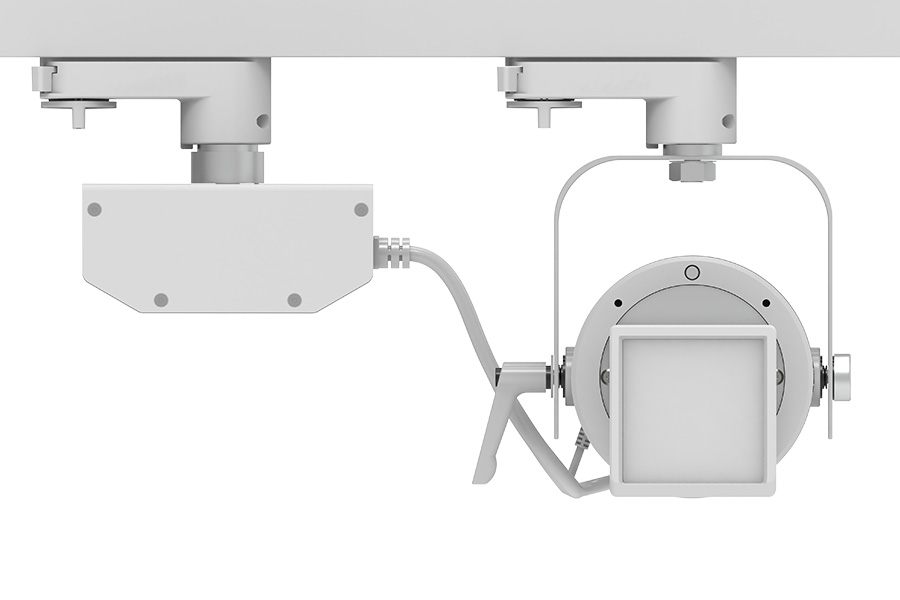

P3W Wash Light

90W LED / Wall Wash

Model No: FLXP3W-

  • Fiilex P3W Wash Light
  • Fiilex P3W Wash Light
  • Fiilex P3W Wash Light
  • Fiilex P3W Wash Light
  • Fiilex P3W Wash Light
  • Fiilex P3W Wash Light
  • Fiilex P3W Wash Light
  • Fiilex P3W Wash Light
  • Fiilex P3W Wash Light
  • Fiilex P3W Wash Light
  • Fiilex P3W Wash Light
  • Fiilex P3W Wash Light
Fiilex P3W Wash Light
Fiilex P3W Wash Light
Fiilex P3W Wash Light
Fiilex P3W Wash Light
Fiilex P3W Wash Light
Fiilex P3W Wash Light
Fiilex P3W Wash Light
Fiilex P3W Wash Light
Fiilex P3W Wash Light
Fiilex P3W Wash Light
Fiilex P3W Wash Light
Fiilex P3W Wash Light

DOWNLOADS

Data Sheet (Track Mounting)
Data Sheet (Clamp Mounting)
Installation Guideline
P3W vs P3X
IES Profiles
CAD Files
DMX Profiles
Separator

SPECIFICATIONS

Beam Angle Wall Wash
CRI/TLCI 95/90 typical (in CCT Mode of 2800K-6500K)
Dimming 100% - 0% flicker free
Power Draw 90W max
AC Input 100 - 240V AC, 50 - 60Hz
Remote Control DMX 512
Cooling Fan Cooled
Acoustic Noise23 dBA
Operating Temp. 32 - 104ºF (0 - 40ºC)
Weight
(Fixture + Power Supply)		 3.0lb / 1.5kg (Track Type), 3.2lb / 1.6kg (Clamp Type)
Separator

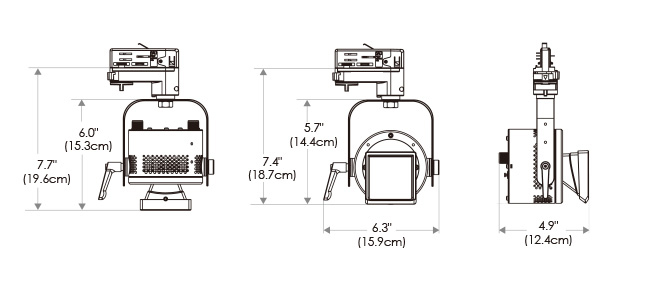

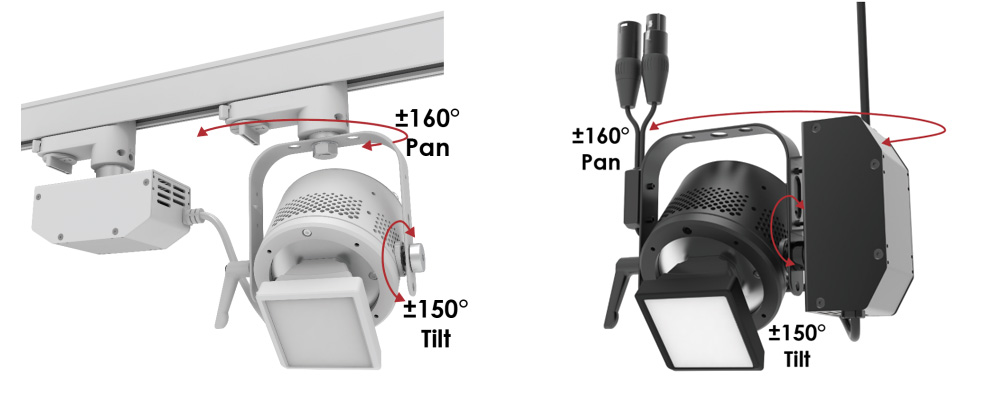

MECHANICAL FIGURES

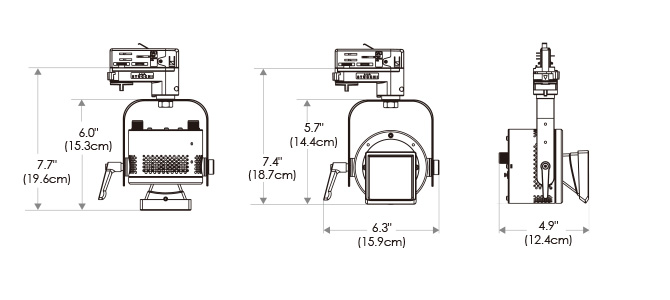

P3W (Track)

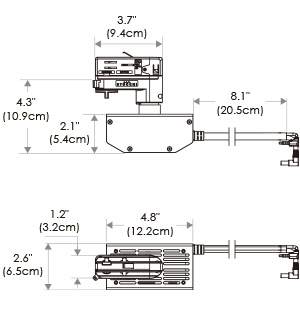

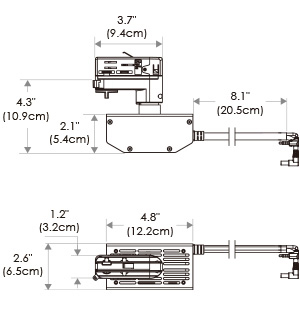

PSP US

Fiilex P3W Wash Light
Fiilex P3W Wash Light

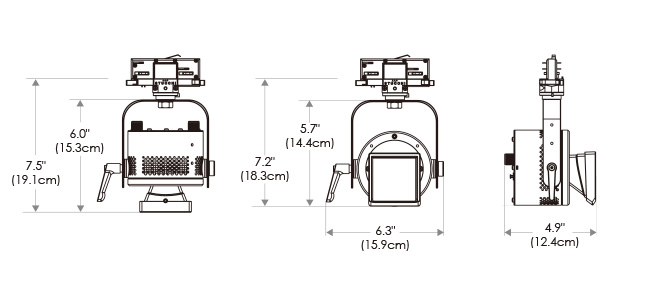

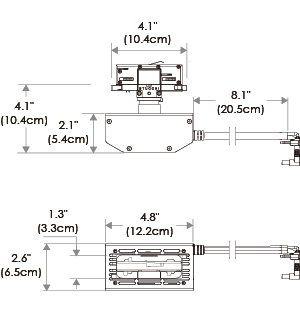

PSP EU

Fiilex P3W Wash Light
Fiilex P3W Wash Light

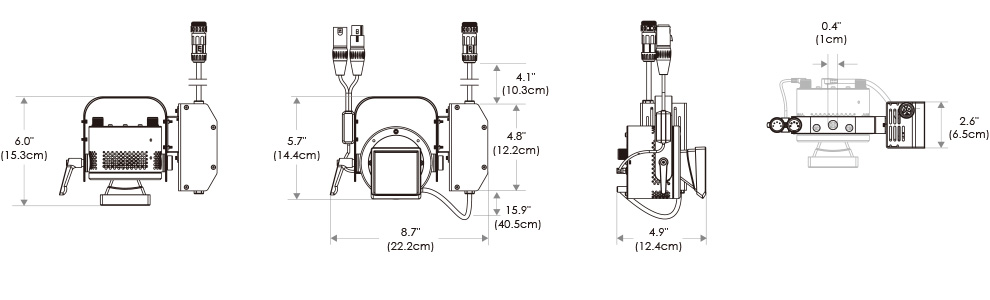

P3W (Clamp)

Fiilex P3W Wash Light


Separator

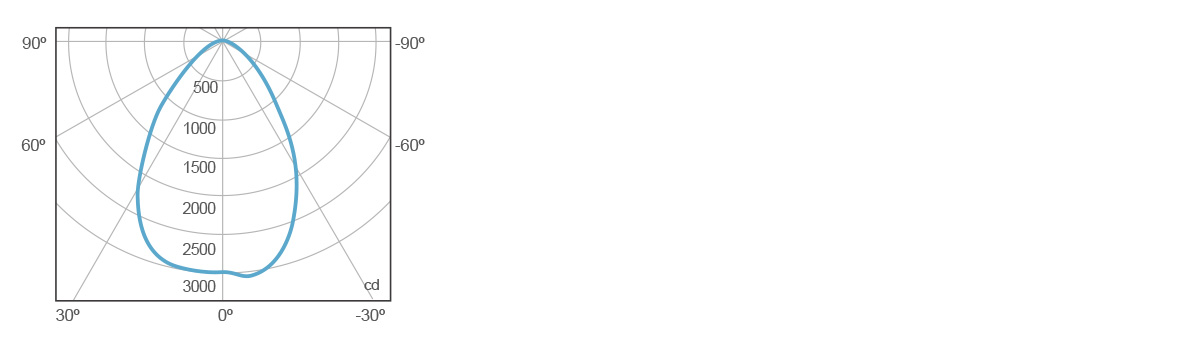

PHOTOMETRIC DATA

Fiilex P3W Wash Light Photometric Data

Separator

ITEMS INCLUDED

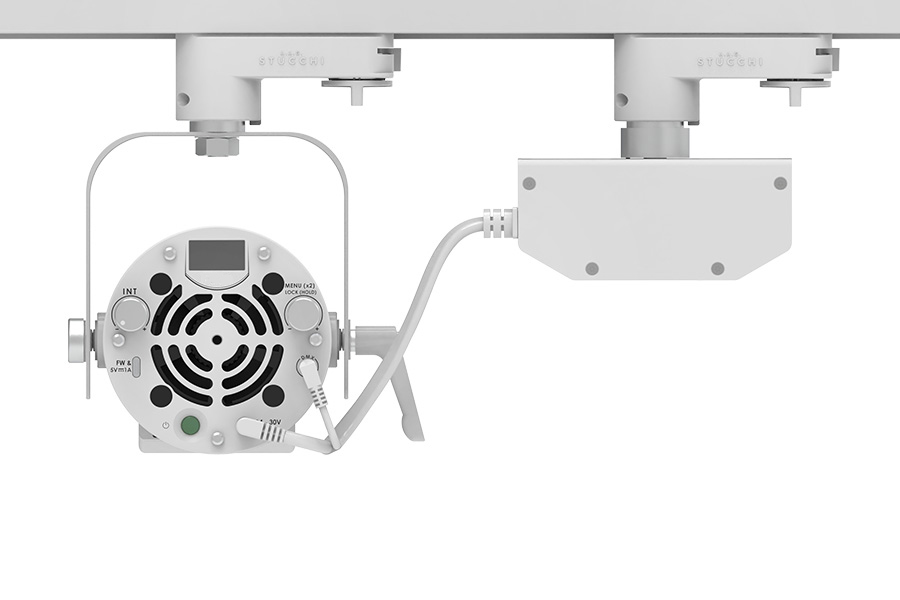

Track Type

Fiilex P3W Wash Light

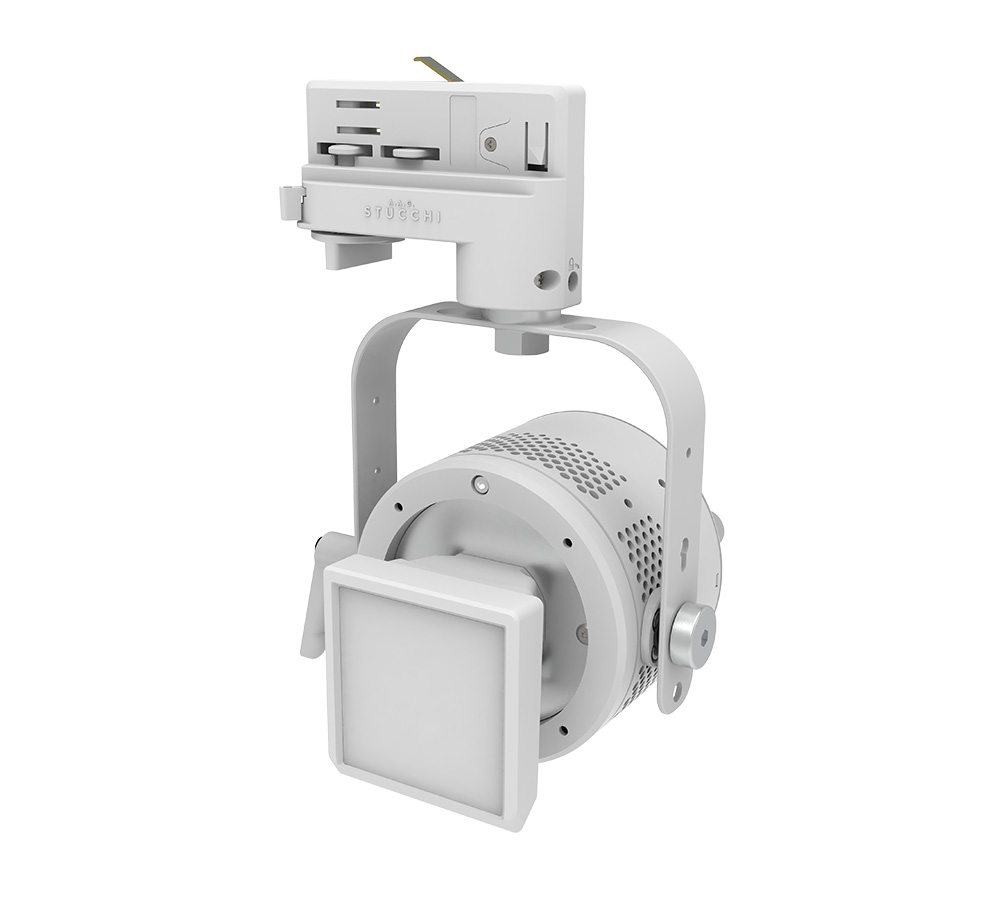

P3W (Track) fixture
Track 90W PSU
90W, 24V, TOX Track Mount PSU

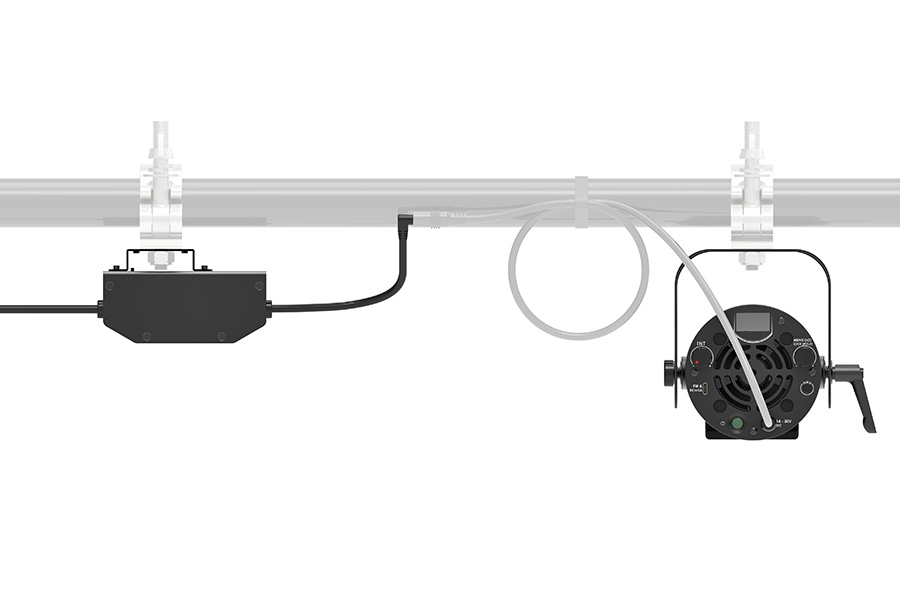

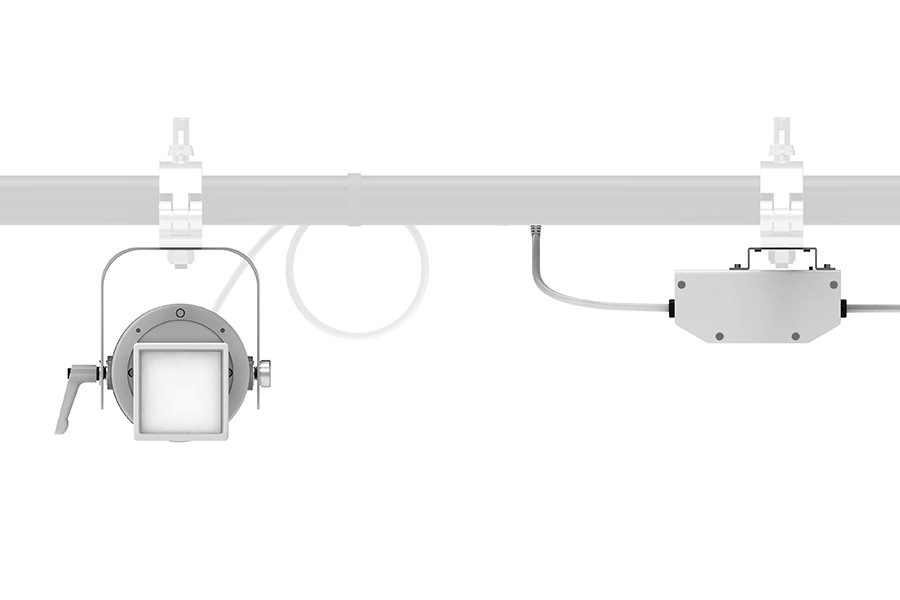

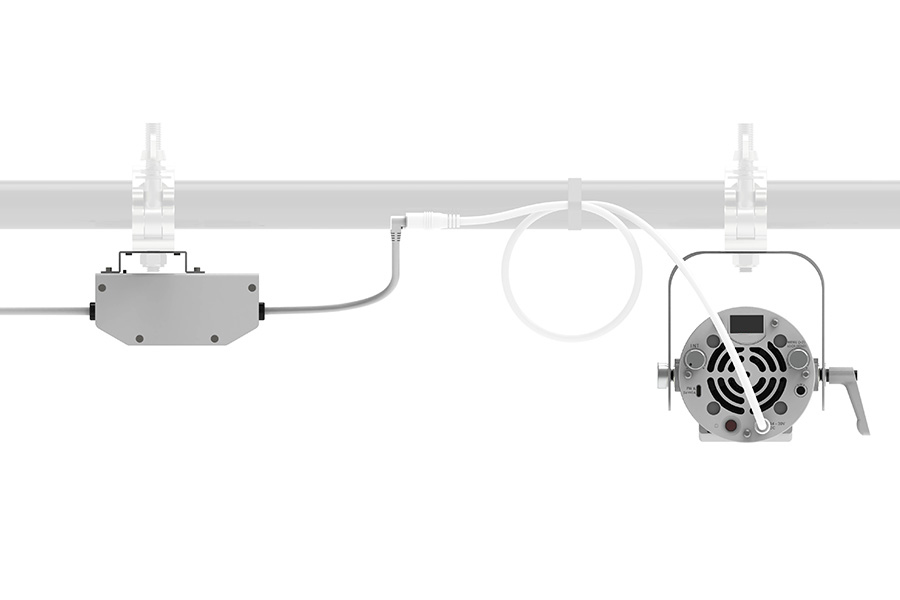

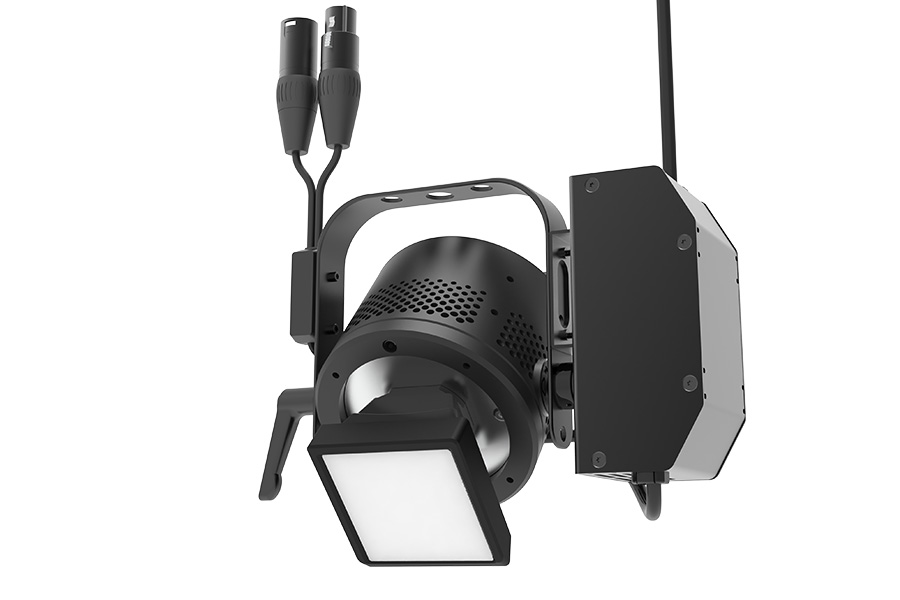

Clamp Type

Fiilex P3W Wash Light

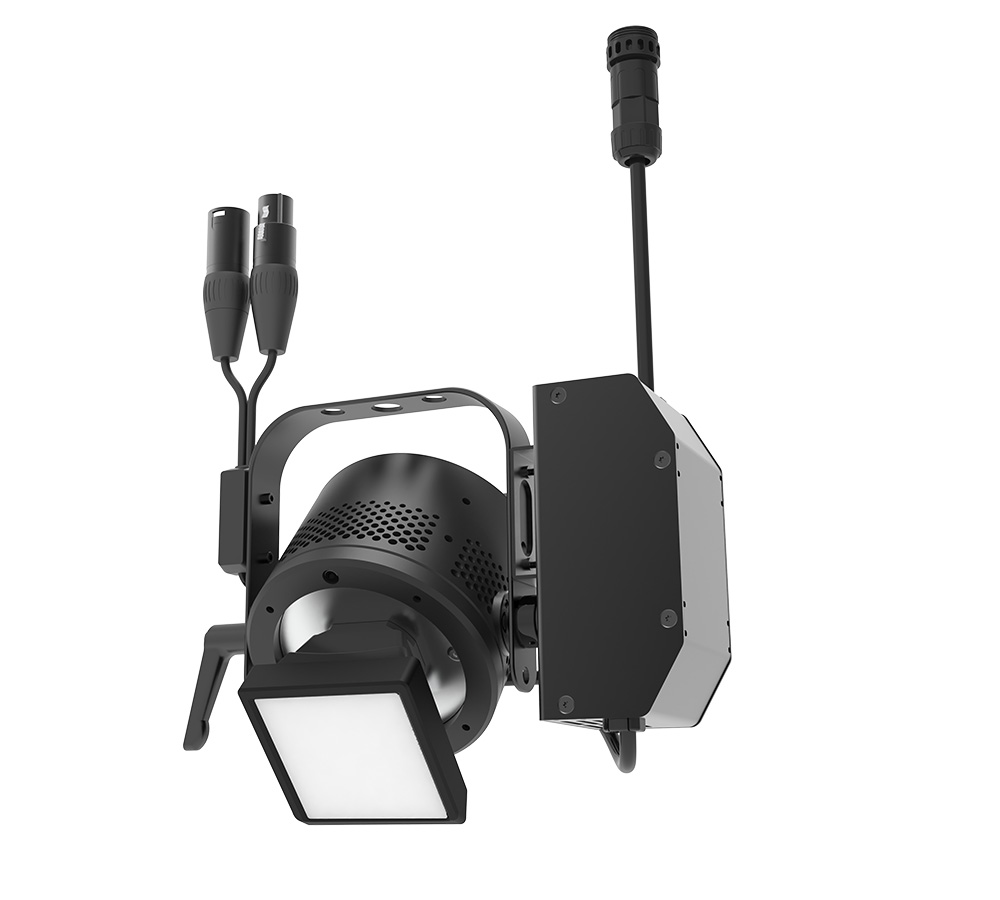

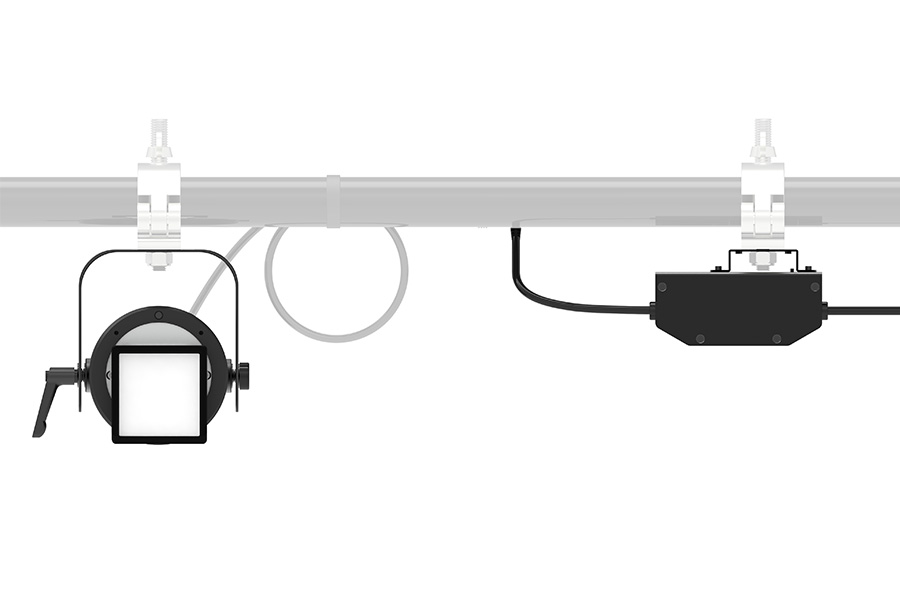

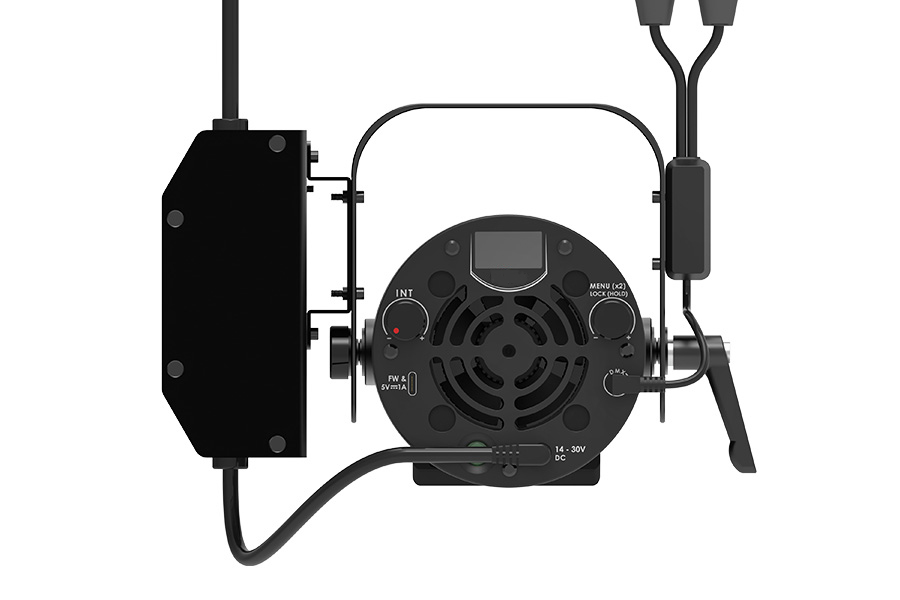

P3W (Clamp) fixture + PSU
P3 PSU AC Jumper Cable 5ft
P3 PSU AC Jumper Cable 5ft
Separator

ACCESSORIES

Fiilex DMX 6 Channel Controller
FLXCNTL-DMX6
Separator

PARTS

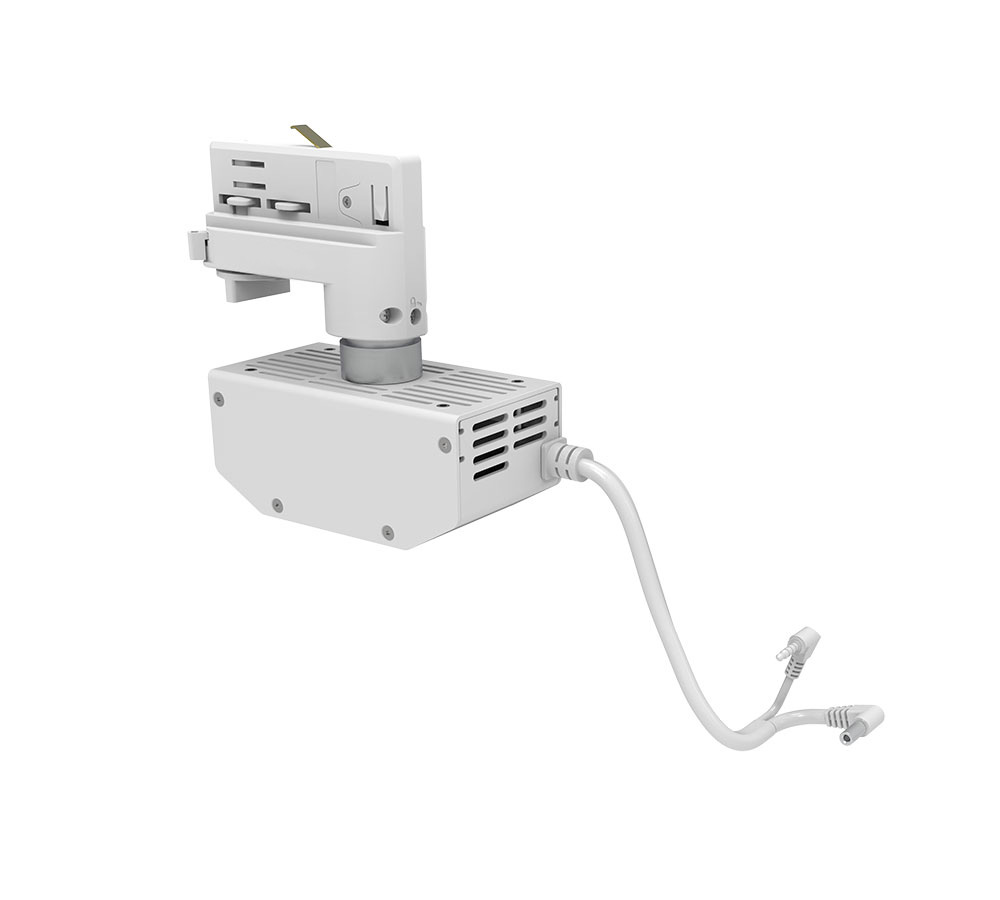

Fiilex 90W, 24V, TOX Track Mount PSU
FLXPSU90TOX
Fiilex Mount to TOX Track
FLXMT-TOX
Fiilex 90W, 24V, Clamp Mount PSU
FLXPSU90CLP
Fiilex One Track
2 Circuit Data Track
