SPECIFICATIONS

Beam Angle	10° / 19° / 26° / 36° / 50°
CRI/TLCI	95/90 typical
Dimming	100% - 0% flicker free
AC Power Draw	175W max
AC Input	100 - 240V AC, 50 - 60Hz
Remote Control	DMX 512
Cooling	Fan Cooled
Acoustic Noise	23 dBA (Auto Mode)
Operating Temp.	32 - 104ºF (0 - 40ºC)
Weight (Fixture + Power Supply)	10.9lb / 5.0kg (Track Type, With 19°/26°/36°/50° lens tube) 12.3lb / 5.6kg (Clamp Type, With 19°/26°/36°/50° lens tube) 13.9lb / 6.3kg (Track Type, With 10° lens tube) 15.2lb / 6.9kg (Clamp Type, With 10° lens tube)
Gobo Size	M Size (Diameter 66mm / Max Image: 48mm / Max Thickness: 1mm)
Approved Regulatory Standards	cETLus, FCC, CE, UKCA, RoHS, WEEE

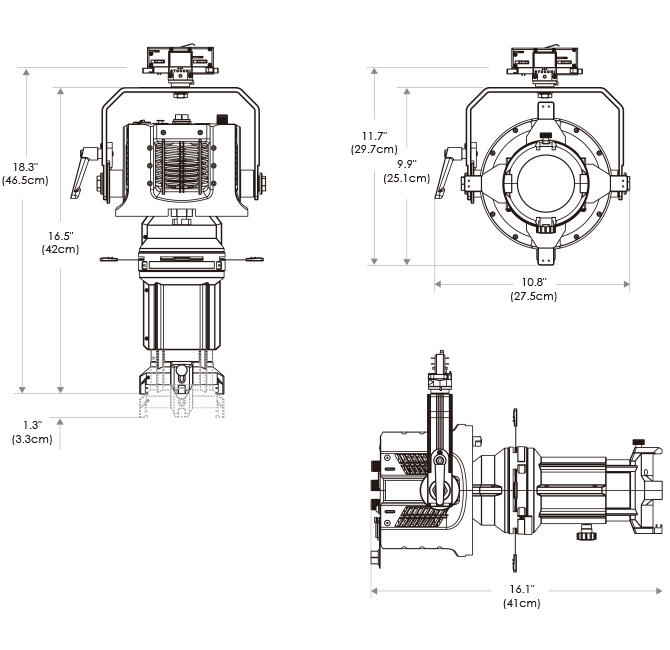

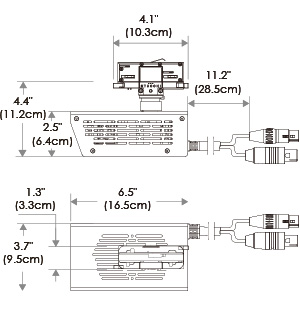

MECHANICAL FIGURES

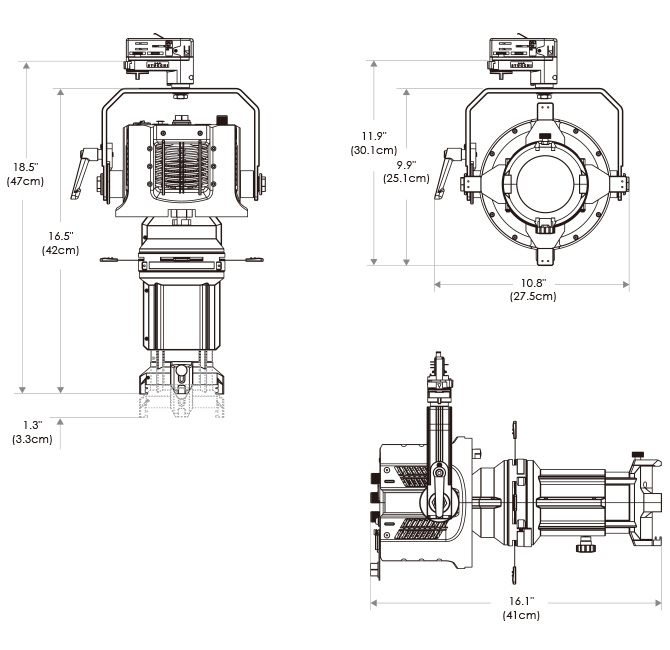

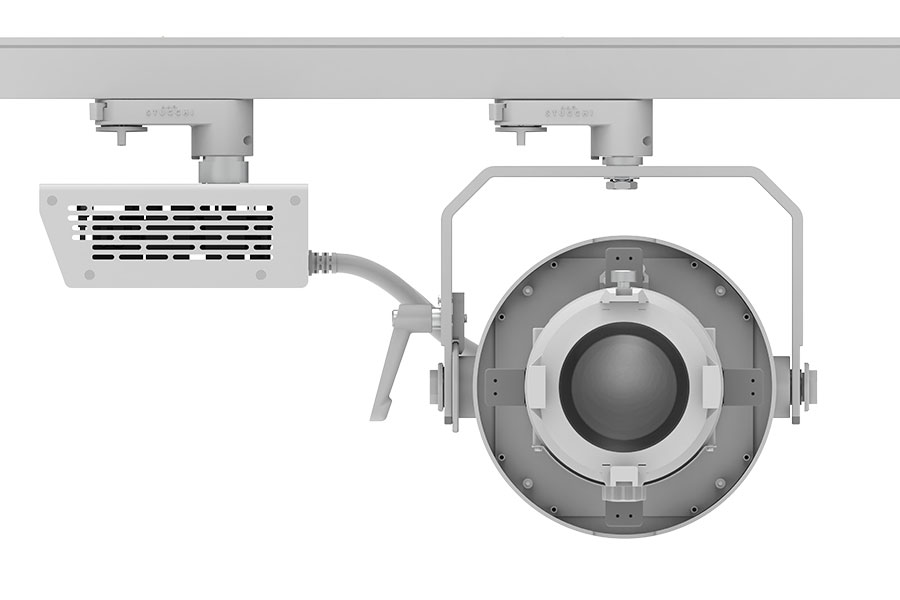

P5L (Track)

PSP - 19° / 26° / 36° / 50° Barrel

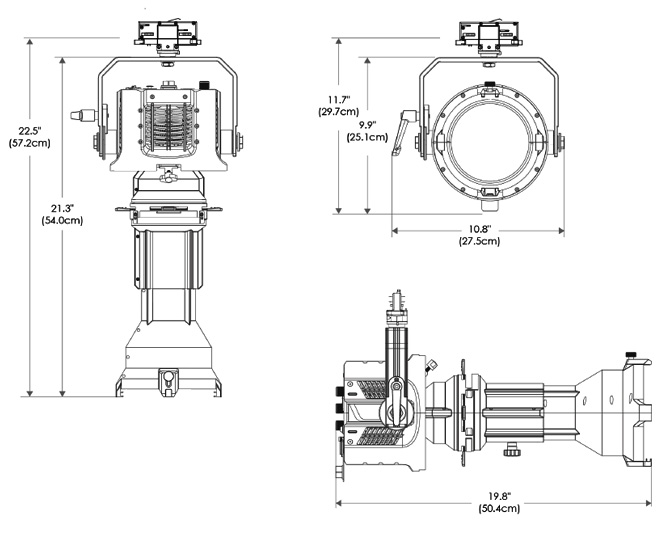

PSP - 10° Barrel

PSP - 19° / 26° / 36° / 50° Barrel

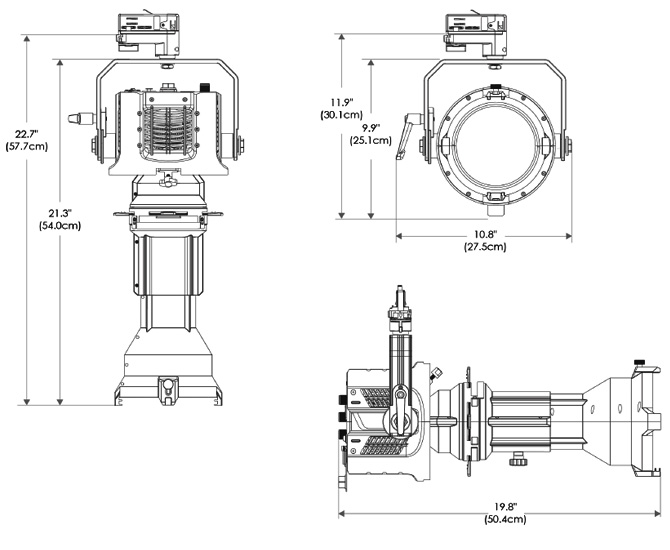

PSP - 10° Barrel

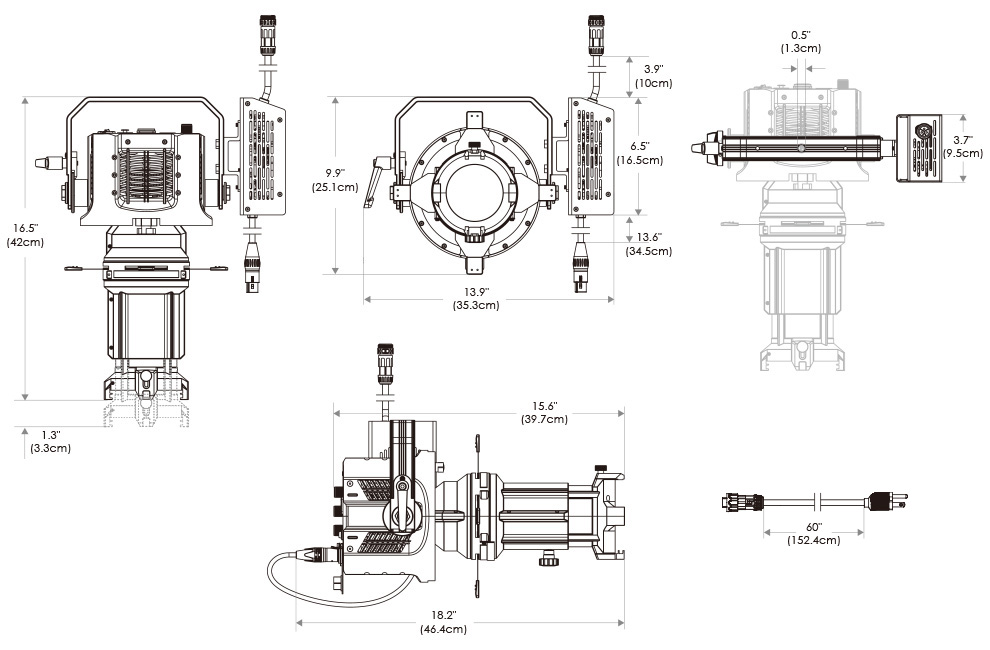

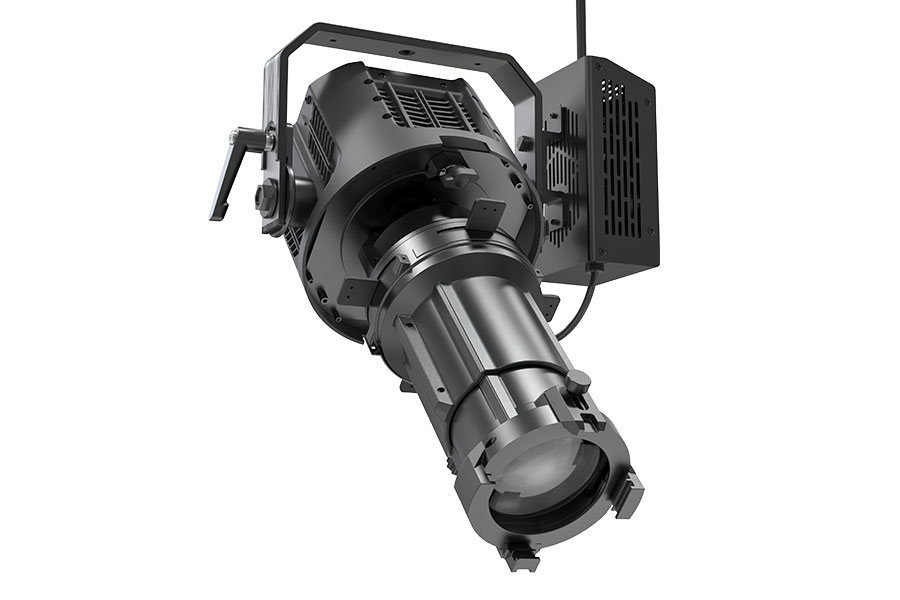

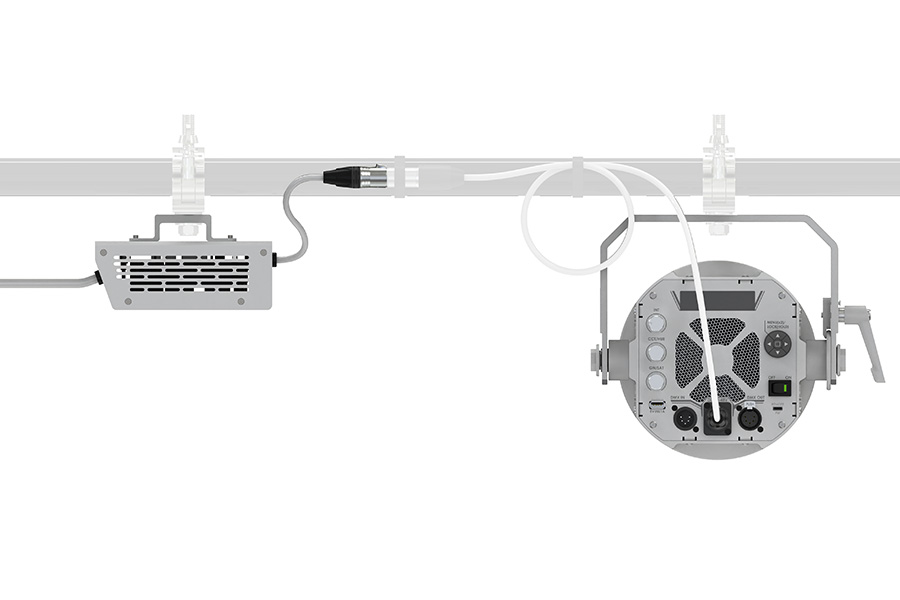

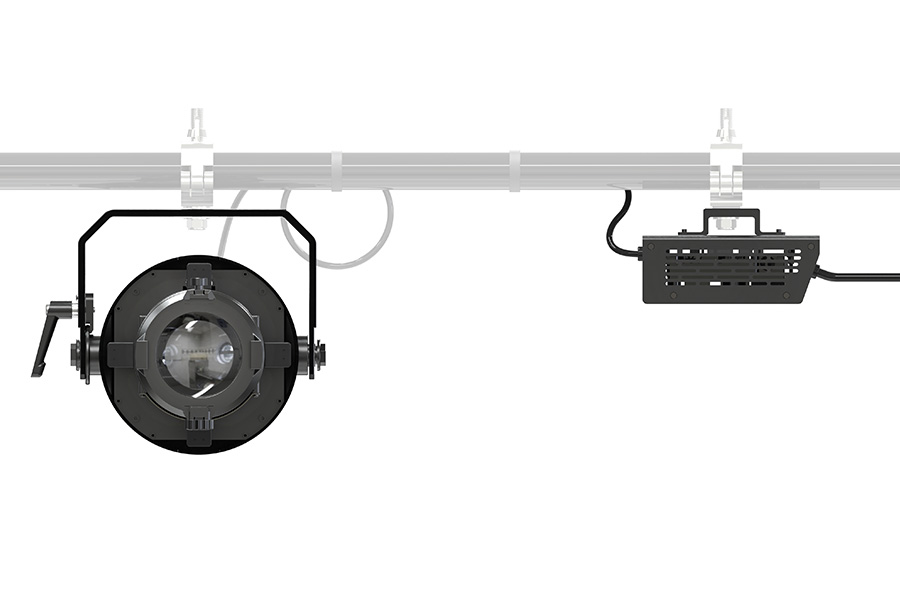

P5L (Clamp)

*All -CLP configuration models come with standard DC cables of 16 inch and AC cables of 5 ft.

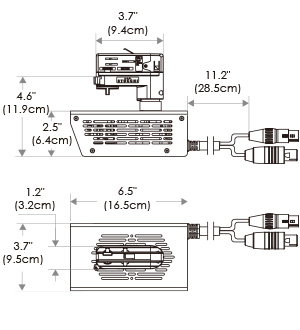

PSV - 19° / 26° / 36° / 50° Barrel

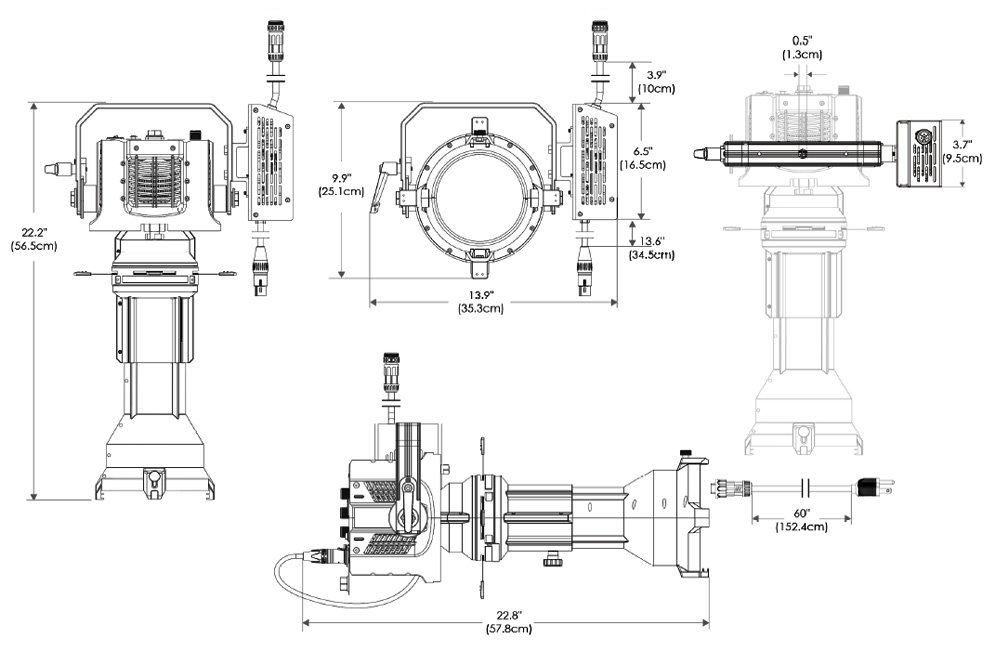

PSV - 10° Barrel

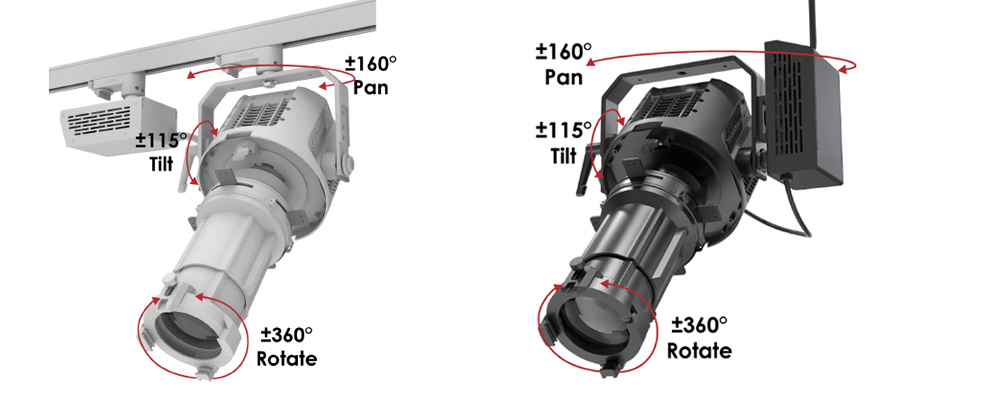

TILT/ROTATION

Tilt/rotation applies to all options

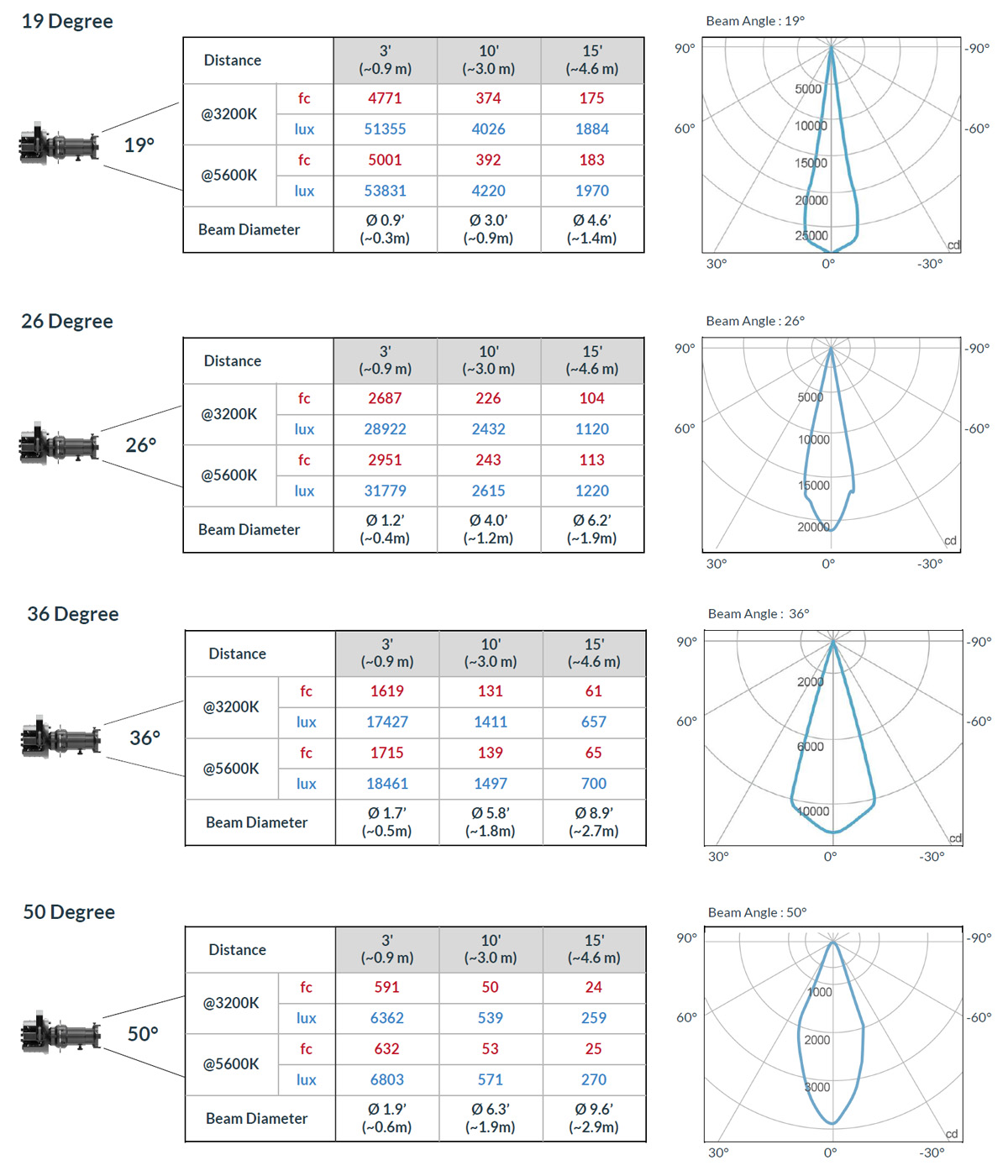

PHOTOMETRIC DATA

ITEMS INCLUDED

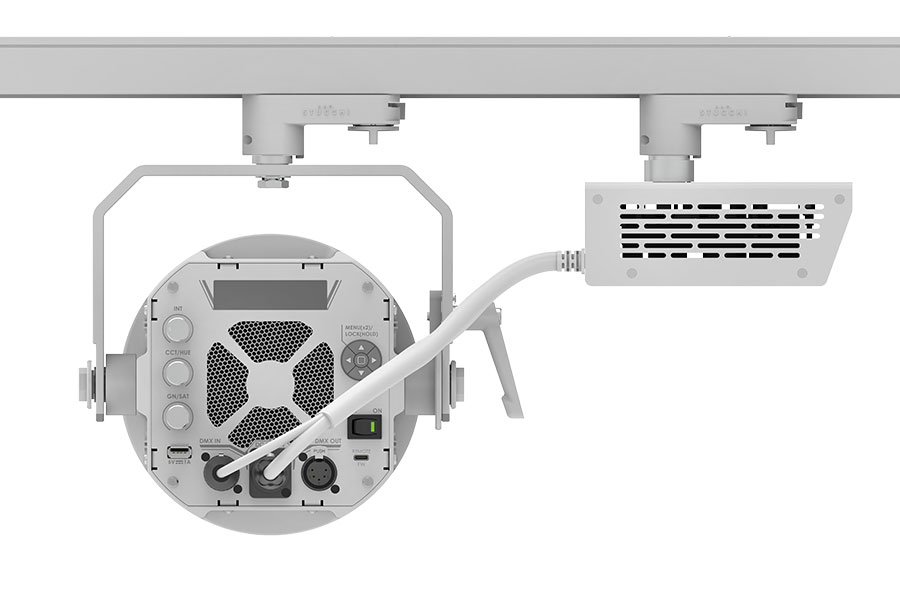

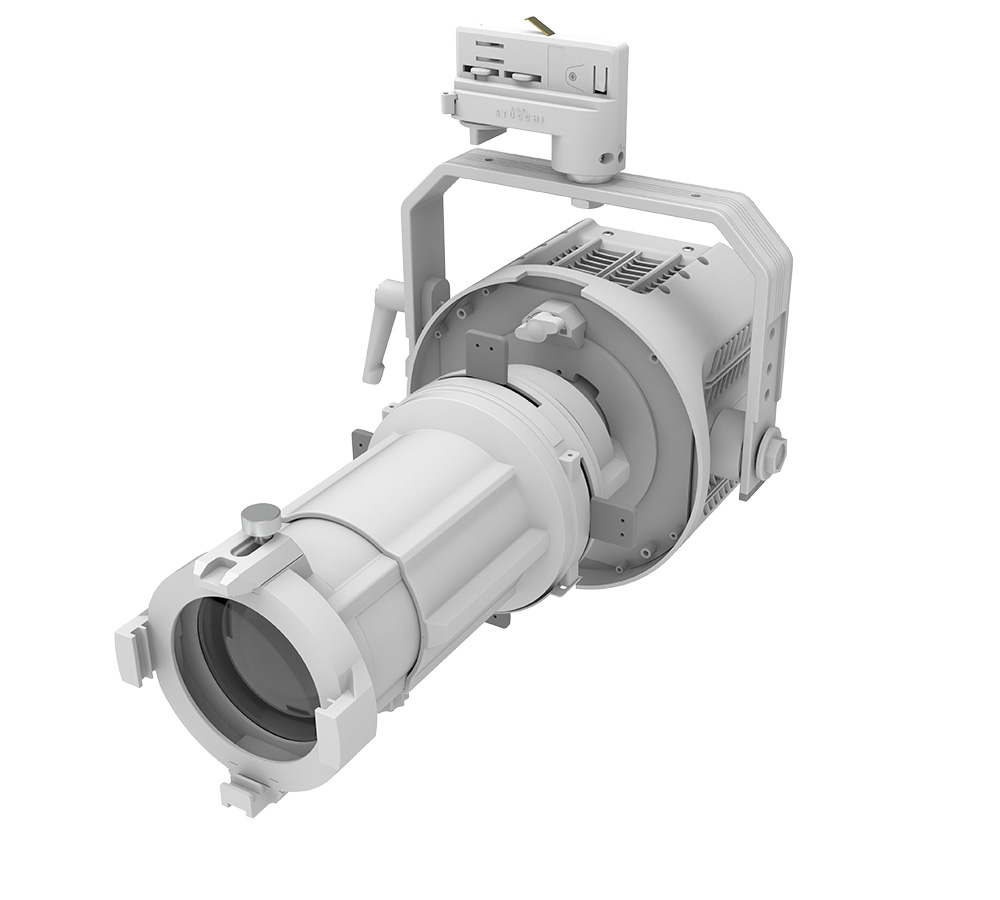

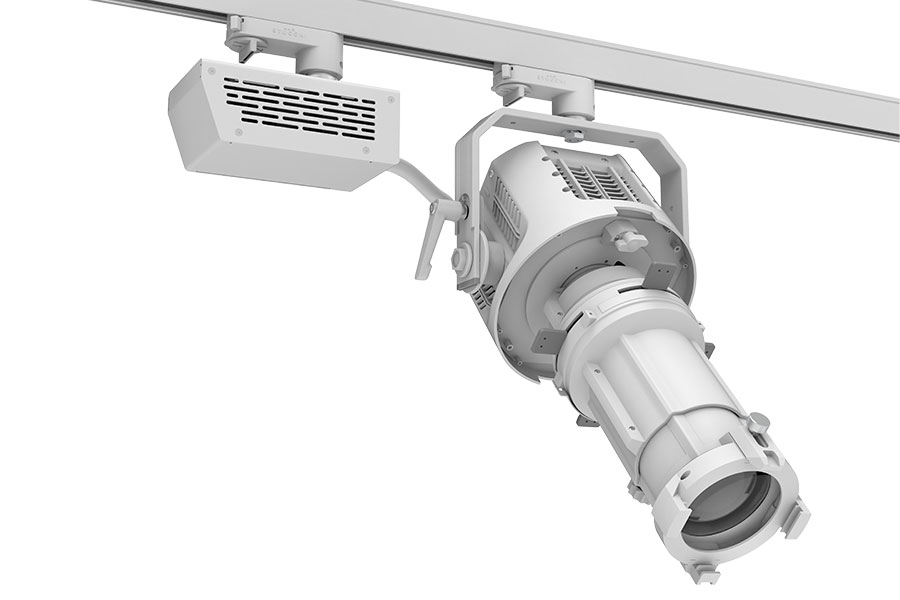

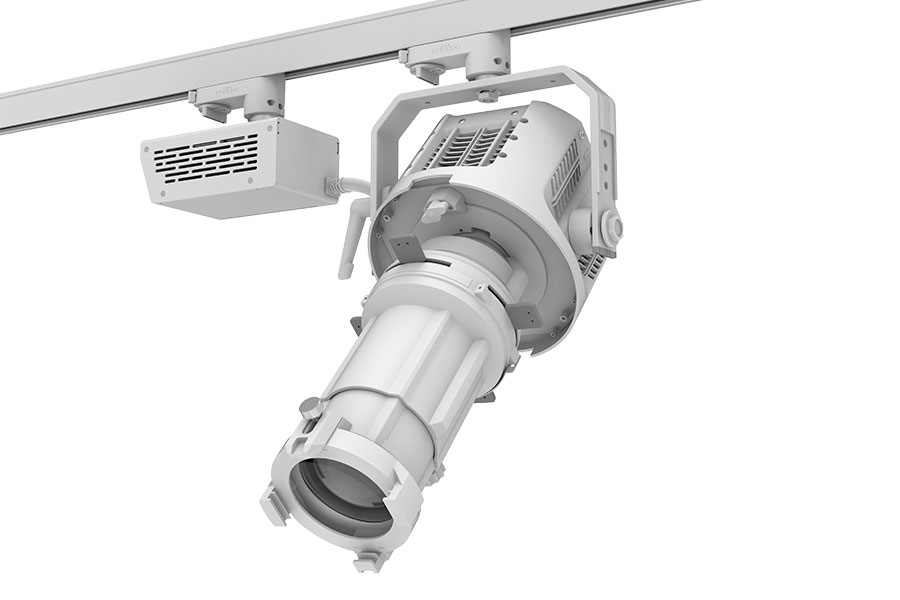

Track Type

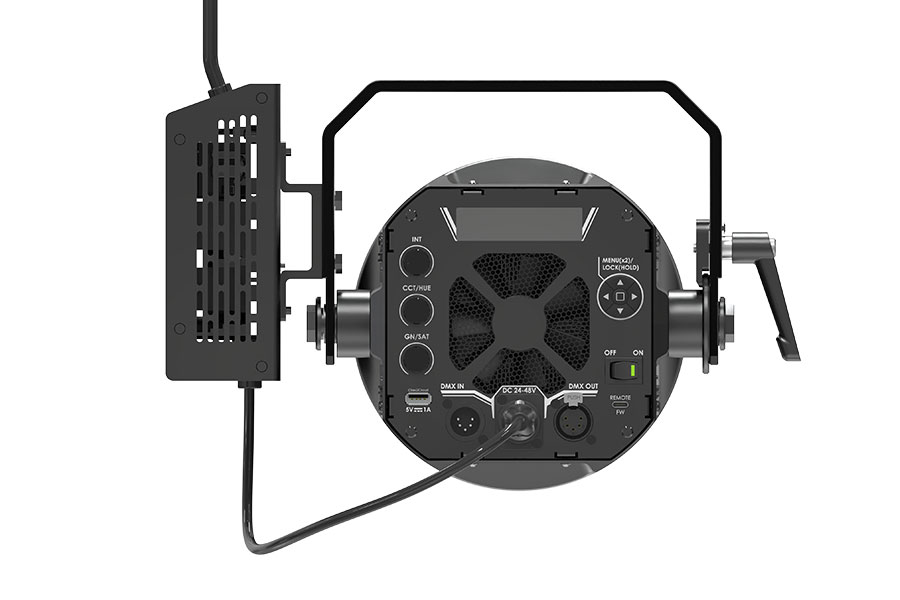

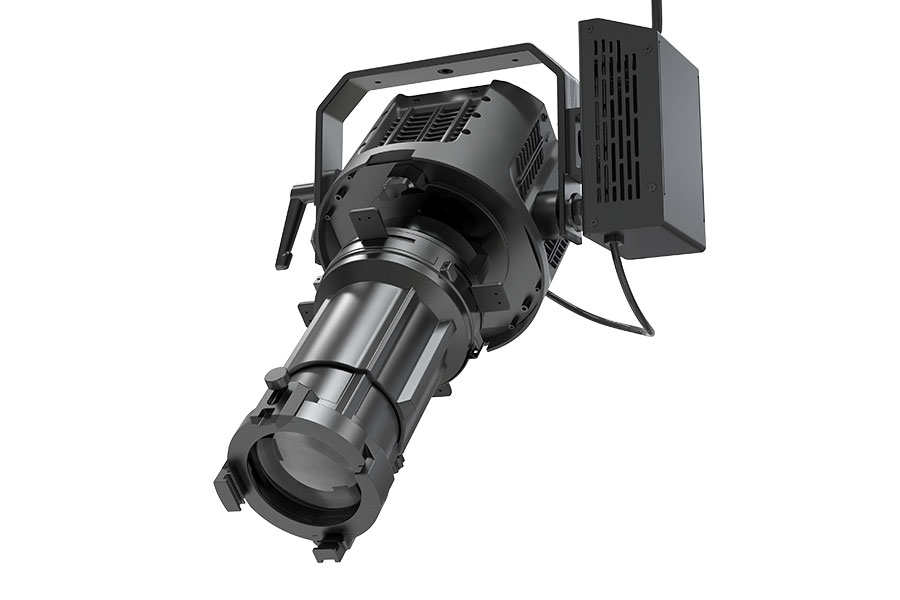

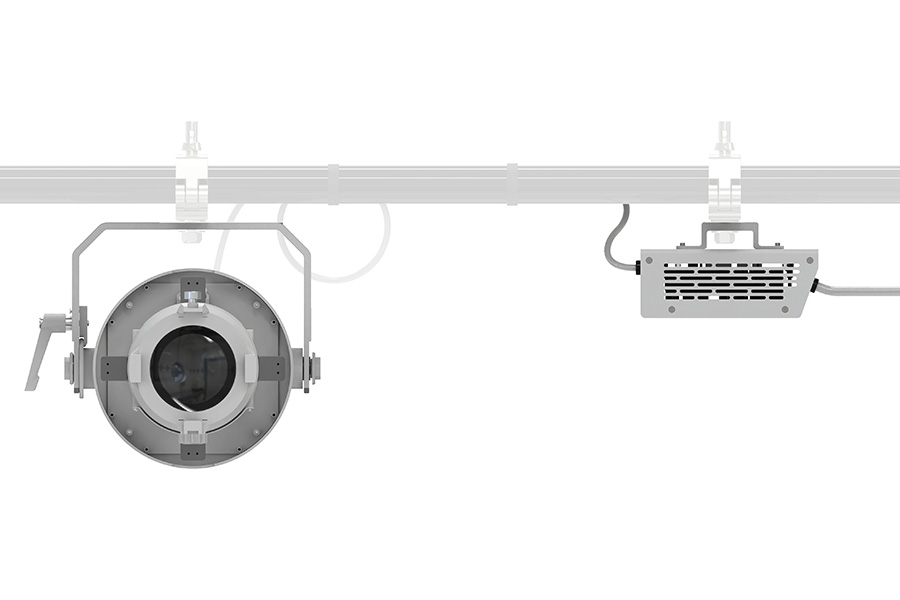

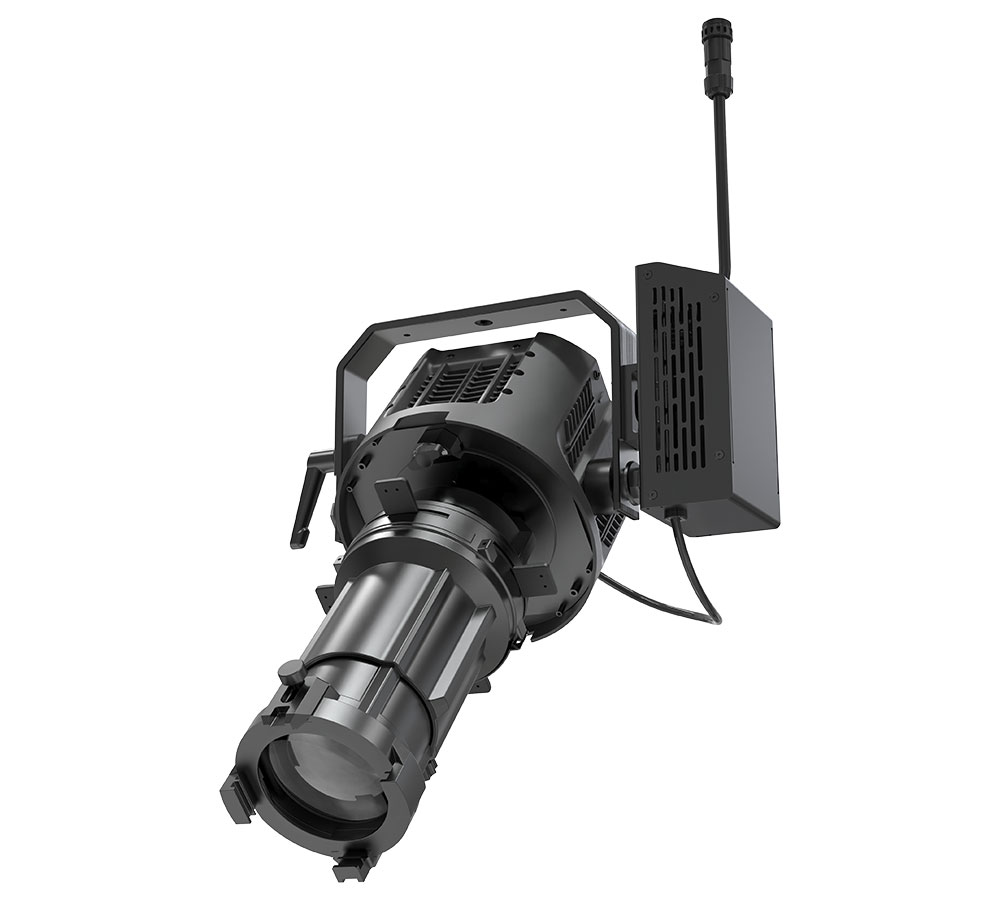

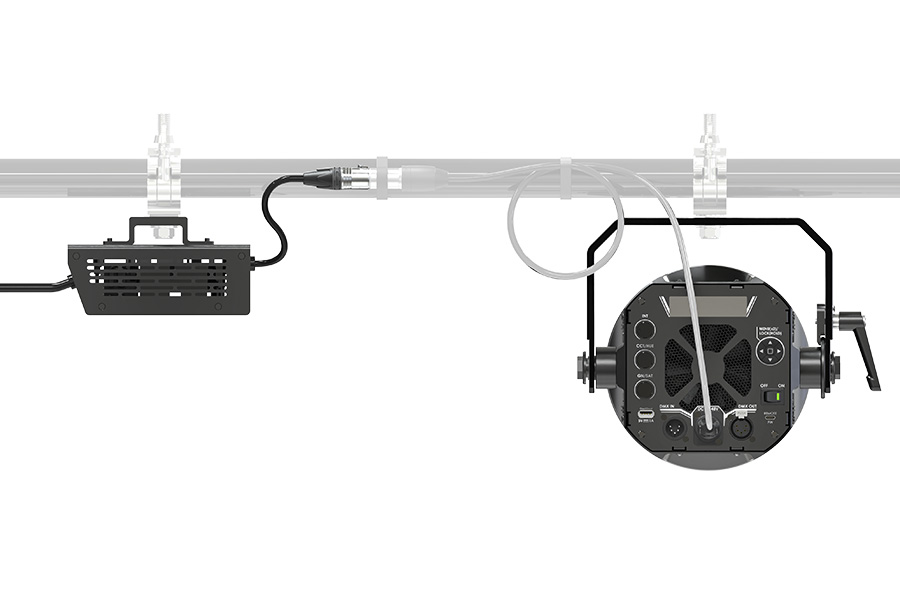

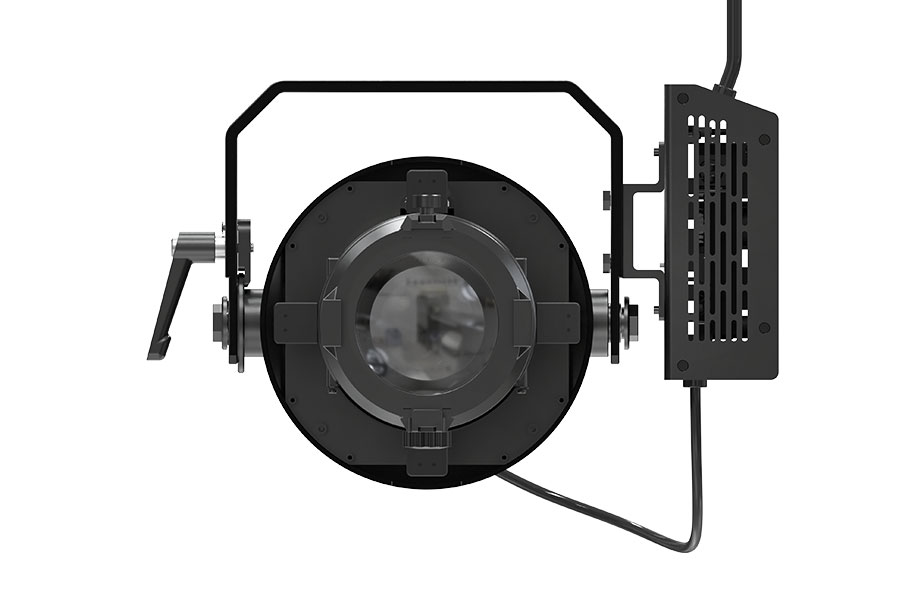

Clamp Type

ACCESSORIES
