MOTOK40

3600W Motorized Punch Light

3600W Color, 15K Tungsten Equivalent
DMX Motorized 540° Pan/300° Tilt
IP Rated Rain Resistant
20+ Stops of Dynamic Range
Fiilex MOTOK40

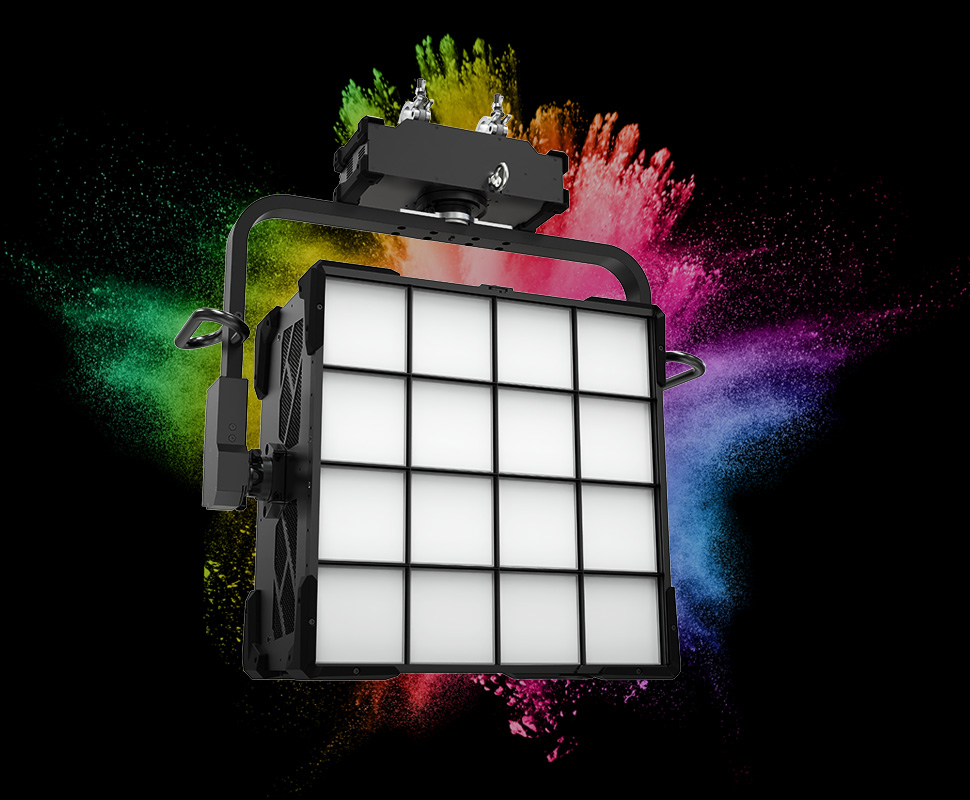

Fiilex’s MOTOK40 is a 3600W moving-head LED punch light built for film, live events, and virtual sets. it delivers tunable CCT (2000K–10000K), CRI >95, and precise green/magenta adjustment for consistent, cinema-quality output. The fixture supports rich color rendering across HSI, RGBW, and CIExy modes, with smooth 100–0% flicker-free dimming. it’s ready for outdoor use. Interchangeable lenses and slide-in accessories offer flexible beam shaping, while the motorized yoke provides 540° pan / 300° tilt with 16-bit control. Effects like lightning and fire are supported via multi-pixel mode. Compatible with DMX, RDM, sACN, Art-Net, and wireless LumenRadio CRMX TimoTwo.

Request More Info



All fields are required for submitting this request


Name*
Email*
Phone*
City*
State/Province*
Country*
You are interested in Fiilex products, because you are *
Comments*

Experience with Fiilex, Affiliations (Local 728/479/52/873/600 etc), Upcoming Projects.

0 characters entered / Maximum 500 characters.


Enter the displayed 6-character code in the box below
(6 characters, no space in between, not case sensitive.)


Request Product Info: MOTOK40

The above information was sent successfully!

Separator

FIXTURES & KITS

Fiilex MOTOK40
FLXMOTOK40-KIT
Separator

ACCESSORIES

Fiilex K40 Snapbag
FLXMOTOK40-SNAPBAG
Fiilex K40 Snapbag Soft Grid
FLXMOTOK40-SNAPBAG-GRID
Fiilex 12 Degree Fresnel Lens
FLXMOTOK40-FRNL12
(Pack of 16)
Fiilex 18 Degree Fresnel Lens
FLXMOTOK40-FRNL18
(Pack of 16)
Fiilex 30 Degree Fresnel Lens
FLXMOTOK40-FRNL30
(Pack of 16)
Fiilex 50 Degree Fresnel Lens
FLXMOTOK40-FRNL50
(Pack of 16)
Fiilex K40 Heavy Diffusion
FLXMOTOK40-HEAVYDIFF
Fiilex K40 Honeycomb
FLXMOTOK40-HONEYCOMB
Fiilex Fiilex Remote Patcher Utility
FLXRPU
Separator

SPECIFICATIONS

Beam Angle12° (18°/30°/50° with Fresnel+Snoot+Diffuser)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming Modes / CurveSmooth, Sharp / Linear, Gamma
Light EngineDiCon Dense Matrix LED
Power ConsumptionSingle AC Input 1600W/Dual AC Input 3600W
BTUs/hour12283 (BTUs/hour) max
AC Input100 - 240V AC, 18A Max Each
DMX/RDM Port XLR-5
Wireless Control Integrated LumenRadio CRMX TimoTwo
Ethernet sACN, ArtNet (via etherCON)
USB Power Output 5V/1A (via USB-A)
USB-C Interface FW Update / Remote
Weight120lbs/54.5kg
Size (L x W x H)36.4" x 40.7" x 16.1" / 92.4cm x 103.5cm x 41.0cm
Pan / Tilt540° pan and 300° tilt
Mount TypeIncluded 1.8-2” pipe clamp or Junior stud 1-⅛” male (28mm)
IP RatingIP-X4 (water-resistant)
Thermal DesignControllable fan (OFF / SILENT / AUTO / FULL)
Operating Temperature32 - 104ºF / 0 - 40ºC
