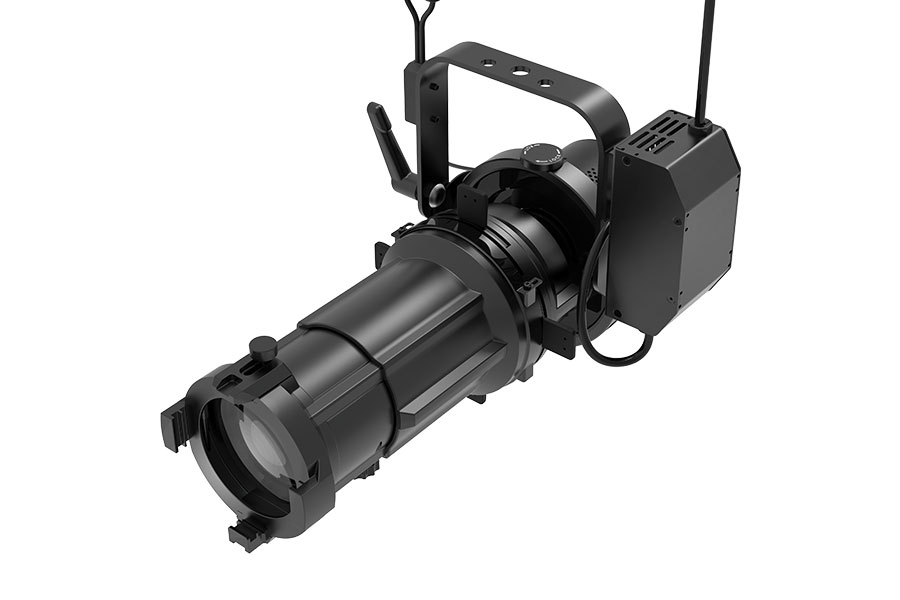

P3L Ellipsoidal Light
90W LED / 19° / 36°
Model No: FLXP3L19-
Model No: FLXP3L36-
DOWNLOADS
P3L Data Sheet - 19° (Track Mounting)
LAST UPDATED:MAR 22,2023
P3L Data Sheet - 19° (Clamp Mounting)LAST UPDATED:MAR 22,2023
P3L Data Sheet - 36° (Track Mounting)LAST UPDATED:MAR 22,2023
P3L Data Sheet - 36° (Clamp Mounting)LAST UPDATED:MAR 22,2023
Separator
SPECIFICATIONS
| Beam Angle | 19° / 36° |
| CRI | 95 typical (in CCT Mode) |
| TLCI | 90 typical (in CCT Mode) |
| Dimming | 100% - 0% flicker free |
| Power Draw | 90W max |
| AC Input | 100 - 240V AC, 50 - 60Hz |
| Remote Control | DMX 512 |
| Cooling | Fan Cooled |
| Acoustic Noise | 17 dBA |
| Operating Temp. | 32 - 104ºF (0 - 40ºC) |
| Fixture Weight | Track Type: 6.3lb (~2.8kg) / Clamp Type: 7.0lb (~3.2kg) |
| Supply Weight | Track Type: 1.0lb (~0.5kg) / Clamp Type: 1.1lb (~0.5kg) |
| Gobo Size | Dia. 78mm / Max. Image 55mm / Max. Thickness 1mm |
Separator

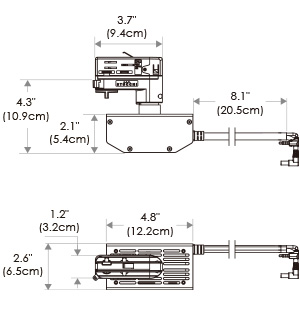

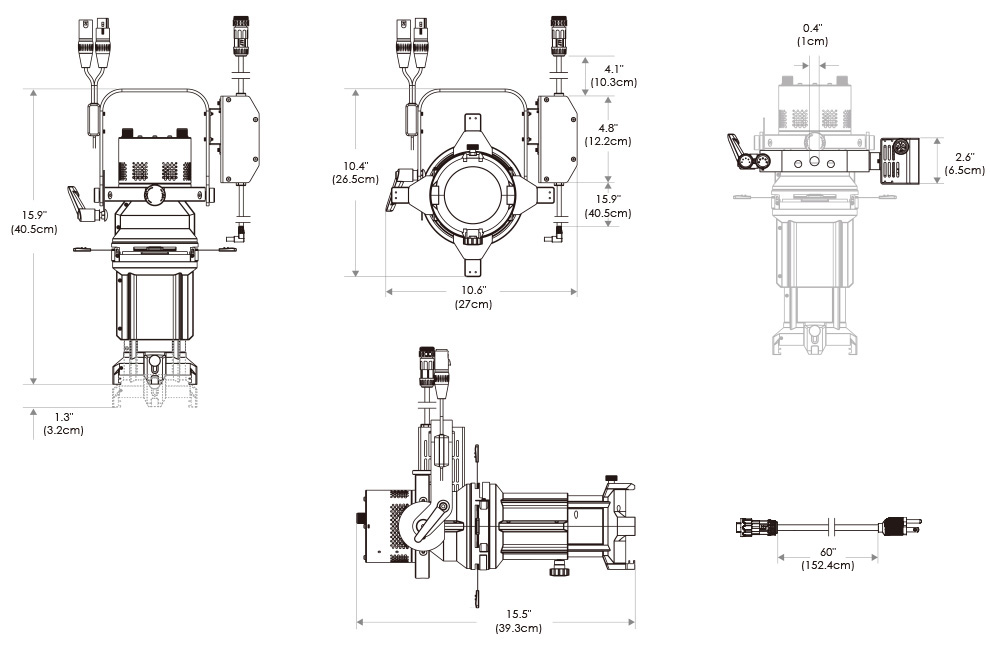

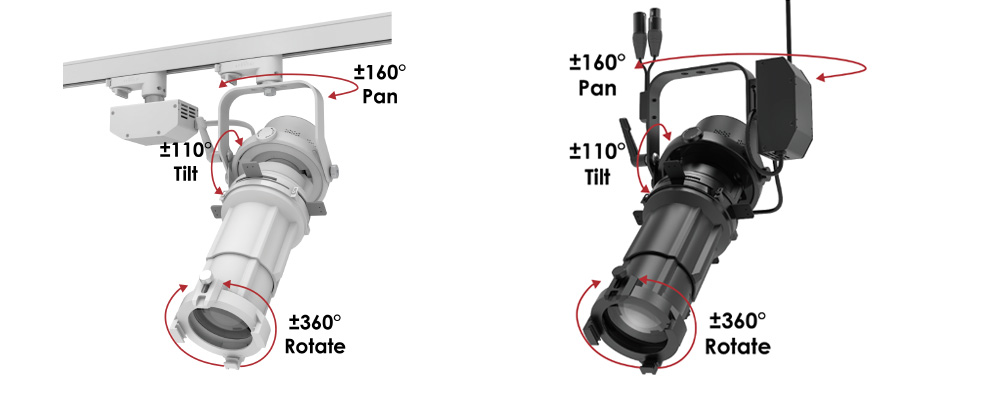

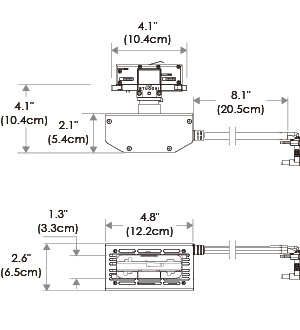

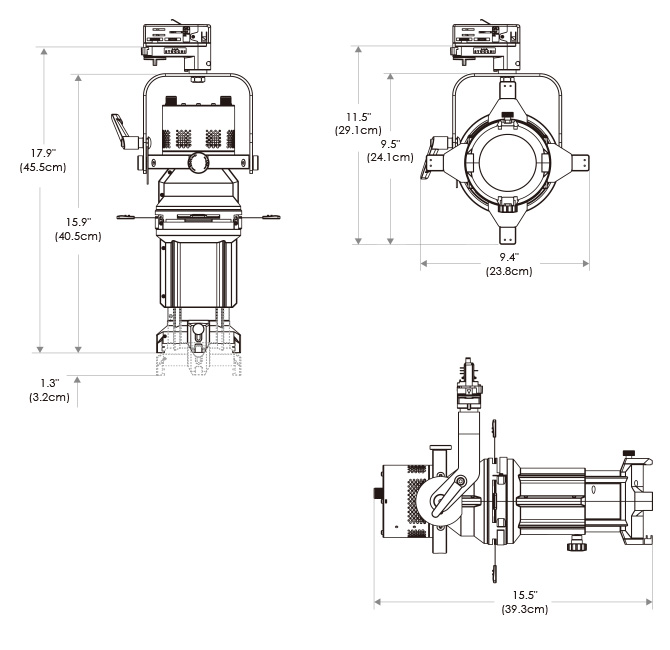

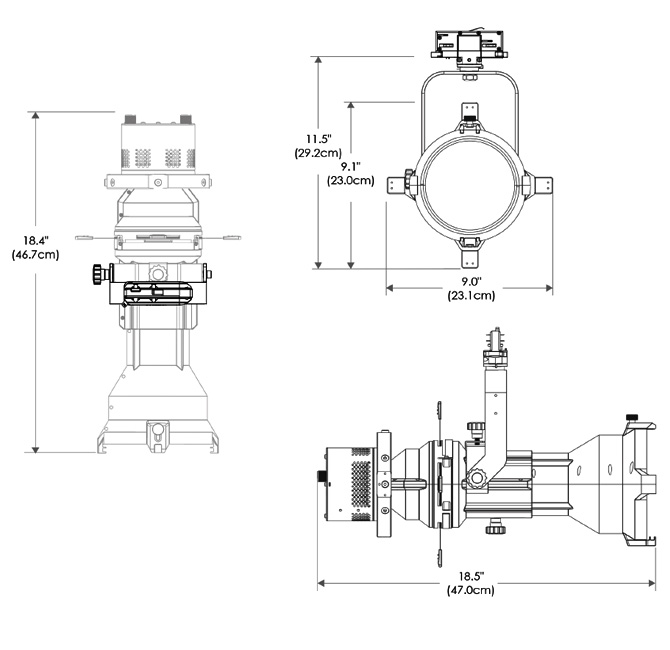

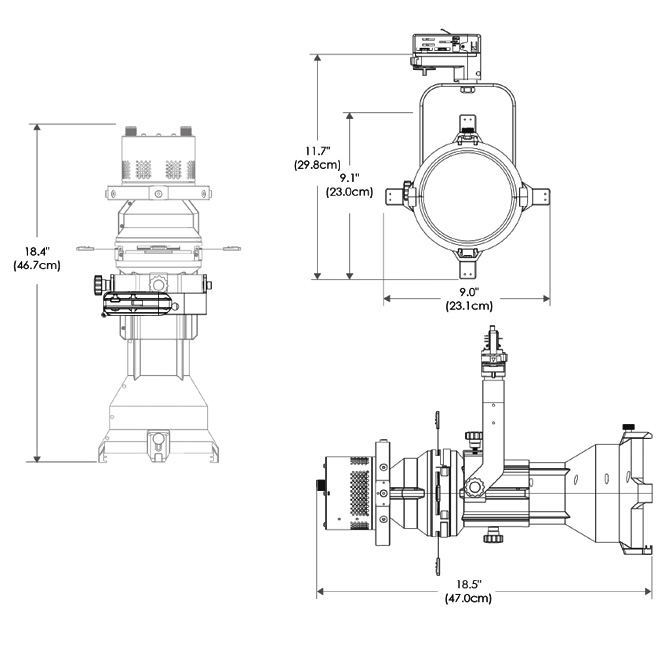

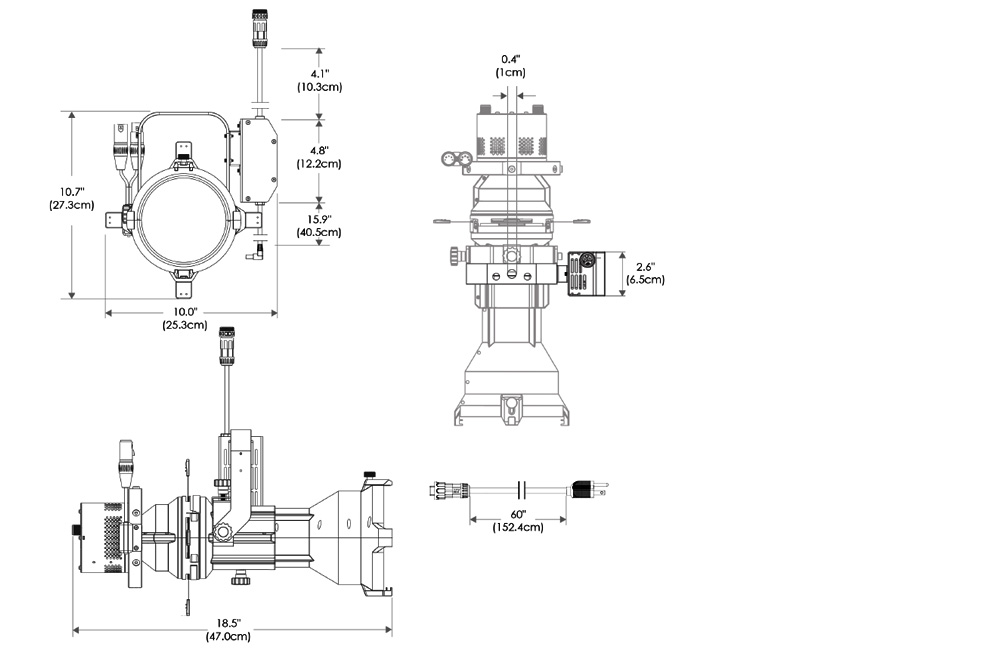

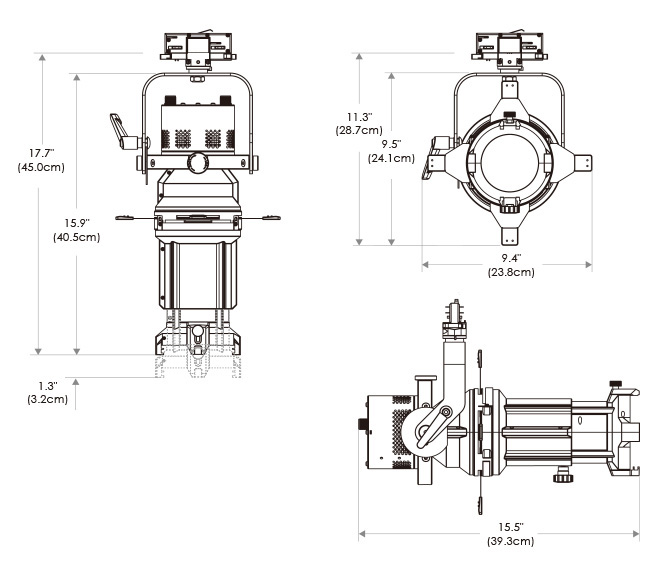

MECHANICAL FIGURES
Separator

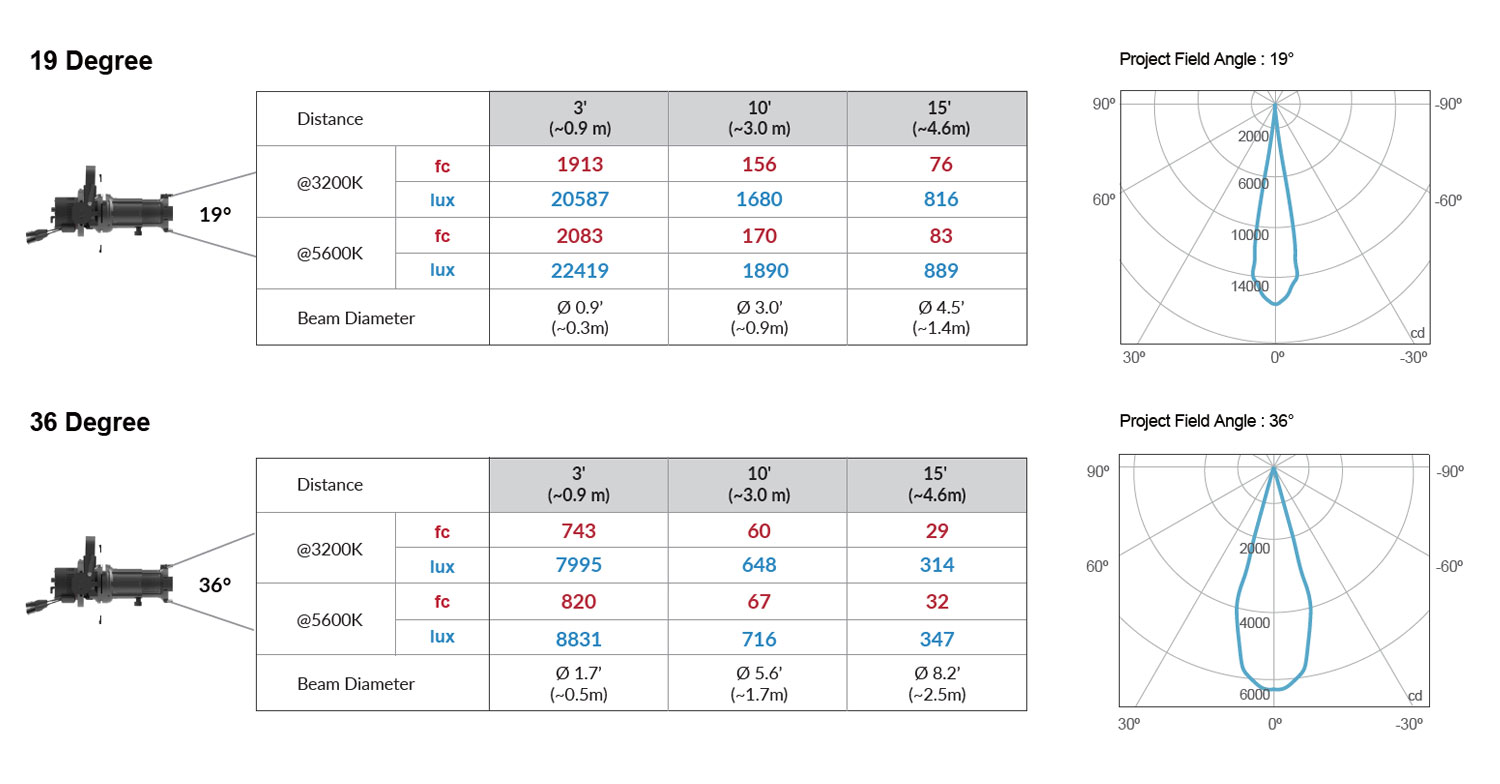

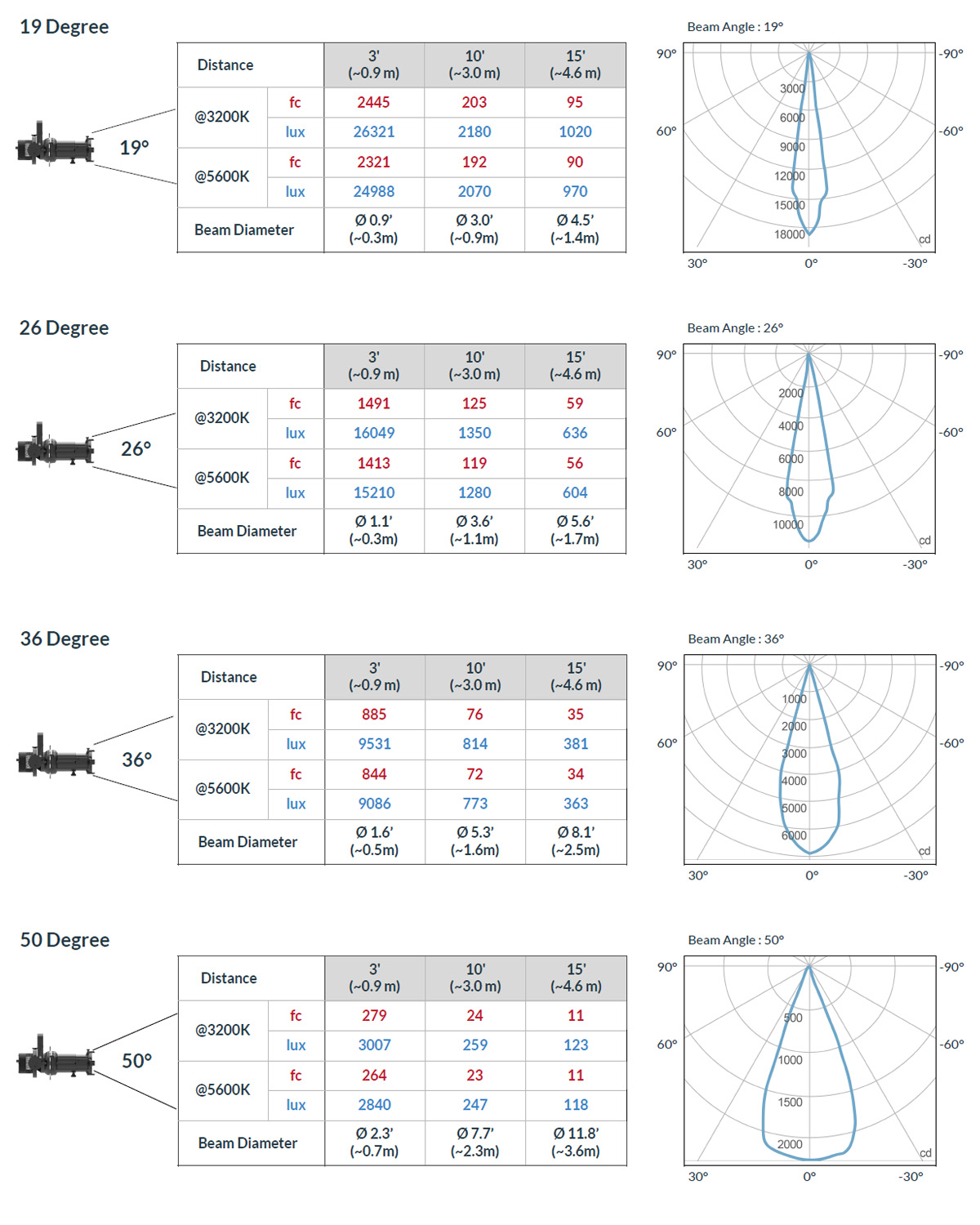

PHOTOMETRIC DATA
Separator
ITEMS INCLUDED

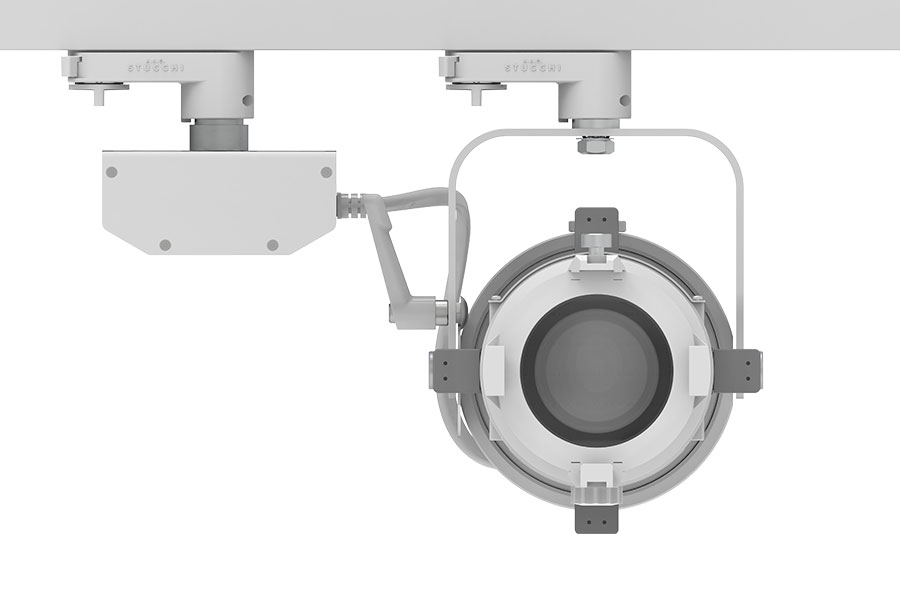

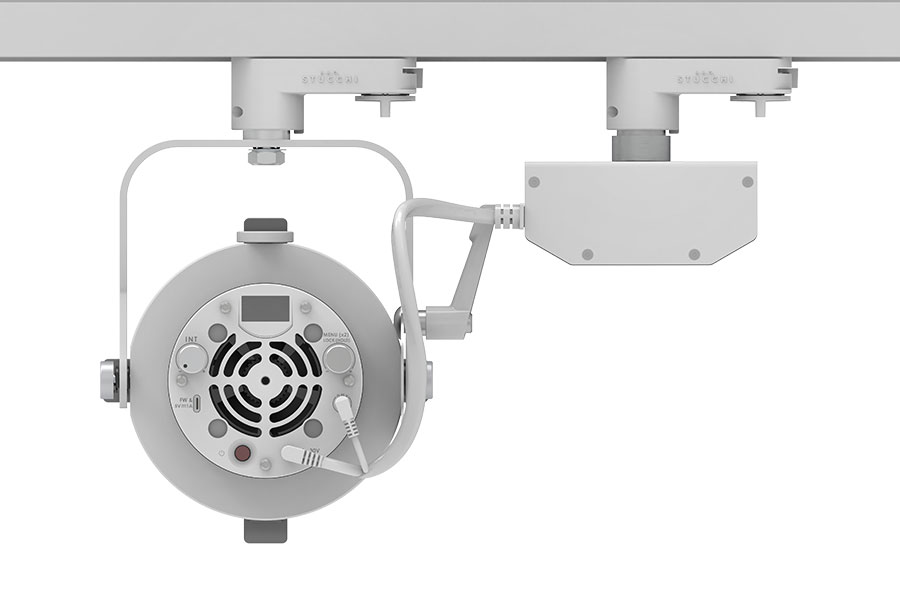

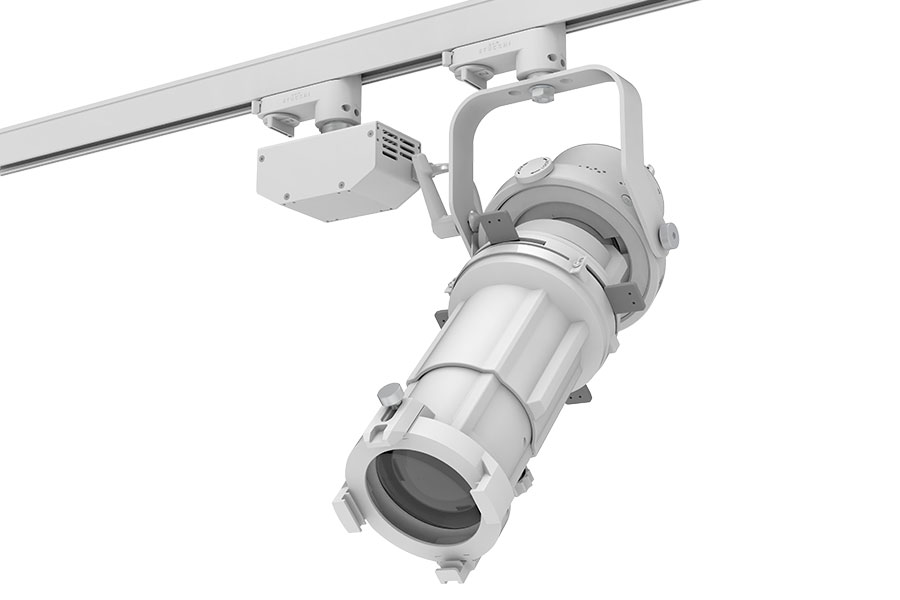

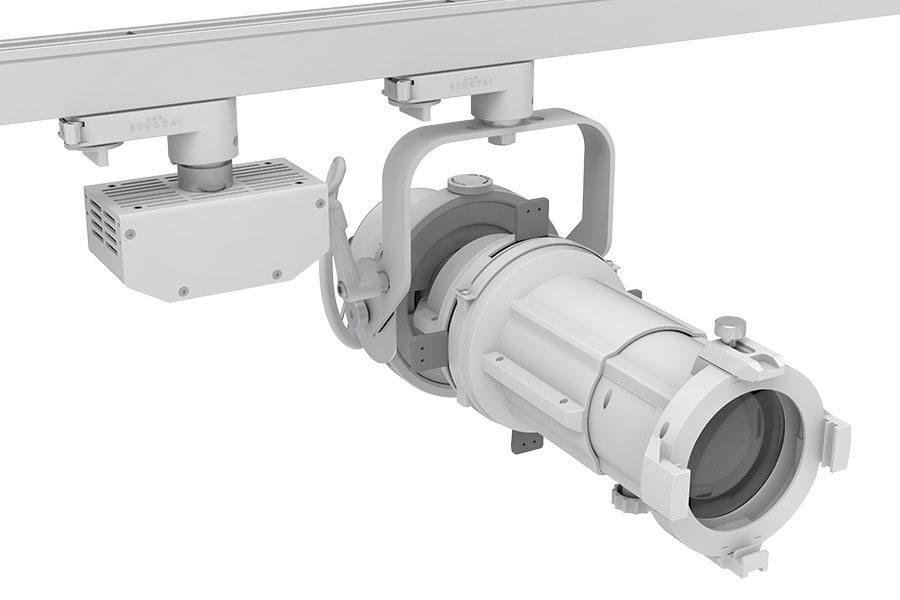

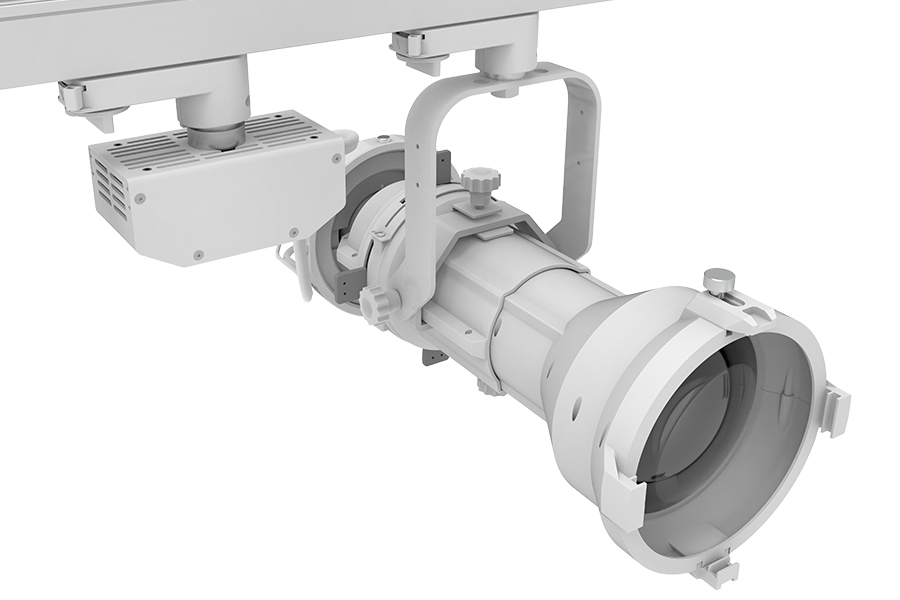

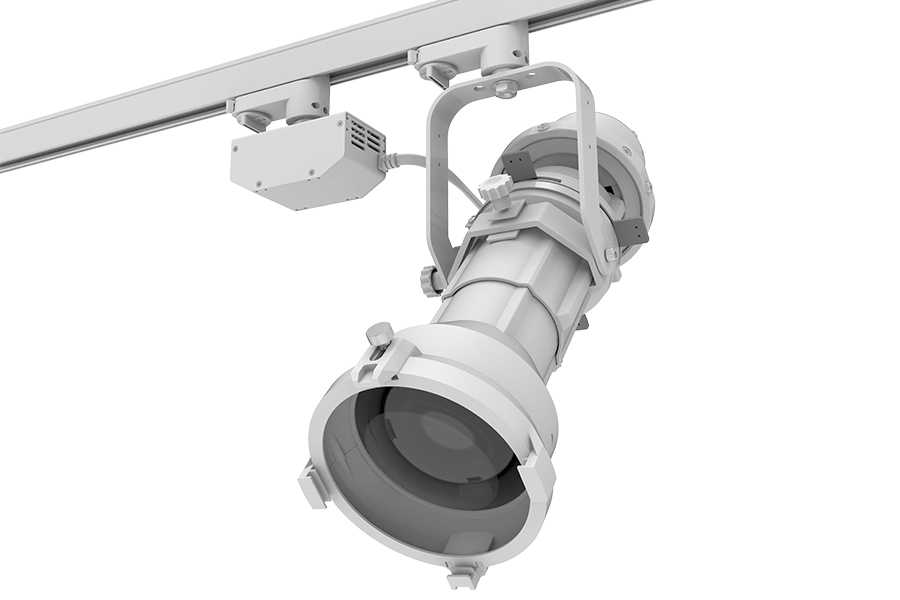

Track Type

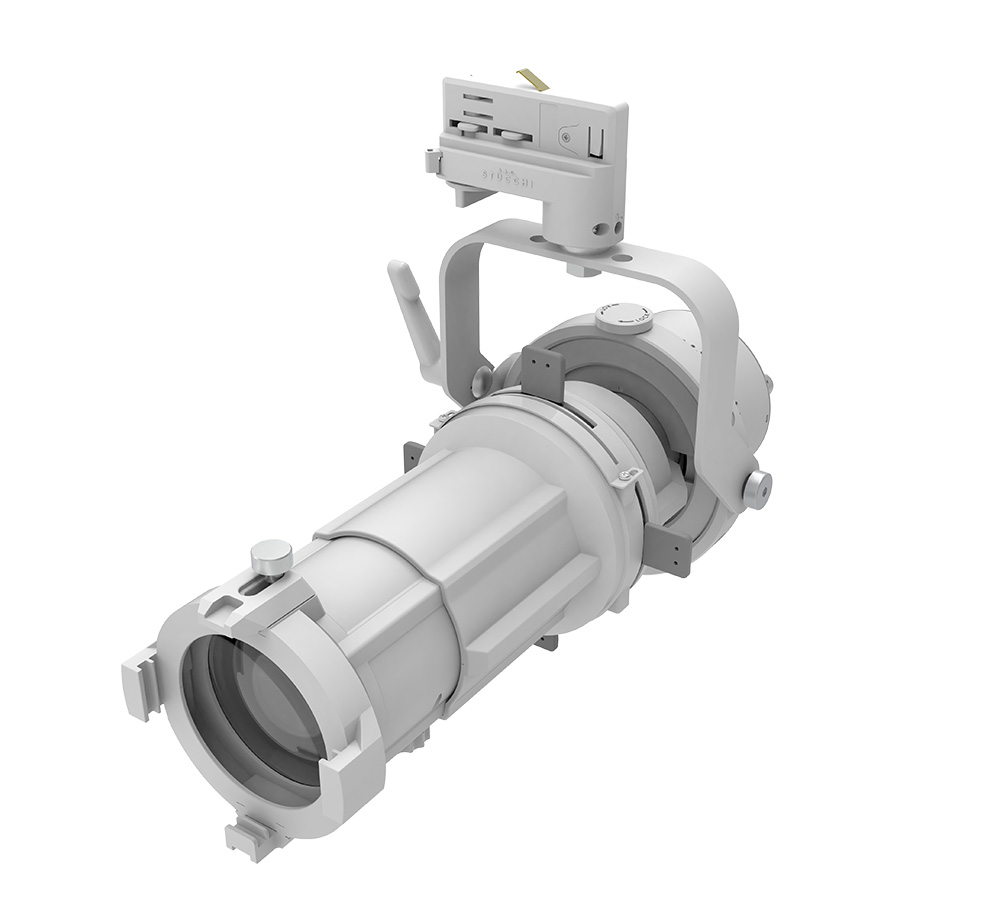

P3L (Track) fixture
90W, 24V, TEX Track Mount PSU

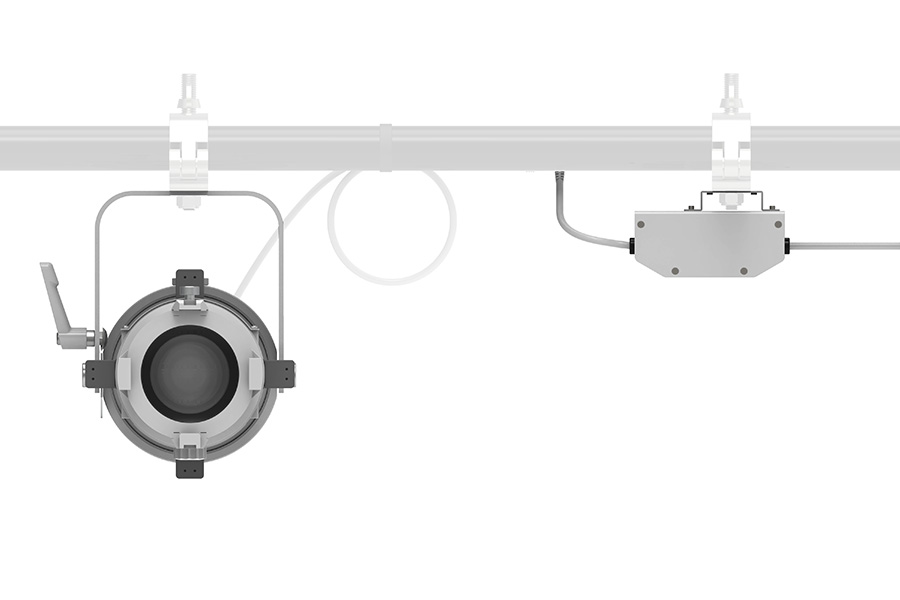

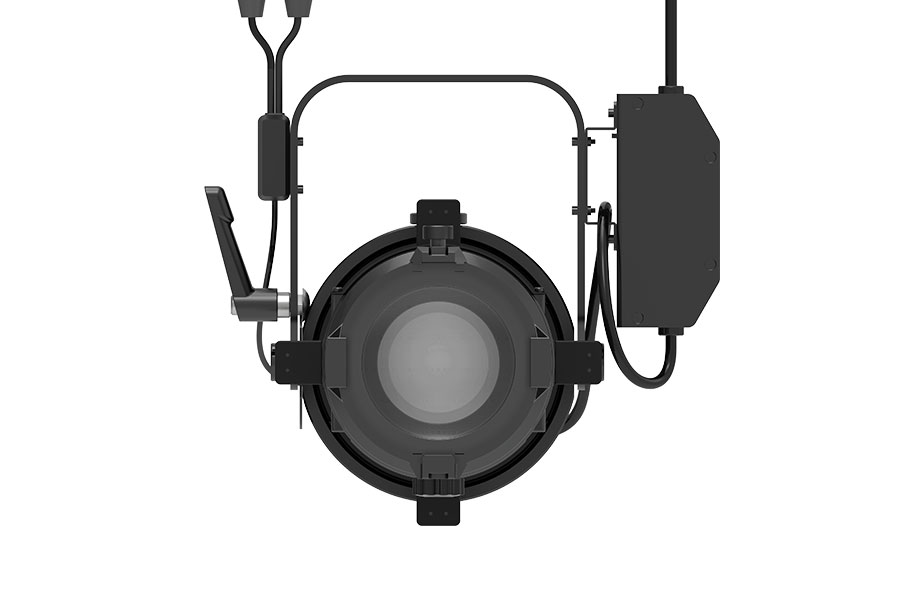

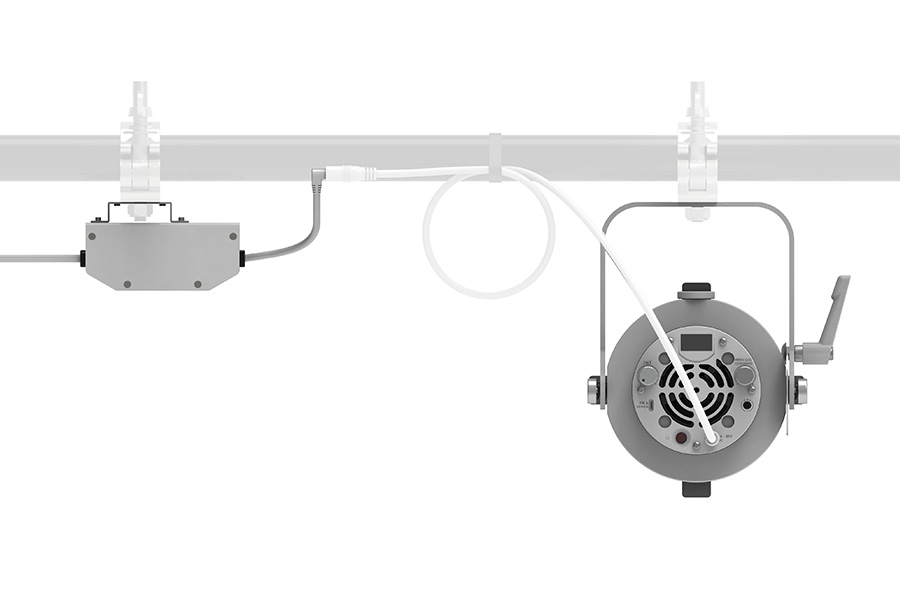

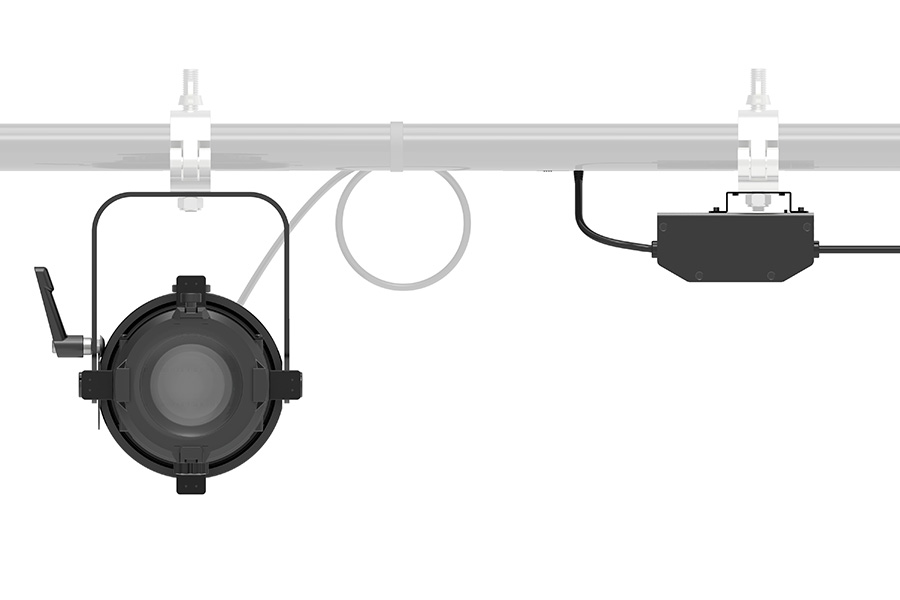

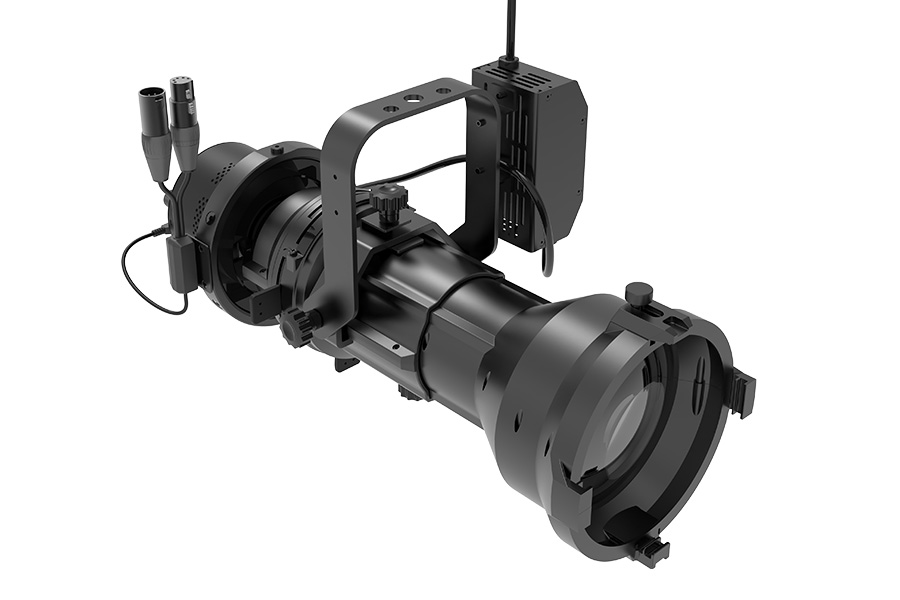

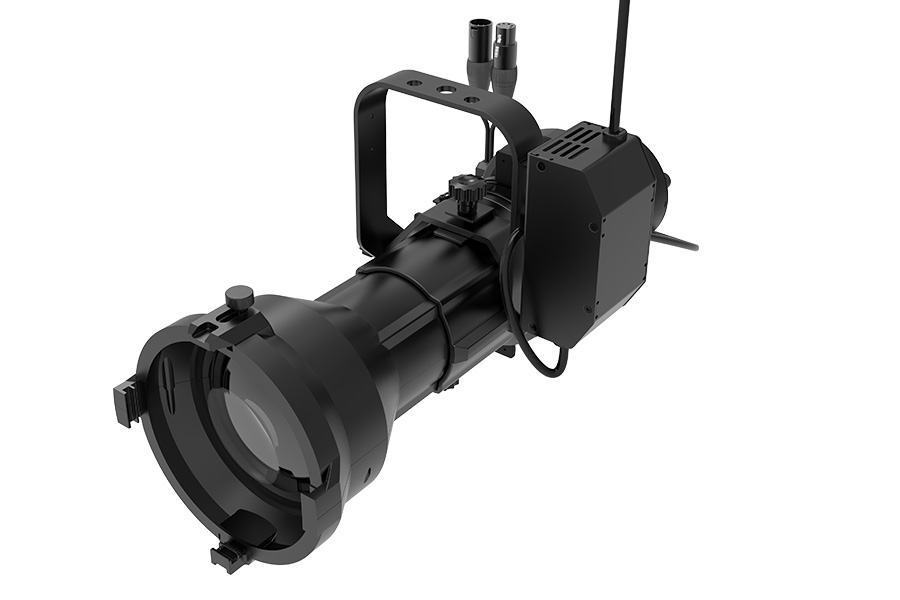

Clamp Type

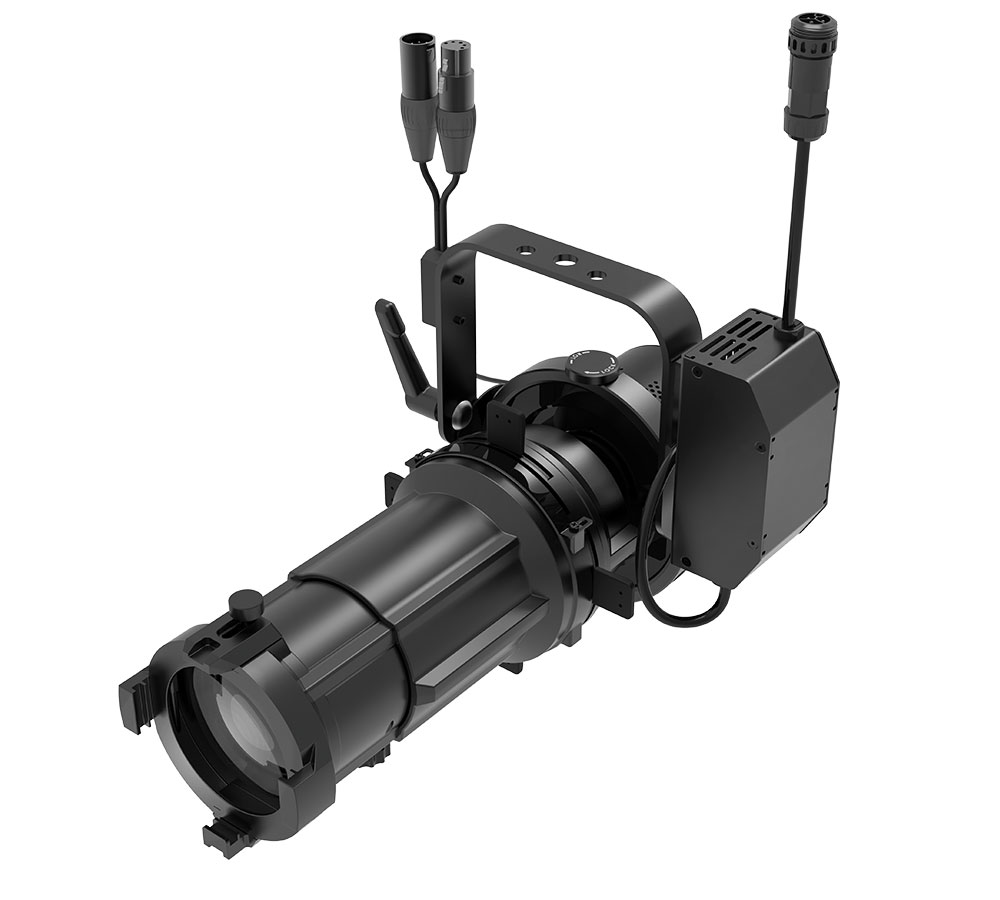

P3L (Clamp) fixture
90W V-Mount PSU
Separator
ACCESSORIES
FLXG3CLR-GELHOLDER
FLXG3CLR-GOBOHOLDER
FLXG3CLR-GOBOSET
FLXG3CLR-IRIS
FLXCNTL-DMX6
Separator
TRACK PARTS
90W, 24V, TEX Track Mount PSU
Mount to TEX Track
DMX Track
