Model No: FLXV3CLR

V3 COLOR Viewing Lamp

  • Fiilex V3 COLOR Viewing Lamp
  • Fiilex V3 COLOR Viewing Lamp
  • Fiilex V3 COLOR Viewing Lamp
  • Fiilex V3 COLOR Viewing Lamp
  • Fiilex V3 COLOR Viewing Lamp
  • Fiilex V3 COLOR Viewing Lamp
Fiilex V3 COLOR Viewing Lamp
Fiilex V3 COLOR Viewing Lamp
Fiilex V3 COLOR Viewing Lamp
Fiilex V3 COLOR Viewing Lamp
Fiilex V3 COLOR Viewing Lamp
Fiilex V3 COLOR Viewing Lamp
  • Overview
  • Specifications & Downloads
  • Photometric & Spectral Data
The V3 is an extremely versatile LED task lamp designed for professionals who require color-critical illumination. The V3 draws 90W of power to produce LED output greater than a traditional 300W bulb. Its color temperature can be adjusted from 2000-10000K, which covers the standard D65 (6500K), D50 (5000K), Middle Warm (4000K), and Warm (3000K) settings. The LED also outputs rich, full color light, from saturated reds to pastels. The color rendering is carefully calibrated at all settings, giving the light an average CRI of 95. The fixture is also dimmable from 100-0%, with accurate light quality maintained throughout the intensity range.

FEATURES

  • 2000 - 10000K continuous CCT tuning
  • 300W tungsten output (90W draw)
  • High CRI values at every color temperature
  • Does not emit UV light/radiation
  • Dims to 0% without flicker or color shift
  • Precise color calibration for consistent quality

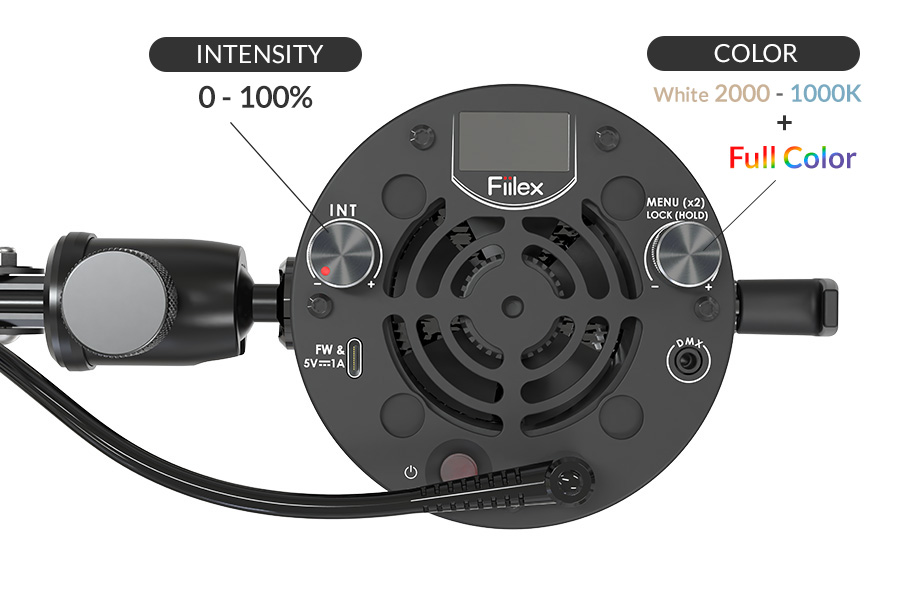

  • OLED display for monitoring settings
  • Quiet and cool to the touch
  • Water resistant (IP-X4)
  • Ergonomically designed
  • Versatile mounting

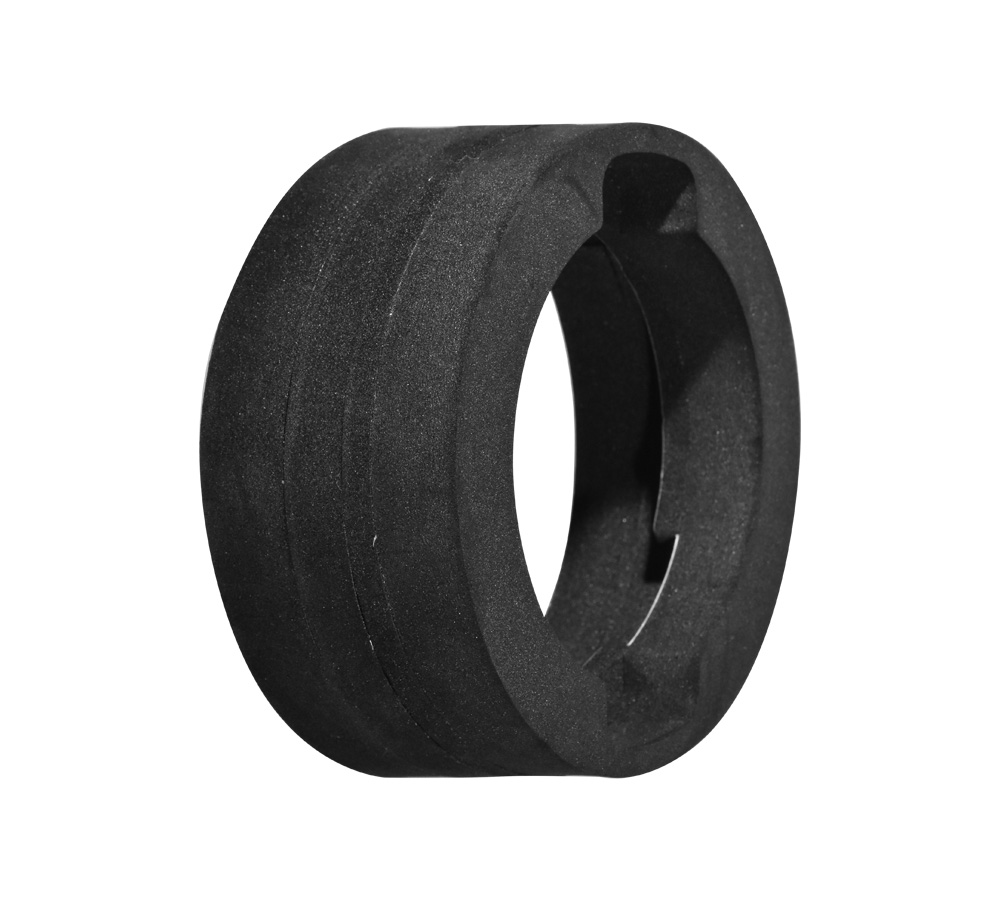

  • Optional light modifiers available
Separator

ITEMS INCLUDED

Fiilex V3 COLOR Viewing Lamp

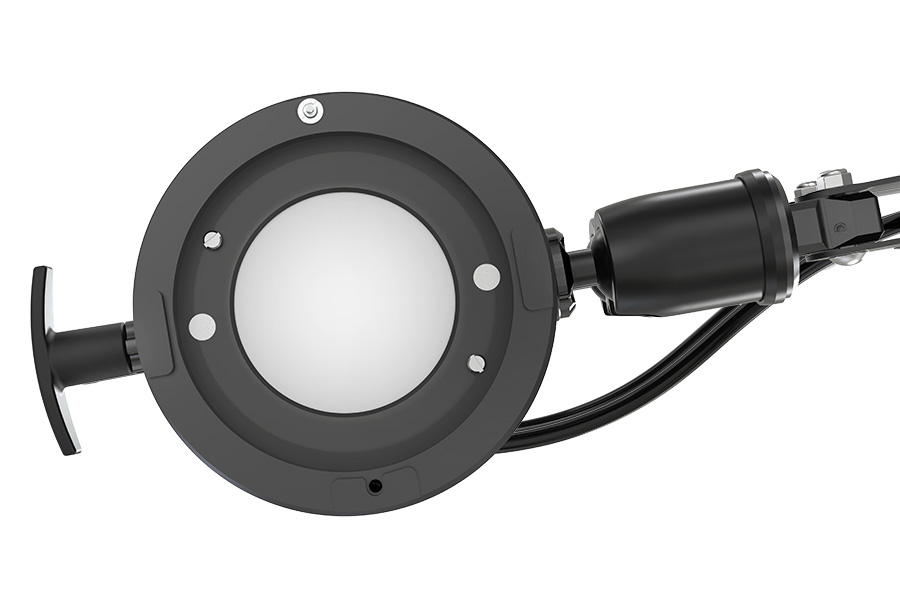

(1) V3 Light Head

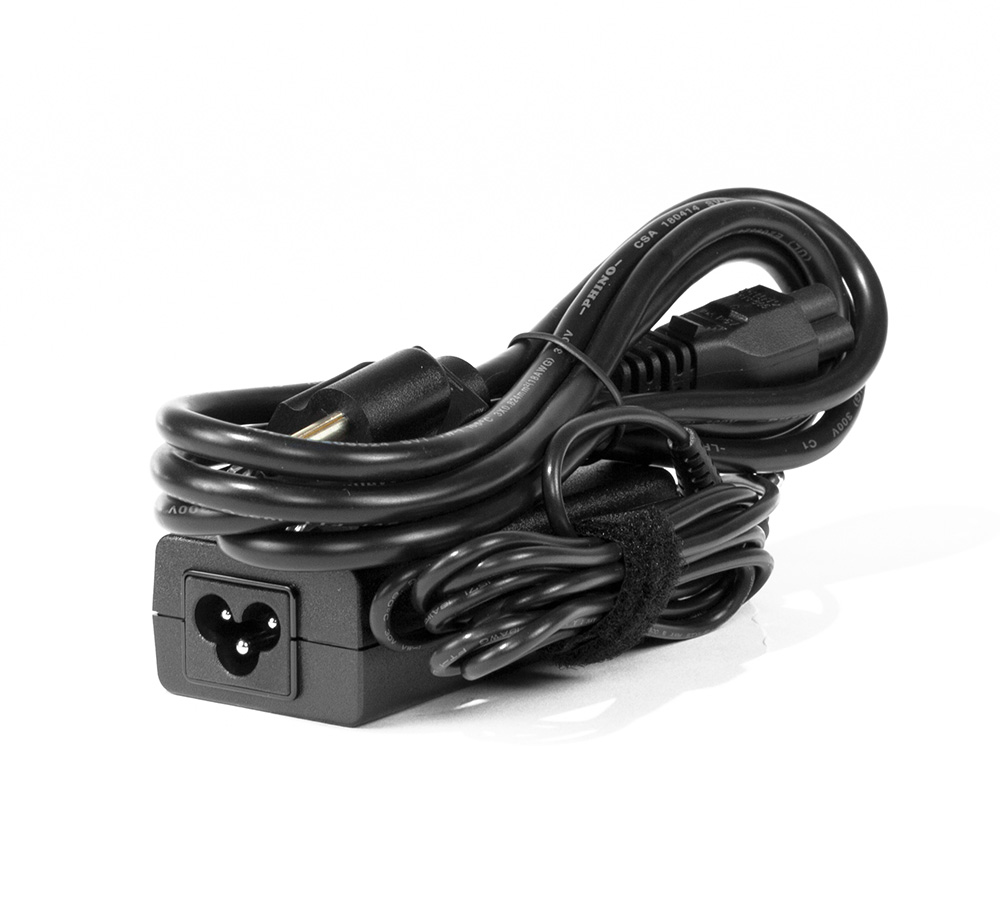

(1) 90W AC/DC Power Adapter

ACCESSORIES

Fiilex P3 Dome Diffuser 1-Stop
FLXP3CLR-DOME1S
Fiilex P3 Fresnel Lens 20deg
FLXP3CLR-FRNL20

SPECIFICATIONS

Beam Angle60° (20° with fresnel accessory)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI95 / 90 typical
Control ModesEZ CCT, EZ HSI, EZ RGBW, EZ CIExy, and more
Dimming100% - 0% flicker free
Light EngineDiCon Dense Matrix LED
DC Input90W max
AC Input14 - 30V DC (via 5.5mm x 2.5mm Barrel)
Power Adapter 100 - 240V AC, 50 ~ 60Hz (via 5.5mm x 2.5mm Barrel)
Display Type OLED
Weight7.5 lbs / 3.4 kg
Light Size (L x W x H)5.5" x 4.0" x 4.7" / 14.0cm x 10.2cm x 12.0cm

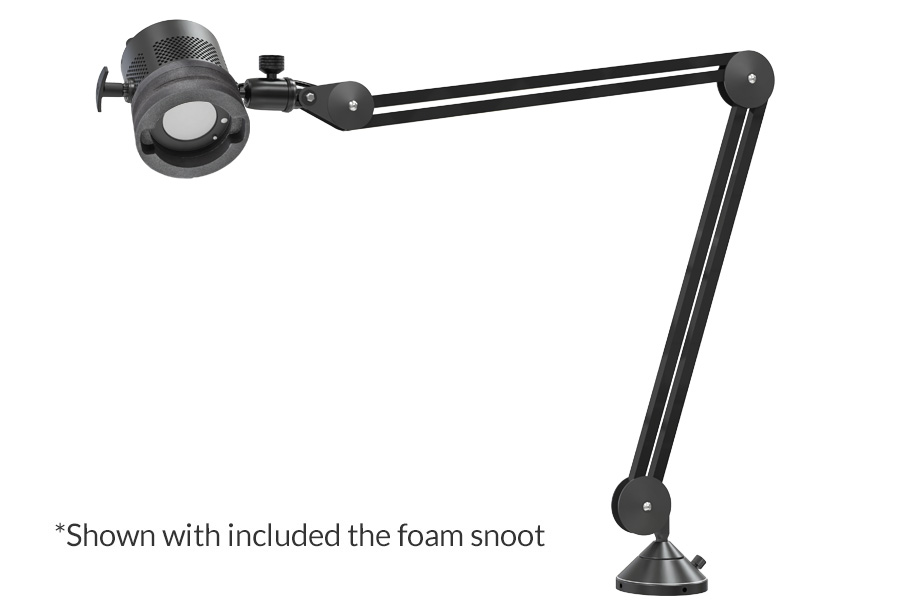

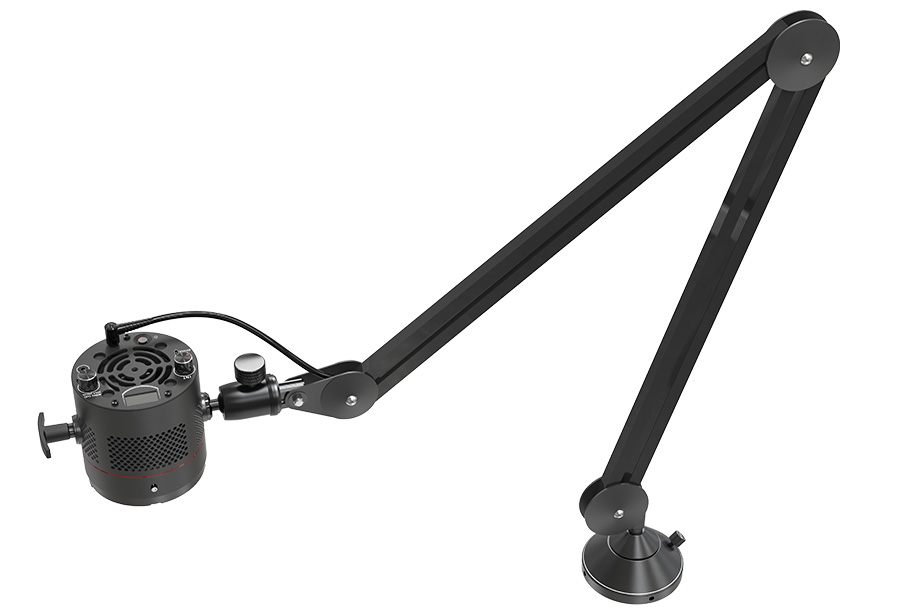

Arm SizeFully extended: 36.2" / 91.9cm

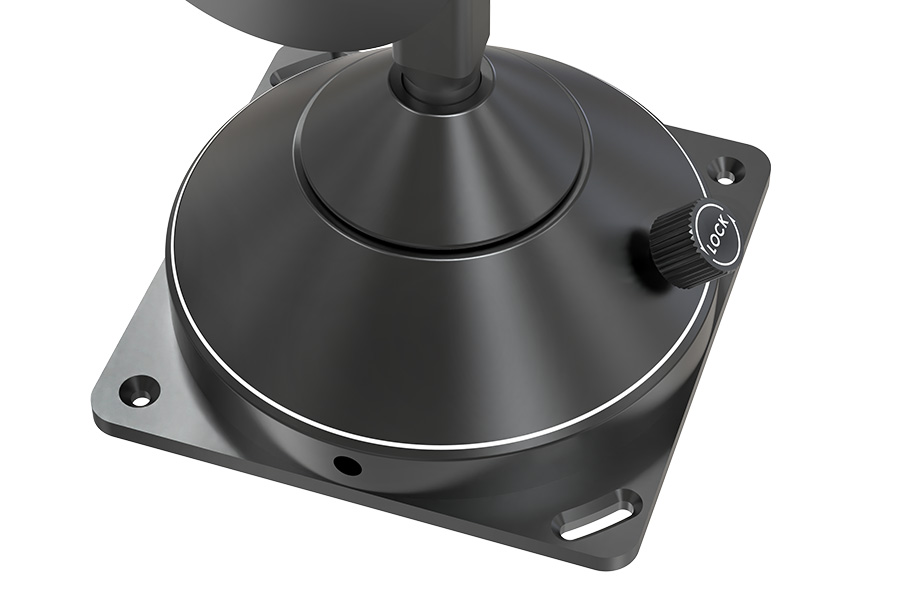

Base: W3.2" x H7.6" / W8.1cm x H19.3cm

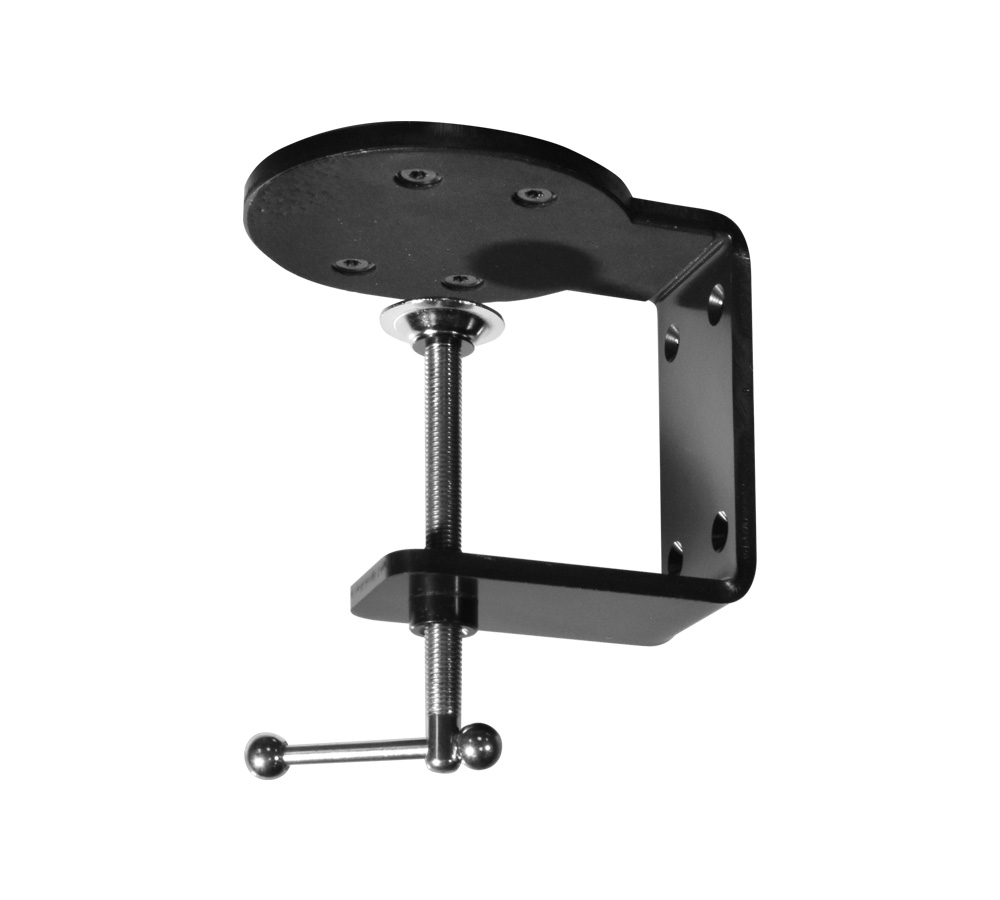

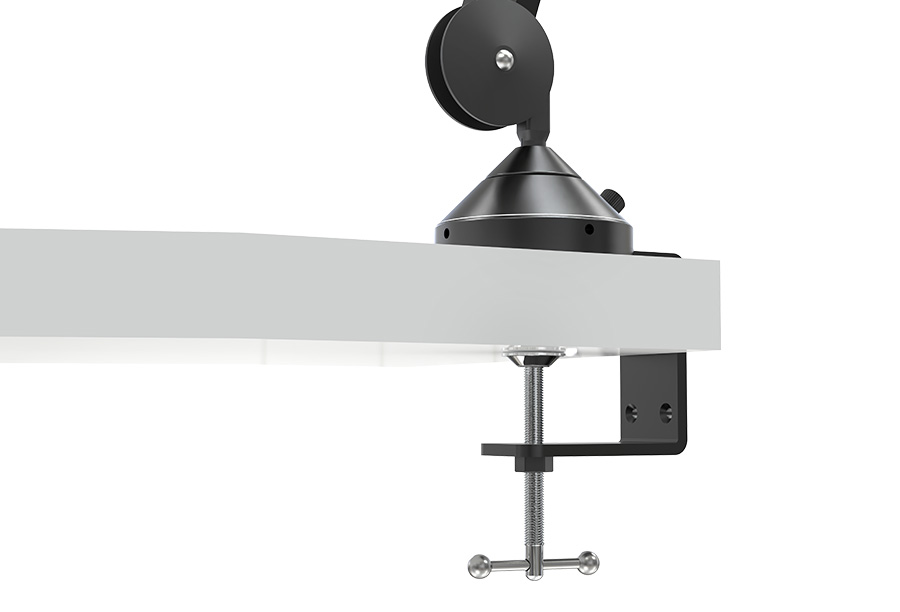

Mount StyleTable mount (0 - 2.8" gap)

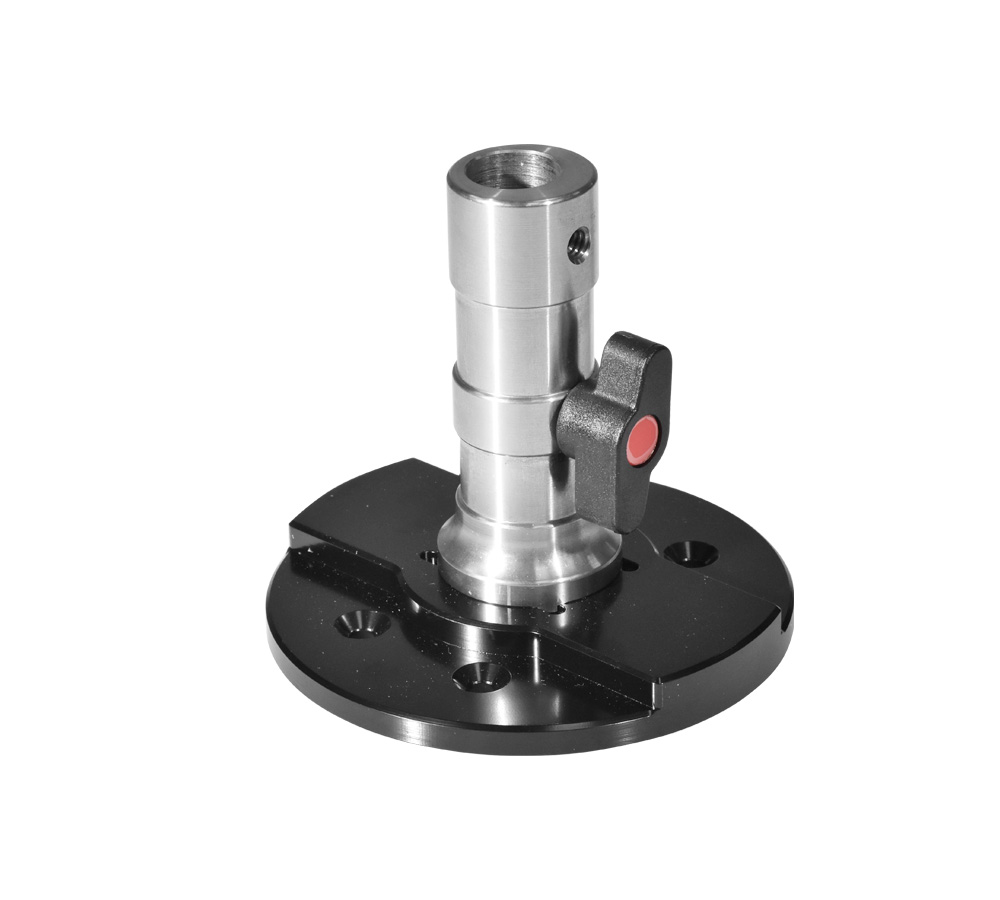

Base adapter (fits baby 5/8" & junior 1-1/8" studs)
Thermal DesignAdvanced vapor cooling system (fan cooled)
Acoustic Noise22.7dB (professional recording studio level)
Operating Temperature 32-104ºF / 0-40ºC

Separator

DOWNLOADS

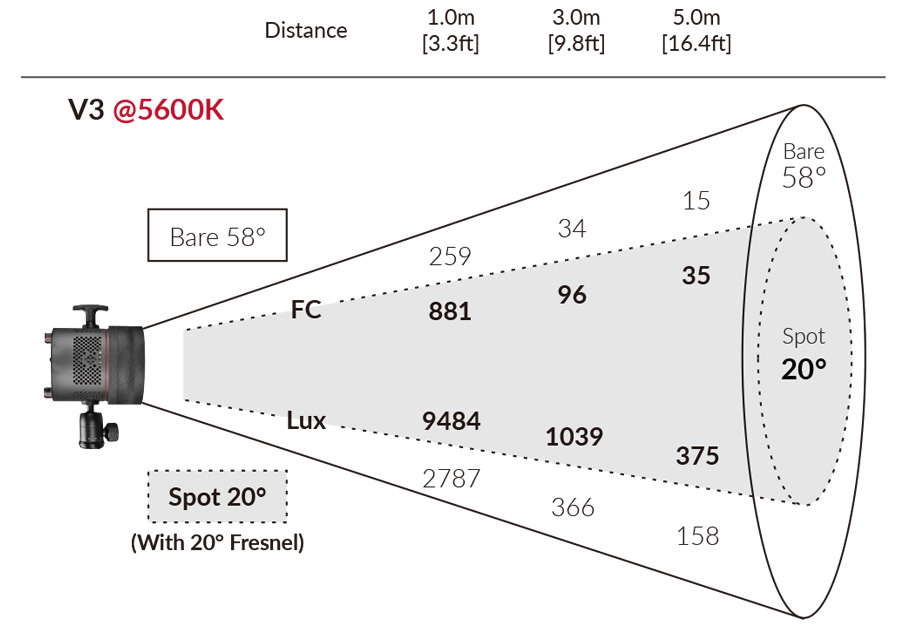

PHOTOMETRIC DATA
