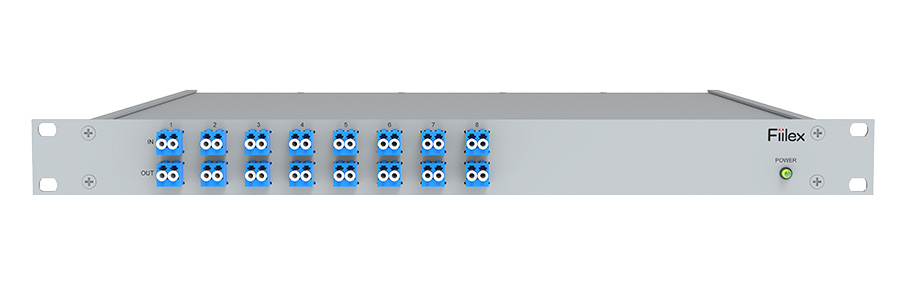

FIBER SHUTTER SWITCH

8 DUPLEX CHANNELS - SINGLEMODE

Model No: FSS-8SD-LC/UPC*8 CH Duplex Shutter Switch (*Other connector options are available.)

  • Fiilex 8 Duplex Channels
  • Fiilex 8 Duplex Channels
  • Fiilex 8 Duplex Channels
Fiilex 8 Duplex Channels
Fiilex 8 Duplex Channels
Fiilex 8 Duplex Channels

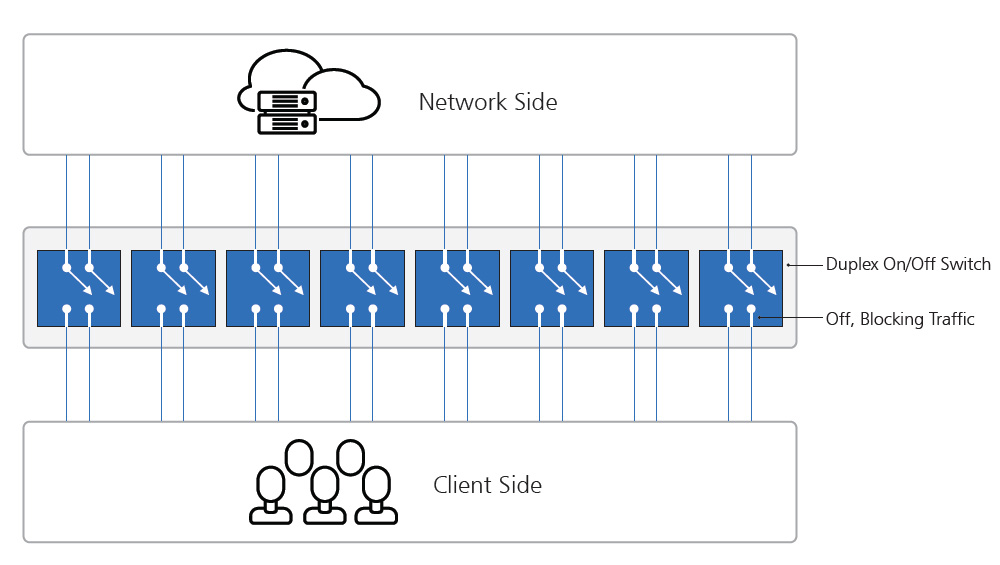

The Fiilex Fiber Shutter Switch offers an efficient optical solution for shuttering fiber communication links in inactive meeting rooms or company network connections outside regular hours. Remotely being able to make or break network connectors using On/Off switches helps to keep valuable resources isolated against unwarranted traffic or connections. The Shutter Switch operates in two modes. When electrically powered on the switches permit the passage of network traffic. Once electrical power is removed, the switches disrupt the connection link, blocking the traffic flow.

Separator

FEATURES

  • All Optical Switch
  • Manual Control
  • Low Loss
  • Fast Switching Speed
  • Dark Fiber Switching
  • MEMS Durability

Data Sheet
 More Info
Separator

SPECIFICATIONS

Operating λ (nm)1260 – 1650
Insertion Loss (dB)1.5 max.
Off-State Isolation (dB)50 min.
Switching Time (ms)25 max.
Fiber TypeSinglemode, Duplex Fiber
Switch TechnologyMEMS
Switch TypeNon-Blocking, Bidirectional
Operating Temp (°C)10 to 50
Storage Temp (°C)-20 to 60

OPERATION

Power On
12 VDC		All switches optically on, able to pass traffic.
Power Off
0 VDC		All switches optically off, traffic blocked.

ELECTRICAL

Power Supply12 VDC +/- 1 VDC
Power Consumption (W)25 typ.

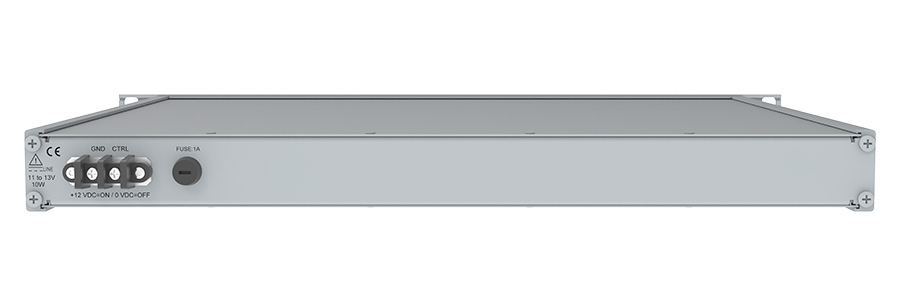

ConnectorTerminal Block, with 2 terminals.

Separator

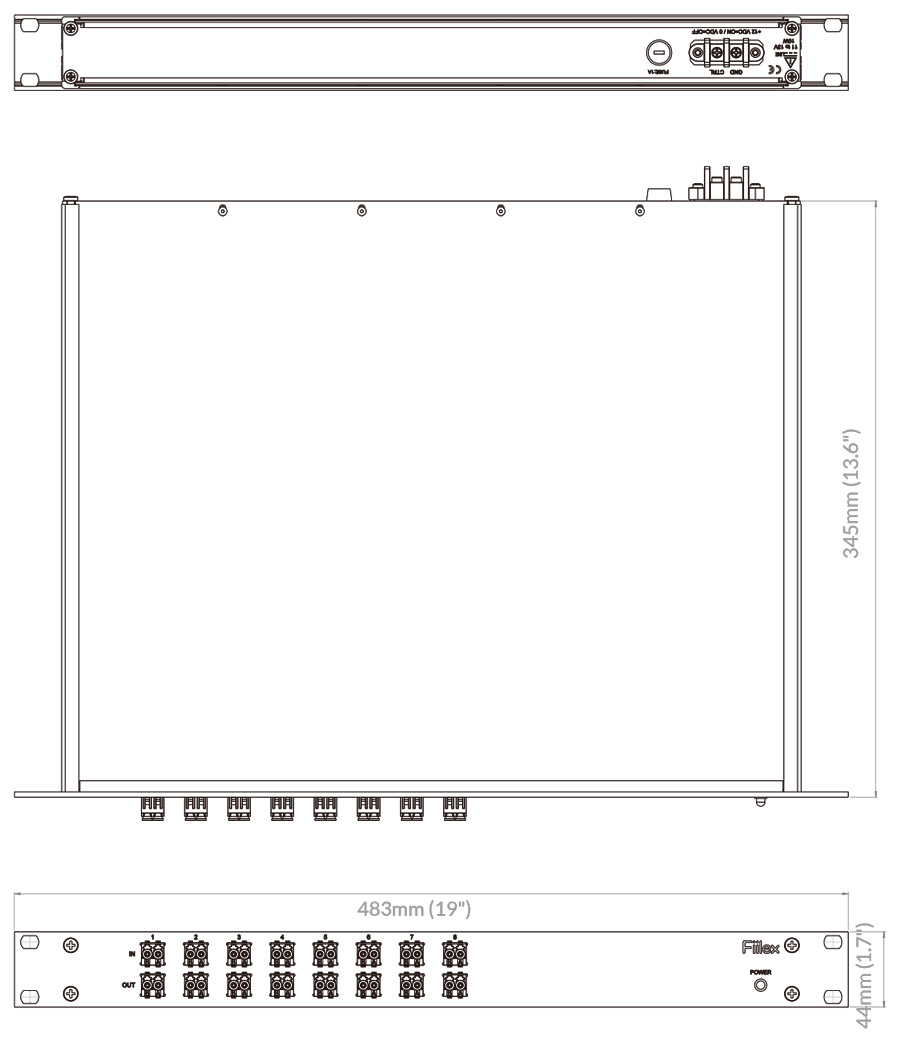

MECHANICAL
