175W LED Ellipsoidal

175W Cinema-Grade Full-Color Ellipsoidal Light
360° Rotating Barrel
Razor-Sharp Cuts
19°, 36°, 50° Lens Tube Options

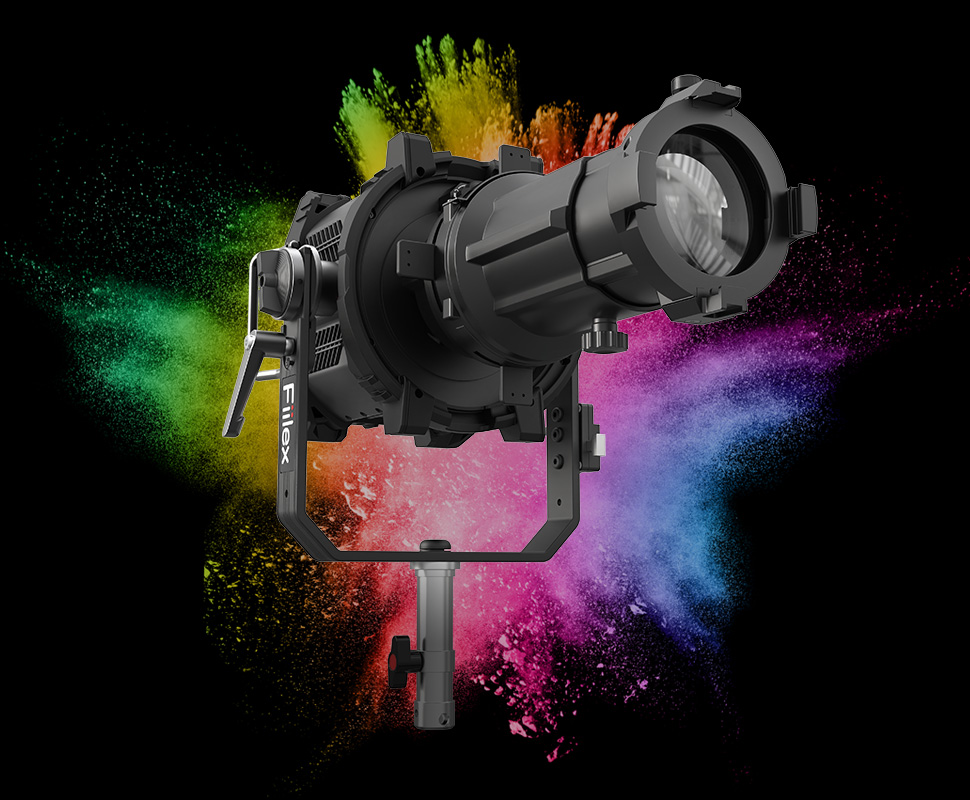

Fiilex G6 COLOR

The G6 COLOR is a cinema-grade 175W full-color ellipsoidal with razor-sharp cuts and a unique 360 degree rotating barrel. The beam produced from either the 19°, 36° or 50° lens tube is uniform and bright without any color fringing. At the core of the G6 is the latest generation of Fiilex's patented Dense Matrix LED that adheres to the highest standards of dimming and color calibration. The G6 ellipsoidal gives you full control and can be rigged and hidden anywhere on production sets.

Request More Info



All fields are required for submitting this request


Name*
Email*
Phone*
City*
State/Province*
Country*
You are interested in Fiilex products, because you are *
Comments*

Experience with Fiilex, Affiliations (Local 728/479/52/873/600 etc), Upcoming Projects.

0 characters entered / Maximum 500 characters.


Enter the displayed 6-character code in the box below
(6 characters, no space in between, not case sensitive.)


Request Product Info: G6 COLOR

The above information was sent successfully!

Separator

FIXTURES & KITS

Fiilex G6 COLOR
FLXG6CLR
Fiilex G6 COLOR H1 Kit
FLXG6CLR-H1-KIT
Separator

ACCESSORIES

Fiilex RPU
FLXRPU-HEAD

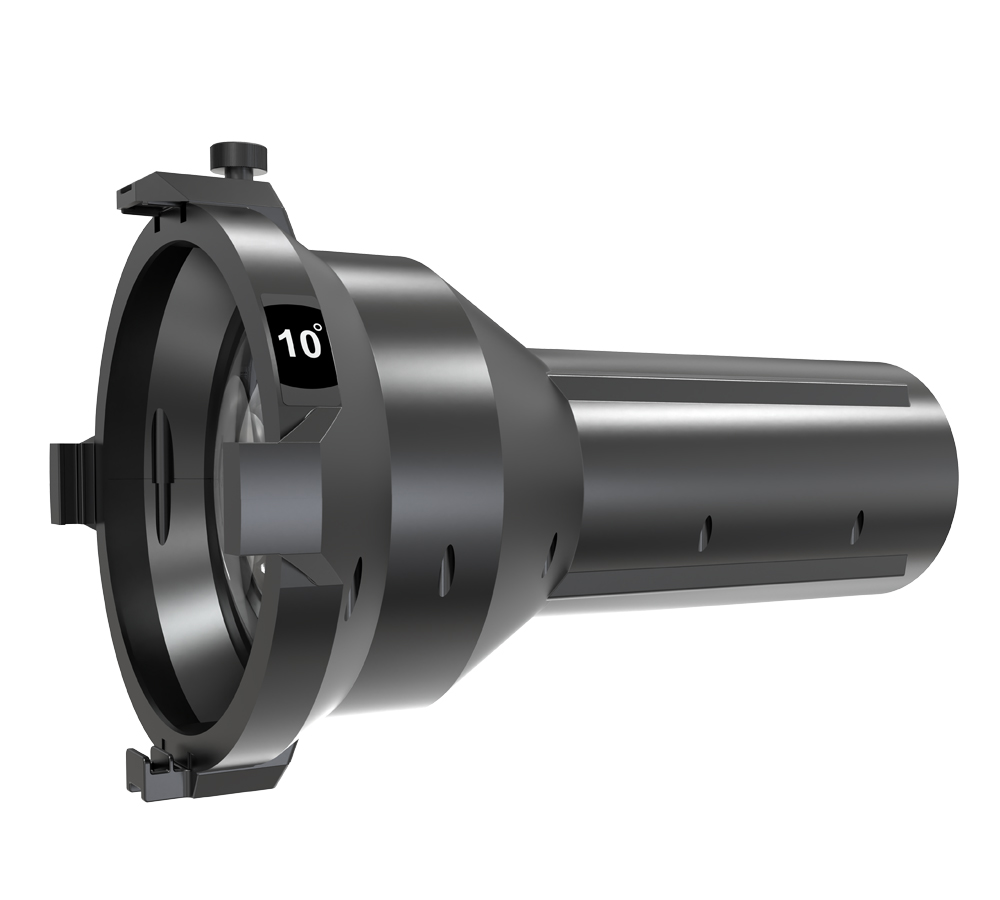

Fiilex Leko Lens Tube 19deg
FLXG6CLR-LEKO19
Fiilex Leko Lens Tube 36deg
FLXG6CLR-LEKO36
Fiilex Leko Lens Tube 50deg
FLXG6CLR-LEKO50

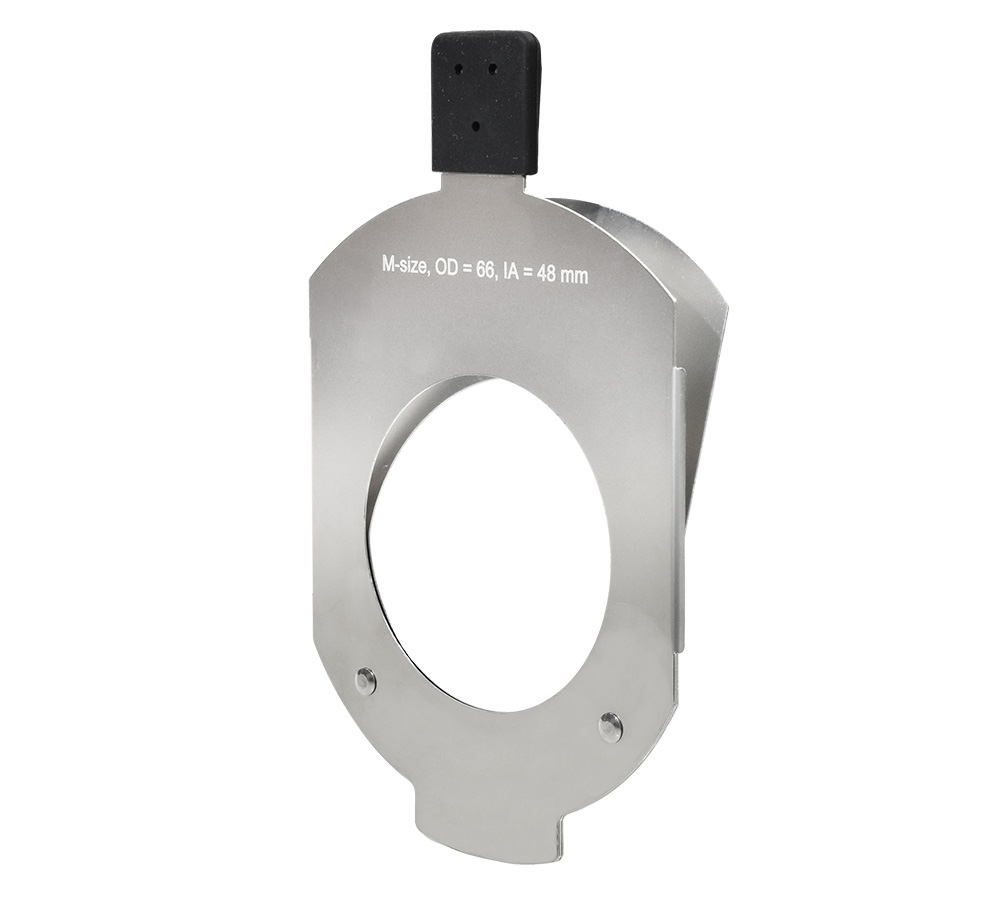

Fiilex Leko Gobo Holder
FLXG6CLR-GOBOHOLDER
Fiilex Leko Gobo Set of 4
FLXG6CLR-GOBOSET

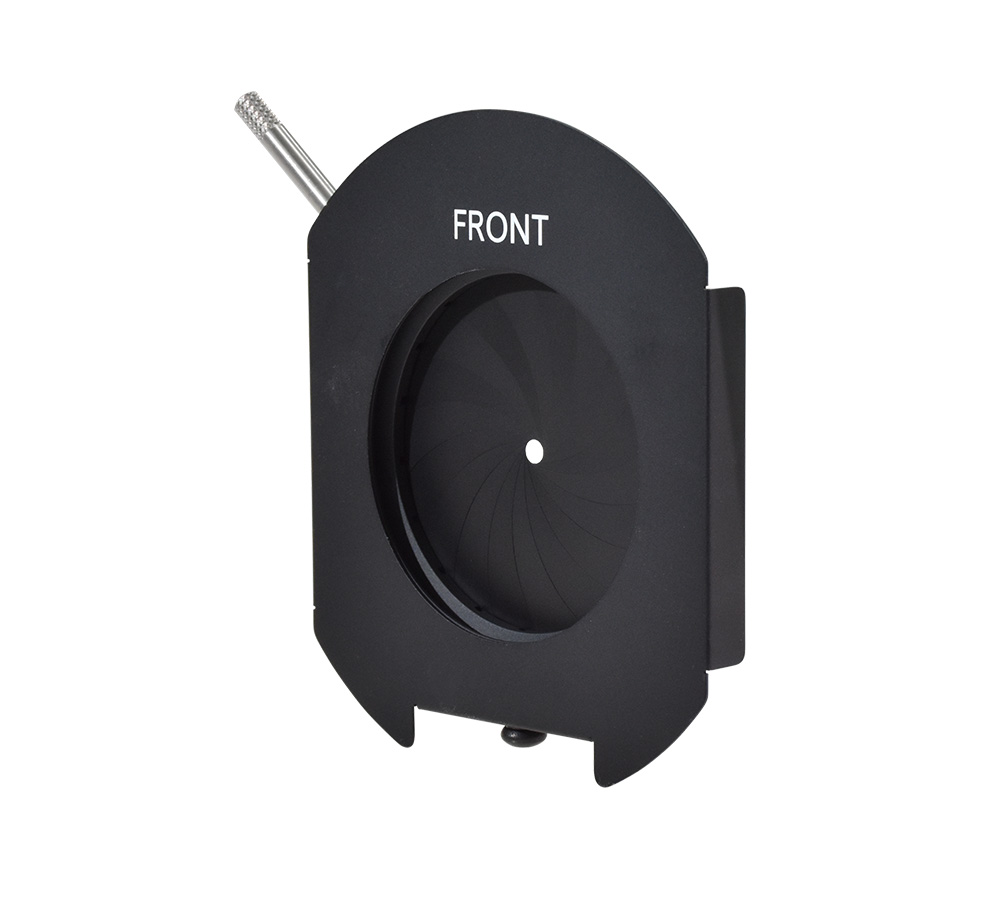

Fiilex Leko Iris
FLXG6CLR-IRIS
Fiilex Leko Gel Holder
FLXG6CLR-GELHOLDER
Fiilex Flexible Energy Source 270
FLXFES-270
Fiilex D-Tap Cable 2ft Curled D-Tap to XLR-3
FLXG6CLR-PSU-DCJ2C-DTAPXLR3
Fiilex DC Extension Cable 6ft XLR3 to XLR3
FLXG6CLR-PSU-DCJ6-XLR3XLR3
Fiilex V-Mount with 5/8" Baby Pin Receiver
FLXG6CLR-PSU-VMOUNT-BABY
Fiilex 185W V-Mount PSU
FLXG6CLR-PSU-185V
Separator

SPECIFICATIONS

Beam Angle19° / 36° / 50° lens tube
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming Modes / CurveSmooth, Sharp / Linear, Gamma
Light EngineDiCon Dense Matrix LED
Power Consumption175W max AC | 160W max DC
BTUs/hour596 (BTUs/hour) max
DC Input24 - 48V DC (via XLR-3 Port)
AC Input100 - 240V AC, 50 ~ 60Hz
DMX/RDM PortXLR-5
Wireless Control Integrated LumenRadio CRMX TimoTwo
USB Power Output5V/1A (via USB-A)
WeightFixture: 11 lbs / 5.0 kg (With lens tube) | Power adapter: 3.2 lbs / 1.45 kg
Size (L x W x H)16.4" x11.1" x 15.7" / 41.7cm x 28.4cm x 39.9cm
Mount TypeCombo (baby stud female / junior stud male)
IP RatingIP-X5 (water-resistant)
Thermal DesignControllable fan (OFF / SILENT / AUTO / FULL)
Operating Temperature0-40ºC / 32-104ºF
GoBo Size M Size (Diameter 66mm / Max Image: 48mm / Max Thickness: 1mm)
