FIBER A/B SWITCH

4 DUPLEX A/B PAIRS - SINGLEMODE

Model No: FAB-4DS-LC/UPC*4 CH Duplex A/B Switch (*Other connector options are available.)

  • Fiilex 4 Duplex A/B Pairs
  • Fiilex 4 Duplex A/B Pairs
  • Fiilex 4 Duplex A/B Pairs
Fiilex 4 Duplex A/B Pairs
Fiilex 4 Duplex A/B Pairs
Fiilex 4 Duplex A/B Pairs

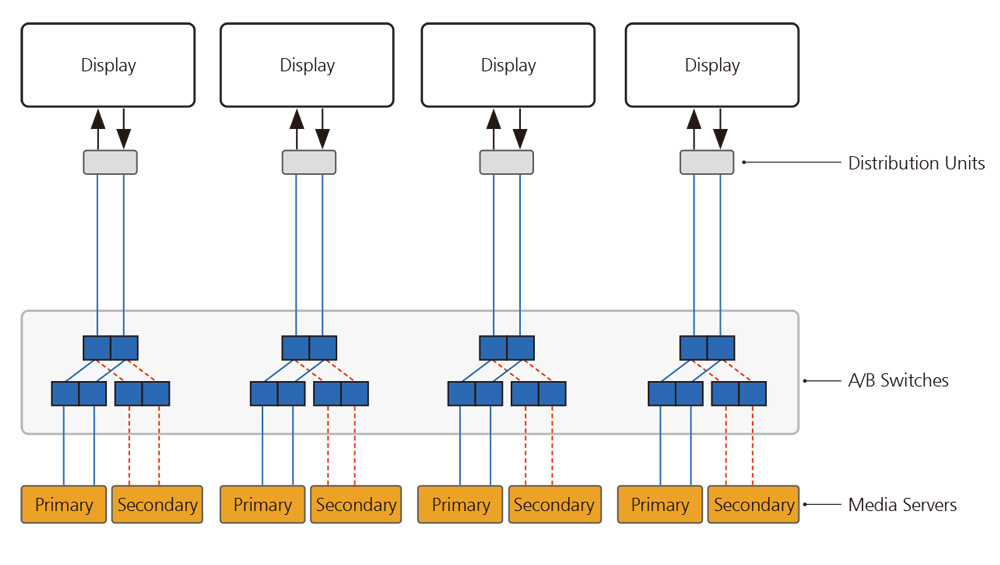

Fiilex Fiber A/B Switch is an all-optical solution designed to seamlessly toggle between primary and secondary paths, so users can switch between network resources, primary and secondary equipment, or secured and unsecured communication lines. The operation is done completely in the optical domain, as a result, the data transmission has minimum latency and is protocol agnostic (therefore future-proof). This rack mountable product comes with easyto-use manual push buttons and can be managed remotely through a simple WebGUI.

Separator

FEATURES

  • All Optical Switch
  • Manual Control
  • Web GUI for Remote Management
  • Low Loss
  • Minimum Crosstalk
  • Fast Switching Speed
  • Dark Fiber Switching
  • MEMS Durability

Data Sheet
 More Info
Separator

SPECIFICATIONS

Operating λ (nm)1260 – 1650
Insertion Loss (dB)1.5 max.
Crosstalk (dB)-50 max.
Switching Time (ms)25 max.
Fiber TypeSinglemode, Duplex Fiber
Switch TechnologyMEMS
Switch TypeNon-Blocking, Bidirectional
Operating Temp (°C)10 to 50
Storage Temp (°C)-20 to 60

OPERATION

Manual ContralPush Buttons
Remote ManagementWeb GUI, Ethernet
Power OffPrimary Path (P1) is connected

ELECTRICAL

Power Supply90-265 VAC, 50-60Hz
Power Consumption (W)25 typ.

Separator

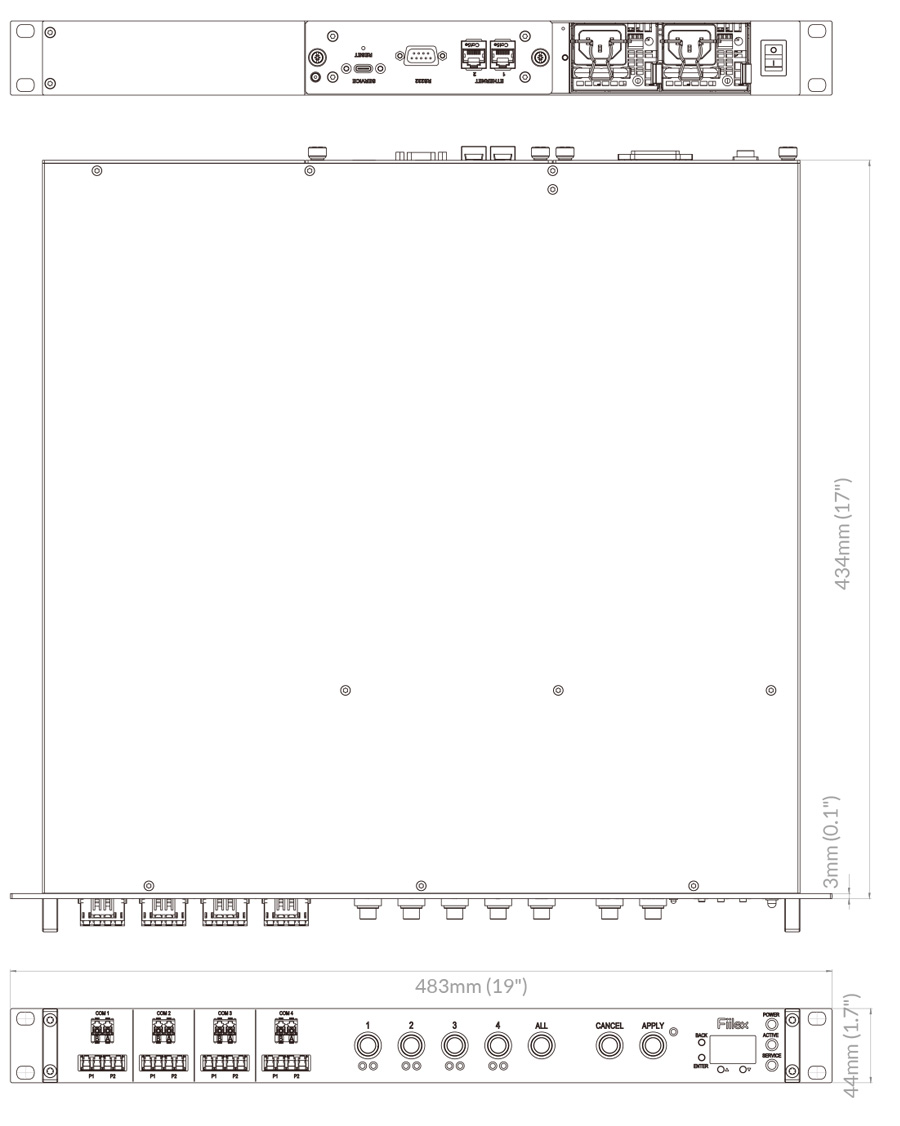

MECHANICAL
