175W LED Fresnel

18+ Stops of Dynamic Range
11°(Spot) - 47°(Flood)
Wireless LumenRadio
2000-10000K, Full Color

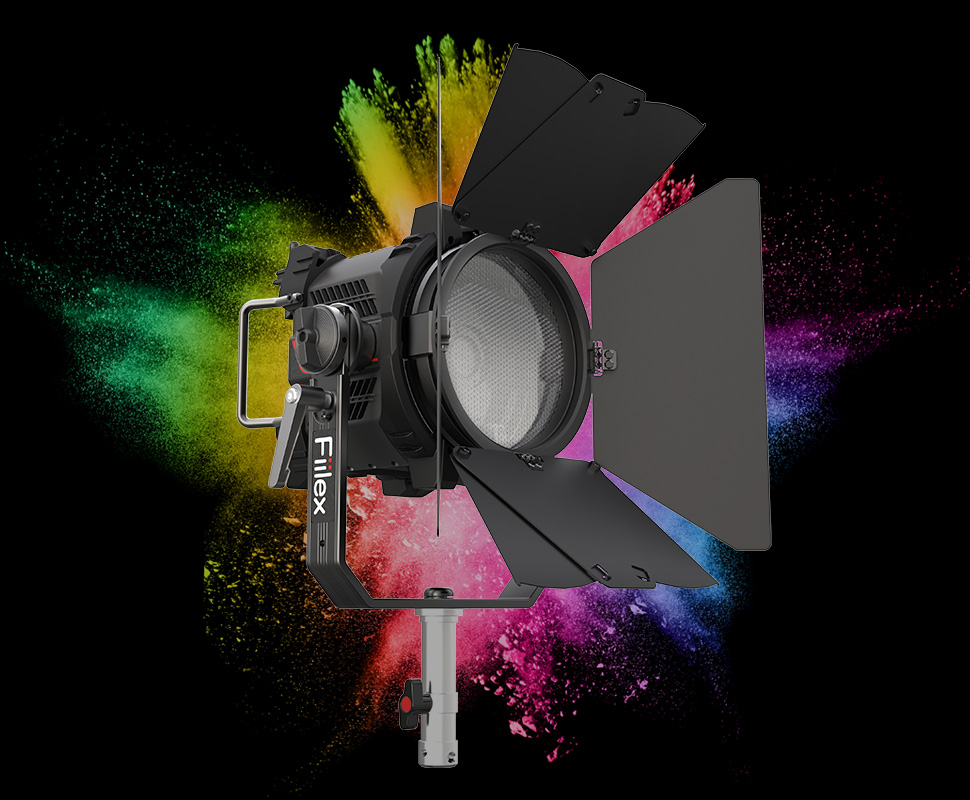

Fiilex Q6 COLOR

The Q6 COLOR is a 175W 6” LED Fresnel that generates high-quality full-color light output. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color quality and optical versatility that are superior to previous generations of LED fresnels. With its wide spot/ flood range, smooth dimming to 0%, no flicker, high CRI, and compatible with CRMX wireless application, the Q6 COLOR combines the extensive feature set of top-tier full color LEDs with the performance of a tungsten fresnel.

FIXTURES & KITS

Fiilex Q6 COLOR
FLXQ6CLR
Fiilex Q6 COLOR K1 Kit
FLXQ6CLR-K1-KIT
Separator

ACCESSORIES

Fiilex RPU
FLXRPU-HEAD
Fiilex Flexible Energy Source 270
FLXFES-270
Fiilex D-Tap Cable 2ft Curled D-Tap to XLR-3
FLXQ6CLR-PSU-DCJ2C-DTAPXLR3
Fiilex DC Extension Cable 6ft XLR3 to XLR3
FLXQ6CLR-PSU-DCJ6-XLR3XLR3
Fiilex V-Mount with 5/8" Baby Pin Receiver
FLXQ6CLR-PSU-VMOUNT-BABY
Fiilex 185W V-Mount PSU
FLXQ6CLR-PSU-185V
Separator

FLEXIBLE ENERGY SOLUTIONS

Fiilex 540 WHr Juice Box Kit
FLXJB-S540-KIT
Fiilex Juice Box Flexible Energy Station
FLXJB
Separator

SPECIFICATIONS

Fresnel Diameter6”
Beam Angle11°-47° with fresnel (66° without fresnel)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming Modes / CurveSmooth, Sharp / Linear, Gamma
Light EngineDiCon Dense Matrix LED
Power Consumption175W AC | 160W max DC
BTUs/hour596 (BTUs/hour) max
DC Input24-48V DC (via XLR-3)
AC Input100 - 240V AC, 50~60Hz
DMX/RDM Port XLR-5
Wireless Control Integrated LumenRadio CRMX TimoTwo
USB Power Output 5V/1A (via USB-A)
USB-C Interface FW Update / Remote
WeightFixture: 8.4 lbs / 3.8 kg | Power supply: 3.2 lbs / 1.45 kg
Size (L x W x H)7.8" x 11.1" x 15.7" / 19.7cm x 28.3cm x 39.7cm
Mount TypeCombo (baby stud female / junior stud male)
IP RatingIP-X5 (water-resistant)
Thermal DesignControllable fan (OFF / SILENT / AUTO / FULL)
Operating Temperature0-40ºC / 32-104ºF
