100W LED Fresnel

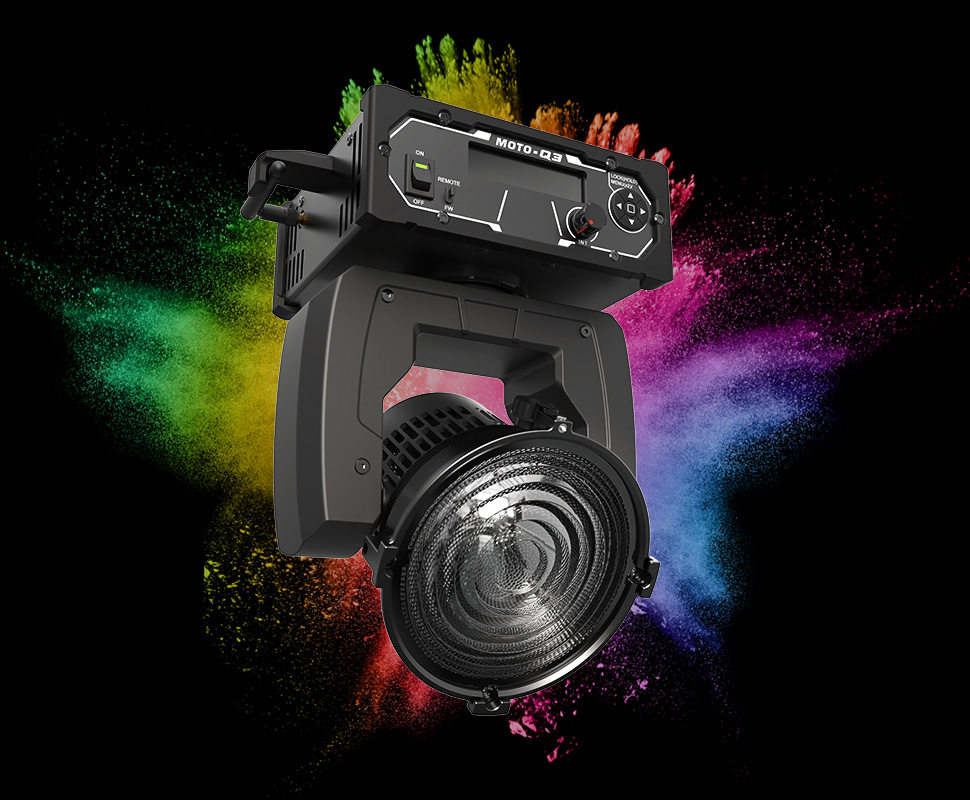

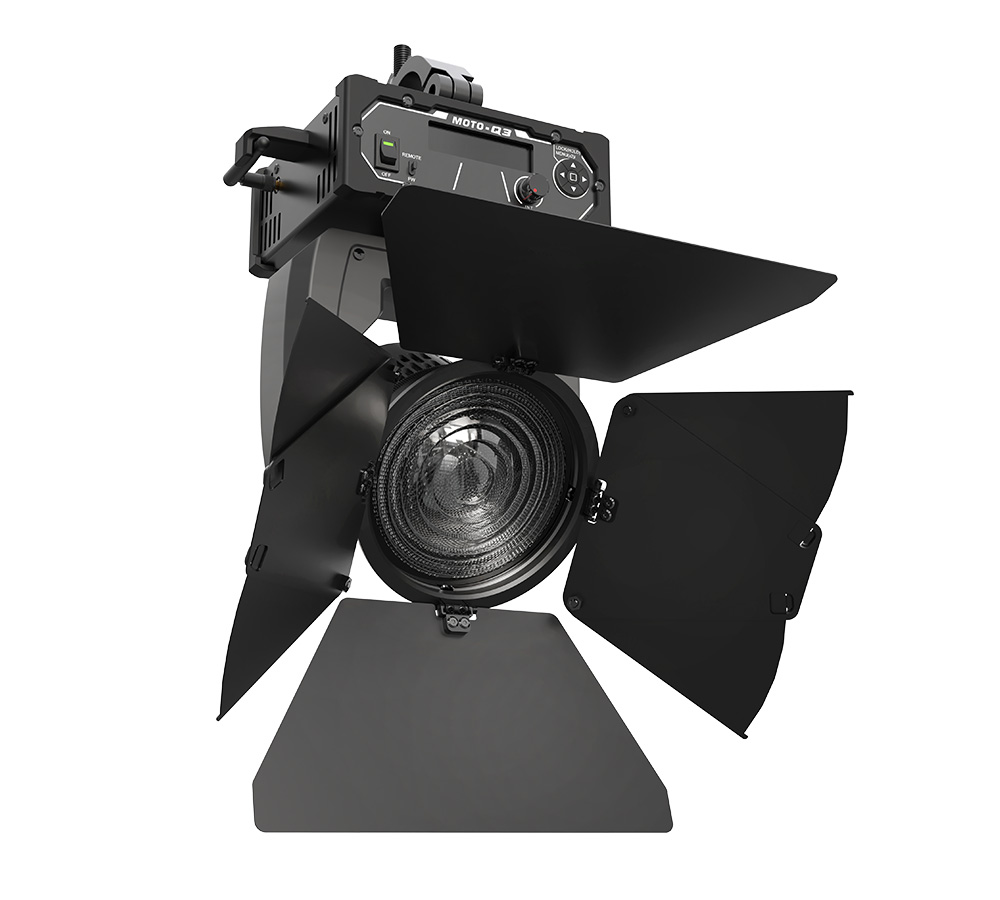

The MOTOQ3 adds motorized pan and tilt to the Fiilex Q3 COLOR. With 190 degrees of tilt, and 540 degrees of panning, the MOTOQ3 allows for complete freedom for all adjustments. Built-in LumenRadio with CRMX protocol allows the MOTOQ3 to seamlessly integrate with other Fiilex fixtures - bringing a whole new dimension to Fiilex's line of full-color cinematic LED fresnels.
Request More Info
Request Product Info: MOTOQ3
The above information was sent successfully!
Separator
FIXTURES & KITS
FLXMOTOQ3CLR
Separator
ACCESSORIES
FLXRPU-HEAD
Separator
SPECIFICATIONS
| Fresnel Diameter | 5” |
| Beam Angle | 15°-45° with fresnel (55° without fresnel) |
| CCT Range | 2000-10000K continuous tuning + magenta/green shift |
| CRI / TLCI | 95 / 90 typical |
| Control Modes | CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more |
| Dimming | 100 - 0% flicker free |
| Dimming Modes / Curve | Smooth, Sharp / Linear, Gamma |
| Light Engine | DiCon Dense Matrix LED |
| Power Consumption | 100W max AC |
| BTUs/hour | 341 (BTUs/hour) max |
| AC Input | 100 - 240V AC, 50 ~ 60Hz |
| DMX/RDM Port | XLR-5 in and out |
| Wireless Control | Integrated LumenRadio CRMX TimoTwo |
| USB-C Interface | 5V/1A power / FW Update |
| Weight | 9.2 lbs / 4.2 kg (without CLAMP) |
| Size (L x W x H) | 6.7" x 8.7" x 10.9" / 17.0cm x 22.1cm x 27.7cm |
| Pan / Tilt | Pan +/- 270° (540° total), Tilt +/- 95° (190° total) |
| Mount Type | Truss Clamp / TOX track adapter |
| IP Rating | IP-X5 (water-resistant) |
| Thermal Design | Controllable fan |
| Operating Temperature | 0-40ºC / 32-104ºF |
