Q5 COLOR

175W LED Fresnel

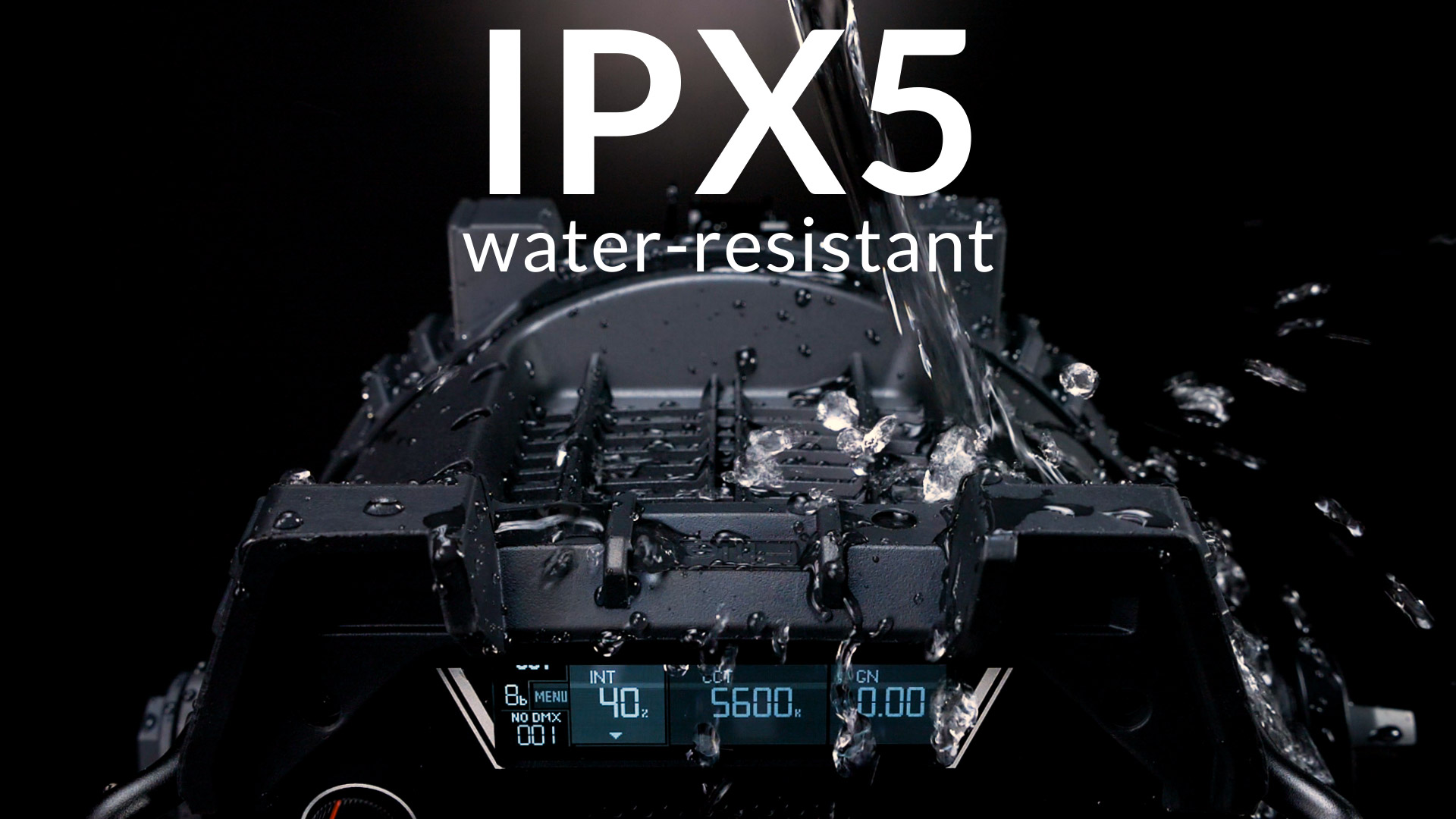

IPX5 Rain-Resistant

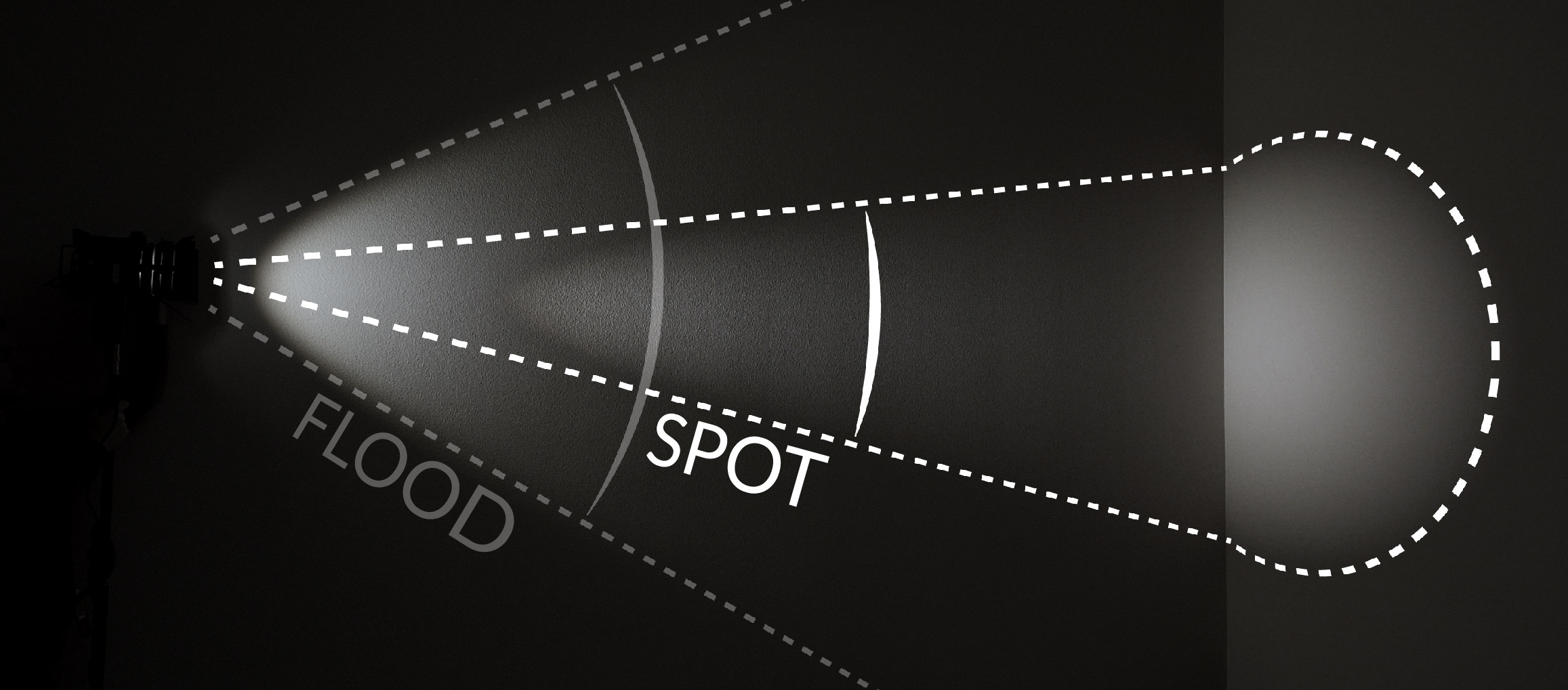

12°-55° Spot/Flood

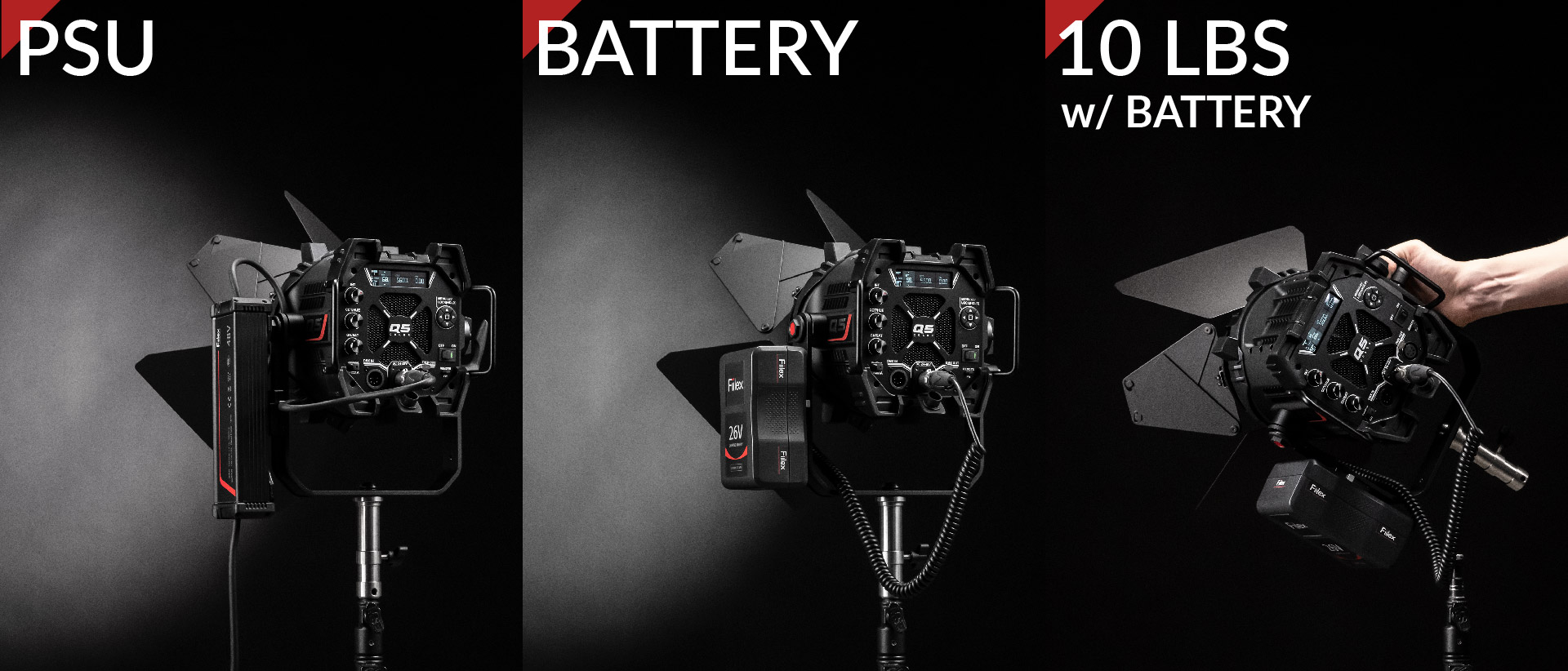

Battery Compatible

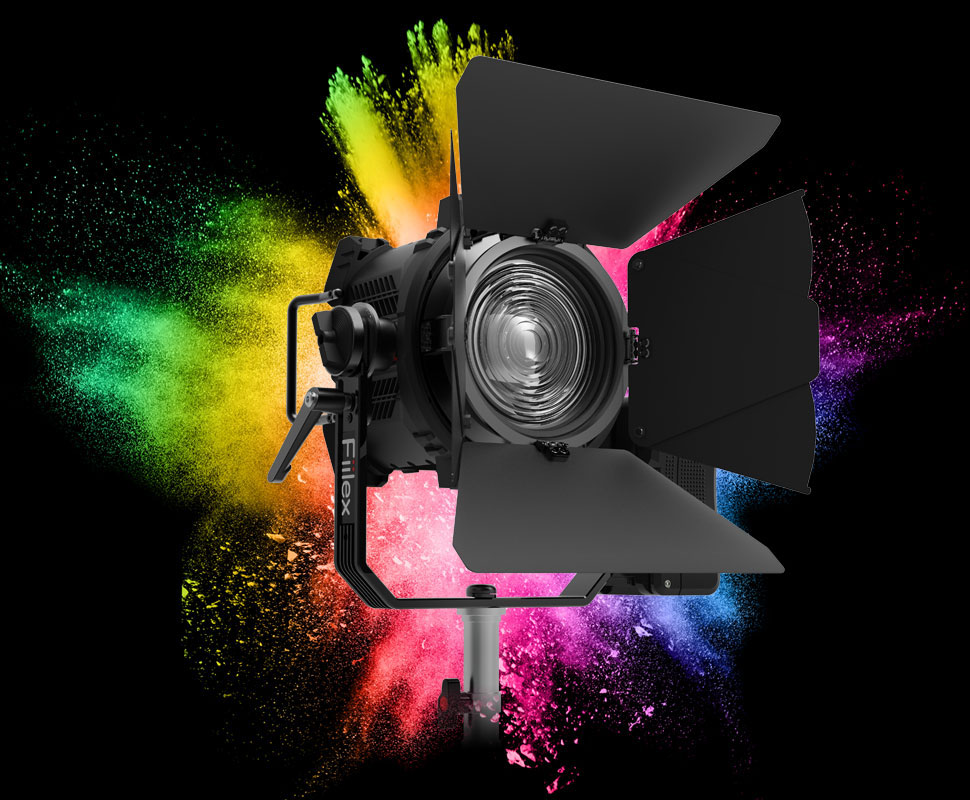

Fiilex Q5 COLOR

The Q5 Color is a 175W 5” LED Fresnel that generates high-quality RGBW light output. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color quality and optical versatility that are superior to previous generations of LED fresnels. With its wide spot/flood range, smooth dimming to 0%, no flicker, and high CRI, the Q5 Color combines the extensive feature set of top-tier RGBW LEDs with the performance of a tungsten fresnel.


Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25

Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Fiilex Q5 COLOR

Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Fiilex Q5 COLOR

Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Fiilex Q5 COLOR

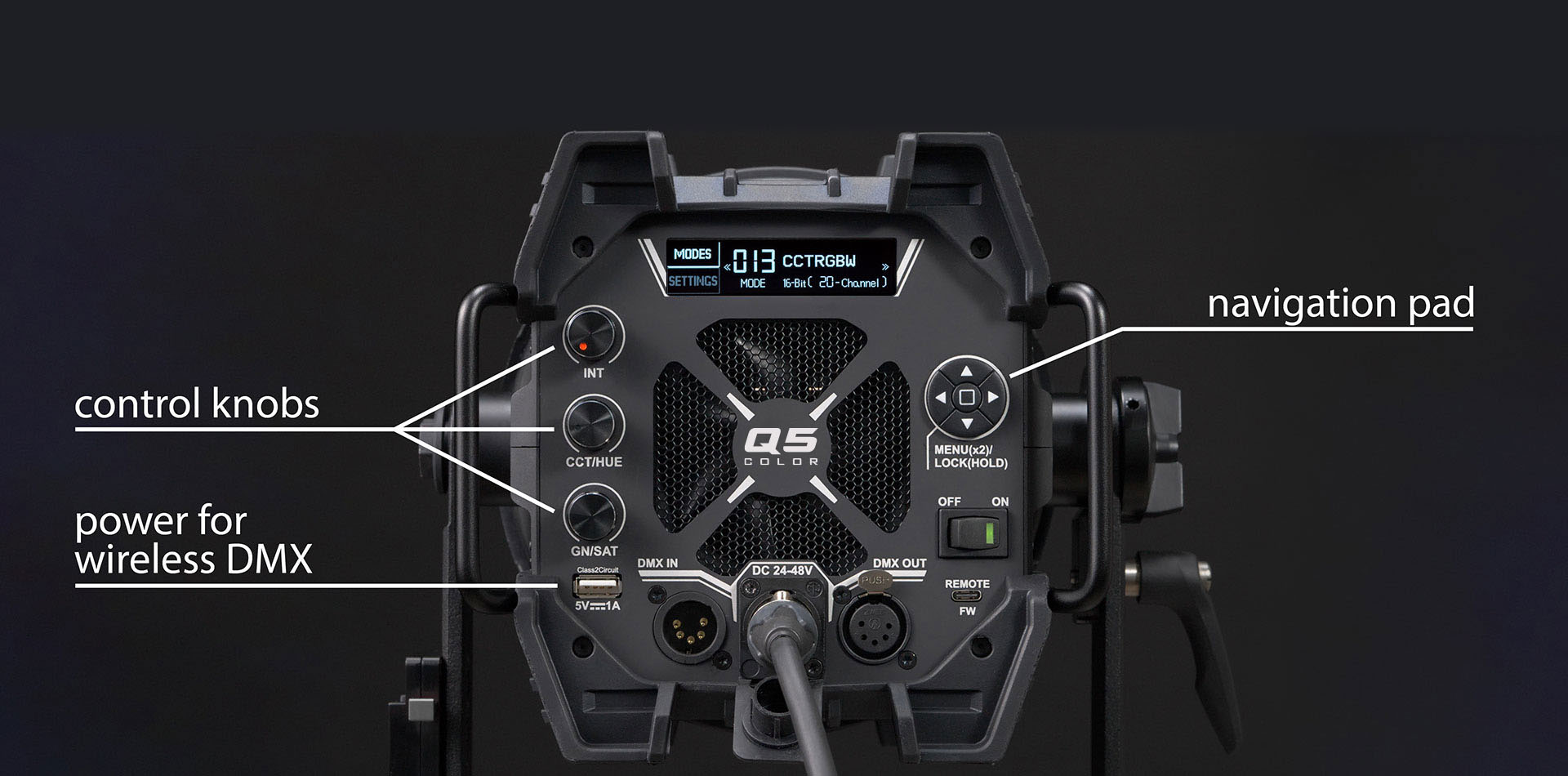

EASY CONTROL

Fiilex Q5 COLOR

Warning: Undefined array key "text" in C:\WebSite\fiilex.com\products\compatible\inner_feature.php on line 25
Fiilex Q5 COLOR

FIXTURES & KITS

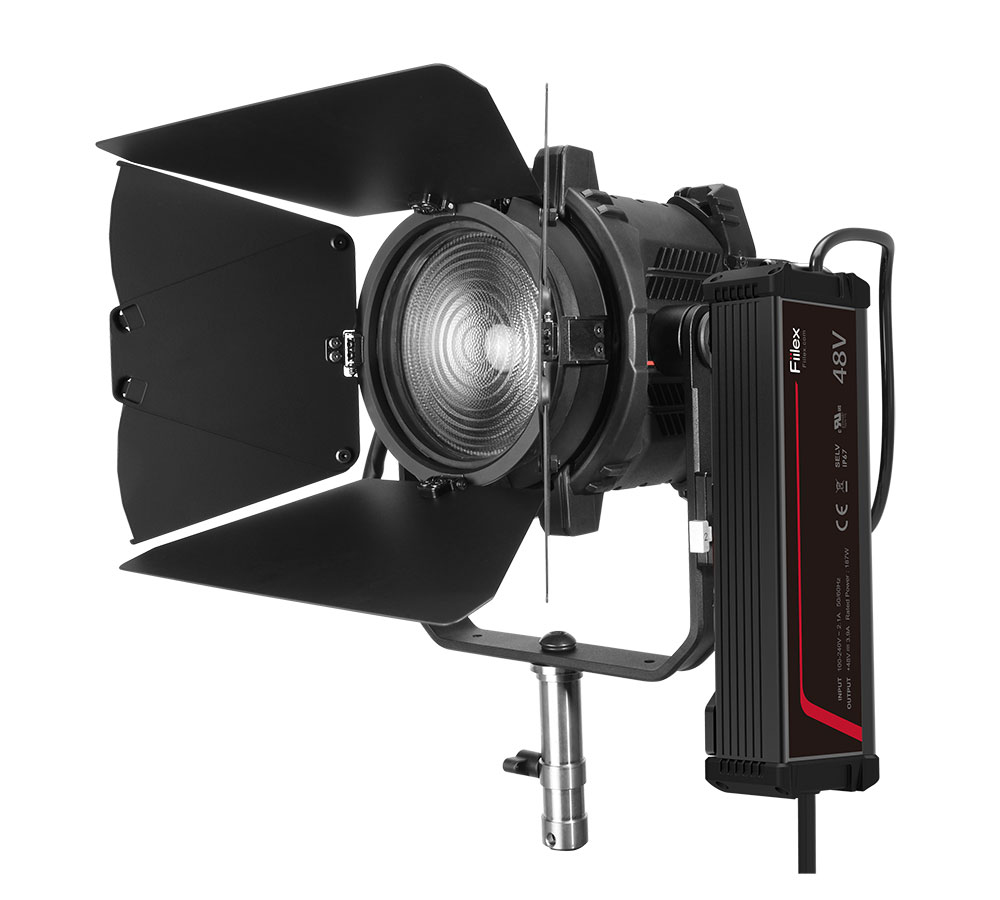

Fiilex Q5 COLOR
FLXQ5CLR

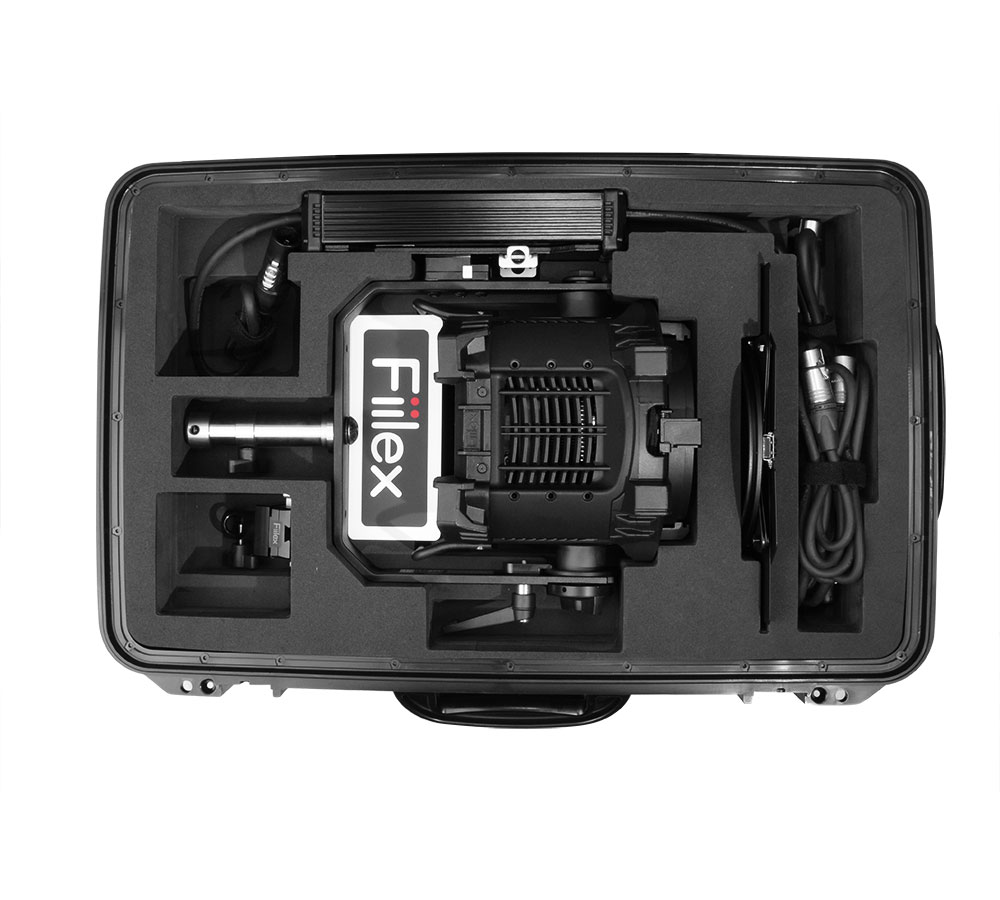

Fiilex Q5 COLOR K1 Kit
FLXQ5CLR-K1-KIT
Separator

ACCESSORIES

Fiilex Q5 OCTA 3
FLXQ5CLR-OCTA3
Fiilex Q5 OCTA 3 Soft Grid
FLXQ5CLR-OCTA3-GRID
Fiilex Q5 Speed Ring
FLXQ5CLR-SPRG1
Fiilex Flexible Energy Source 270
FLXFES-270
Fiilex D-Tap Cable 2ft Curled D-Tap to XLR-3
FLXPSU-DCJ2C-DTAPXLR3
Fiilex DC Extension Cable 6ft XLR3 to XLR3
FLXPSU-DCJ6-XLR3XLR3
Fiilex V-Mount with 5/8" Baby Pin Receiver
FLXPSU-VMOUNT-BABY
Separator

FLEXIBLE ENERGY SOLUTIONS

Fiilex 540 WHr Juice Box Kit
FLXJB-S540-KIT
Fiilex Juice Box Flexible Energy Station
FLXJB
Separator

SPECIFICATIONS

Fresnel Diameter5”
Beam Angle12°-55° with fresnel (80° without fresnel)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control ModesCCT, HSI, RGBW, Gels, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming Modes / CurveSmooth, Sharp / Linear, Gamma
Light EngineDiCon Dense Matrix LED
Power Consumption175W AC | 160W max DC
BTUs/hour631 (BTUs/hour) max
DC Input24-48V DC (via XLR-3)
AC Input100 - 240V AC, 50~60Hz (via powerCON TRUE1)
DMX/RDM Port XLR-5
USB Power Output 5V/1A (via USB-A)
WeightFixture: 7.3lbs / 3.3kg | Power supply: 2.6lbs / 1.2kg
Size (L x W x H)7.8" x 11.1" x 15.7" / 19.7cm x 28.3cm x 39.7cm
Mount TypeCombo (baby stud female / junior stud male)
IP RatingIP-X5 (rain-resistant)
Thermal DesignControllable fan
Operating Temperature 0-40ºC / 32-104ºF
