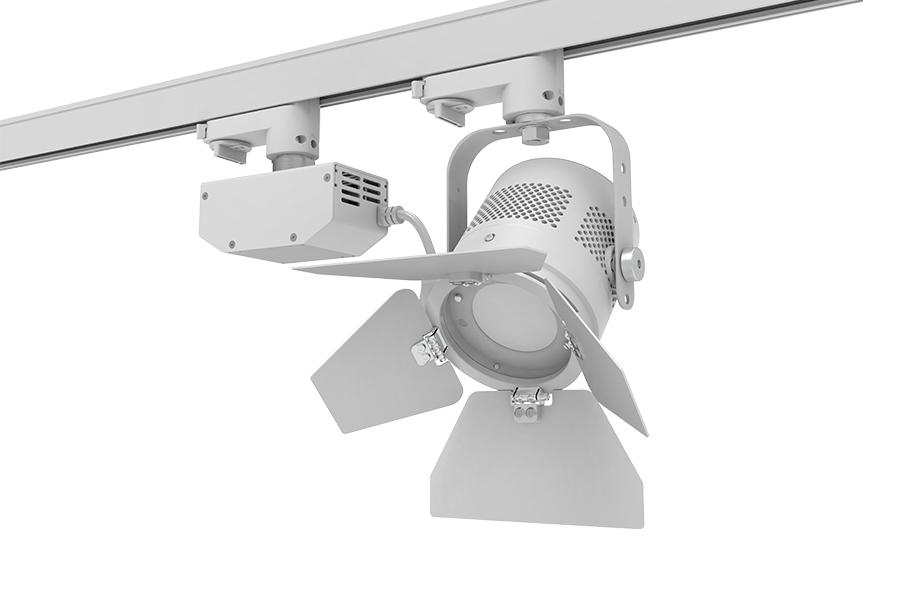

P3X Spot Light
90W LED / 60°
Model No: FLXP3X-
DOWNLOADS
P3X Data Sheet (Track Mounting)
LAST UPDATED:SEP 13,2023
P3X Data Sheet (Clamp Mounting)LAST UPDATED:SEP 131,2023
Separator
SPECIFICATIONS
| Beam Angle | 60° |
| CRI | 95 typical (in CCT Mode) |
| TLCI | 90 typical (in CCT Mode) |
| Dimming | 100% - 0% flicker free |
| Power Draw | 90W max |
| AC Input | 100 - 240V AC, 50 - 60Hz |
| Remote Control | DMX 512 |
| Cooling | Fan Cooled |
| Acoustic Noise | 23 dBA |
| Operating Temp. | 32 - 104ºF (0 - 40ºC) |
| Fixture Weight | Track Type: 2.3lb (~1.0kg) / Clamp Type: 2.4lb (~1.1kg) |
| Supply Weight | Track Type: 1.0lb (~0.5kg) / Clamp Type: 1.1lb (~0.5kg) |
Separator

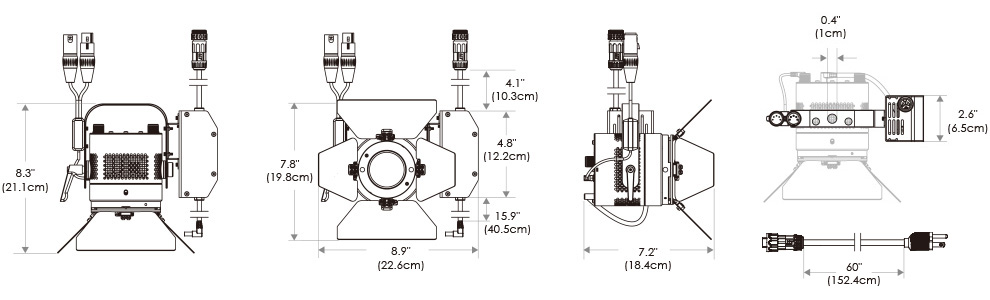

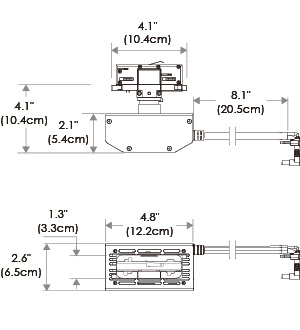

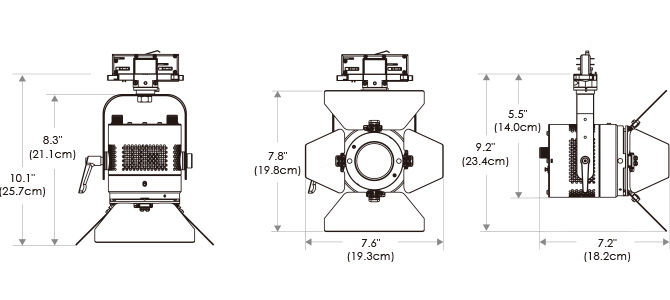

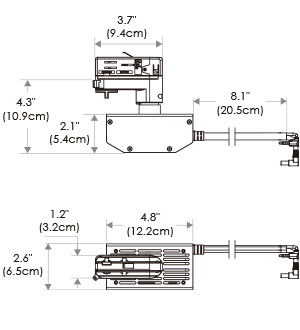

MECHANICAL FIGURES

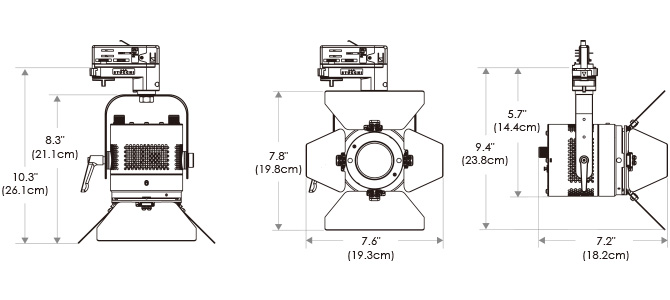

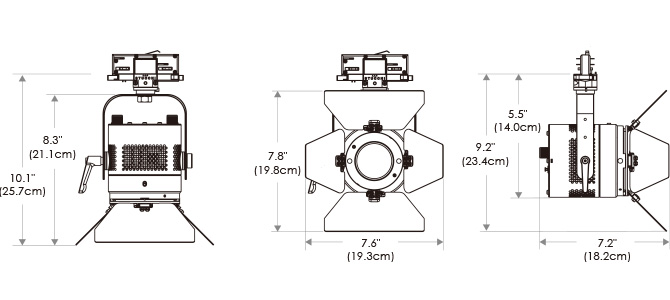

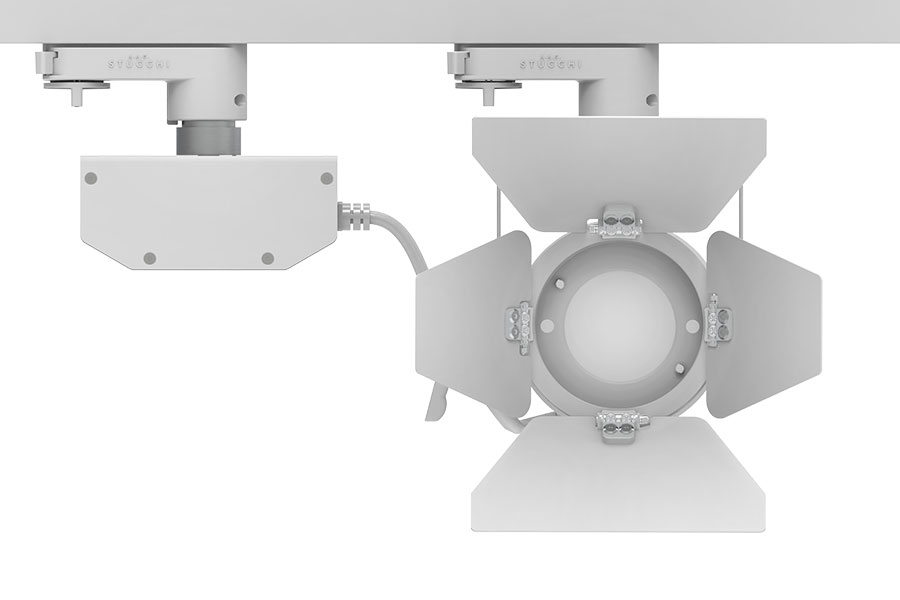

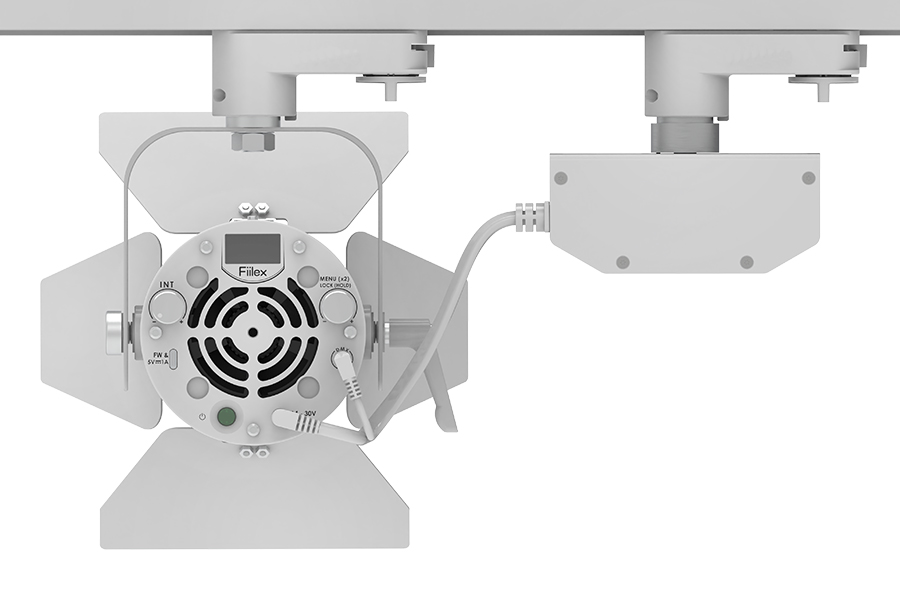

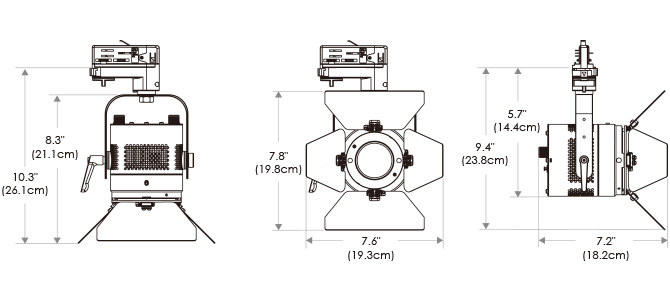

P3X (Track)

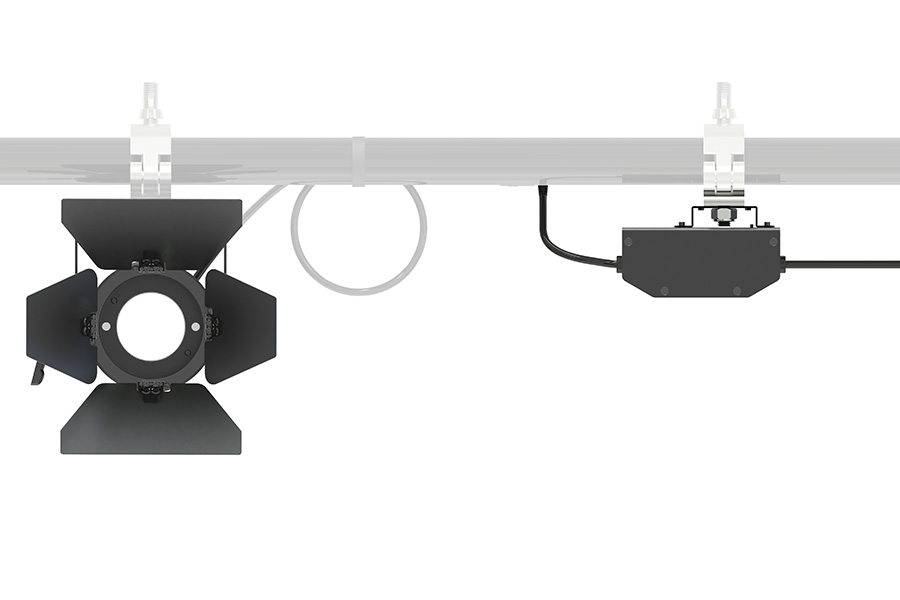

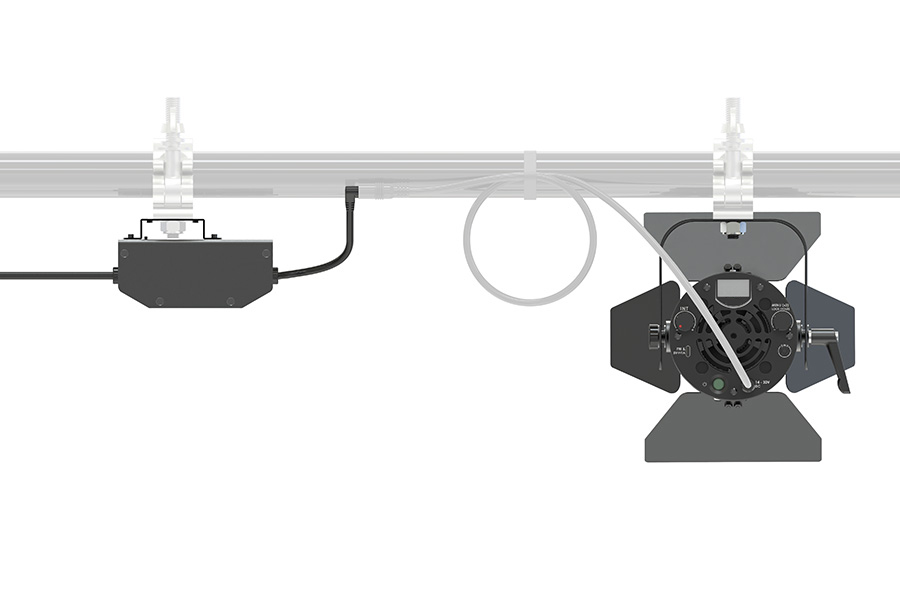

P3X (Clamp)
Separator

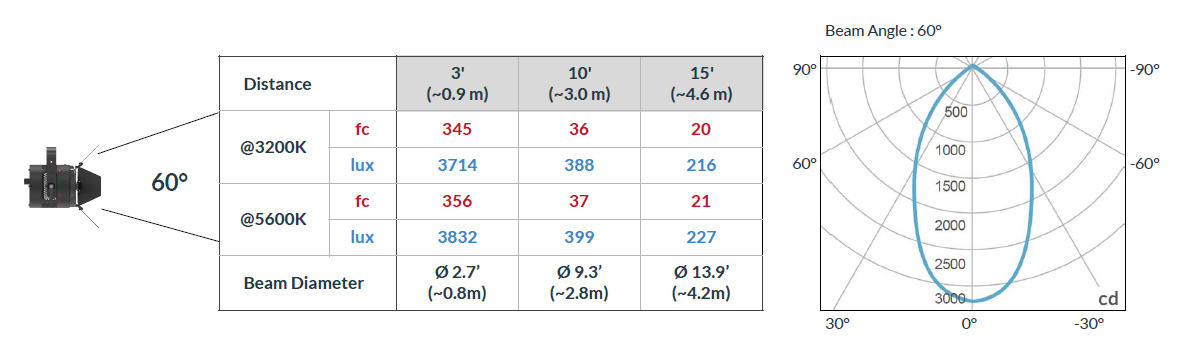

PHOTOMETRIC DATA
Separator
ITEMS INCLUDED
Track Type

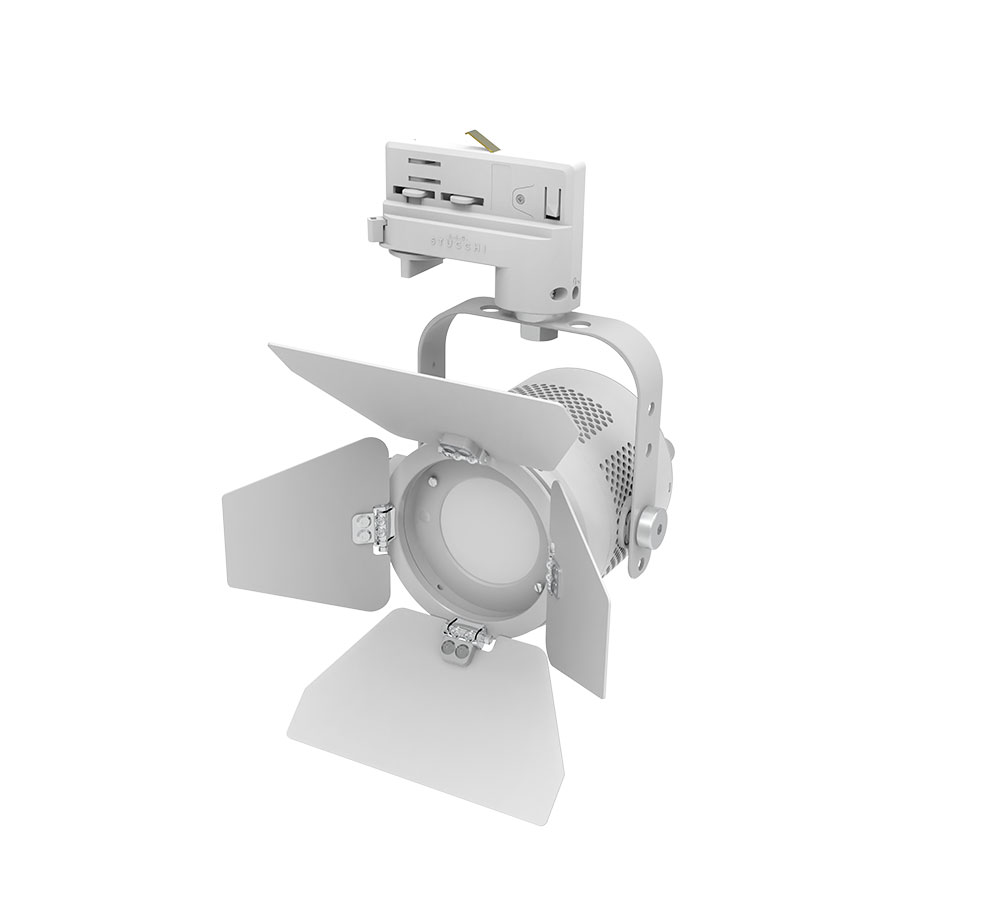

P3X (Track) fixture
90W, 24V, TOX Track Mount PSU
Clamp Type

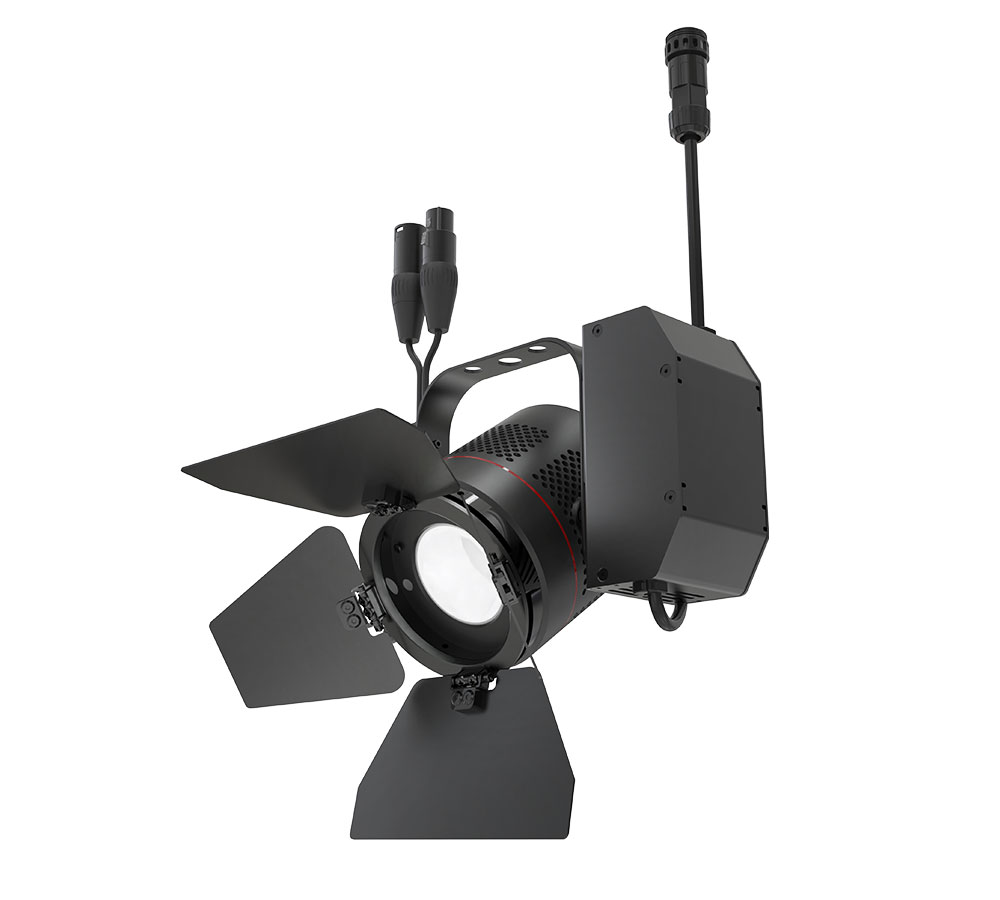

P3X (Clamp) fixture
90W V-Mount PSU
Separator
ACCESSORIES
FLXP3-6x8SB
FLXP3CLR-FRNL20
FLXP3CLR-SNOOTF20
TRA006N
FLXCNTL-DMX6
Separator
TRACK PARTS

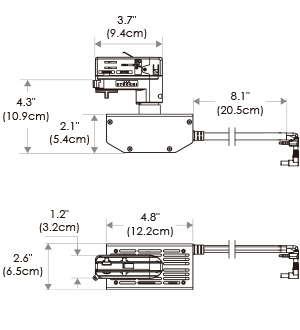

FLXPSU90TOX
FLXMT-TOX
FLXMT-TOX
FLXPSU90TEX
FLXMT-TEX
