Model No: FLXFES-270

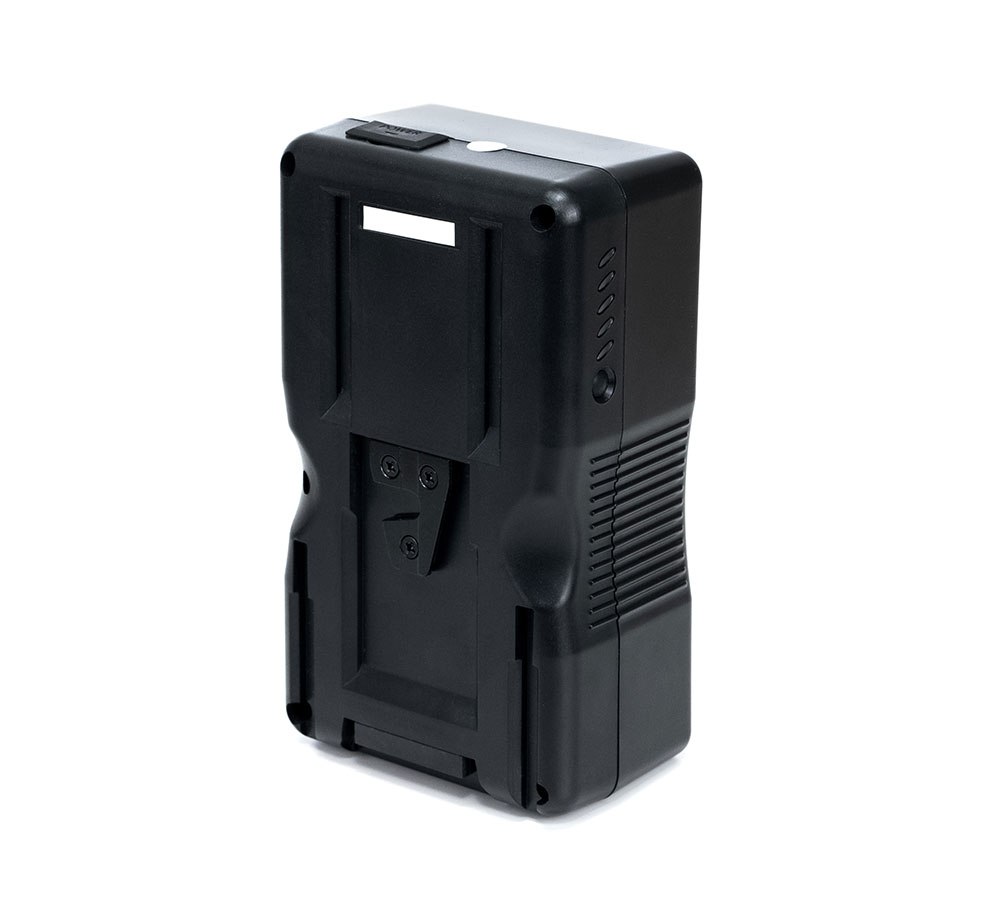

Flexible Energy Source 270
The Flexible Energy Source 270 is a 270Wh battery that provides power to compatible Fiilex lights. It can output power via D-Tap or V-Mount connections. Using individual batteries requires an additional cable accessory. Batteries can provide 48V power through the Juice Box Flexible Energy Station. See compatibility table for more information. Battery charger is available separately.
Additional features include an LED charge indicator and 5V / 2A power via USB.
Specifications
Watt Hours: 270Wh
Output Voltage: 26V
Power Connections: D-Tap, V-Mount, USB
Dimensions: 17cm x 10cm x 6.3cm
Weight: 2.9lbs / 1.3kg
Separator
Compatibility Table
Fixture |
FES Battery |
Juice Box Station |
|---|---|---|
| G3 COLOR Q3 COLOR P3 COLOR |
D-Tap to Barrel Cable required ≈180 minutes @ 100% intensity |
3' XLR4 Jumper/Splitter required ≈360 minutes @ 100% intensity |
| Q5 COLOR | D-Tap to XLR Cable required ≈90 minutes @ 100% intensity |
6' XLR3 Jumper Cable required ≈180 minutes @ 100% intensity |
| Q8 COLOR | N/A | 6' XLR3 Jumper Cable required ≈100 minutes @ 100% intensity |
| Matrix COLOR | N/A | 6' XLR3 Jumper Cable required ≈100 minutes @ 100% intensity |
Separator
Items Included
(1) Flexible Energy Source 270
Accessories
FLXPSU-DCJ2C-DTAPBRL
FLXPSU-DCJ96S-DTAPBRL

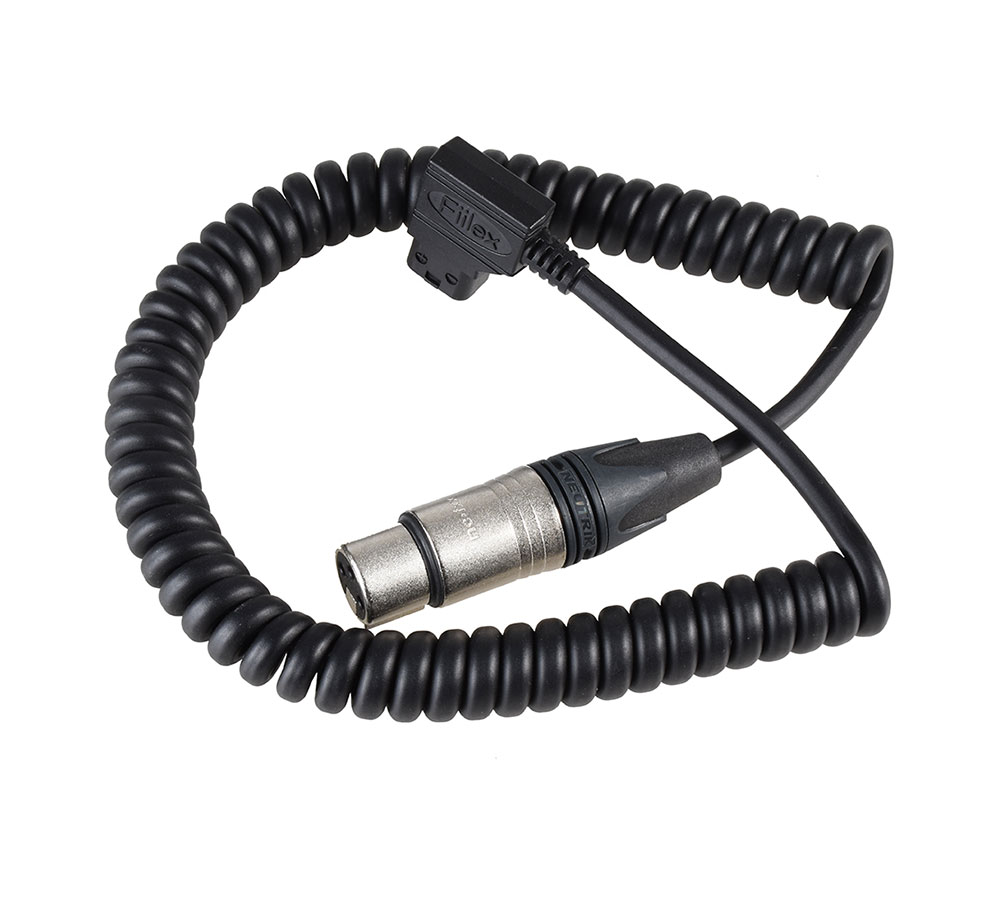

FLXPSU-DCJ2C-DTAPXLR3
FLXJB

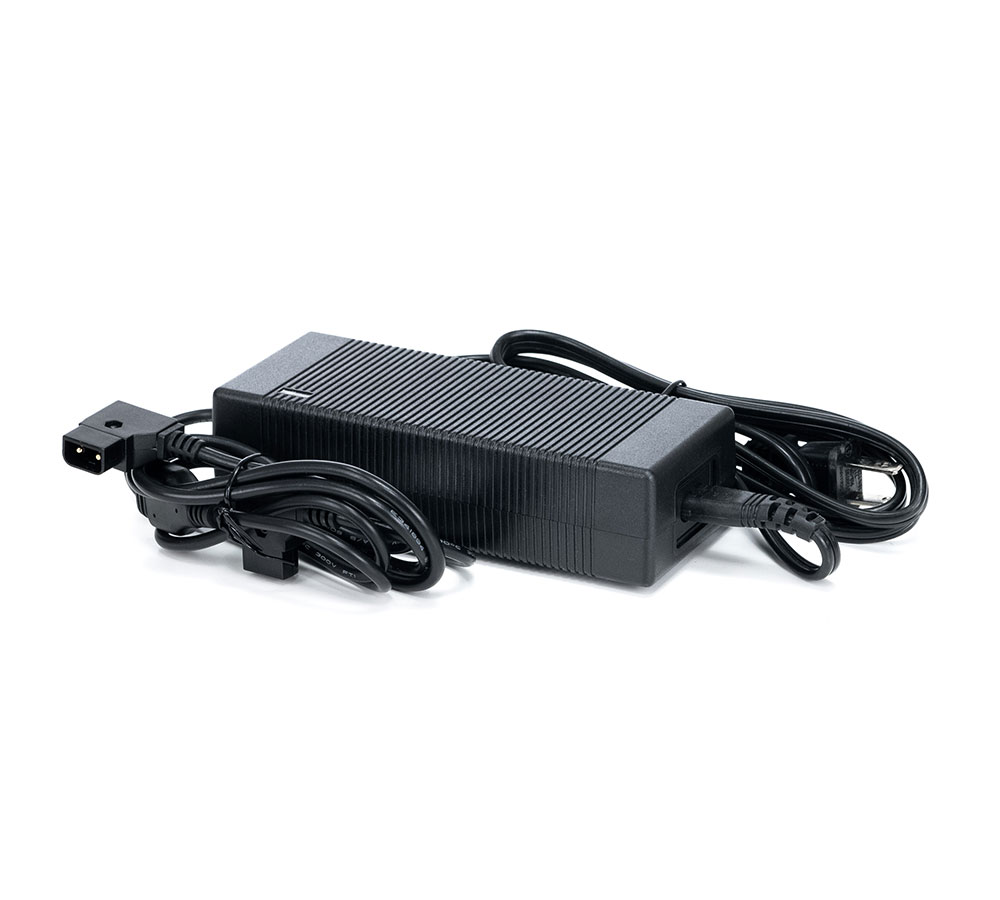

FLXFES-CHRG-2DTAP
Kits

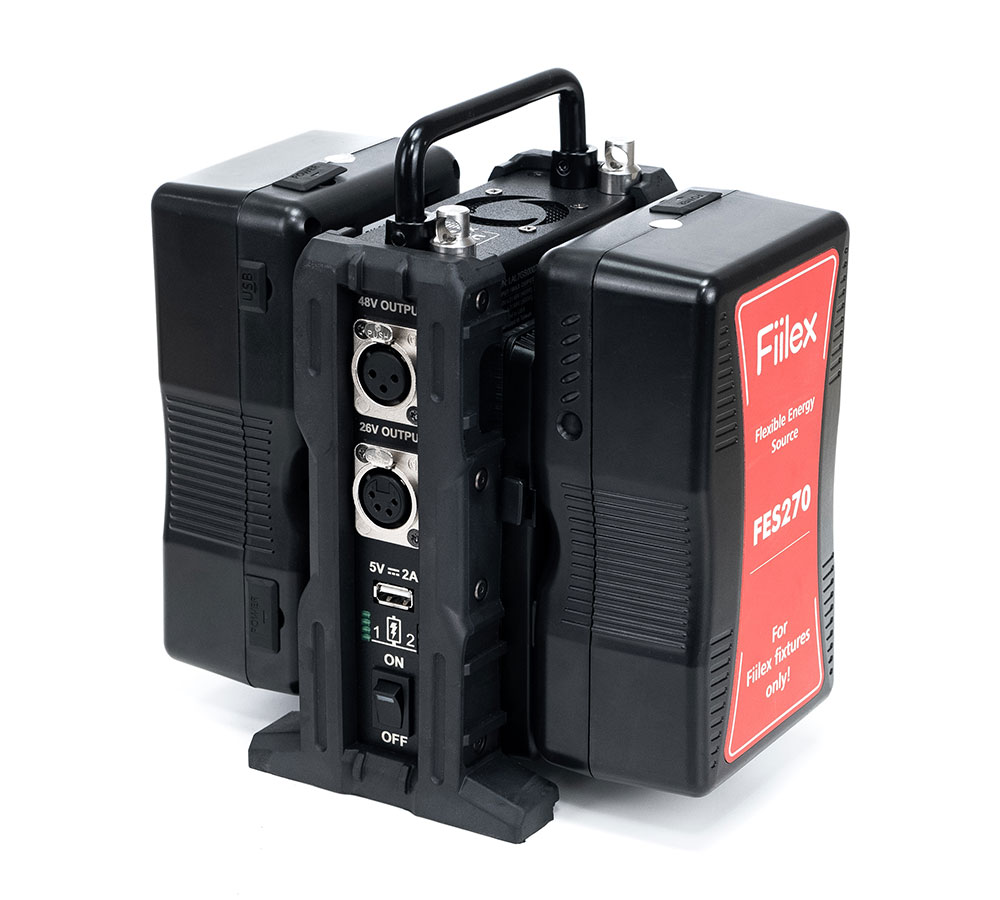

FLXJB-S540-KIT
Compatible with
G3 COLOR
P3 COLOR
Q3 COLOR-LR

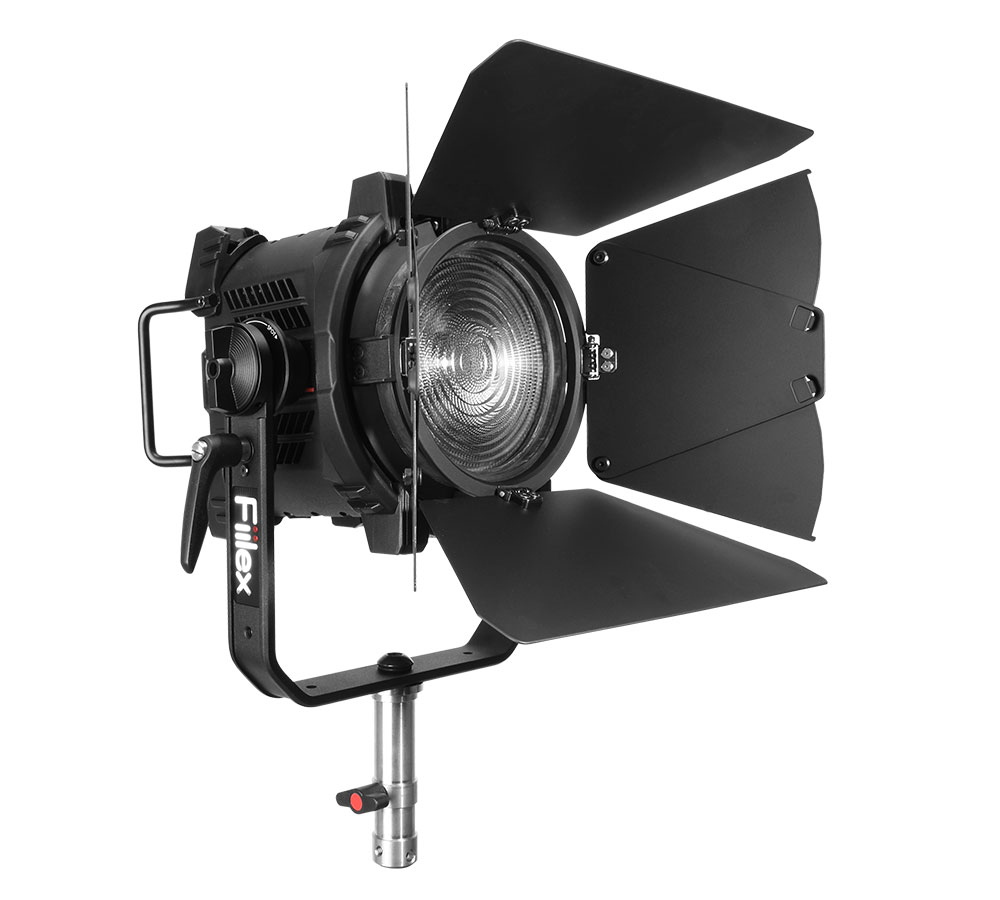

Q5 COLOR
Q8 COLOR
Matrix COLOR
