900W Motorized Punch Light

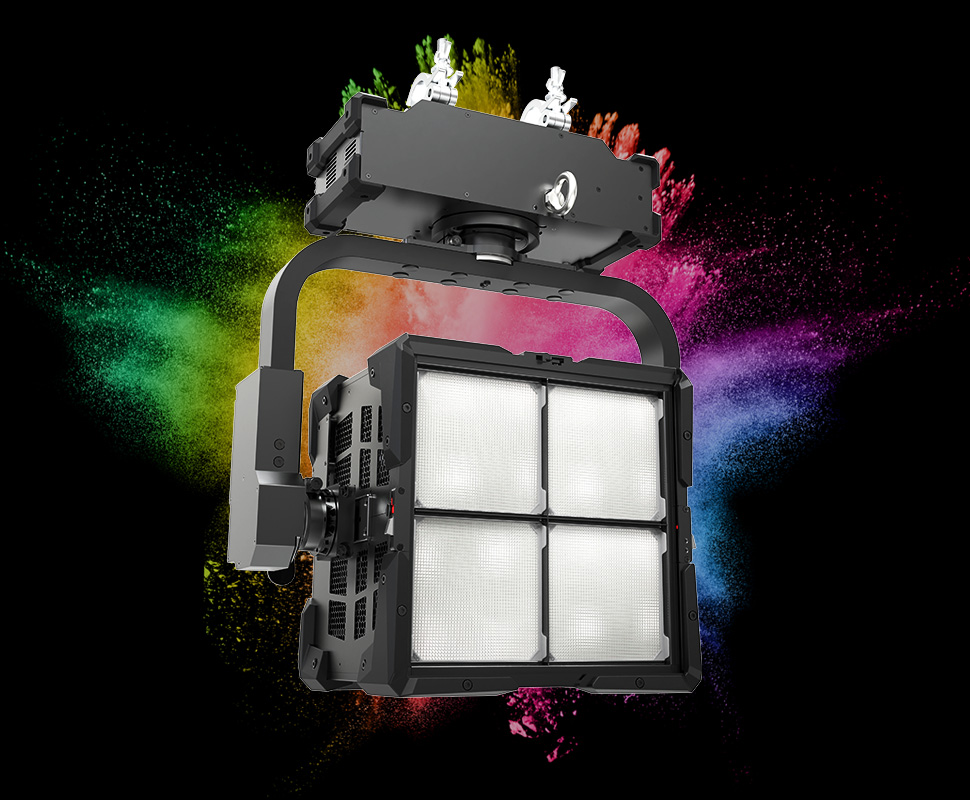

Fiilex MOTOK10

Fiilex’s MOTOK10 is a 900W moving-head LED punch light built for film, live events, and virtual sets. Powered by four 225W Dense Matrix LED engines, it delivers tunable CCT (2000K–10000K), CRI >95, and precise green/magenta adjustment for consistent, cinema-quality output. The fixture supports rich color rendering across HSI, RGBW, and CIExy modes, with smooth 100–0% flicker-free dimming. At just 53 lbs and IP-X5-rated, it’s ready for studio or outdoor use. Interchangeable lenses and slide-in accessories offer flexible beam shaping, while the motorized yoke provides 540° pan / 300° tilt with 16-bit control. Effects like lightning and fire are supported via multi-pixel mode. Compatible with DMX, RDM, sACN, Art-Net, and wireless LumenRadio CRMX TimoTwo.

Request More Info



All fields are required for submitting this request


Name*
Email*
Phone*
City*
State/Province*
Country*
You are interested in Fiilex products, because you are *
Comments*

Experience with Fiilex, Affiliations (Local 728/479/52/873/600 etc), Upcoming Projects.

0 characters entered / Maximum 500 characters.


Enter the displayed 6-character code in the box below
(6 characters, no space in between, not case sensitive.)


Request Product Info: MOTOK10

The above information was sent successfully!

Separator

ACCESSORIES

Fiilex K10 Snapbag
FLXK10CLR-SNAPBAG
Fiilex K10 Snapbag Soft Grid
FLXK10CLR-SNAPBAG-GRID
Fiilex 12 Degree Fresnel Lens
FLXMOTOK10-FRNL12
(Pack of 4)
Fiilex 18 Degree Fresnel Lens
FLXMOTOK10-FRNL18
(Pack of 4)
Fiilex 30 Degree Fresnel Lens
FLXMOTOK10-FRNL30
(Pack of 4)
Fiilex 50 Degree Fresnel Lens
FLXMOTOK10-FRNL50
(Pack of 4)
Fiilex K10 Heavy Diffusion
FLXK10CLR-HEAVYDIFF
Fiilex K10 Honeycomb
FLXK10CLR-HONEYCOMB
Fiilex Fiilex Remote Patcher Utility
FLXRPU

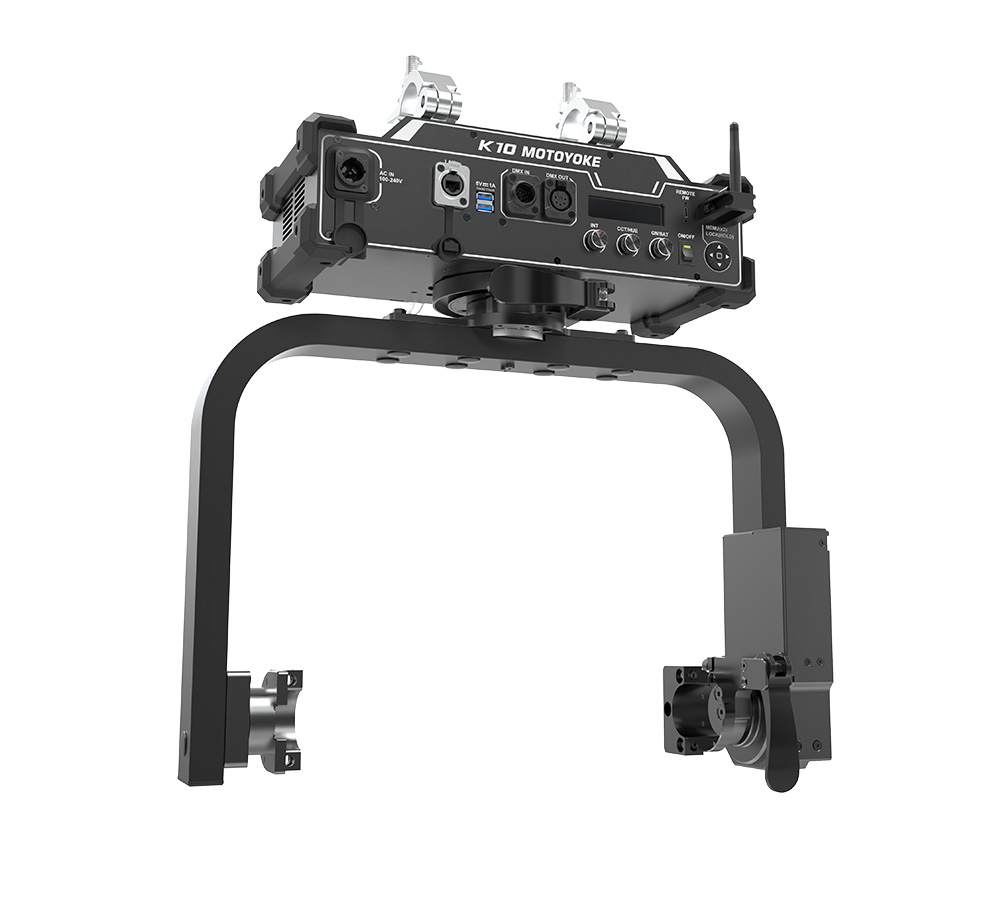

Fiilex K10 Motoyoke
FLXK10CLR-MOTOYOKE
Separator

SPECIFICATIONS

Beam Angle12° with lens (18°/30°/50° with optional lens accessories)
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming Modes / CurveSmooth, Sharp / Linear, Gamma
Light EngineDiCon Dense Matrix LED
Power Consumption900W max AC
BTUs/hour3071 (BTUs/hour) max
AC Input100 - 240V AC, 50~60Hz
DMX/RDM Interface XLR-5
Wireless Control Integrated LumenRadio CRMX TimoTwo
Ethernet sACN, ArtNet (via etherCON)
USB Power Output 5V/1A (via USB-A)
USB-C Interface FW Update / Remote
Weight 54.5lbs / 24.7kg
Size (L x W x H)28.9" x 20.6" x 12.5" / 73.5cm x 52.3cm x 31.9cm
Pan / Tilt540° pan and 300° tilt
Mount TypeIncluded 1.8-2” pipe clamp or Junior stud 1-⅛” male (28mm)
IP RatingIP-X5 (water-resistant)
Thermal DesignControllable fan (OFF / SILENT / AUTO / FULL)
Operating Temperature0-40°C / 32-104°F
