Model No: FLXCNTL-DMX6

DMX 6 Channel Controller

Fiilex DMX 6 Channel Controller
Fiilex DMX 6 Channel Controller
Fiilex DMX 6 Channel Controller
Fiilex DMX 6 Channel Controller
  • Fiilex DMX 6 Channel Controller
  • Fiilex DMX 6 Channel Controller
  • Fiilex DMX 6 Channel Controller
  • Fiilex DMX 6 Channel Controller

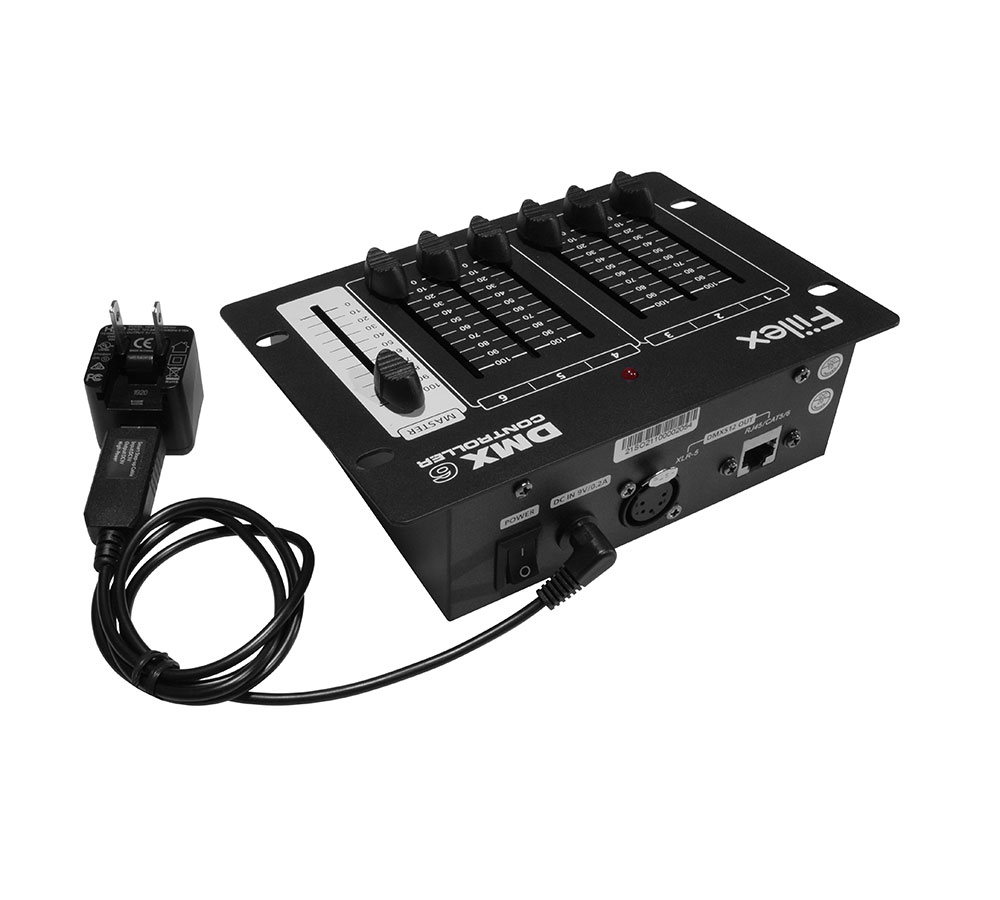

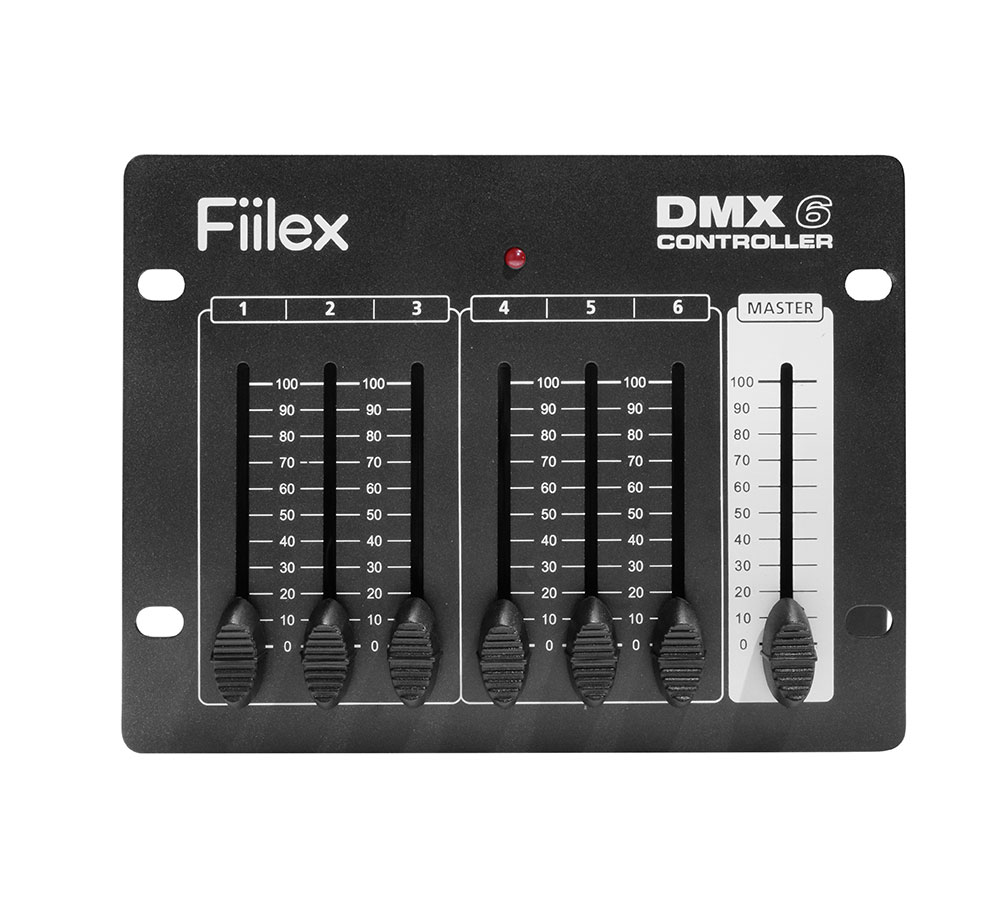

The DMX 6 Channel Controller is compatible with Fiilex lighting fixtures.
Separator

Features

  • 6 control sliding knobs
  • 1 master control sliding knob
  • Mounting and freestanding options
  • Power supply included

Specifications

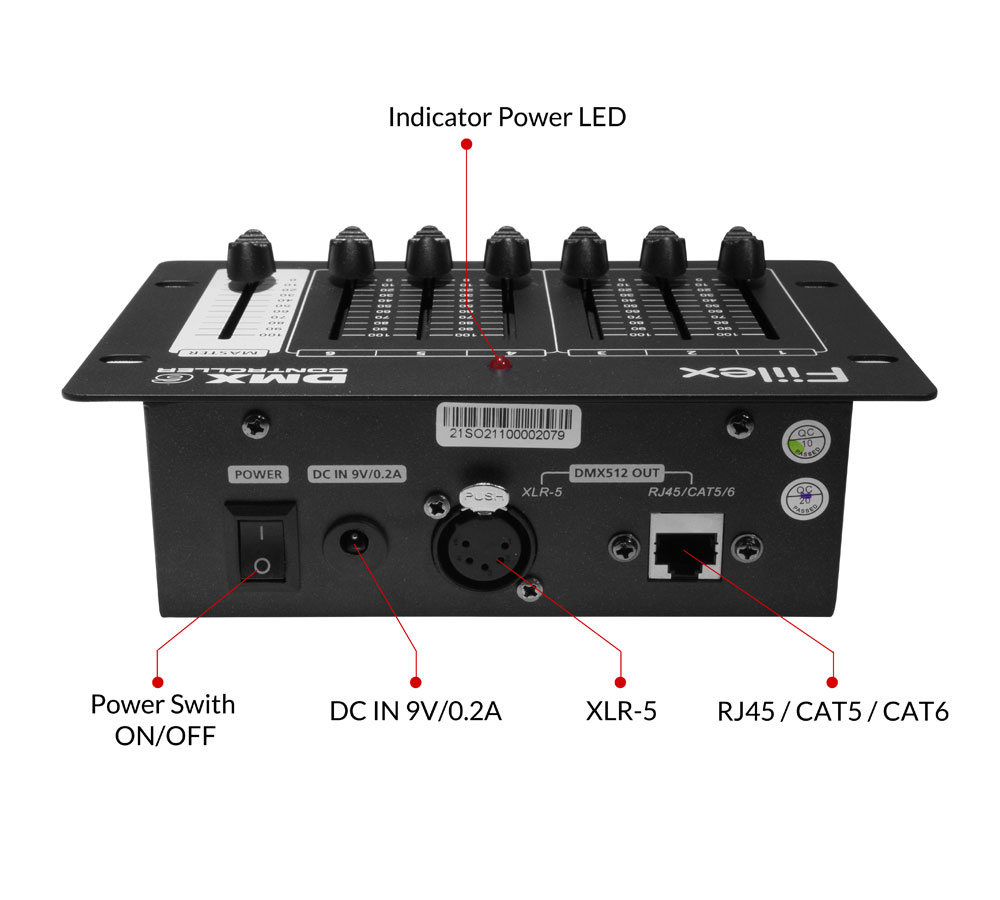

DMX output XLR-5 / RJ45 / CAT5 / CAT6
Power DC IN 9V/0.2A
Size 7” x 5.3” x 2.1” / 18cm x 13.5cm x 5.4cm
Weight 1.68lbs / 0.76kg
Material Steel Electrolytic Cold Commercial
Indicators Power Red LED
Separator

Items Included

Fiilex DMX 6 Channel Controller
(1) DMX 6 Channel Controller
Fiilex DMX 6 Channel Controller

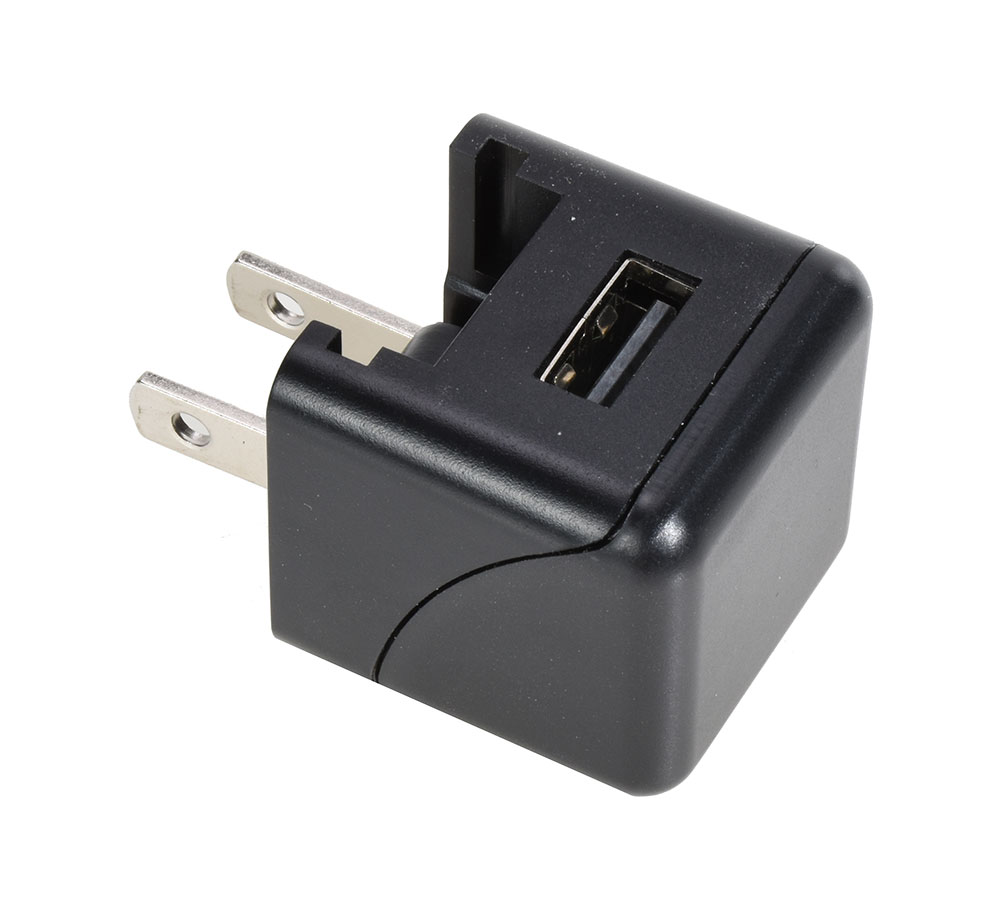

(1) 5V/1A Power Adapter
Fiilex DMX 6 Channel Controller

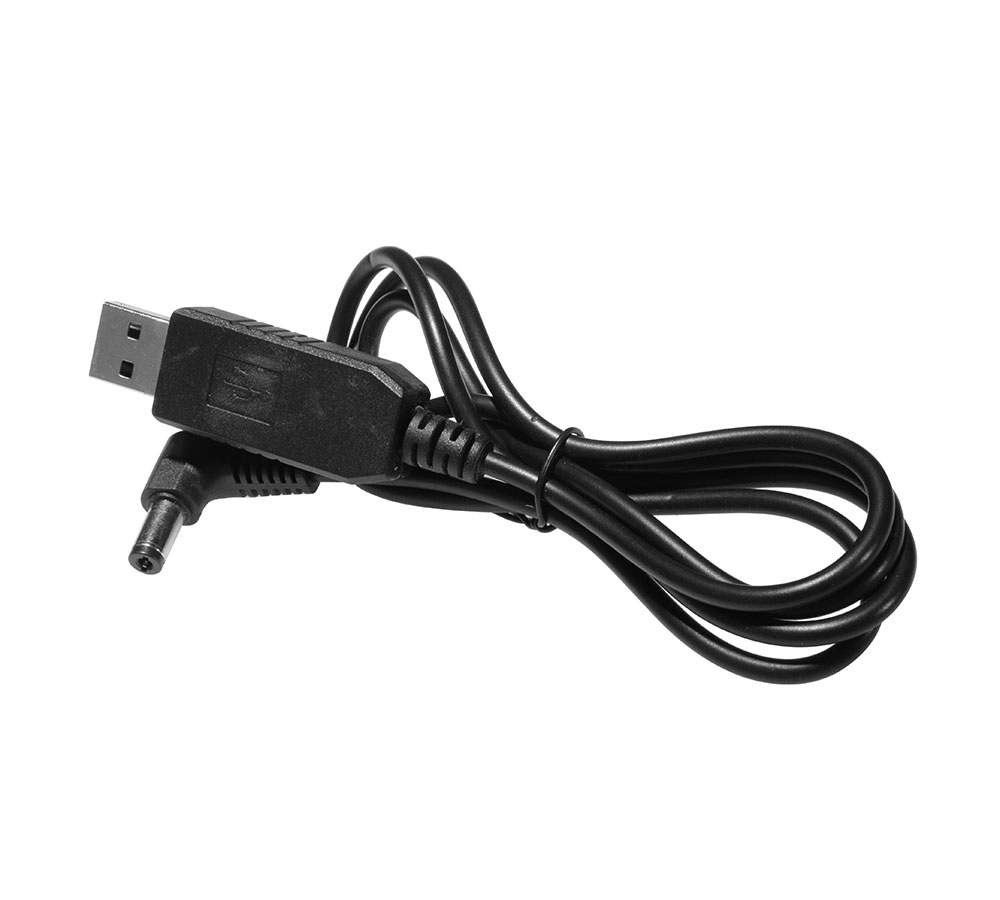

(1) USB Power Boost Line DC 5V to DC 9V


Compatible with

Fiilex P3X Spot Light
P3X Spot Light
Fiilex P3S Spot Light
P3S Spot Light
Fiilex P3W Wash Light
P3W Wash Light
Fiilex P3F Fresnel Light
P3F Fresnel Light
Fiilex P3L Ellipsoidal Light
P3L Ellipsoidal Light

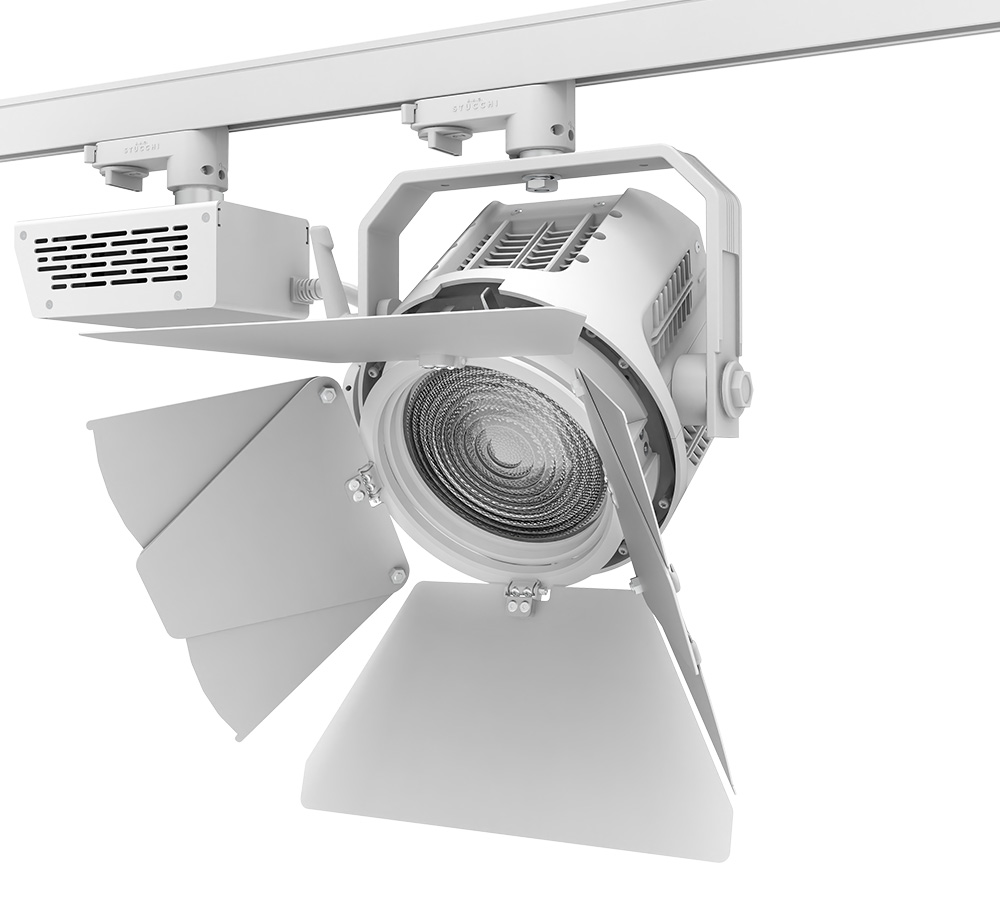

Fiilex P5F Fresnel Light
P5F Fresnel Light
Fiilex P5L Ellipsoidal Light
P5L Ellipsoidal Light
