SPECIFICATIONS

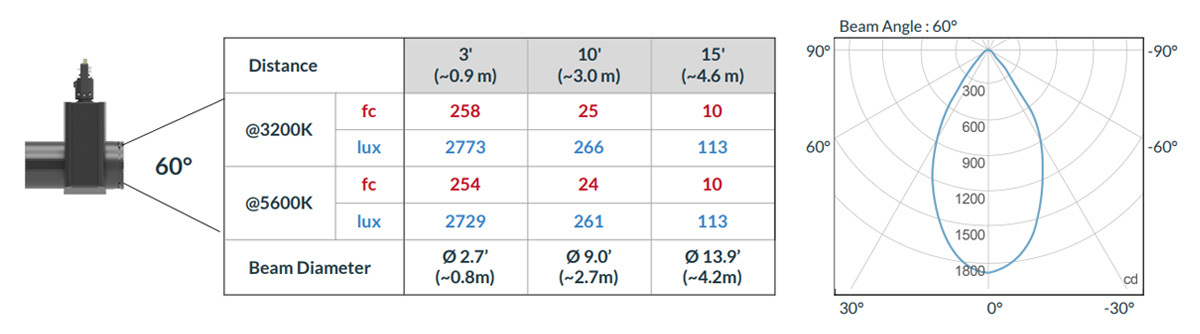

Beam Angle	60°
CRI/TLCI	95/90 typical
Dimming	100% - 0% flicker free
AC Power Draw	40W max
AC Input	100 - 240V AC, 50 - 60Hz
Remote Control	Manual, DMX 512
Cooling	Passive Cooling
Acoustic Noise	0 dBA (none)
Operating Temp.	32 - 104ºF (0 - 40ºC)
Weight (Fixture + Power Supply)	4.4lb / 2.0kg (PSP / PSV Type), 4.0lb / 1.8kg (PST / PSM Type)
Clamp Type DMX Input	XLR5 Male and Female via TRRS Adapter (Included)

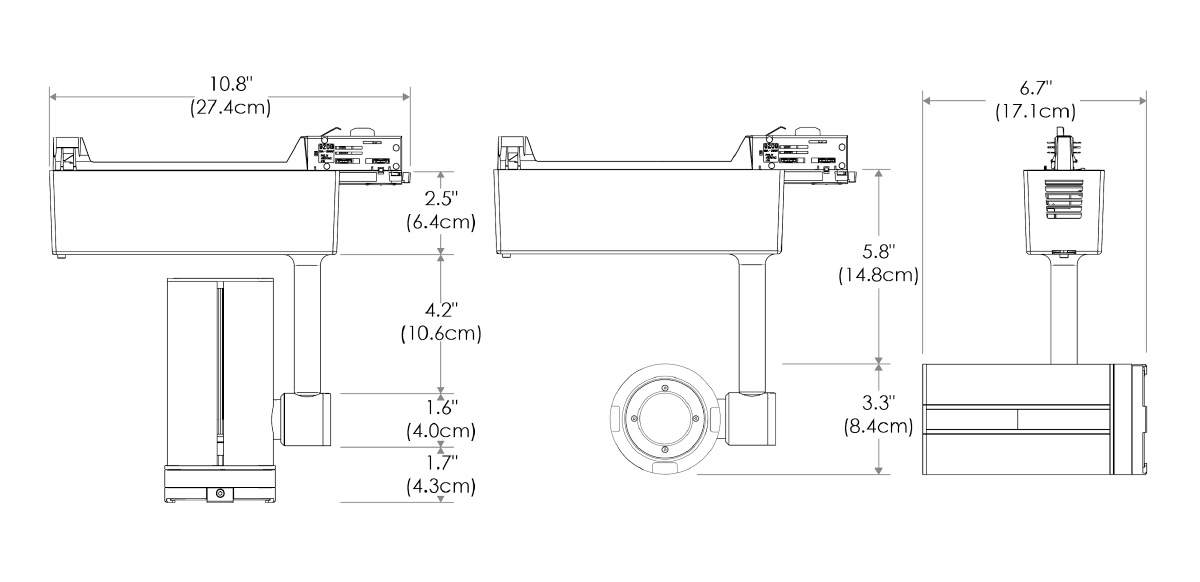

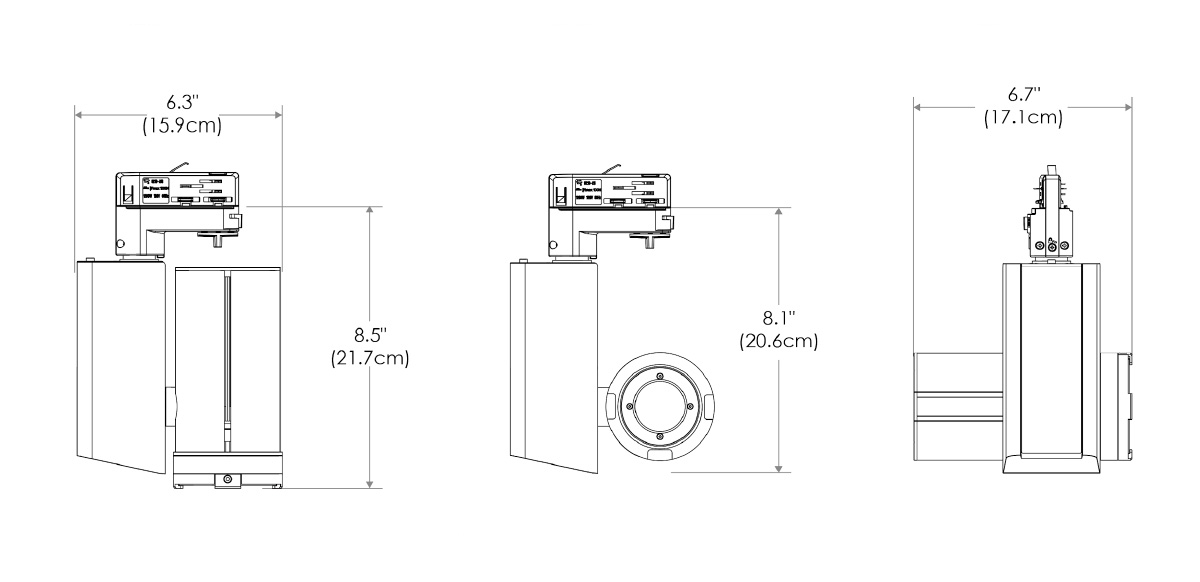

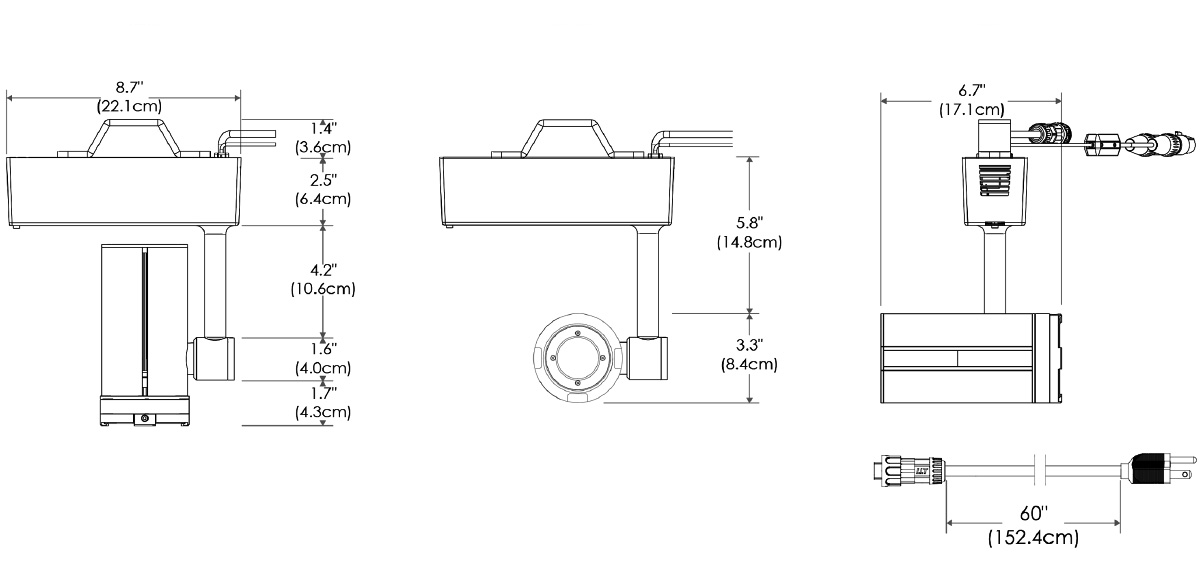

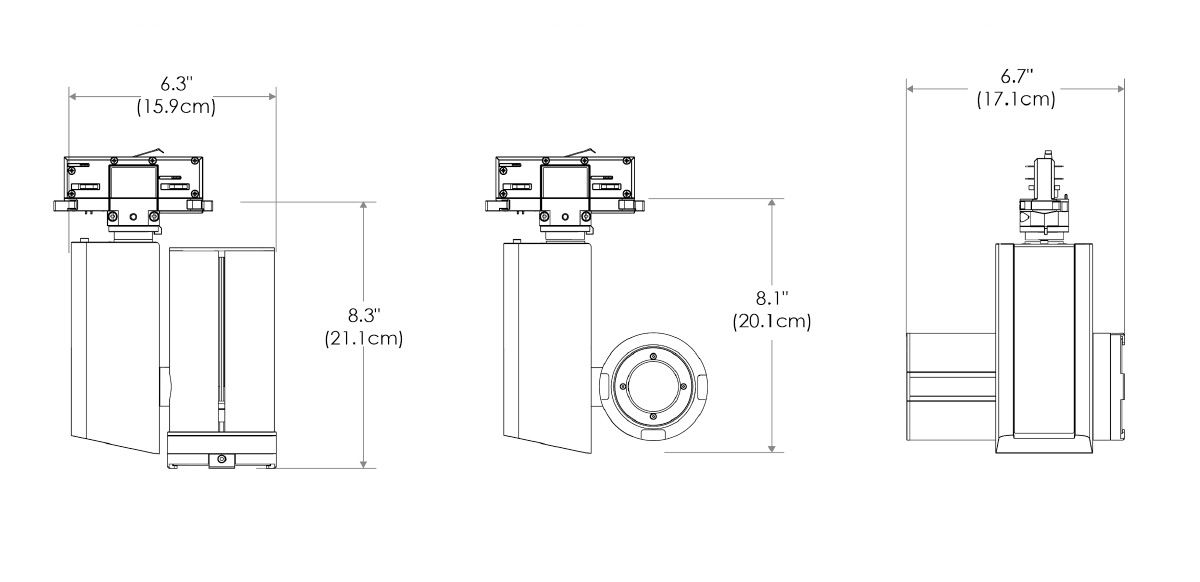

MECHANICAL FIGURES

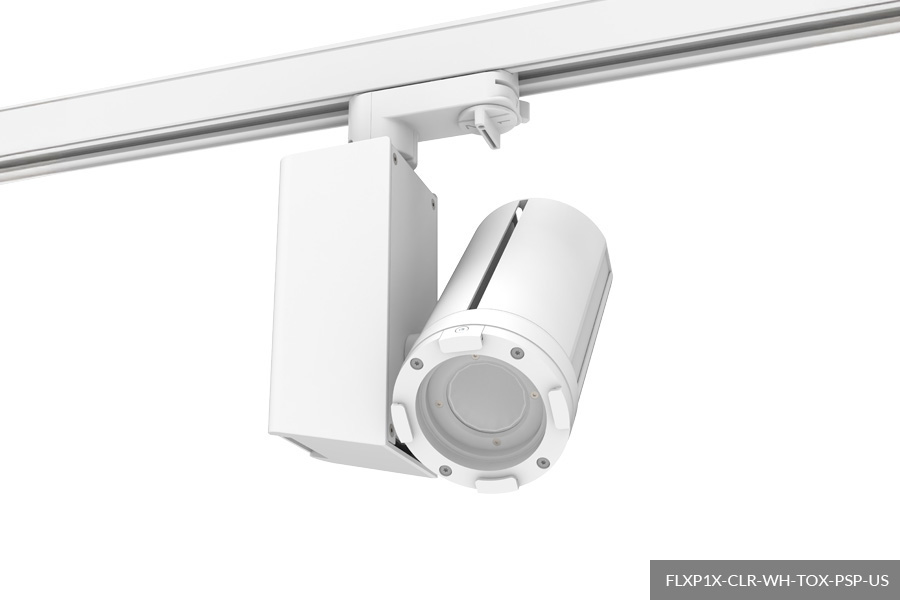

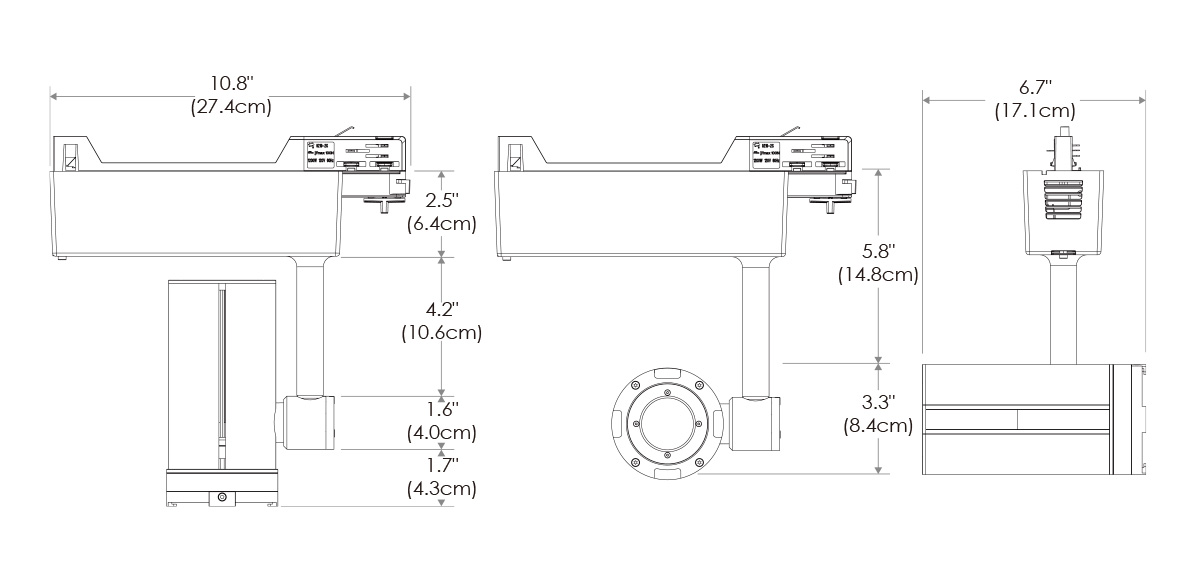

P1X (Track)

PSP

PSP

PST

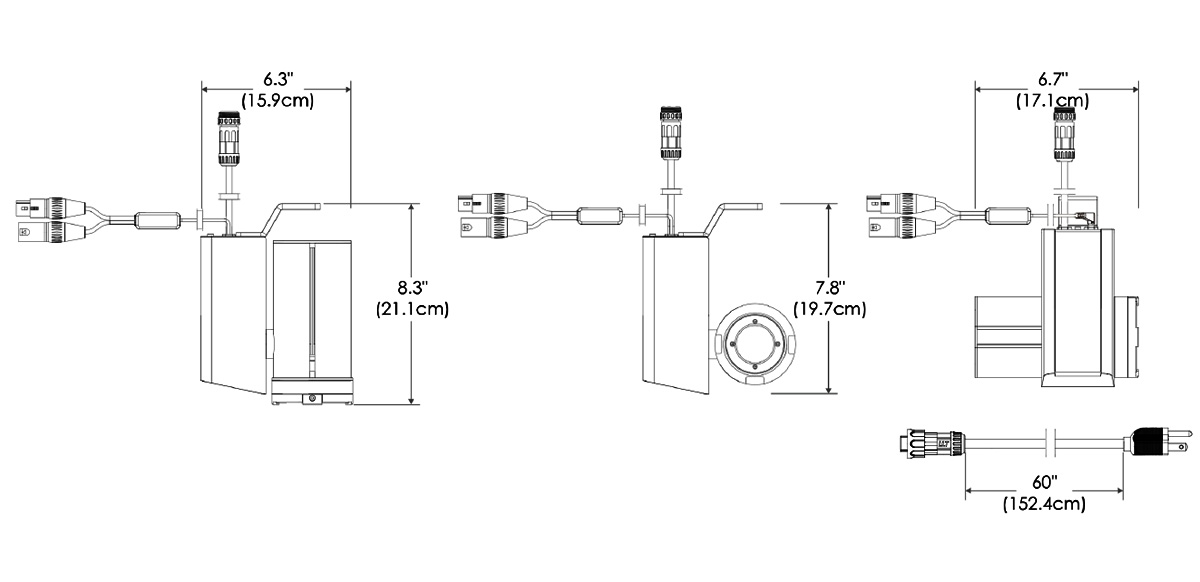

P1X (Clamp)

PSV

PST

*All -CLP configuration models come with standard DC cables of 16" and AC cables of 5'.

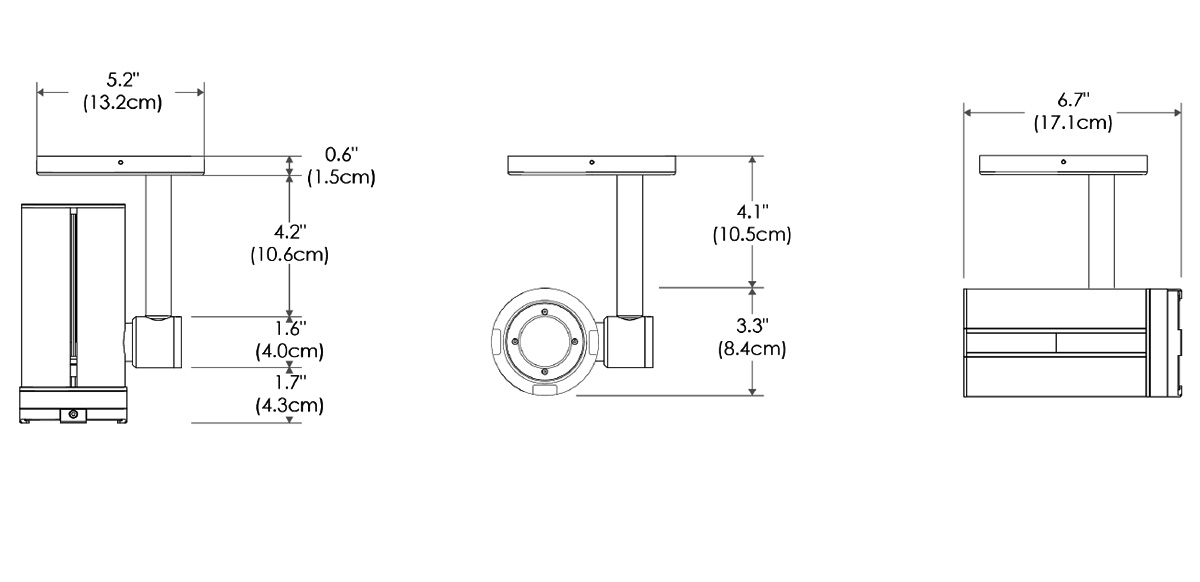

PSM

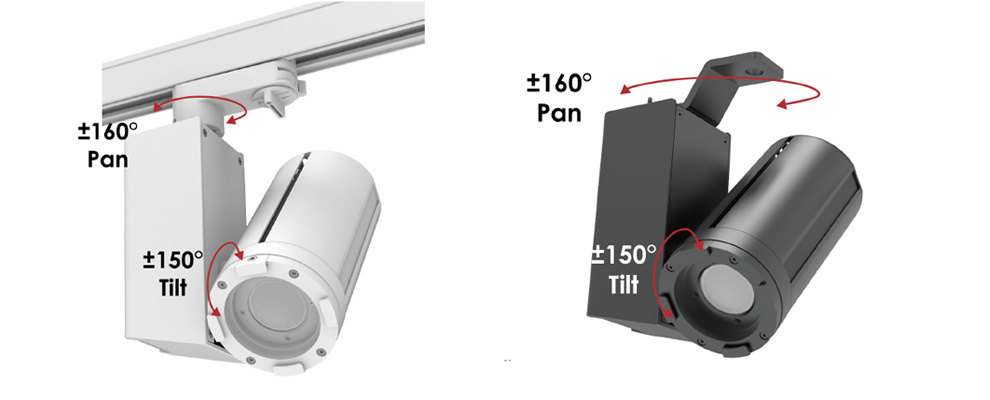

TILT/ROTATION

ITEMS INCLUDED

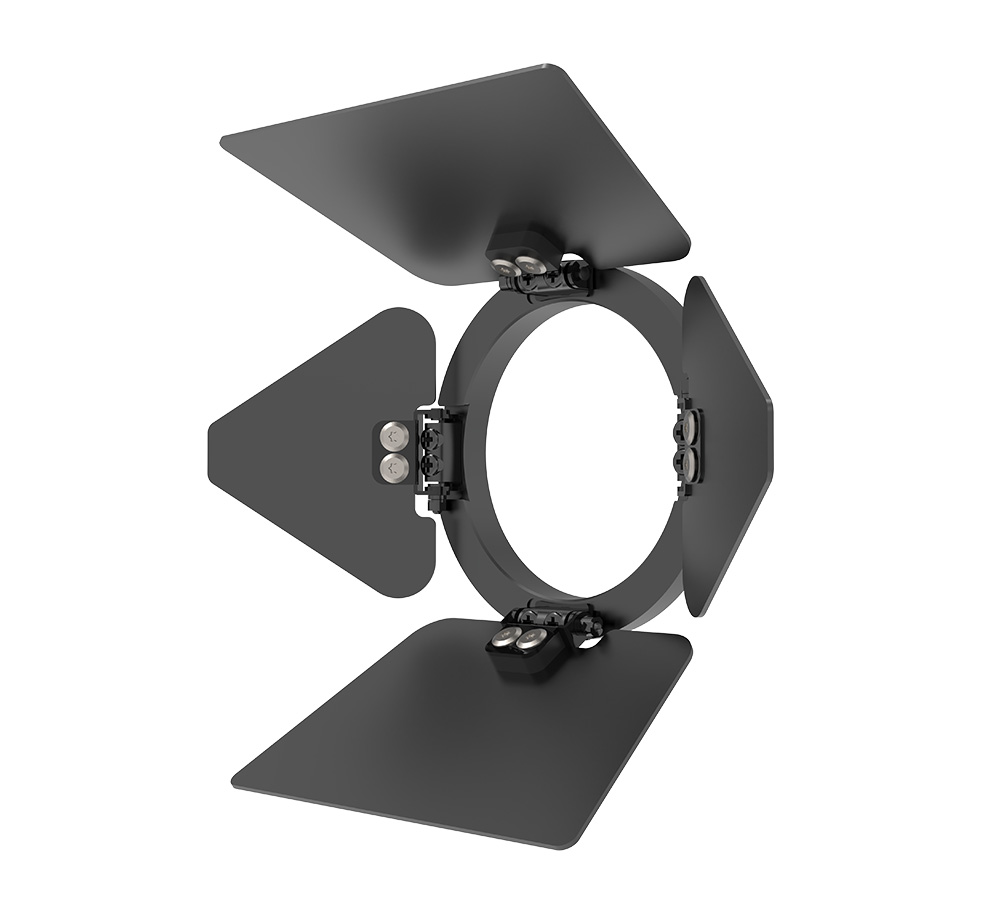

ACCESSORIES
