400W LED Ellipsoidal

400W Cinema-Grade Full-Color Ellipsoidal Light
360° Rotating Barrel
Razor-Sharp Cuts
19°, 36° Lens Tube Options

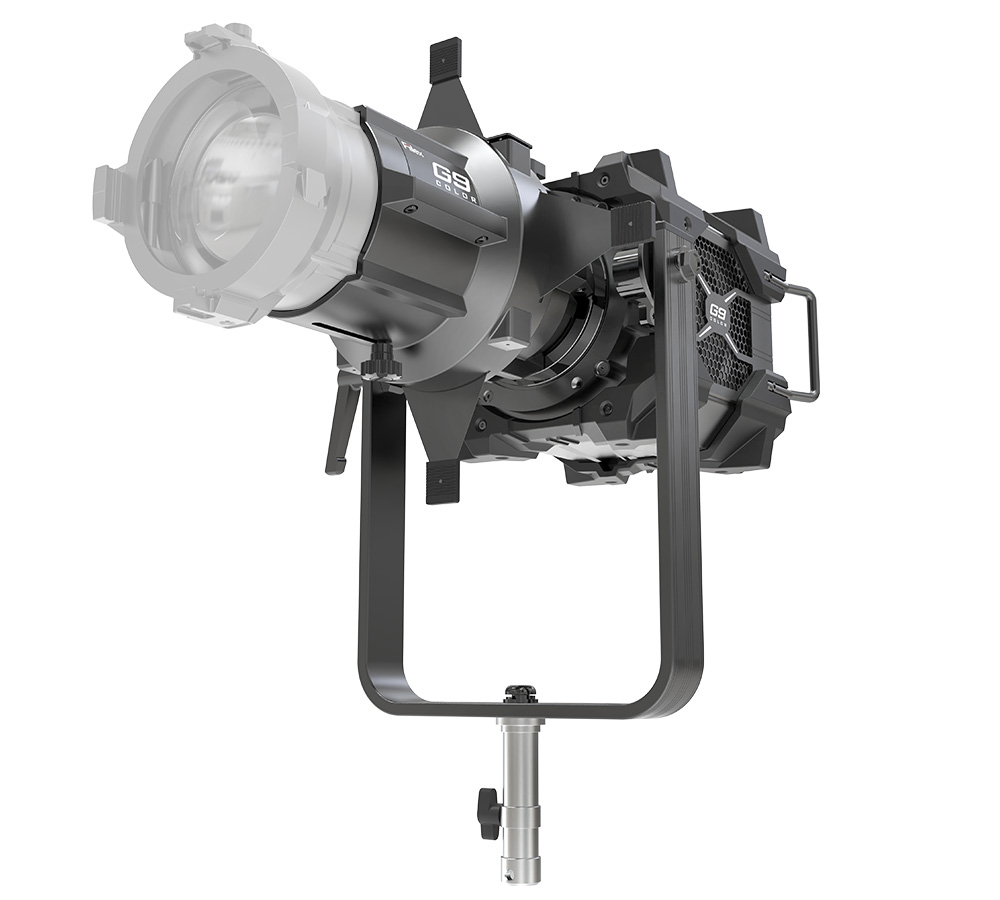

Fiilex G9 COLOR

The G9 COLOR is a cinema-grade 400W full-color ellipsoidal featuring razor-sharp cuts and a distinctive 360-degree rotating barrel. Its 19° and 36° lens tubes deliver a bright, even beam with no color fringing. At its core is Fiilex’s patented Dense Matrix LED, engineered for exceptional dimming performance and precise color calibration. The G9 ellipsoidal offers complete creative control and can be mounted or concealed easily on any production set.

Request More Info



All fields are required for submitting this request


Name*
Email*
Phone*
City*
State/Province*
Country*
You are interested in Fiilex products, because you are *
Comments*

Experience with Fiilex, Affiliations (Local 728/479/52/873/600 etc), Upcoming Projects.

0 characters entered / Maximum 500 characters.


Enter the displayed 6-character code in the box below
(6 characters, no space in between, not case sensitive.)


Request Product Info: G9 COLOR

The above information was sent successfully!

Separator

FIXTURES & KITS

Fiilex G9 COLOR
FLXG9CLR
Separator

ACCESSORIES

Fiilex Leko Lens Tube 19deg
FLXG9CLR-LEKO19
Fiilex Leko Lens Tube 36deg
FLXG9CLR-LEKO36
Fiilex Leko Gobo Holder
FLXG9CLR-GOBOHOLDER
Fiilex Leko Gobo Set of 4
FLXG9CLR-GOBOSET
Fiilex Leko Iris
FLXG9CLR-IRIS
Fiilex Fiilex Remote Patcher Utility
FLXRPU
Separator

SPECIFICATIONS

Beam Angle19° / 36° lens tube
CCT Range2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming100 - 0% flicker free
Dimming Modes / CurveSmooth, Sharp / Linear, Gamma
Light EngineDiCon Dense Matrix LED
Power Consumption400W max AC | 380W max DC
BTUs/hour1364 (BTUs/hour) max
DC Input48V DC (via XLR-3)
AC Input100 - 240V AC, 50 ~ 60Hz
DMX/RDM PortXLR-5
Wireless Control Integrated LumenRadio CRMX TimoTwo
USB Power Output5V/1A (via USB-A)
Weight with 19°/26°/36°/50° lens tubeFixture: 26.2 lbs / 11.9 kg (With 19° lens tube)
Weight with 10° lens tubeFixture: 14.3 lbs / 6.5 kg (With 19° lens tube)
Size (L x W x H)
19° lens tube
24.2" x 12.8" x 20.6" / 61.5cm x 32.5cm x 52.4cm
Mount TypeCombo (baby stud female / junior stud male)
IP RatingIP-X5 (water-resistant)
Thermal DesignControllable fan
Operating Temperature0-40°C / 32-104°F
GoBo Size B Size (Diameter 86mm / Max Image: 64.5mm / Max Thickness: 1mm)
